CONTEC "Xeta Max" rims

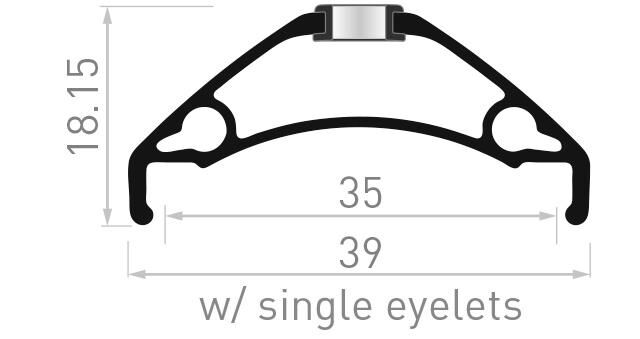

35-622, 604 mm ERD (incl. spoke holes measured), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 674 g
- Article number: 03498165
- Original number: 3123R32AB0
29", 32 hole, tubeless ready, black
aluminum, hollow chamber
single eyelet, SV, max. load up to 150 kg system weight, max. spoke tension 1200 Nm, suitable for e-bikes, for Disc Brakes
Product information
- Brake compatibility disc
- Design doublewall
- ETRTO 35-622
- For wheel yes
- Height 18.0 cm
- Hole 32 holes
- Main colour black
- Spoke Hole easy eyelets
- Text wheel configurator suitable for E-bike
- Type Article
- Wheel size 29 "
- Width 39.0 cm
- Supplier Article Number: 3123R32AB0
- EAN: 4251971141131
- MSRP: €39.95
- Bidex-Code: 204010
- Fedas-Code: 160464
- DST-Code: 2P02
- SB-Article: No
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight: 0.635 kg
The ideal basis for building a tubeless-ready Wheel for 29" wheels with 32 Spokes. Thanks to the hollow chamber design, the Xeta Max rims made of 6063 aluminum are particularly light and stable. In the finished Wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 35 mm, tires ranging in size from 60 to 75 mm fit on the rim. The single eyeletted nipple holes ensure additional durability of the rim by reducing the friction between the Spoke Nipple and the rim and also prevent the Nipples from working their way into the rim. The Xeta Max rim is only suitable for wheels with disc brakes. You can find suitable tubeless rim tapes in our CONTEC range.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 25-622, 608 mm ERD (measured incl. spoke holes), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 569 g Read more Read less
| ||
 30-622, 604 mm ERD (incl. spoke holes measured), 18.15 mm high, 30 mm inner width, 34 mm outer width, approx. 616 g Read more Read less
| ||
 35-622, 604 mm ERD (incl. spoke holes measured), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 674 g Read more Read less
|
