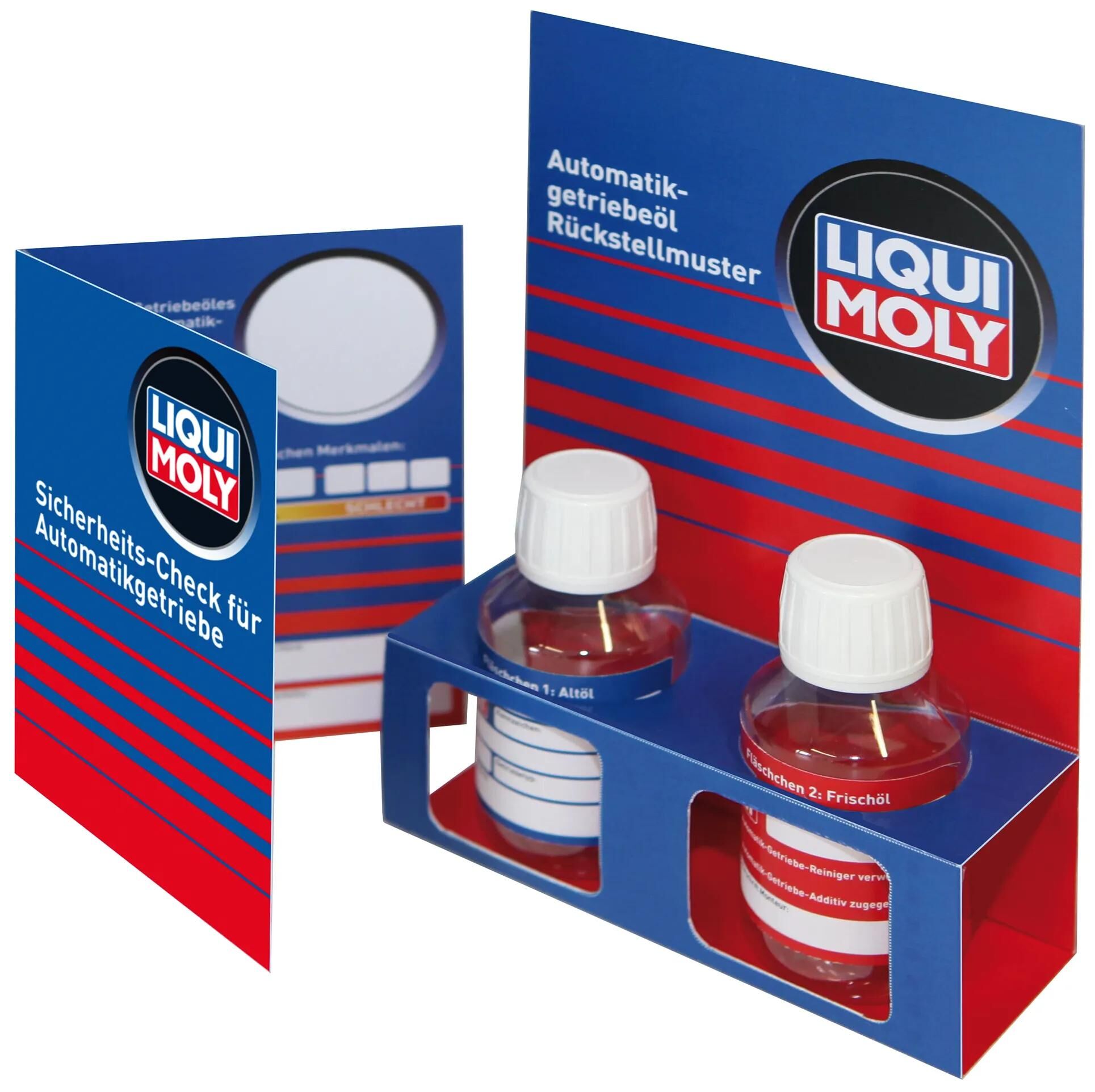

to test the oil quality during transmission oil change
Automatic transmissions are subject to very high loads and are placed under extreme stress. That is why many automatic transmissions are cooled in the engine's cooling system. No coolant must be allowed to get into the transmission oil, otherwise the transmission will be damaged. The test system indicates if there is water in the oil.

suitable for transmission oil changing device "Gear Tronic" (#6.69 14 43/3)

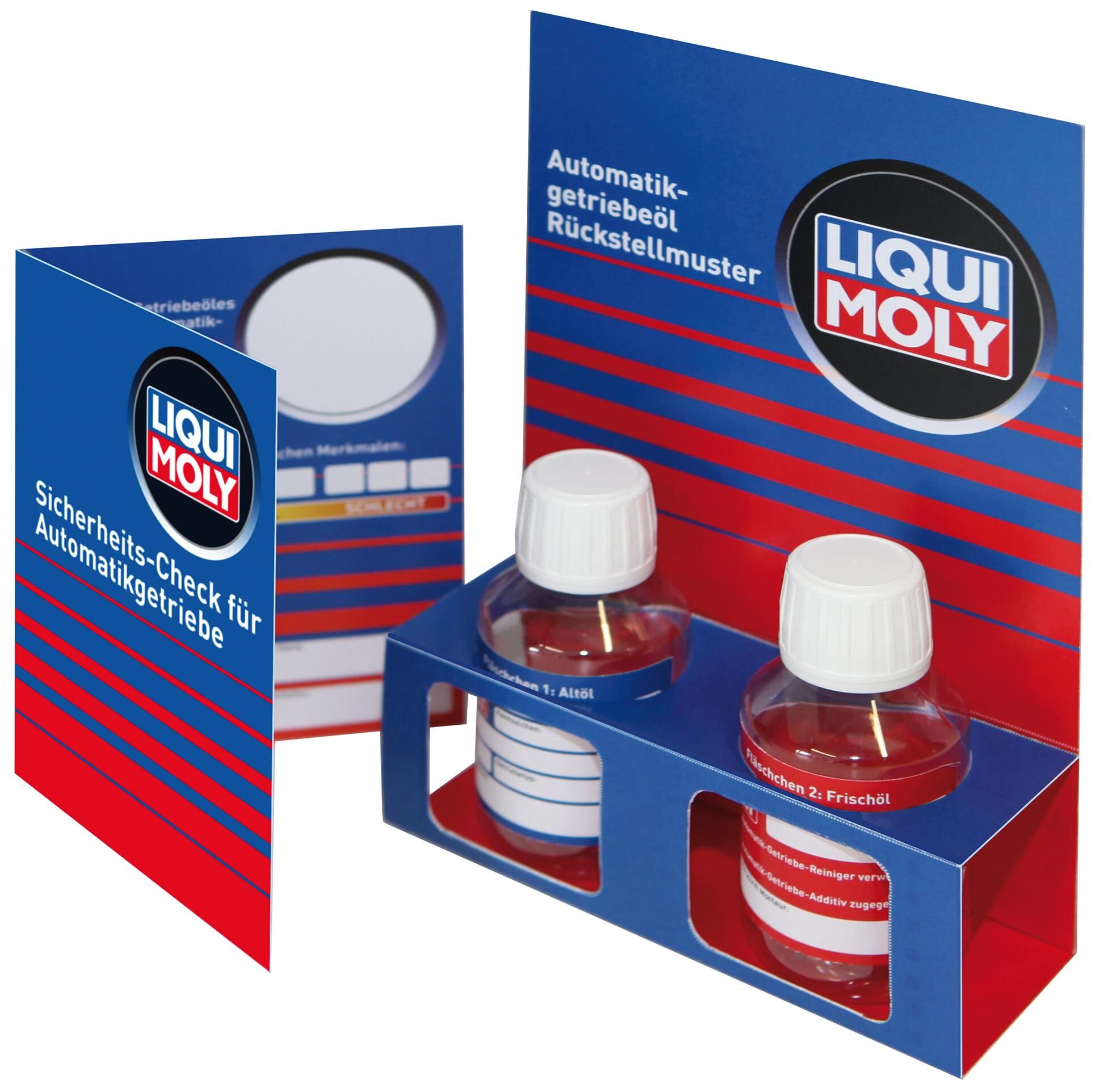

glykol test for automatic transmissions

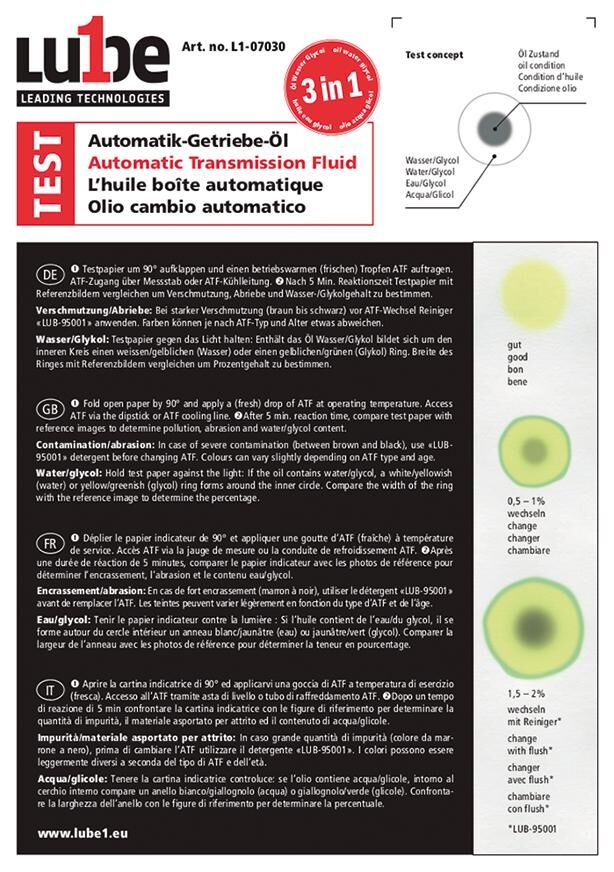

The test card diagnoses each ATF within minutes and shows how badly it is contaminated. A color index helps to indicate the state of the ATFs to show the customer if a change is necessary.

Application: Simply put a drop of ATF oil to the test field of the test card so that it can absorb the oil (either from the clean oil dipstick, or in the case of closed systems, open the ATF cooler line). After 60 seconds you can compare the test stripe to the authoritative pictures. To determine the glycol content in percent, select the color that comes to your result

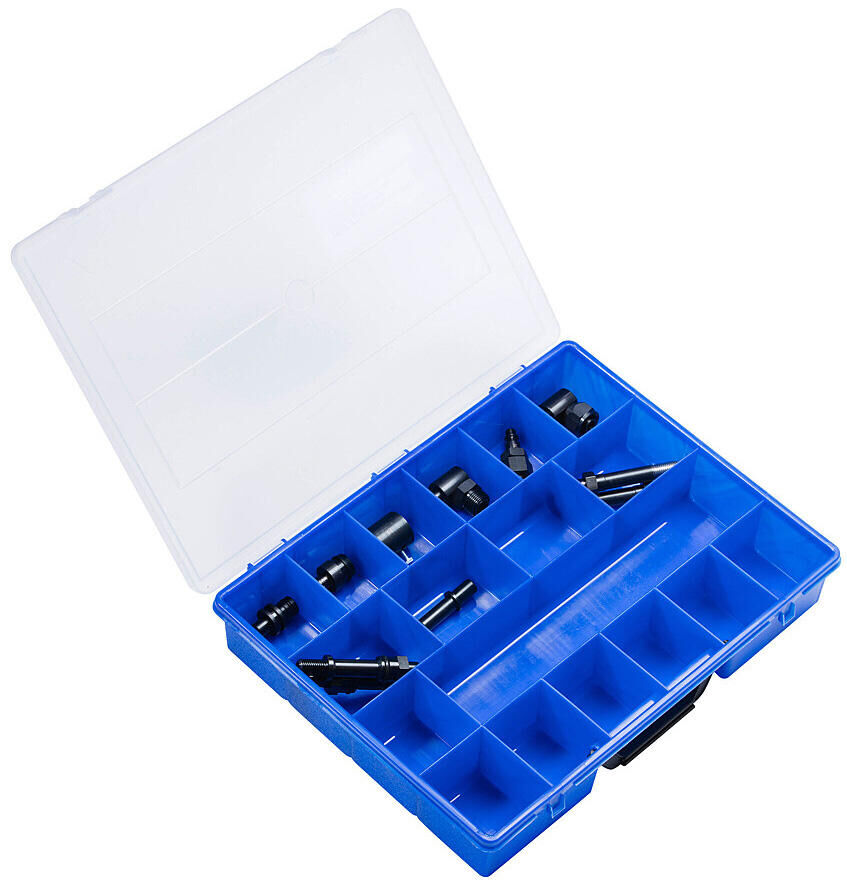

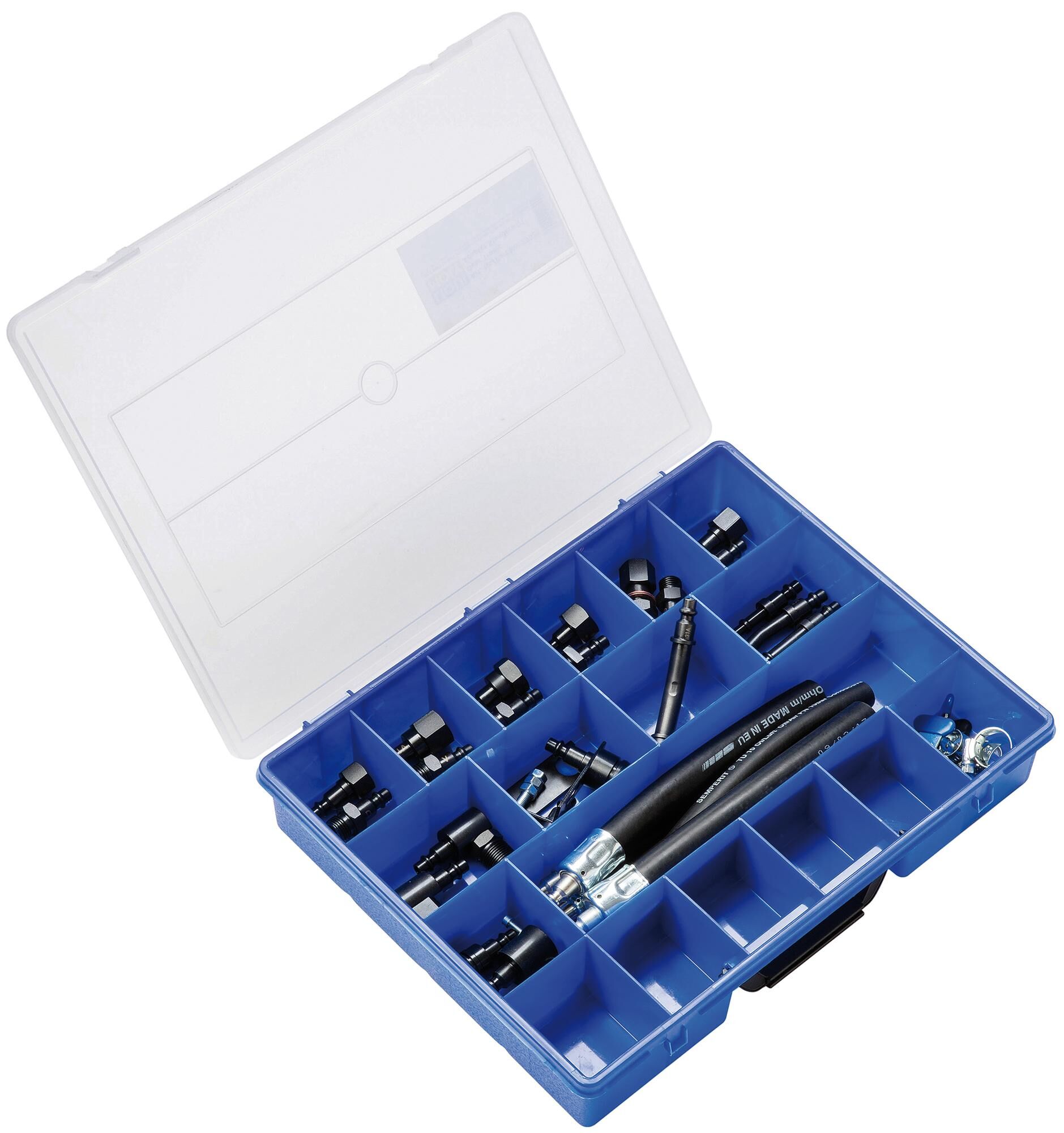

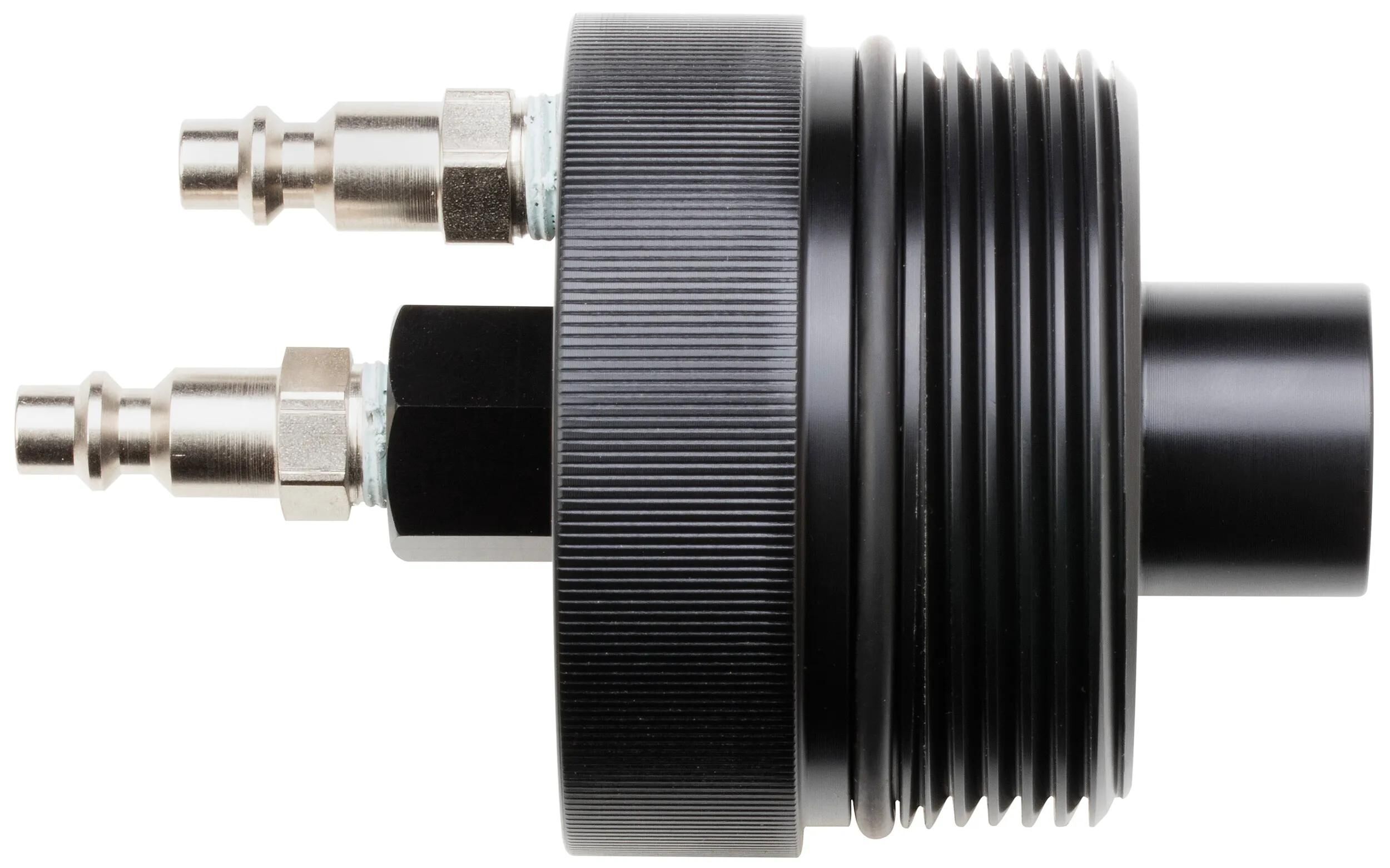

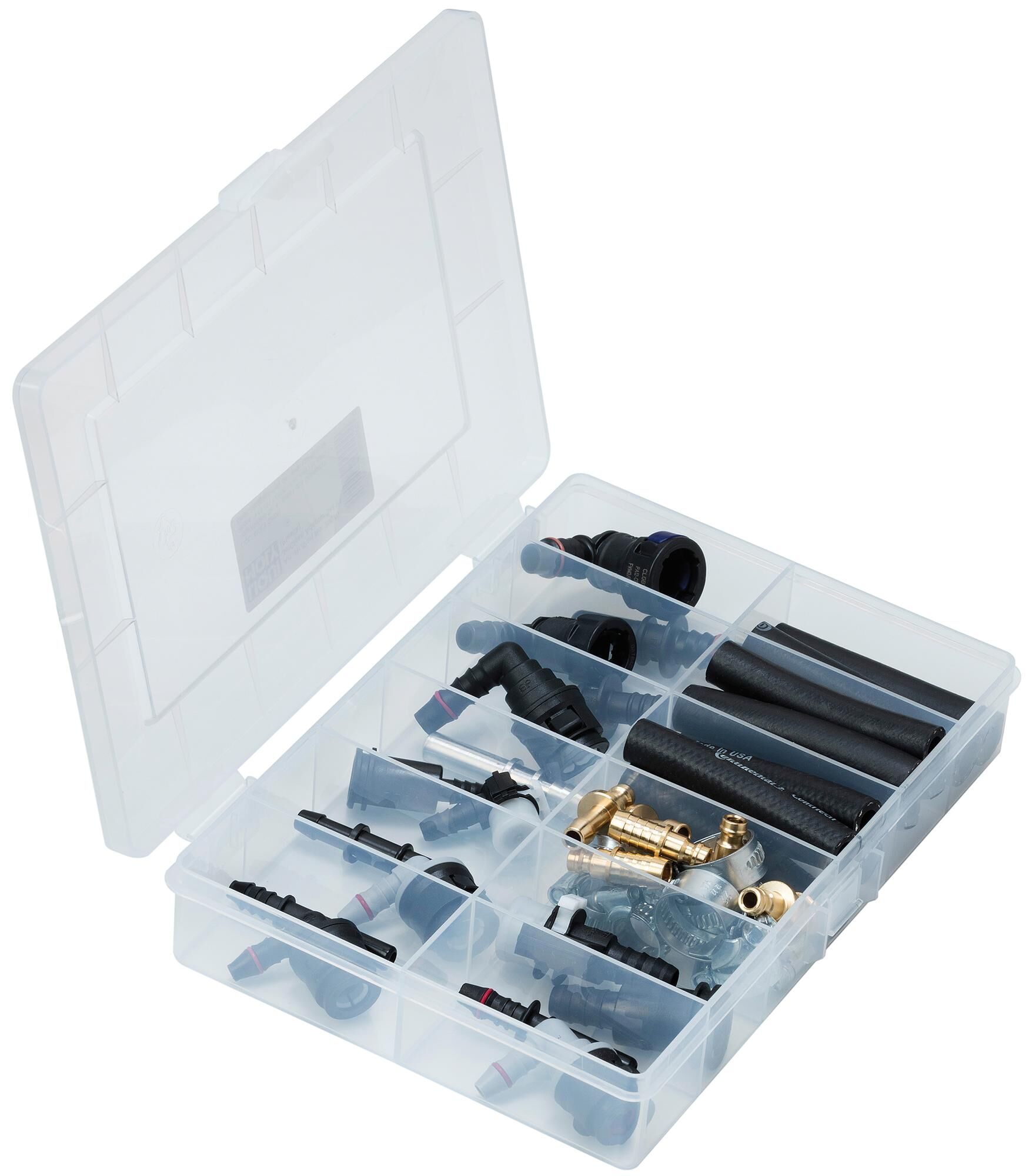

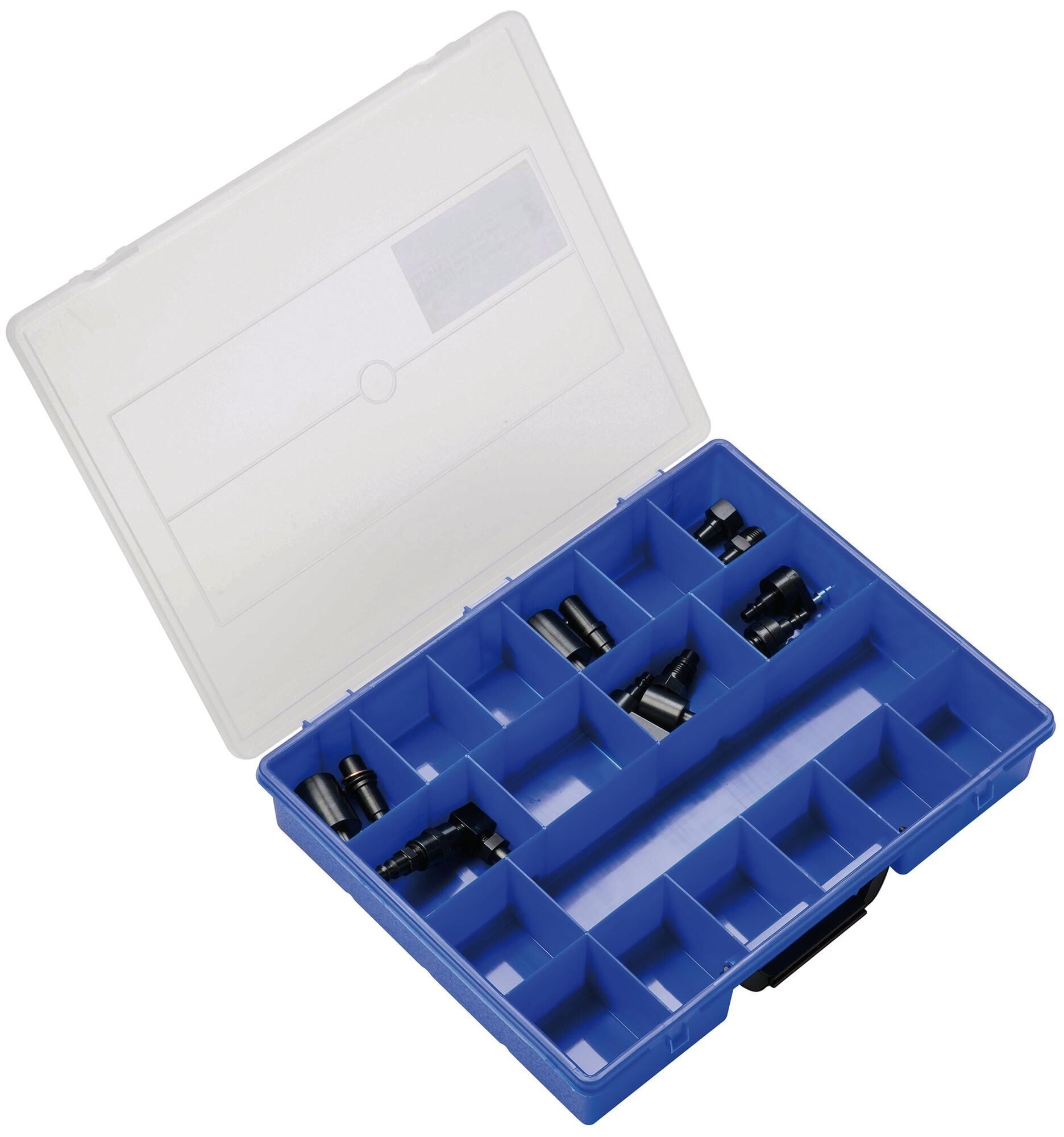

suitable for Gear Tronic II (6.69 14 43/3), for connecting the device to the respective gear types

oil filling device for automatic transmissions, manual operating, incl. adapter set
easy and accurate filling of the automatic transmission, with integrated return flow, for 7,5l automatic transmission oil

For manual or pneumatic automatic transmission oil filling
Tank volume 12.5 liters, pressure up to 2.5 psi possible, with bend protection in the filling hoses, incl. 10-piece adapter set for Audi, BMW, Ford, Honda, Lexus, Mazda, Mercedes-Benz, Nissan, Porsche, Seat, Skoda, Toyota, Volvo, VW in the dimensions: 1/8" NPT, 5/16" -24 UNF, M10 x 1.00, M12 x 1.50, M18 x 1.50, M22 x 1.50, M24 x 1.50

capacity: 7,5l, hose length: 1600mm, hose Ø 1/2", incl. 17 adapter
For transmissions with specially specified oils that cannot be filled with funnel or bottle and for which no filling device is available. With return function for transmissions with overflow filling opening (the transmission is filled with the pump, too much filled oil runs back into the tank of the filling system after the pump unit is switched over). Not suitable for solvents or fuels.

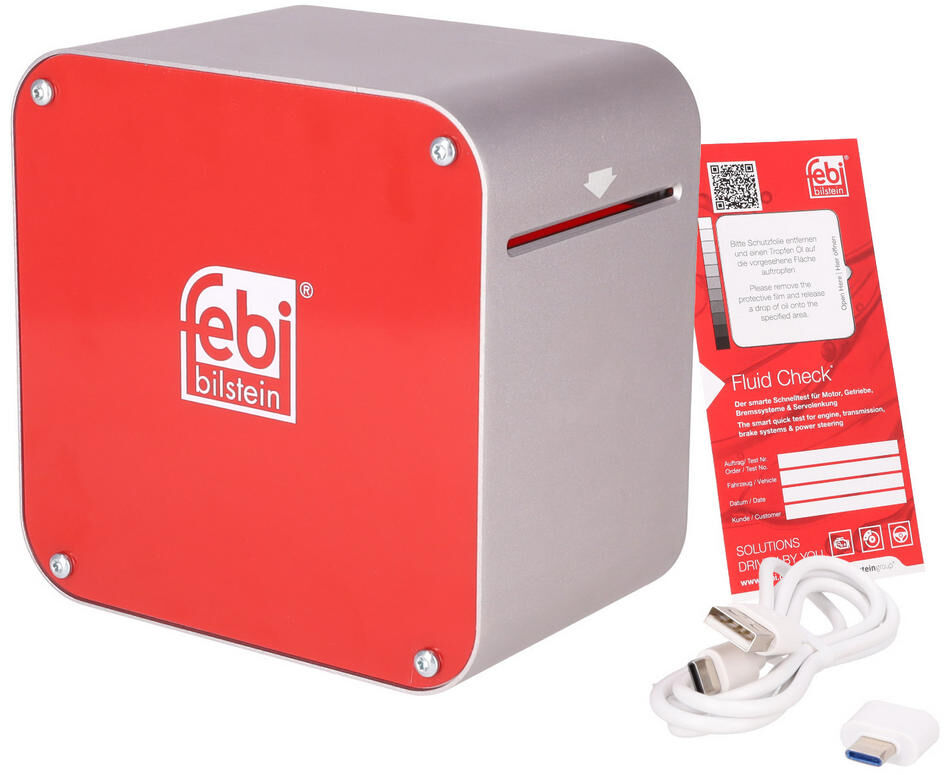

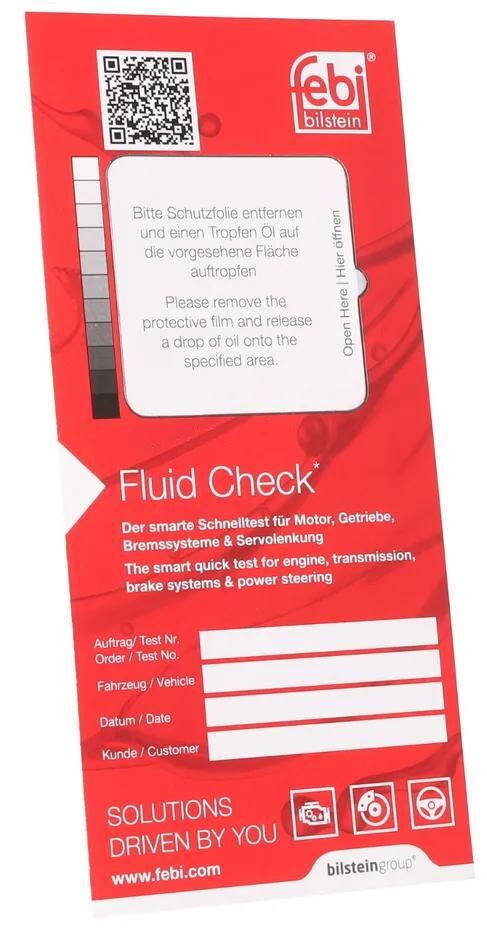

Digital testers for checking the oil quality of transmission, engine, steering and hydraulic oils
AI-based online diagnostic system for checking the engine for soot, coking and metal abrasion in the Oil. The system also checks whether there is condensation, cooling water and/or fuel in the Oil. Can also be used to check brake fluids.

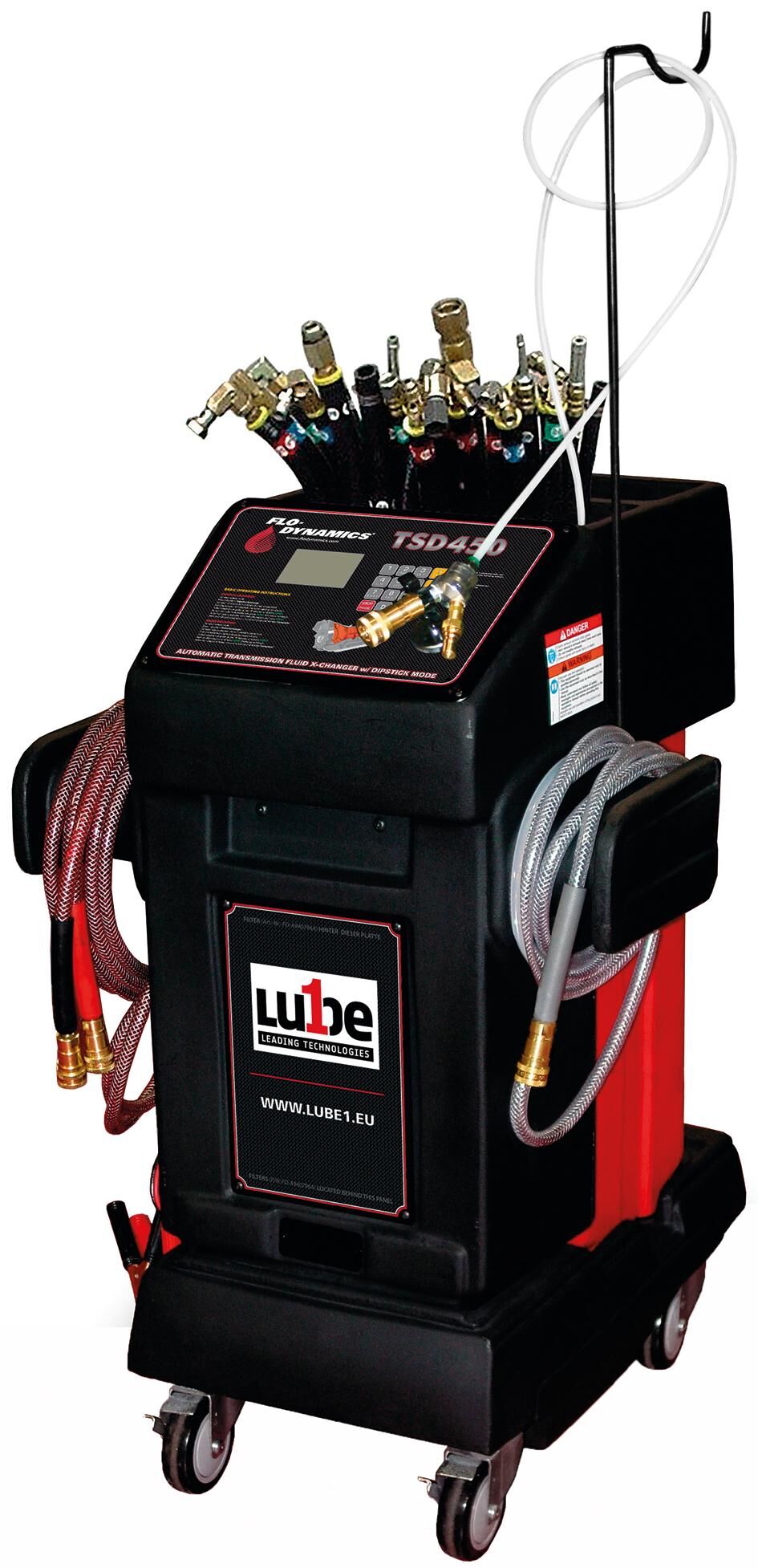

for automatic transmission, universal device, fully automatic
Replaces the total content of the used oil against fresh. The integrated cleaning program guarantees a thorough, very decent cleaning also with strongly dirty automatic transmissions without using the fresh oil. Suitable for open and closed systems. Change time for the original filling quantity approx. 10 min, the oil sump must not be removed. With each 23l fresh and used oil tank, LCD display, menu in 5 languages and a self-emptying function for the used oil tank. Power supply via 12V car battery
