for exhaust tester, DIN 4798, type C, pressureless
usable as connecting and vacuum hose, Vacuum hose for control purposes in motor vehicles and as a fuel hose for two-wheeled vehicles. May be installed in the tank according to the manufacturer, NBR hose core, color: black, temperature resistant till 70°C (short-term till 90°C)
Note: Not suitable for biodiesel and rapeseed oil!

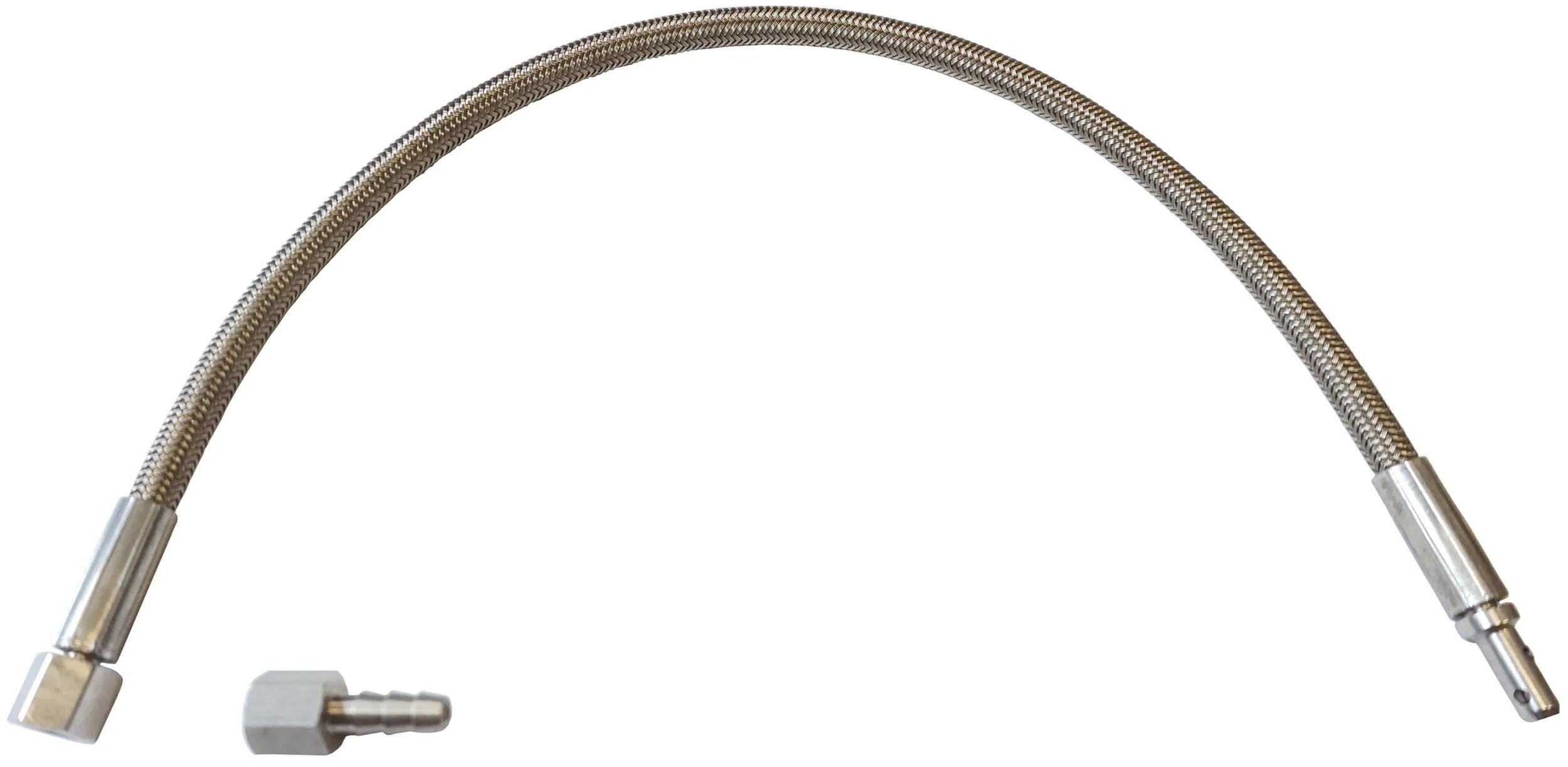

for exhaust gas measuring devices

suitable for "mega compaa GM3 and HG4"

for Global Diagnostic System

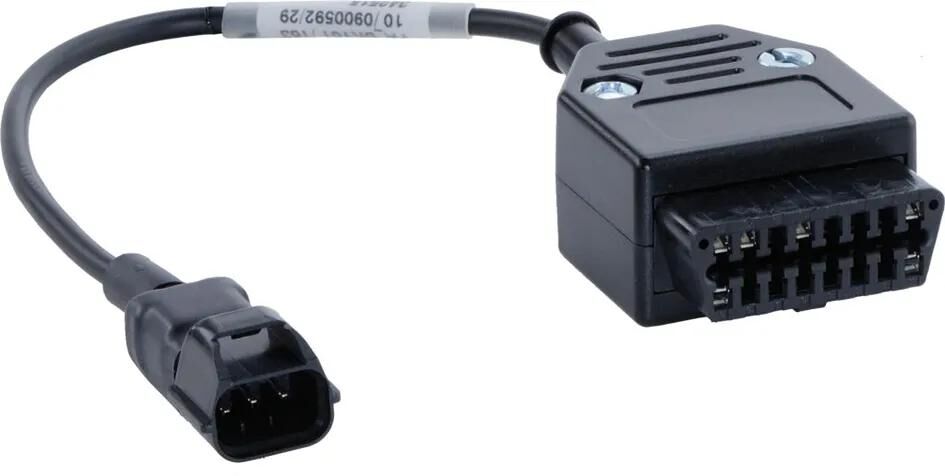

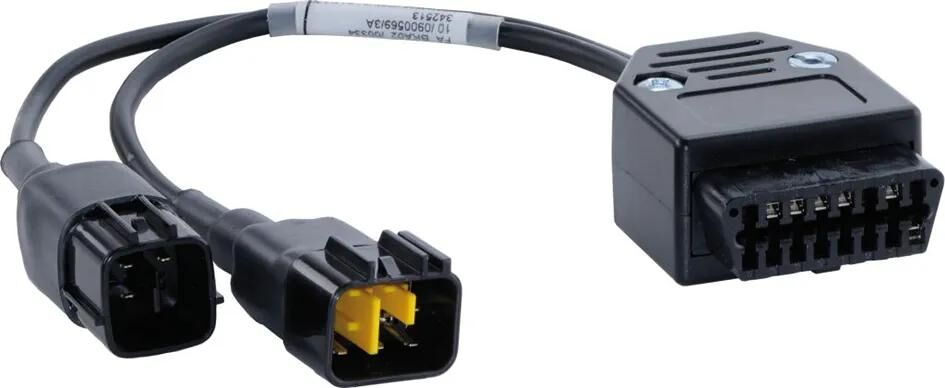

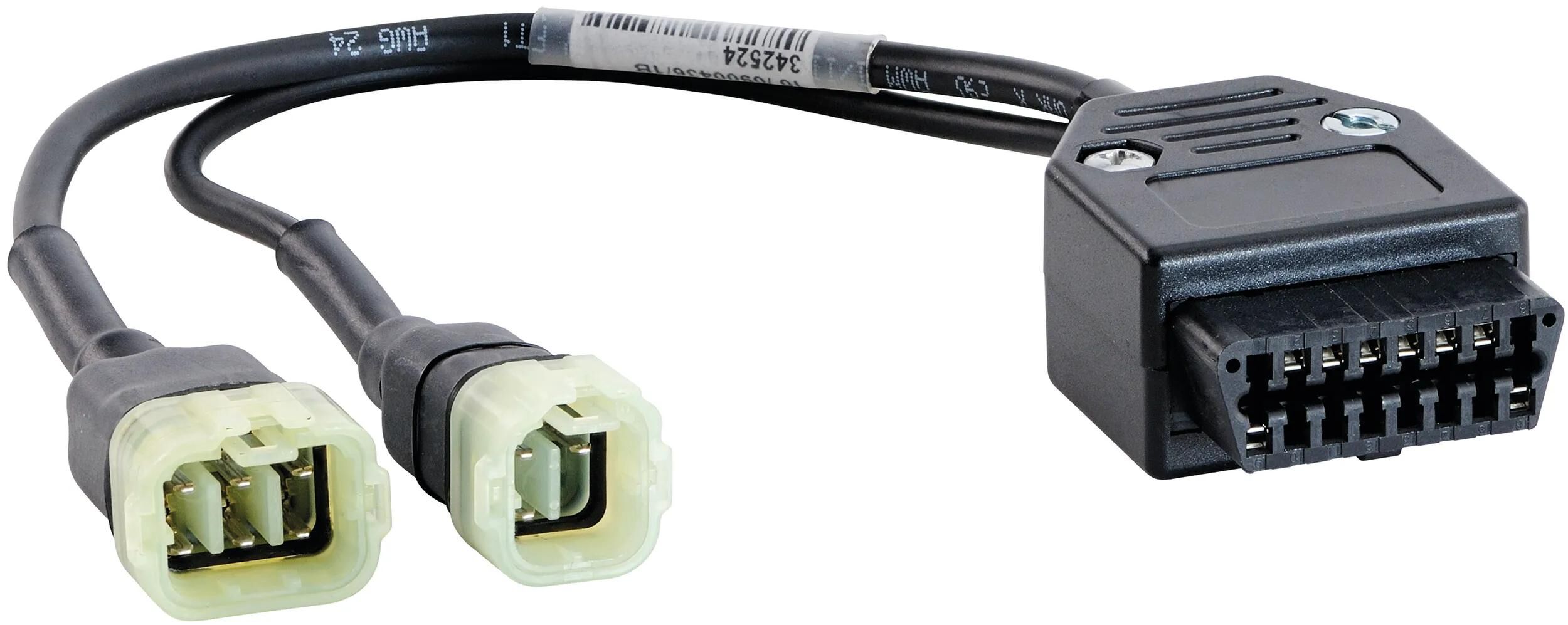

adapter plug Bike mega macs PC Bike, 42 SE Bike and 56, 66, 77

diagnostics and service solution for independent workshops, diagnosis on demand

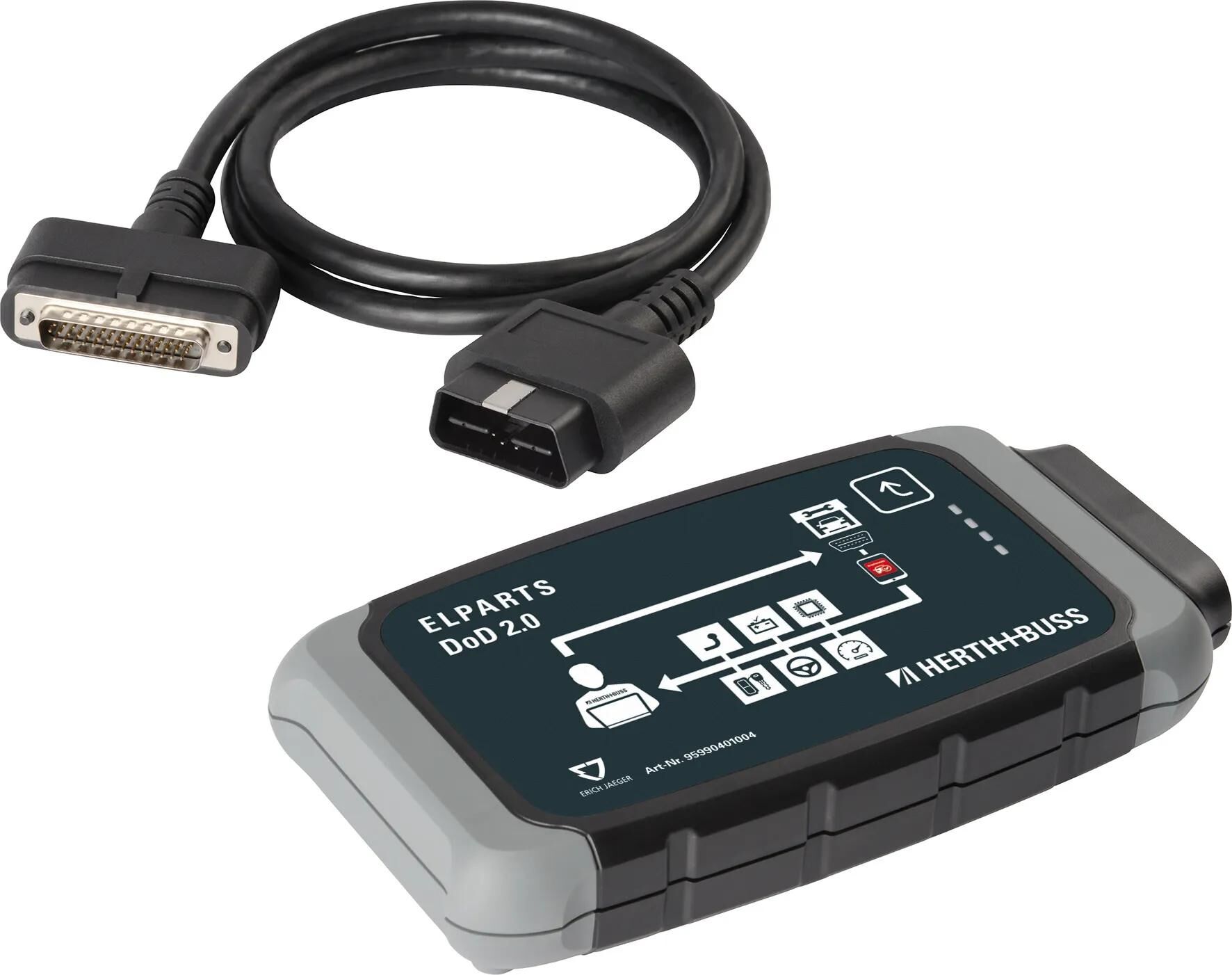

With this device, dealers and workshops have the possibility to easily program or code vehicle control units after replacement or retrofitting of, for example, trailer couplings or other accessories. Furthermore, a diagnosis of complex errors in the vehicle electronics, even across brands, is possible.

suitable for "mega compaa GM3", AU fuel engine

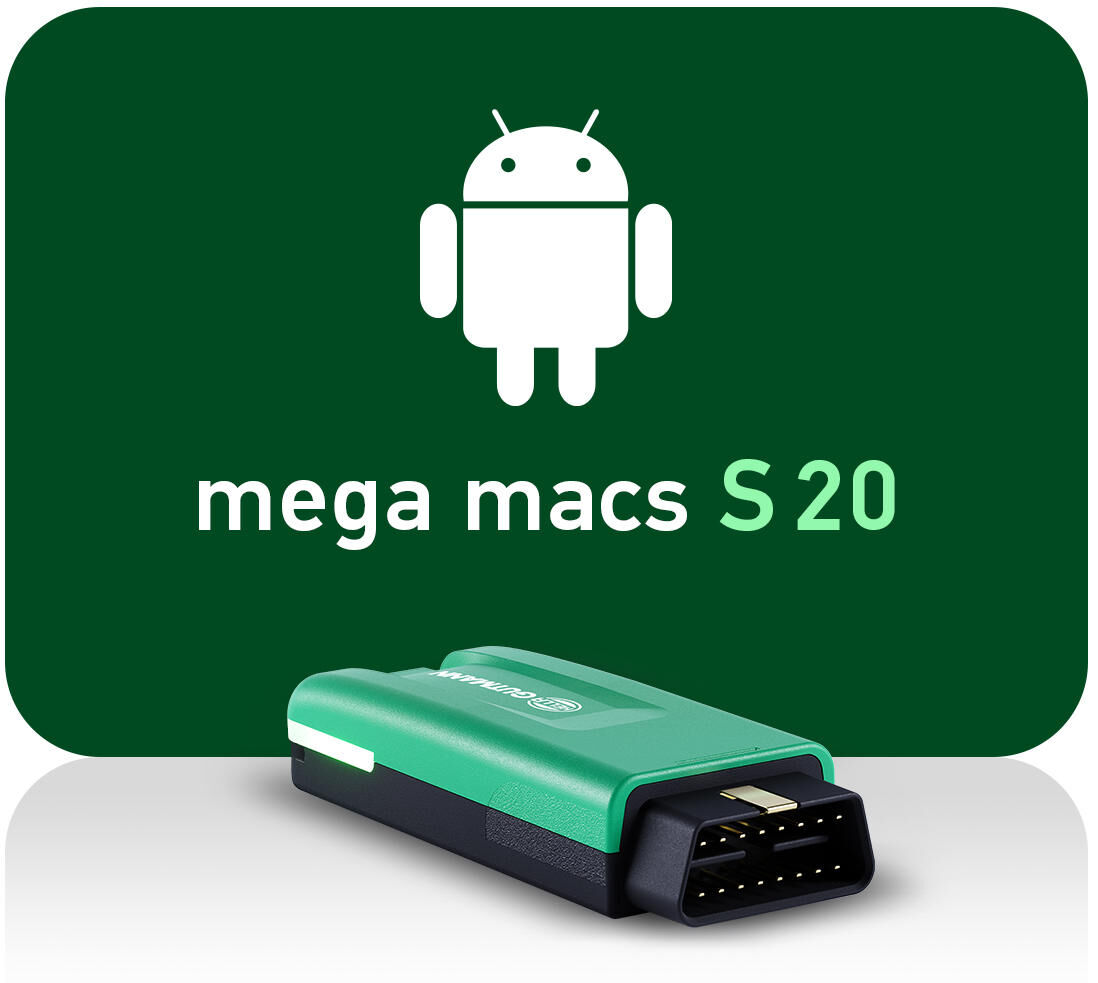

Mobile diagnostic device, multi-brand vehicle diagnostics, intuitive SDI user interface
Diagnostic solution for Android device of your choice, flexible license system (software updates included), regular updates and growing vehicle coverage without monthly running costs included, basic functions (read / delete errors, total query, service reset, basic setting) without monthly running costs, direct data transfer of the selected vehicle data to HGS Data, compatible with current communication protocols such as CAN, DoIP and CAN - FD, clear and intuitive SDI user interface (Smart Diagnostic Interface), smart language handling by automatically adopting the language setting of your end device, error code-based online solution suggestions, integrated Cyber Security Management (CSM), HV battery diagnosis PRO for fact-based determination of the condition of traction batteries (requires a suitable mobile wallbox), ADAS calibrations possible (requires a CSC tool), wide range of additional software licenses.

Technical data:
OBD voltage: 8 - 32 V DC
Current: OBD max. 350 mA
Voltage: USB 5 V DC
Current: USB max. 500 mA
Outside air temperature Operating range: 0 to 45° C
Storage temperature: -20 to 60° C
Weight: 100 g
Protection class: IP40
Frequency band: 2400 to 2483.5 MHz (Bluetooth®)
Field strength: 11 dBm
Interfaces: Bluetooth® Classic, Class 1, USB 2.0 Hi-Speed, Type C plug, CARB
Radio range: Indoors: 3 to 10 m, outdoors: up to max. 50 m

System requirements Android device:
Operating system: at least Android 10
Spokes: Storage capacity ("disc") of at least 8 GB for the app and the associated data must be freely available
Recommended Display - diagonal: at least 8 inches
Working memory: at least 2 GB
Interfaces: Bluetooth® Classic, Class 1, WiFi
Camera may be available

mobile, ECU diagnostic, PC based system
worshop suited, robust tablet PC, spalshwater-, dust- and impactproof, 13,3" HD LED display in widescreen format with touchscreen, special operating surface, diagnosis-interface AVL DiTEST VCI 1000, with connection via bluetooth and SMART Multiplexer technology. 24V compatible, therefore also suitable for use on commercial vehicles. ECU diagnostic AVL DITEST XDS 1000 incl. read/delete fault codes, actuator test, read measuring value, coding / adjustment / login/ basic settings, service functions, EOBD mode 1 - 9. software can be used indefinitely.
Attention: diagnosis-software AVL DiTEST XDS 1000 is not icluded!
Plus freight, system and diagniostic support

to go, complete multi-brand diagnostics for cars, trucks, trailers and buses
Robust, handy tablet PC with high computing power and generous disc space. Mobile networking with bluetooth and Wi-Fi. Shock resistant, water-, oil-, acid- and dust-tight.
Attention: diagnostics software "AVL DITEST XDS 1000" integrated, user license is not included!
Plus freight, system and diagnostic support
