load-bearing capacity: 1t, manual, lifting height: 3m, lifting force: 320N
design according to DIN EN13157 standard, zinced load chain according to DIN ISO 3077, robust steel sheet housing
With increased efficiency and reduction of friction losses due to hardened gears and pinions on roller bearings, as well as drop-forged, rotatable load and suspension hooks (incl. safety mechanism). The load is securely held by a load pressure brake with asbestos-free brake discs

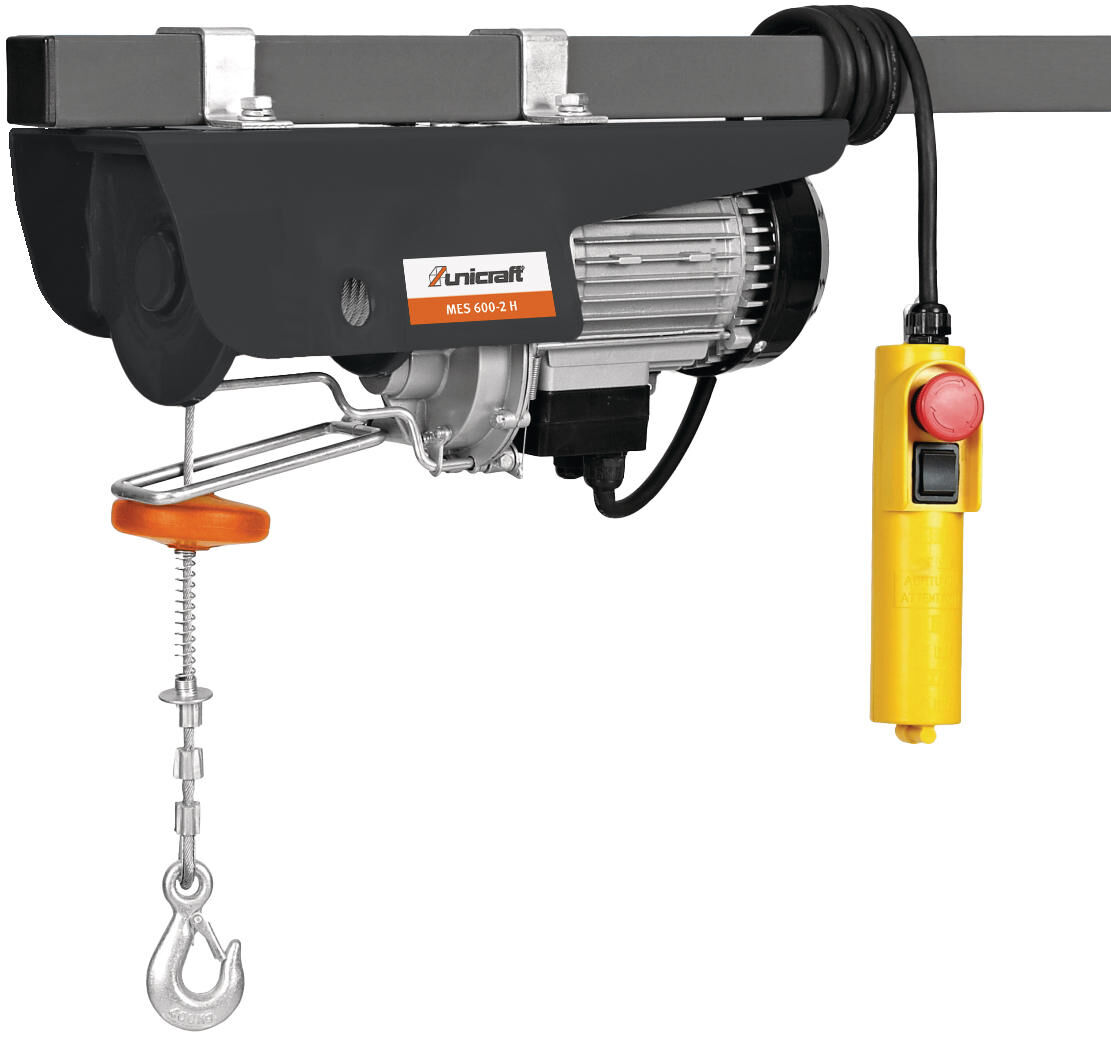

Mini electric wire rope hoist with dead man's switch
Lifting height without / with deflection rollers 12 / 6 m, deflection rollers with load hook, transport handle, two sturdy double clamps (square) for fastening, operating switch insulated to IP54, limit switch for immediate switch-off in the upper and lower end positions

Technical data: Lifting force without / with deflection rollers: 300 / 600 kg, Lifting speed without / with deflection rollers (max.): 8 / 4 m per min., Connection: 230 V / 50 Hz, Rope diameter: 4.5 mm, Dimensions: (L x W x H) 44.5 x 15.4 x 22.0 cm

Scope of delivery: 2 fixing clamps, 1 pulley hook, 4 Screws and washers.

Optionally available: Quick-release clamps "round" (#6198616), wall swivel arm (#6198606)
