foldable mobile workstand, load-bearing elements in composite of lightweight aluminium and plastic , 360° rotatable workpiece, quick and easy one hand lever clamping, for bikes up to 30kg

For Mounting Plate 0.370.816/1 and 0.370.816/2

For Holding Clamp 0.370.825/2

can only be used in combination with cable duct (0.370.829/0)

high quality design from 1,5mm steel sheet, Multiplex workplate, 37mm dick, without floor unit and accessories

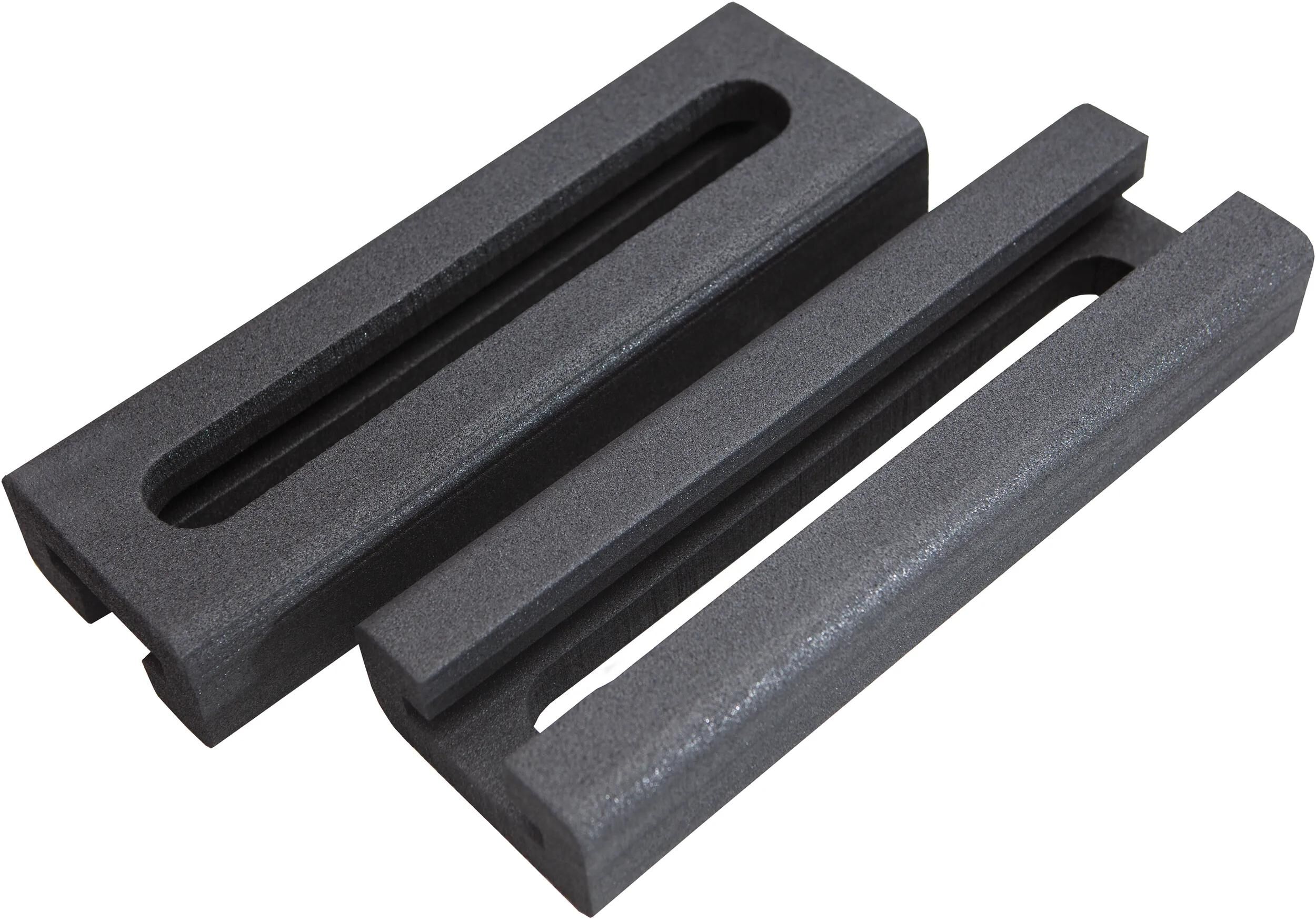

Recommended for sensible carbon or aluminium frames, which could be damaged with a conventional clamp holder. Incl. bottom bracket mandrel, 2 pieces edge protection, eccentric, and 2 pieces star handles with slot stone and rubbering.

For bicycles, e-bikes and cargo bikes, battery-operated design with a solid aluminium lifting column and an internal toothed belt drive. Two integrated foot switches make it easy to operate the lift by foot. Combined with a sensitive stop system, this enables the clamped bike to be lifted and lowered steplessly and also ensures maximum safety at the workplace. Floor levelling function with 4 adjustable feet on the base plate. Two powerful rechargeable batteries for mains-independent lifting device in workshop quality, two high-quality transport rollers and rear-mounted handles on the lifting column allow the assembly stand for mobile use.
When fully loaded, a 30 kg e-bike can be lifted approx. 80 times. The maximum lifting load is 65kg and the overall height is approx. 1950mm. It is approx. 780mm wide. Includes charger, operating instructions and base mounting plate.

Technical data:
overall height: approx. 1950 mm
s weight: approx. 60 kg
lifting load: approx. 65 kg
lifting speed: 125 mm/s
integrated foot switch with sensitive stop system
batteries: 24 V / 2 x 8.5 Ah / incl. external charger
charging time: approx. 4.5 h = 80 % / 8 h = 100 %
Mobile thanks to integrated transport castors
Base mounting plate included
European production / CE mark

This article is not a stock item, delivery is made directly from the by,schulz warehouse!
Prices plus shipping costs!

Steel pneumatic, this stand makes it easier lifting of bike by a pneumatic lifting device. Even electric bikes with a weight of about 30kg can be brought so easily on the desired work height. An angle adjustment allows a rotation of the clamped bike of approx. 160°. The stand has a 3-point clamping system, for softly and gently clamping of different frame shapes and frame materials such as aluminum or carbon. By 4 holes you can screw the stand directly on the ground or on the optional metal base plate (0.370.704/9)
This article is not on stock, delivery is done directly from Tip Top warehouse!
The resulting freight costs will be charged to the specialist dealer!

stroke: 1000mm, tensile strength max. 3500 N, bending strength: 1000 N, lifting speed: 50 mm/sec.
Electric lifting pillar controlled via a keypad, max. ground clearance, no risk of stumbling, easy cleaning of the workshop floor, full accessibility on the rear crank side of the bike.
Scope of delivery: lifting pillar including control and control panel, mounting plate workshop ceiling, mounting plate for mechanical collets of all types
Options on request: lifting extension up to1400mm, direct USB connection on assembly stand for E-bike inspections, acquisition of various collets, control via smartphone or wireless button
Further information and additional equipment variations: alles-bike.de
Drop shipment - delivery time approx. 4-5 weeks

After you have purchased the Velolifter or show interest, alles-bike GmbH will contact you. In the case of a suburban appointment or a telephone consultation by the company alles-bike, the conditions of the workshop ceiling are discussed. A direct installation on a concrete ceiling, as well as the use of a traverse can be considered. The use of the collet is also discussed. You are welcome to install your favorite collet chuck on the Velolifter, the desired collet chuck can also be supplied with it.

For bicycles, e-bikes and cargo bikes, battery powered design with a solid aluminum lifting column and an internal toothed belt drive. Easy lift operation by foot is possible by two integrated foot switches. A stop system allows stepless lifting and lowering of the clamped bike. Floor leveling function by 4 adjustable feet on the base plate. Two powerful batteries for mains-independent lifting device in workshop quality, through two high-quality transport wheels and rear-mounted handles on the lifting column, the assembly stand can be moved easily and thus used mobile.
Fully charged, a 30 kg e-bike can be lifted approx. 80 times. The maximum lifting capacity is 60kg, the overall height is approx. 1950mm. It is approx. 780mm wide. Including charger, operating instructions and base mounting plate.

Technical data:
overall height: approx. 1950mm
system weight: approx. 60kg
lifting capacity: approx. 60kg
integrated foot switch with sensitive stop system
rechargeable batteries: 24 V / 7,2 Ah / incl. external charger
charging time: approx. 4.5h = 80 % / 8h = 100 %
mobile due to integrated transport wheels
including base mounting plate
European production / CE-mark

This article is not in stock, delivery is directly from stock by.schulz!
Prices plus shipping costs!
