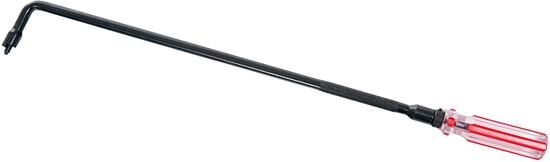

D-type, 2-component grip. Tool for adjusting the mixture adjustment screw for hard-to-reach carburettors

zum Aus- und Einbau des Benzinhahns

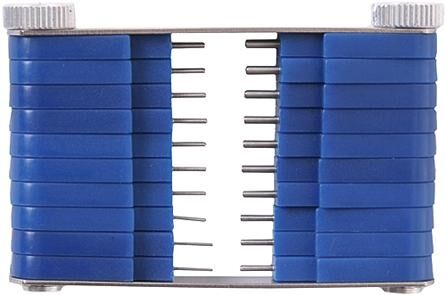

sizes: 0,45; 0,50; 0,55; 0,60; 0,65; 0,70; 0,75; 0,80; 0,85; 0,90; 0,95; 1,00; 1,05; 1,10; 1,15; 1,20; 1,25; 1,30; 1,40; 1,50

to regulate the idle-mixture-adjusting screw

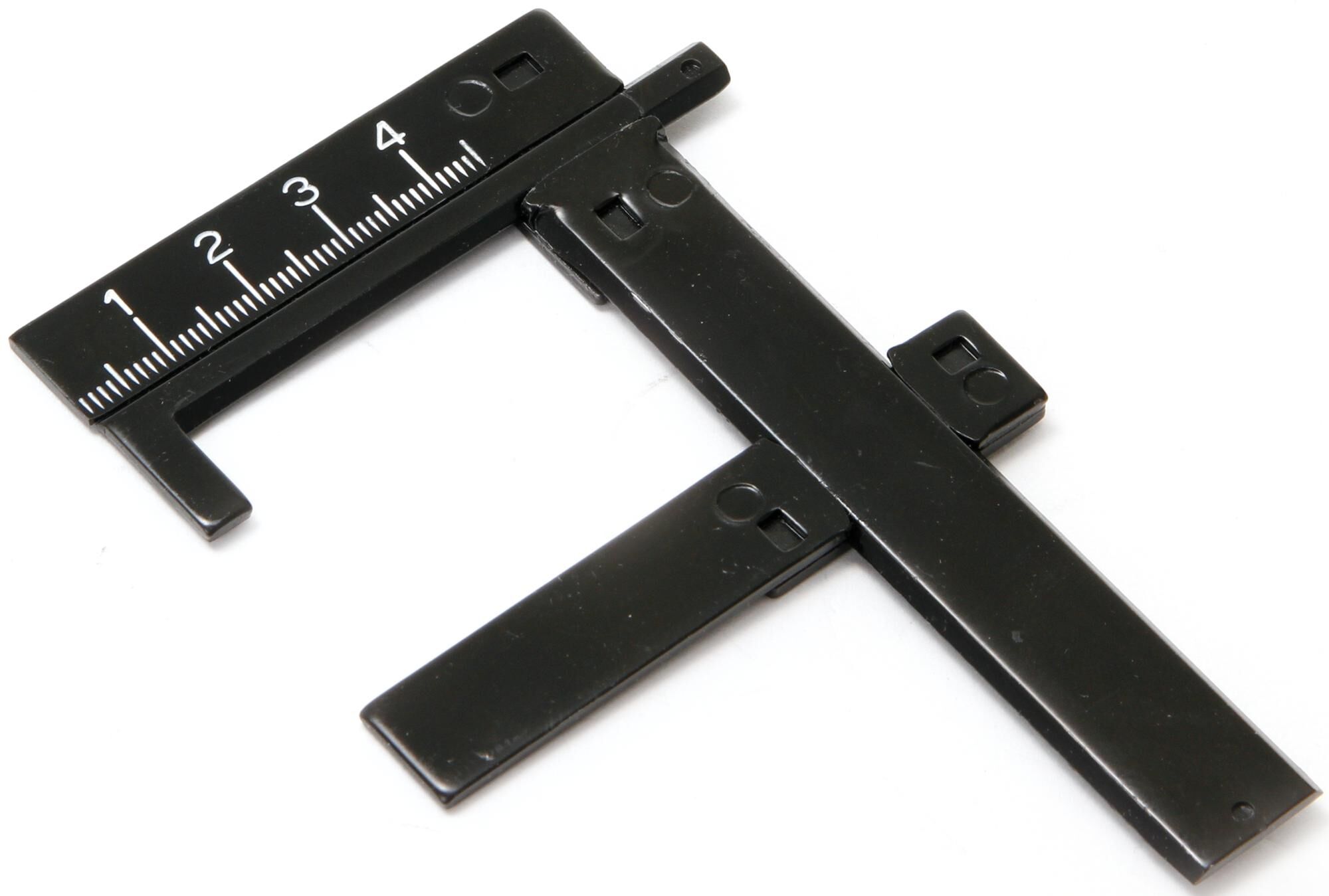

for precise adjustment of the float level for all common carburettors

for fuel supply during adjustment work, such e.g. the synchronization of the carburetor. Content: 1l bottle with hooks, hose 120cm, cock, 3 hose clamps

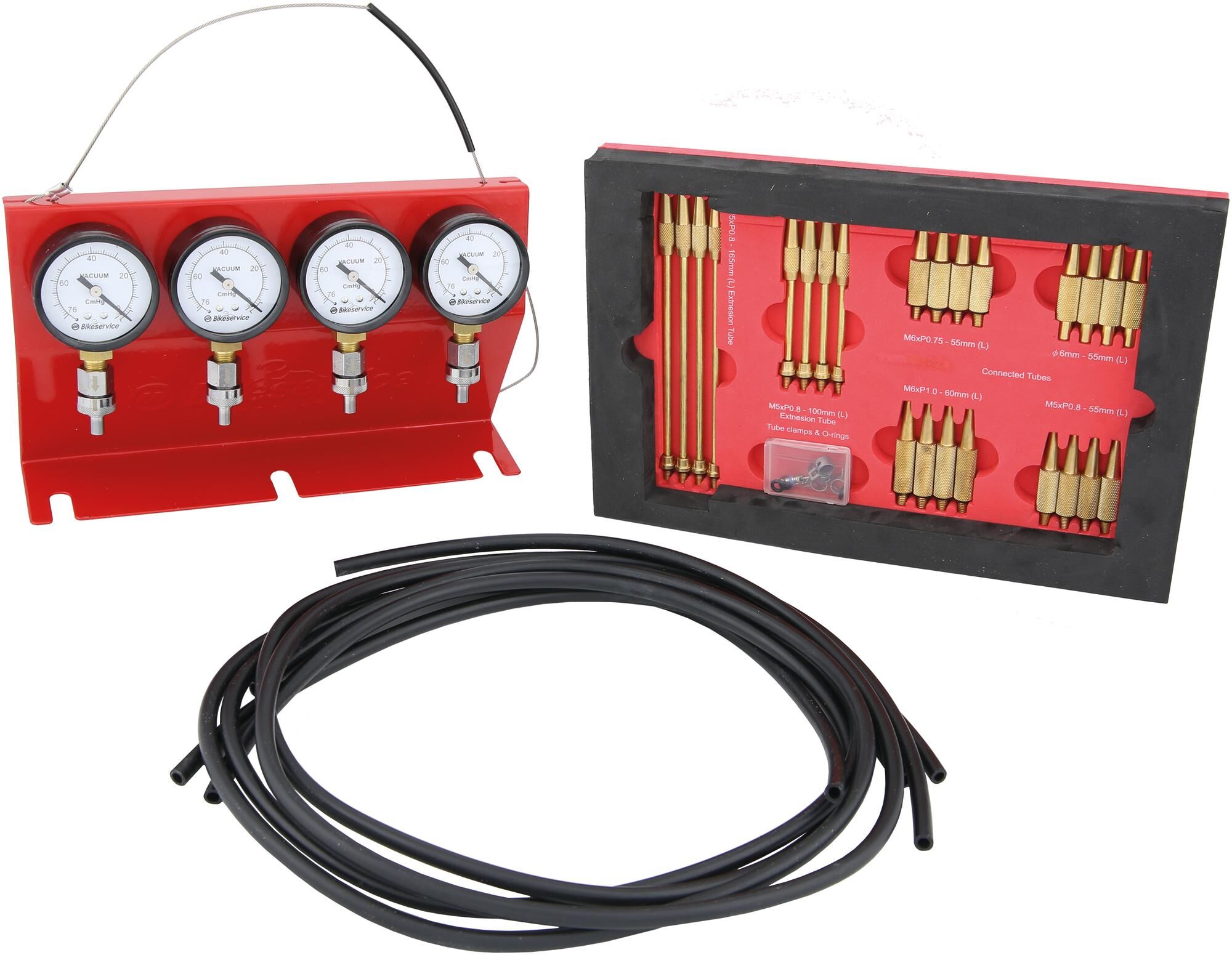

cylinder adapter, for synchronization with the VacuumMate Allweather (0.540.723/4)
Extension from 4 to 6 carburetors or fuel injection throttle valves. Retainer kit includes connection and two additional lines to match existing instrument lines, as well as mounting screws to attach the retainer directly to the VacuumMate housing.

made in Germany

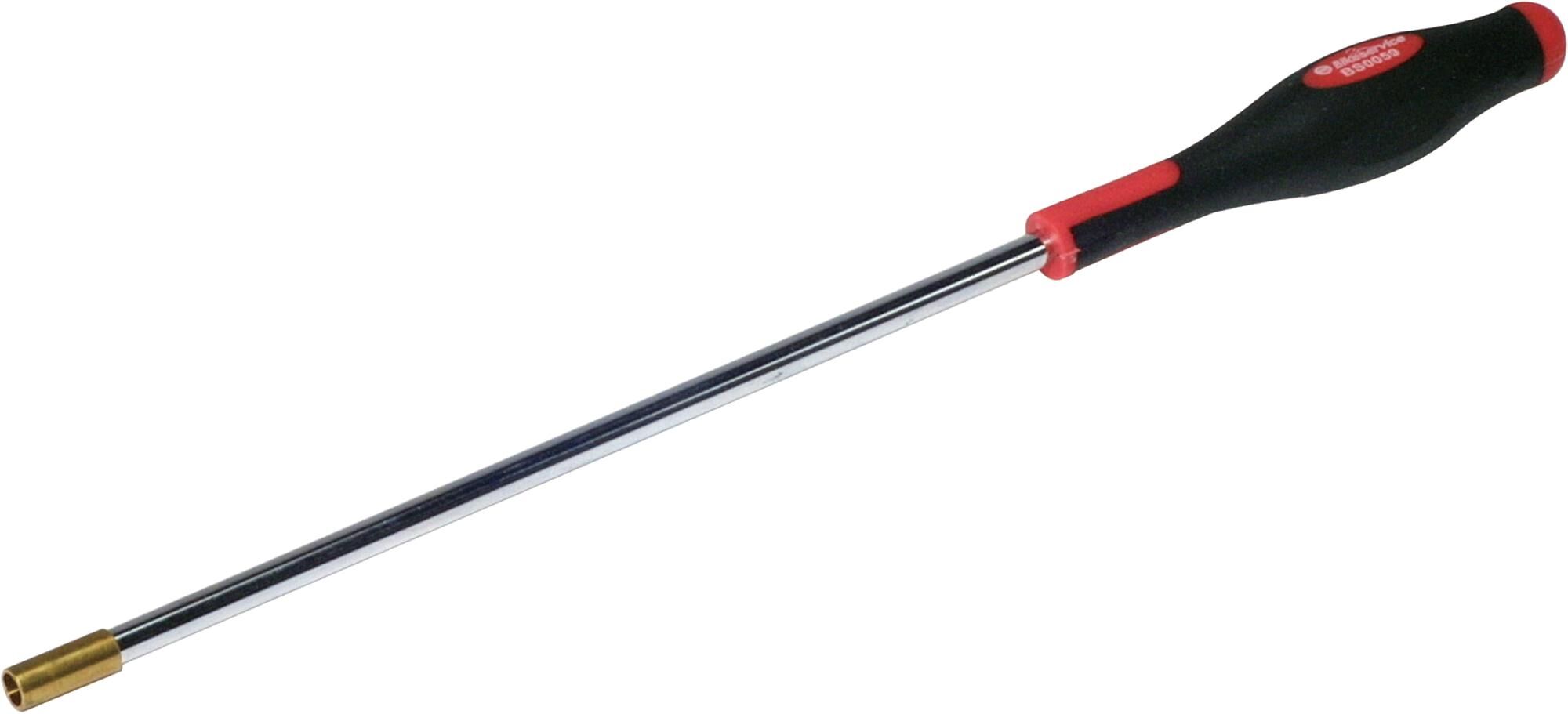

For easy adjusting the idle mixture adjusting screw at the carburettor. The wrench can be used also for other, hard-to-reach screws

Technical data:
cassette total dimensions (LxWxH): 110 x 550 x 45mm

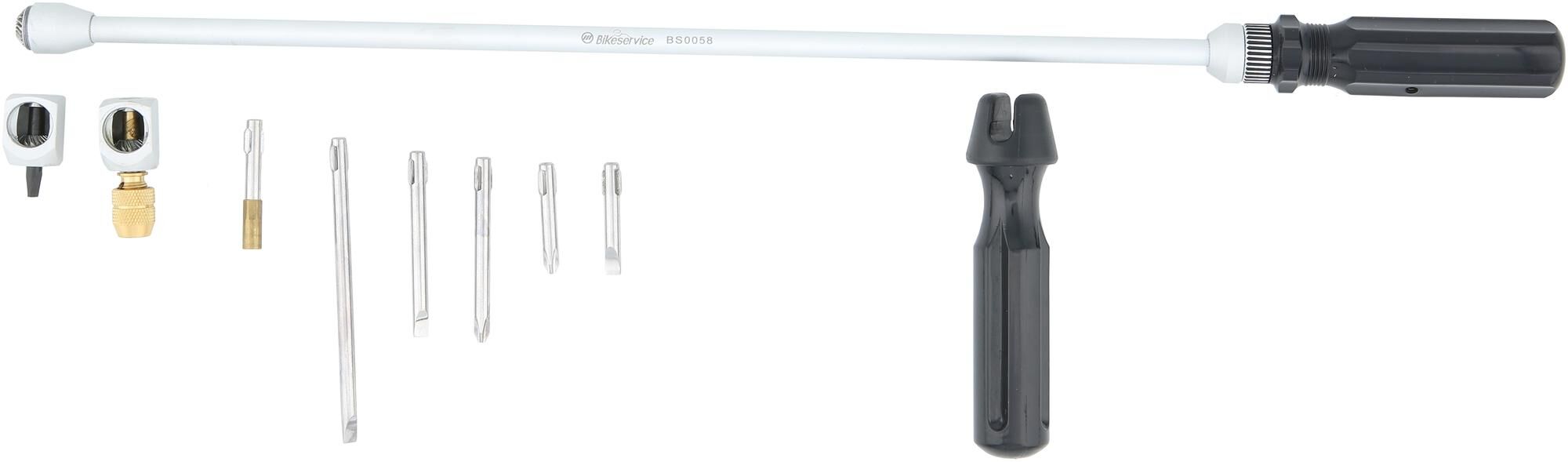

The set contains following articles:
angled screwdriver, length: 470mm
length: 365mm (without handle)
handle - length: 112mm
adapter slotted - 5mm, length: 9,5mm, 90° angled
quick-change adapter 90° angled
carburator special socket - D-type, length: 25mm
Phillips - 2mm, length: 19mm
Phillips - 2mm, length: 42mm
slot - 5 mm, length: 19mm
slot - 5 mm, length: 42mm
slot - 5 mm, length: 78mm

Note:
The offset screwdriver set can not be used for tight screws because the bevel gear could be damaged under high loads!
