HSS DIN 352, metric ISO coarse thread acc. to DIN 13, single
Profile ground and flange reground. For lightweight steels up to 800 N/mm² stability.

HSS G, DIN 371 / 376, metric ISO coarse thread, form B, for through-hole threads, 6H tolerance
for lightweight steels up to 1000 N/mm² stability, profile ground and flange reground

HSS DIN 352, metric ISO coarse thread acc. to DIN 13, 3 pieces
Profile ground and flange reground. For lightweight steels up to 800 N/mm² stability.
Consisting of: taper, second and bottoming

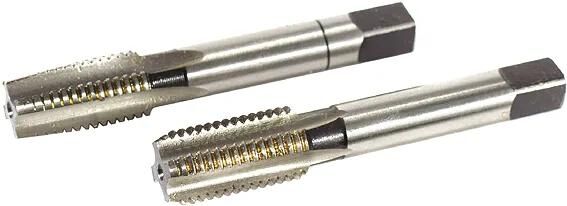

HSS DIN 352, metric ISO coarse thread acc. to DIN 13, 2 pieces
Profile ground and flange reground. For lightweight steels up to 800N/mm² stability
Consisting of: tapper and bottoming

right-hand cutting, metric thread
DIN 352/ form B, tolerance according to ISO 2/ 6H, thread process by slicing the cutting edge, surface without discolouration, high performance cobalt steel, usable in high and low alloyed steel up to 900N/mm² stability, cast iron and NE metals
Technical data: inner hole size: 5.0mm, total length: 50.0mm, partial length: 19.0mm, cutting material: HSS Co, flute length: 31mm

HSS, metric fine thread, DIN 2181, right-hand cutting, 2 pieces
Tolerance according to ISO 2/6H, incl. cutting and threading, for running and blind hole threads, with hard metal centre, surface without discolouration, for high and low alloyed steel up to 800N/mm² stability, cast iron and non-ferrous metals
Note: second tap approx. 5 - 6 cutting gears, bottom tap approx. 2-3 cutting gears

tap, countersink, die, SDS Plus drill, chisel
professional sets for drilling, tapping, countersinking, deburring, measuring and chiseling

drill and tap, metric core hole drill, 28 pieces
hand drill tap (DIN 352): M3 x 0,5 - M4 x 0,7 - M5 x 0,8 - M6 x 1,0 - M8 x 1,25 - M10 x 1,5 - M12 x 1,75
Kernlochbohrer (DIN 338/ HSS sanded): 2,5 - 3,3 - 4,2 - 5,0 - 6,8 - 8,5 - 10,2mm
core hole drill (DIN 338/ HSS sanded): 2,5 - 3,3 - 4,2 - 5,0 - 6,8 - 8,5 - 10,2mm

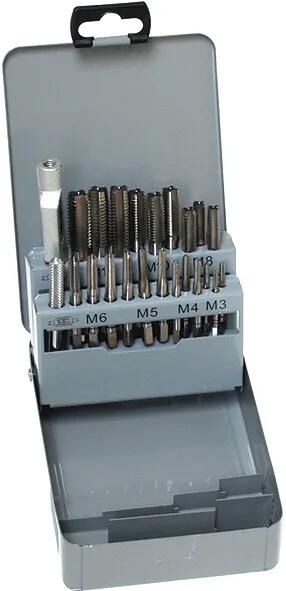

DIN 352, HSS-G, metric, coarse thread acc. to DIN 13, 22 pieces
aach 1 taper, second and bottoming (M3 x 0,5 - M4 x 0,7 - M5 x 0,8 - M6 x 1,0 - M8 x 1,25 - M10 x 1,5 - M12 x 1,75) and 1 adj. tap wrench
