registration sheet for compression pressure recorder, package with 100 pieces

transportable, network-independent system, to connect to your smartphone via Wi-Fi
Suitabel for Android smartphone (via Android system 4.4+) and iPhone IOS-system (via IOS 8.0). With 5,5mm HD camera, 6 dimmable mini-LED lights, transmitter with integrated battery, charging indicator light and light and hooks, magnet and mirror. Pictures and videos ware saved direct on the smartphone (picture reception in JPEG format, video records in MPEG4 format), working temperature from -15°C to +50°C, about 60 minutes of continuous operation possible, transmitter charging via USB, incl. USB adapter (allows the camera to be connected to a laptop or PC).

Features/technical data:
light source: 6 dimmable white mini-LED
focused depth of field: 3 - 6m
resistance: engine oil resistance probe
battery technology: Lithium-Ion
battery voltage and capacity: 3,7V / 800 mAh
angle: 60°
protection class: IP67
camera resolution: 1600 x 1200 (YUV), 1280 x 720 (photograph) = 2,0 mega pixel
view direction degree: 60°
picture storage format: JPG, MPEG4
working temperature: -15°C to +50°C
operating time: approx. 60 min
connection: USB 2.0
head Ø: 5,5mm
weight: 250g
bend radius: 15mm

analog, for fuel motors, 21 bar / 300 psi
For use in the automotive sector and on vehicles such as motorcycles, passenger cars, SUVs and vans. Diagnostic readings on valves, piston rings, cylinder bores and head gaskets, incl. pressure gauge and additional adapter M16 x 1.5 (Ford Triton 4.6 l / Ford F-150).

Scope of delivery:
1x pressure gauge (Ø 76mm) with pressure release valve, total length 145 mm
1x straight pressure tube, length 186mm
1x angled pressure tube, length 186mm
1x extension hose with quick coupling, length 460mm
5x thread adapter:
M10 x 1,0mm, length: 38mm
M12 x 1,25mm, length: 40mm
M14 x 1,25mm, length: 46mm
M16 x 1,5mm, length: 33mm
M18 x 1,5mm, length: 33mm

for the localistion of damaged parts
application e.g. axles, bearings and gearboxes, total length: 1080mm, steel tip: 180mm, with diaphragm with efficient transmission rate

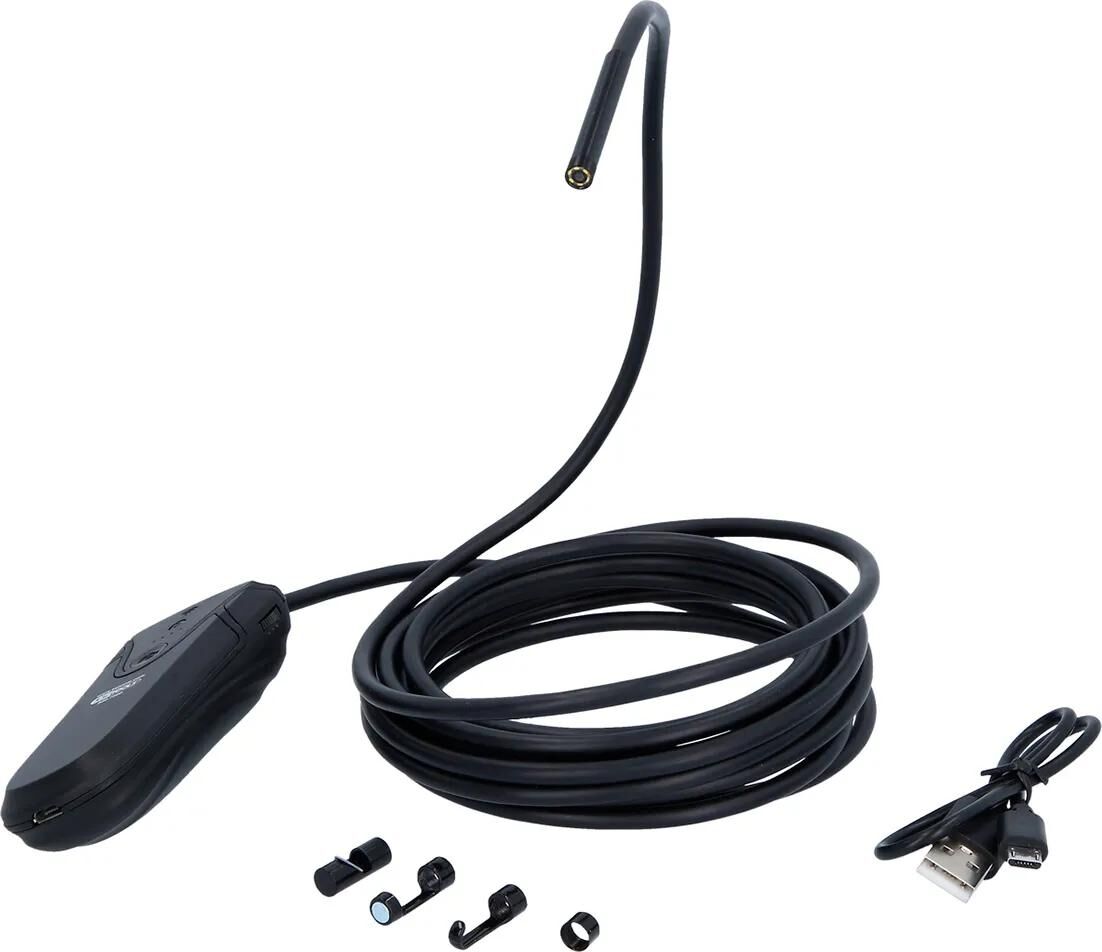

transportable, mains-independent system, for use with a smartphone via Wi-Fi
Suitable for Android Smartphone (via Android System 4.4+) and iPhone IOS-System (via IOS 8.0). With 5,5mm HD camera, 6 dimmable, white mini LEDs, transmitter with integrated rechargeable battery and charging indicator light, as well as hook, magnet, mirror and protective cap for screwing onto the probe head. Photos and videos are stored directly on the smartphone (image recording possibility in JPEG format, video recording in MPEG4 format), working temperature from 0°C to 45°C, about 60 minutes of continuous operation possible, charging of the transmitter is done via USB (2.0).

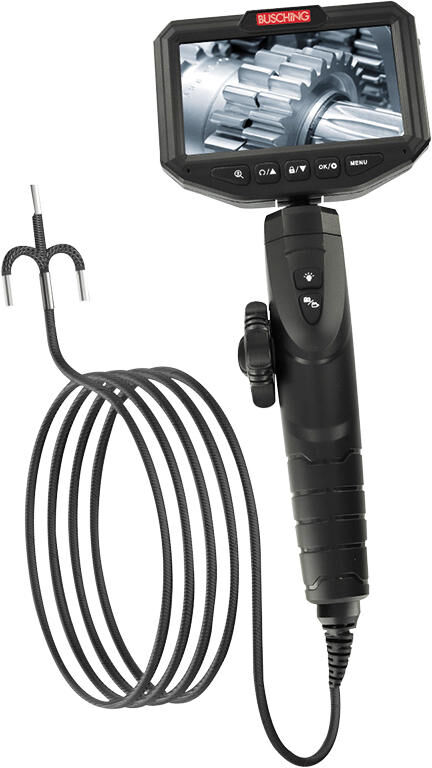

mobile endoscopy camera, 4.3" LCD monitor, 2m flexible cable
For exploration of hard-to-reach places. Suitable for automotive workshops, installation companies, as well as for industrial and domestic use. Brightness and LED lighting adjustable, protected against moisture, control via the monitor, HD recording of photos and videos of the investigation possible, up to 5 hours of operating time, microSD card, integrated Li-Ion battery (2600 mAh), focal length 4 - 500cm, resolution 1920 x 1080 px, dimensions 175 x 120 x 34mm, weight 350g (including cable)

tester in a case, 35 - 90mm, 9 pieces
Tester for checking leakages at hose connections at turbo systems of vehicles with turbo charger. A abrasive surface of the stoppers give better stability during usage.

Consisting of: 8 tapering stopers 35 - 90mm diameter (one sealing plug with suited test plug), 1 regulator (incl. pressure gauge)

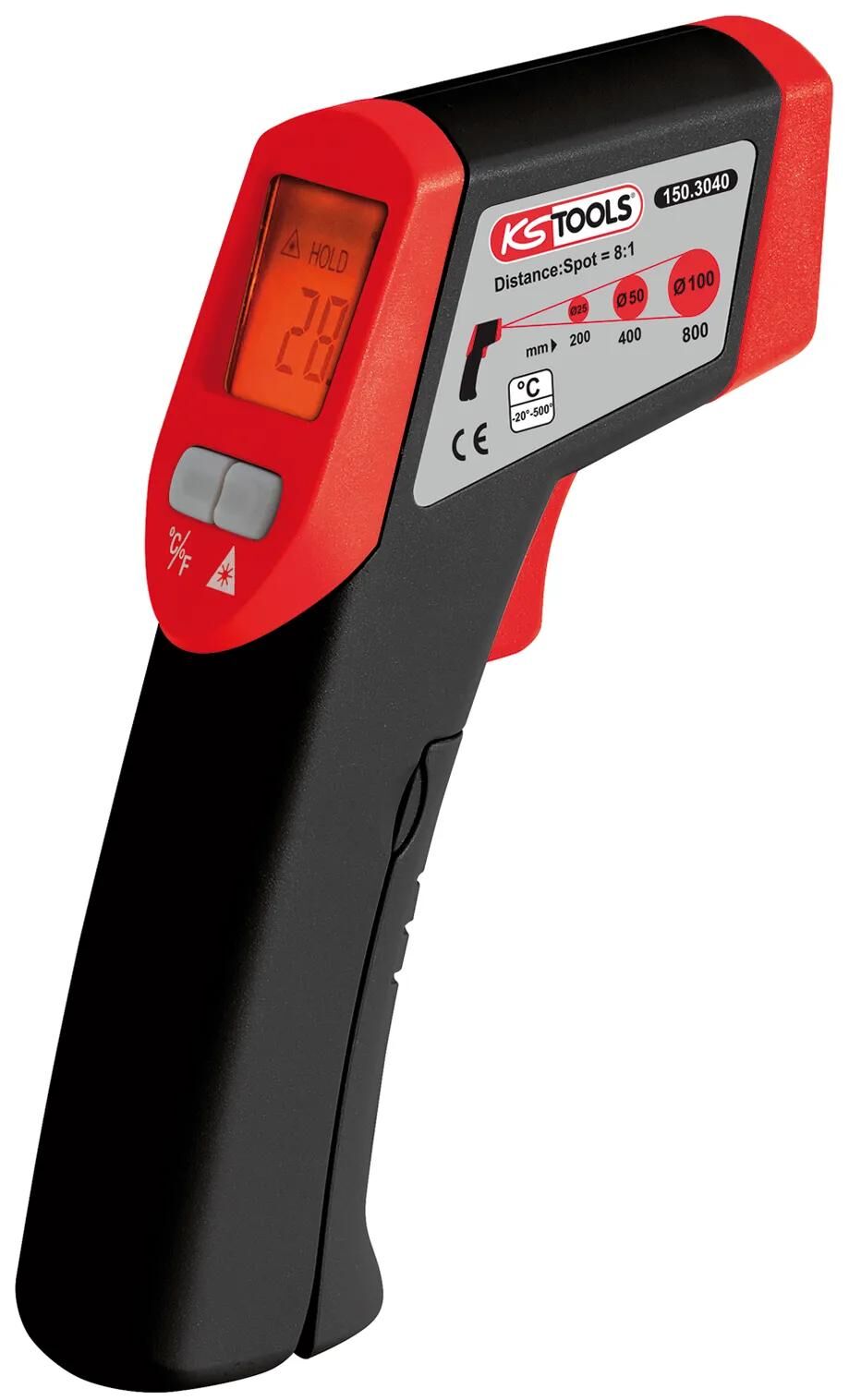

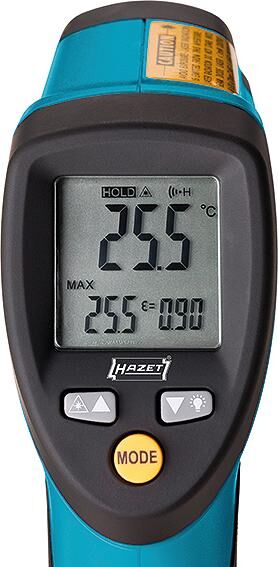

infrared, with integrated laser pointer, measuring range: -50°C - 550°C
For non-contact temperature measurements. Wide range application, e.g. automotive sector (radiator/cooling systems, brakes, air conditioning, engines, exhaust systems), chemical and food controls, HVAC/R. Quick detection function. Precise non-contact measurements. Automatic data holding. Display of max. temperature, trigger lock. Battery 9V block battery (6LR61). Additional backlight. Dual lasr sighting. Emissivity adjustable from 0,1 till 1,0. Set high and low alarms

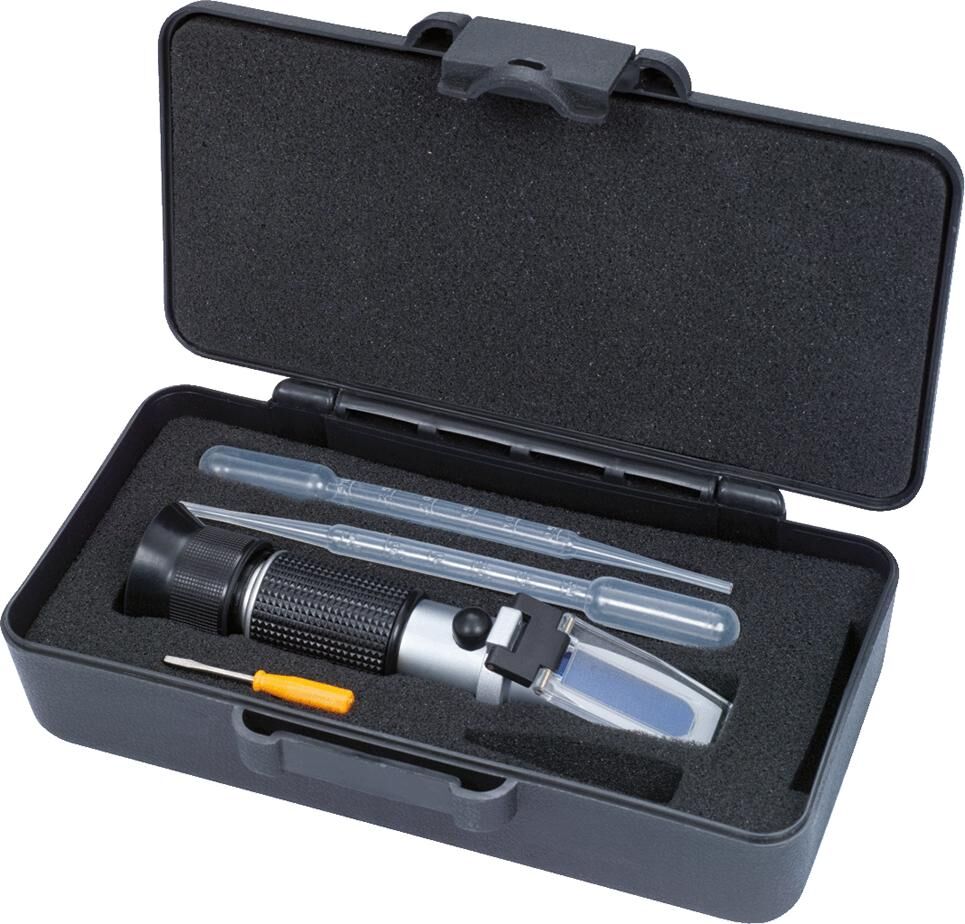

for checking the correct mixing ratios, measuring accuracy +/- 5%
for testing battery acid density and antifreeze coolant as well as windscreen washing fluid. Also suitable for AdBlue / AUS 32 and windshield cleaner based on alcohol (SRF1) and ethanol. With adjustable ocular and settable calibration fixture.
Note: Usable as VAG OE-Nr. T10007 A

CO² tester, for all water-cooled combustion engines
This test system offers a quick and easy solution to check for damage in the area of the cylinder head, cylinder head gasket and engine block. This is done by detecting CO² in the coolant. Incl. rubber sealing cone, reaction fluid and two-way valve.
