HELLA blade receptacle
Partially insulated crimp connector
Cross-section: 0.5 - 1.0 mm², Plug dimension: 2.8 x 0.5 mm, red (pack of 100 pieces)
- Nº de artículo 24500555
- Org.-Nr.: 8KW 705 393-003
Cross-section: 0.5 - 1.0 mm², Plug dimension: 4.8 x 0.5 mm, red (pack of 100 pieces)
- Nº de artículo 24500563
- Org.-Nr.: 8KW 705 392-003
Cross-section: 0.5 - 1.0 mm², Plug dimension: 6.3 x 0.8 mm, red (pack of 100 pieces)
- Nº de artículo 24500100
- Org.-Nr.: 8KW 044 036-003
Cross-section: 1.5 - 2.5 mm², Plug dimension: 4.8 x 0.5 mm, blue (pack of 100 pieces)
- Nº de artículo 24513285
- Org.-Nr.: 8KW 744 697-003
Cross-section: 1.5 - 2.5 mm², Plug dimension: 4.8 x 0.8 mm, blue (pack of 100 pieces)
- Nº de artículo 24513293
- Org.-Nr.: 8KW 744 698-003
Cross-section: 1.5 - 2.5 mm², Plug dimension: 6.3 x 0.8 mm, blue (pack of 100 pieces)
- Nº de artículo 24500118
- Org.-Nr.: 8KW 044 022-003
Cross-section: 1.5 - 3.0 mm², Plug dimension: 7.7 x 0.8 mm, blue (pack of 50 pieces)
- Nº de artículo 24500126
- Org.-Nr.: 8KW 044 024-003
Cross-section: 2.5 - 6.0 mm², Plug dimension: 6.3 x 0.8 mm, yellow (pack of 50 pieces)
- Nº de artículo 24500134
- Org.-Nr.: 8KW 044 023-003
Cross-section: 4.0 - 6.0 mm², Plug dimension: 9.5 x 1.2 mm, yellow (pack of 50 pieces)
- Nº de artículo 24500142
- Org.-Nr.: 8KW 700 142-003
HELLA flat plug
unisolated crimp connector
cross section: 0,5 - 1,0mm², socket size: 2,8 x 0,8mm, brass blank
- Nº de artículo 24512899
- Org.-Nr.: 8KW 744 752-003
cross section: 1,5 - 2,5mm², socket size: 6,3 x 0,8mm, brass blank
- Nº de artículo 24512907
- Org.-Nr.: 8KW 744 823-003
cross section: 0,5 - 1,0mm², socket size: 6,3 x 0,8mm, brass tin-plated
- Nº de artículo 24500654
- Org.-Nr.: 8KW 043 635-013
HERTH+BUSS Shrinkable Connector "Solder Sleeve"
solder connector with tin inlay and shrinkable hose isolation for producer TE Raychem, with interior adhesive, temperature range from -55°C to +125°C
Note: package unit (PU): bag with 10 / 50 pieces, sales package (SP): 10 pieces, price shown 100 pieces
Manufacturer information: Solder Sleeve - water tight connector! Solder connector with tin inlay and shrinkable hose isolation. The simple and fast solution for tensile, moisture-density cable connections. Simply insert the appropriately stripped leads into the appropriate connector and then melt the solder ring. Heat the connector until the glue comes out at the ends.
cross section: 0,1 - 0,5mm², inner Ø: 1,7mm, length: 26mm, white/blue
- Nº de artículo 2450330H
- Org.-Nr.: 50252639
cross section: 1,0 - 3,0mm², inner Ø: 2,5mm, length: 24,5mm, blue
- Nº de artículo 2452991H
- Org.-Nr.: 50252643
cross section: till 4,8mm², inner Ø: 4,3 - 4,8mm, length: 29,3mm, blue
- Nº de artículo 2452992H
- Org.-Nr.: 50252644
cross section: 2,8 - 6,7mm², inner Ø: 6,0 - 6,7mm, length: 32mm, grey/blue
- Nº de artículo 2452993H
- Org.-Nr.: 50252645
cross section: 4,0 - 11,5mm², inner Ø: 10,8 - 11,5mm, length: 35,5mm, blue
- Nº de artículo 2452996H
- Org.-Nr.: 50252648
HERTH+BUSS Shrinkable Connector "Solder Sleeve"
solder ring, for producer Tyco, with interior adhesive, temperature range from -55°C to +125°C
Note: package unit (PU): 50 pieces in bag, sales package (SP): 1 bag with 50 pieces, price shown per 100 pieces
Manufacturer information: Solder Sleeve - water tight connector! Solder connector with tin inlay and shrinkable hose isolation. The simple and fast solution for tensile, moisture-density cable connections. Simply insert the appropriately stripped leads into the appropriate connector and then melt the solder ring. Heat the connector until the glue comes out at the ends.
cross section: 0,8 - 2,0mm², inner Ø: 2,7mm, length: 42mm, red
- Nº de artículo 24506123
- Org.-Nr.: 50 252 640
cross section: 2,0 - 4,0mm², inner Ø: 4,5mm, length: 42mm, blue
- Nº de artículo 24506131
- Org.-Nr.: 50 252 641
cross section: 4,0 - 6,0mm², inner Ø: 6,0mm, length: 42mm, yellow
- Nº de artículo 24506149
- Org.-Nr.: 50 252 642

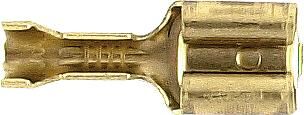

Blade Terminal Sleeve
unisolated crimp connector
cross section: 0,5 - 1,0mm², socket size: 6,3 x 0,8mm (HERTH+BUSS)
Delivery only in package with 100 pieces, price per piece
- Nº de artículo 2451457H
- Org.-Nr.: 50251220
cross section: 0,5 - 1,0mm², plug dimensions: 6,3 x 0,8mm (DRESSELHAUS)
Delievry only in package with 7 pieces, price per package
- Nº de artículo 24533044
- Org.-Nr.: 418000040 126032
DRESSELHAUS Shrinkable Connector
solder connector, with tin inlay and heat shrinkable hose isolation
0,5 - 1,0mm², red
delivery only in package with 2 pieces, price per package
- Nº de artículo 42906032
- Org.-Nr.: 418277640 139231
0,5 - 1,0 mm², red, delivery only in package with 25 pieces, price per piece
- Nº de artículo 24535395
- Org.-Nr.: 466077617 139231
1,5 - 2,5mm², blue
delivery only in package with 2 pieces, price per package
- Nº de artículo 42906016
- Org.-Nr.: 418277240 139232
1,5 - 2,5 mm², blue, delivery only in package with 25 pieces, price per piece
- Nº de artículo 24535411
- Org.-Nr.: 466077217 139232
4,0 - 6,0mm², yellow
delivery only in package with 2 pieces, price per package
- Nº de artículo 42906024
- Org.-Nr.: 418277440 139233
HELLA flat plug
unisolated crimp connector, with lock tab
cross section: 0,5 - 1,0mm², socket size: 2,8 x 0,8mm, brass (tin-plated)
- Nº de artículo 24512949
- Org.-Nr.: 8KW 744 834-003
cross section: 1,5 - 2,5mm², socket size: 6,3 x 0,8mm, brass (firepure tin-plated)
- Nº de artículo 24500662
- Org.-Nr.: 8KW 048 056-033
HELLA Shrinkable Connector
CWT soldering joint, for temperature-sensitive cables, where soldrenig is not possible
The soldering sleeve is shrunk with the hot air gun, but preferably with the reflector. The integrated solder ring melts and the adhesive shrink tubing connects to the cable insulation. The connection is soldered after warming, insulated, sealed and mechanically relieved. Suitable as a high quality connection for single-line and grounding of shields of coaxial cables.
Note: package unit (PU): 50 pieces in bag, sales package (SP): 1 bag with 50 pieces, price shown per 100 pieces
cross section: 2 x 0,3 - 0,8mm², max. isolation: 1,7mm, transparent
- Nº de artículo 24525222
- Org.-Nr.: 8KW 744 890-013
cross section: 2 x 1,0 - 2,0mm², max. isolation: 4,3mm, blue
- Nº de artículo 24309528
- Org.-Nr.: 8KW 744 888-013
cross section: 2 x 0,8 - 2,0 mm², max. isolation: 2,7mm, red
- Nº de artículo 24525198
- Org.-Nr.: 8KW 744 887-013
HELLA blade terminals
Partially insulated crimp connector
Cross-section: 0.5 - 1.0 mm², Plug dimension: 2.8 x 0.8 mm, red (pack of 100 pieces)
- Nº de artículo 24513319
- Org.-Nr.: 8KW 744 699-003
Cross-section: 0.5 - 1.0 mm², Plug dimension: 6.3 x 0.8 mm, red (pack of 100 pieces)
- Nº de artículo 24500530
- Org.-Nr.: 8KW 702 796-003
Cross-section: 1.5 - 2.5 mm², Plug dimension: 6.3 x 0.8 mm, blue (pack of 100 pieces)
- Nº de artículo 24500175
- Org.-Nr.: 8KW 044 288-003
Cross-section: 4.0 - 6.0 mm², Plug dimension: 6.3 x 0.8 mm, yellow (pack of 50 pieces)
- Nº de artículo 24513327
- Org.-Nr.: 8KW 744 700-003
Branch Connector
cross section: 0,3 - 0,75mm², red, delivery only in package with 25 pieces, price per 100 pieces
- Nº de artículo 24500373
- Org.-Nr.: 8KV 715 923-003
cross section: 0,5 - 1,0mm², red, delivery only in package with 50 pieces, price per piece
- Nº de artículo 24523706
- Org.-Nr.: 8KV 744 858 003
0,8 - 2,0mm², blue, delivery only in package with 25 pieces, price per piece
- Nº de artículo 24500605
- Org.-Nr.: 8KV 705 123-002
cross section: 3,3 - 5,2mm², yellow, delivery only in package with 10 pieces, price per piece
- Nº de artículo 24500449
- Org.-Nr.: 8KV 712 169-003
