DRESSELHAUS Ferrule
cable end sleeve, with plastic collar, for cables from 0,5 to 50mm², entry funnel warm resistant till 110°C, normal design, E-Cu sn = electrolytic copper tin-plated
HELLA ring connector
Insulated crimp connectors, according to DIN 46 237, form A
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 3.2 mm / M3, red (pack of 100 pieces)
- Art.-Nr.: 24500258
- Org.-Nr.: 8KW 044 275-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 4.3 mm / M4, red (pack of 100 pieces)
- Art.-Nr.: 24500266
- Org.-Nr.: 8KW 044 276-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 5.3 mm / M5, red (pack of 100 pieces)
- Art.-Nr.: 24500274
- Org.-Nr.: 8KW 044 291-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 6.5 mm / M6, red (pack of 100 pieces)
- Art.-Nr.: 24512469
- Org.-Nr.: 8KW 744 772-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 8.4 mm / M8, red (pack of 50 pieces)
- Art.-Nr.: 24512477
- Org.-Nr.: 8KW 744 773-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 4.3 mm / M4, blue (pack of 100 pieces)
- Art.-Nr.: 24500316
- Org.-Nr.: 8KW 044 028-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 5.3 mm / M5, blue (pack of 100 pieces)
- Art.-Nr.: 24500308
- Org.-Nr.: 8KW 044 027-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 6.5 mm / M6, blue (pack of 100 pieces)
- Art.-Nr.: 24500282
- Org.-Nr.: 8KW 044 039-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 8.4 mm / M8, blue (pack of 50 pieces)
- Art.-Nr.: 24500324
- Org.-Nr.: 8KW 044 277-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 10.5 mm / M10, blue (pack of 50 pieces)
- Art.-Nr.: 24512493
- Org.-Nr.: 8KW 744 775-003
Blade Terminal Sleeve
unisolated crimp connector
cross section: 0,5 - 1,0mm², socket size: 4,8 x 0,8mm (HELLA)
delivery only in package with 100 pieces, price per piece
- Art.-Nr.: 24513475
- Org.-Nr.: 8KW 744 828-003

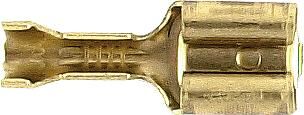

cross section: 0,5 - 1,0mm², socket size: 6,3 x 0,8mm (HERTH+BUSS)
Delivery only in package with 100 pieces, price per piece
- Art.-Nr.: 2451457H
- Org.-Nr.: 50251220
cross section: 0,5 - 1,0mm², plug dimensions: 6,3 x 0,8mm (DRESSELHAUS)
Delievry only in package with 7 pieces, price per package
- Art.-Nr.: 24533044
- Org.-Nr.: 418000040 126032
HERTH+BUSS Ferrule
cable end sleeve, with plastic collar, for cables from 0,5 to 50mm², semi-isolated crimp connector, copper tin-plated
HELLA Ferrule
cable end sleeve, with isolated insertion aid, for precise bundling of cable ends, copper with nickel-plated surface, PVC sleeve
cross section: 0,75mm², metal sleeve length: 8,0mm, white
- Art.-Nr.: 24511982
- Org.-Nr.: 8KW 744 840-003
cross section: 1,0mm², metal sleeve length: 8,2mm, yellow
- Art.-Nr.: 24511990
- Org.-Nr.: 8KW 744 841-003
cross section: 2,5mm², metal sleeve length: 8,2mm, blue
- Art.-Nr.: 24512394
- Org.-Nr.: 8KW 744 843-003
HELLA round connector
Insulated crimp connector, Pack of 100 pieces
Cross-section: 0.5 - 1.0 mm², Plug dimension: Ø 4 mm, red
- Art.-Nr.: 24500183
- Org.-Nr.: 8KW 044 040-003
Cross-section: 1.5 - 2.5 mm², Plug dimension: Ø 5 mm, blue
- Art.-Nr.: 24500191
- Org.-Nr.: 8KW 044 025-003
HERTH+BUSS butt connectors
Insulated crimp connectors
HERTH+BUSS blade receptacle
Partially insulated crimp connector
Cross-section: 0.5 - 1.0 mm², Plug dimension: 2.8 x 0.5 mm, red (piece)
- Art.-Nr.: 24501983
- Org.-Nr.: 50252500
Cross-section: 0.5 - 1.0 mm², Plug dimension: 6.3 x 0.8 mm, red (pack of 100 pieces)
- Art.-Nr.: 2451057H
- Org.-Nr.: 50252510
Cross-section: 1.5 - 2.5 mm², Plug dimension: 6.3 x 0.8 mm, blue (pack of 100 pieces)
- Art.-Nr.: 2451055H
- Org.-Nr.: 50252511
Cross-section: 0.5 - 1.0 mm², Plug dimension: 8.0 x 0.8 mm, blue (pack of 50 pieces)
- Art.-Nr.: 2451191H
- Org.-Nr.: 50252513
HELLA blade terminals
Partially insulated crimp connector
Cross-section: 0.5 - 1.0 mm², Plug dimension: 2.8 x 0.8 mm, red (pack of 100 pieces)
- Art.-Nr.: 24513319
- Org.-Nr.: 8KW 744 699-003
Cross-section: 0.5 - 1.0 mm², Plug dimension: 6.3 x 0.8 mm, red (pack of 100 pieces)
- Art.-Nr.: 24500530
- Org.-Nr.: 8KW 702 796-003
Cross-section: 1.5 - 2.5 mm², Plug dimension: 6.3 x 0.8 mm, blue (pack of 100 pieces)
- Art.-Nr.: 24500175
- Org.-Nr.: 8KW 044 288-003
Cross-section: 4.0 - 6.0 mm², Plug dimension: 6.3 x 0.8 mm, yellow (pack of 50 pieces)
- Art.-Nr.: 24513327
- Org.-Nr.: 8KW 744 700-003
HELLA flat plug
unisolated crimp connector
cross section: 0,5 - 1,0mm², socket size: 2,8 x 0,8mm, brass blank
- Art.-Nr.: 24512899
- Org.-Nr.: 8KW 744 752-003
cross section: 1,5 - 2,5mm², socket size: 6,3 x 0,8mm, brass blank
- Art.-Nr.: 24512907
- Org.-Nr.: 8KW 744 823-003
cross section: 0,5 - 1,0mm², socket size: 6,3 x 0,8mm, brass tin-plated
- Art.-Nr.: 24500654
- Org.-Nr.: 8KW 043 635-013
