Branch Connector
cross section: 0,3 - 0,75mm², red, delivery only in package with 25 pieces, price per 100 pieces
- Nº de artículo 24500373
- Org.-Nr.: 8KV 715 923-003
cross section: 0,5 - 1,0mm², red, delivery only in package with 50 pieces, price per piece
- Nº de artículo 24523706
- Org.-Nr.: 8KV 744 858 003
0,8 - 2,0mm², blue, delivery only in package with 25 pieces, price per piece
- Nº de artículo 24500605
- Org.-Nr.: 8KV 705 123-002
cross section: 3,3 - 5,2mm², yellow, delivery only in package with 10 pieces, price per piece
- Nº de artículo 24500449
- Org.-Nr.: 8KV 712 169-003
HELLA butt connectors
Insulated crimp connectors

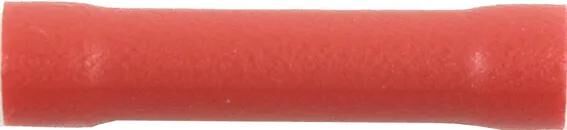

Cross-section: 0.5 - 1.5 mm², red (pack of 100 pieces)
- Nº de artículo 24500548
- Org.-Nr.: 8KW 044 280-003

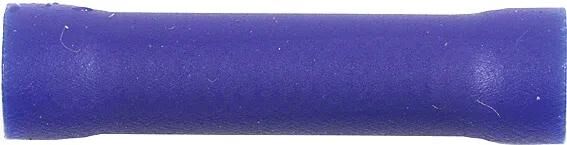

Cross-section: 1.5 - 2.5 mm², blue (pack of 100 pieces)
- Nº de artículo 24500423
- Org.-Nr.: 8KW 044 033-002

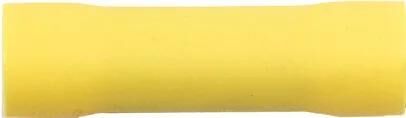

Cross-section: 4.0 - 6.0 mm², yellow (pack of 50 pieces)
- Nº de artículo 24500431
- Org.-Nr.: 8KW 044 034-003
HELLA crimp connector
solderless, uninsulated, tubular cable lugs/ring connector, for pressing, tin-plated copper, DIN 46234
Note: delivery in package with 25 pieces, price per piece
cross section: 16 - 25mm², bore: 6,5mm, for screw: M6
- Nº de artículo 24511834
- Org.-Nr.: 8KW 744 724-003

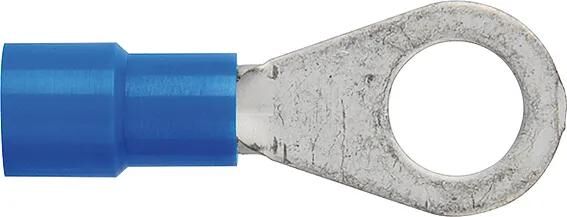

HERTH+BUSS ring connectors
Insulated crimp connectors,Cross section: 1.5 - 2.5 mm²,to DIN 46 237, form A, blue, pack of 100 pieces

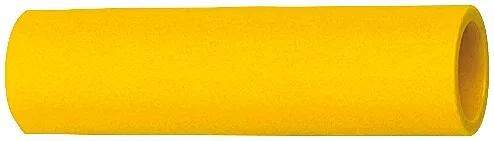

HERTH+BUSS butt connectors
Insulated crimp connectors
HELLA ring connector
Insulated crimp connectors, according to DIN 46 237, form A
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 3.2 mm / M3, red (pack of 100 pieces)
- Nº de artículo 24500258
- Org.-Nr.: 8KW 044 275-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 4.3 mm / M4, red (pack of 100 pieces)
- Nº de artículo 24500266
- Org.-Nr.: 8KW 044 276-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 5.3 mm / M5, red (pack of 100 pieces)
- Nº de artículo 24500274
- Org.-Nr.: 8KW 044 291-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 6.5 mm / M6, red (pack of 100 pieces)
- Nº de artículo 24512469
- Org.-Nr.: 8KW 744 772-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 8.4 mm / M8, red (pack of 50 pieces)
- Nº de artículo 24512477
- Org.-Nr.: 8KW 744 773-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 4.3 mm / M4, blue (pack of 100 pieces)
- Nº de artículo 24500316
- Org.-Nr.: 8KW 044 028-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 5.3 mm / M5, blue (pack of 100 pieces)
- Nº de artículo 24500308
- Org.-Nr.: 8KW 044 027-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 6.5 mm / M6, blue (pack of 100 pieces)
- Nº de artículo 24500282
- Org.-Nr.: 8KW 044 039-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 8.4 mm / M8, blue (pack of 50 pieces)
- Nº de artículo 24500324
- Org.-Nr.: 8KW 044 277-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 10.5 mm / M10, blue (pack of 50 pieces)
- Nº de artículo 24512493
- Org.-Nr.: 8KW 744 775-003
HERTH+BUSS crimp connector
Uninsulated, material: brass
blade terminal, asymmetric, cross section: 0,5 - 1mm²
socket width: 2,8mm (TE Connectivity JPT), surface: zinc-plated
- Nº de artículo 2451538H
- Org.-Nr.: 50251858

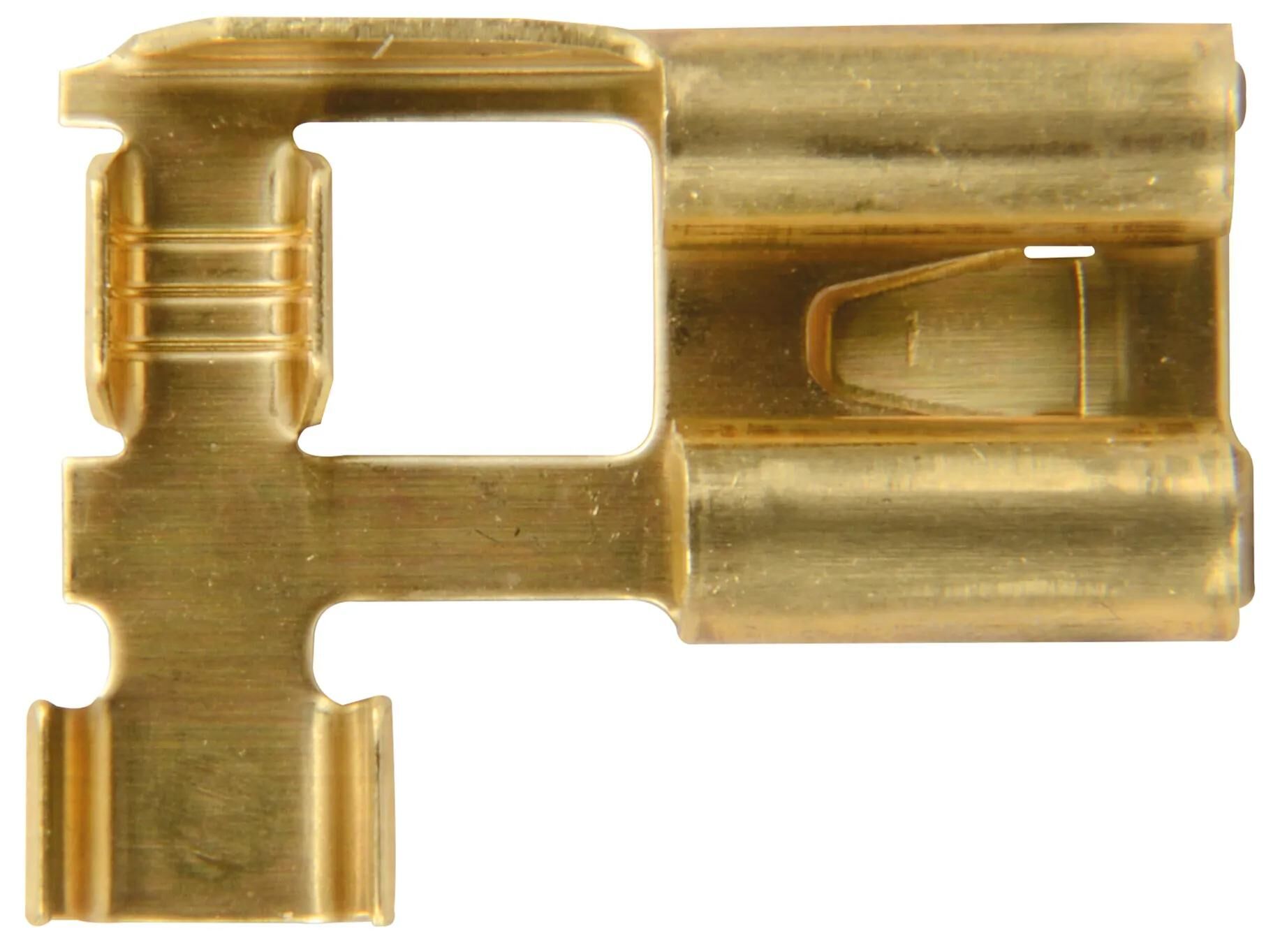

blade terminal, cross section: 1,5 - 2,5mm²
socket width: 8mm, socket height: 0,8 mm, surface: blank
- Nº de artículo 2451471H
- Org.-Nr.: 50251241

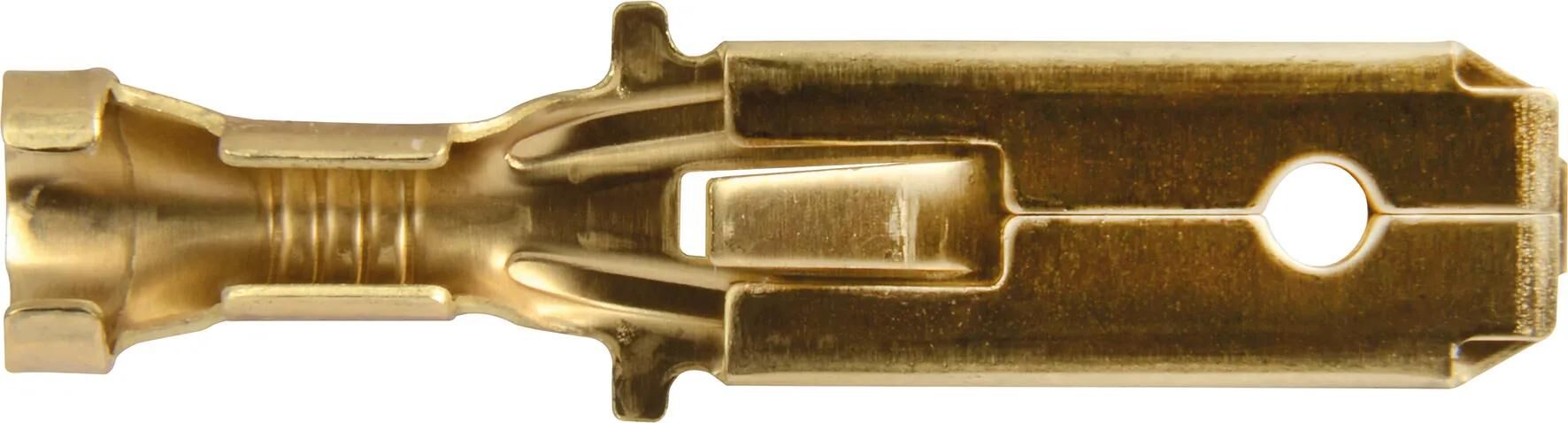

flat plug, cross section: 1.5 - 2.5 mm², plug width: 6.3mm, brass
(preformed, with latching nose and latching points)
- Nº de artículo 2451053H
- Org.-Nr.: 50251522

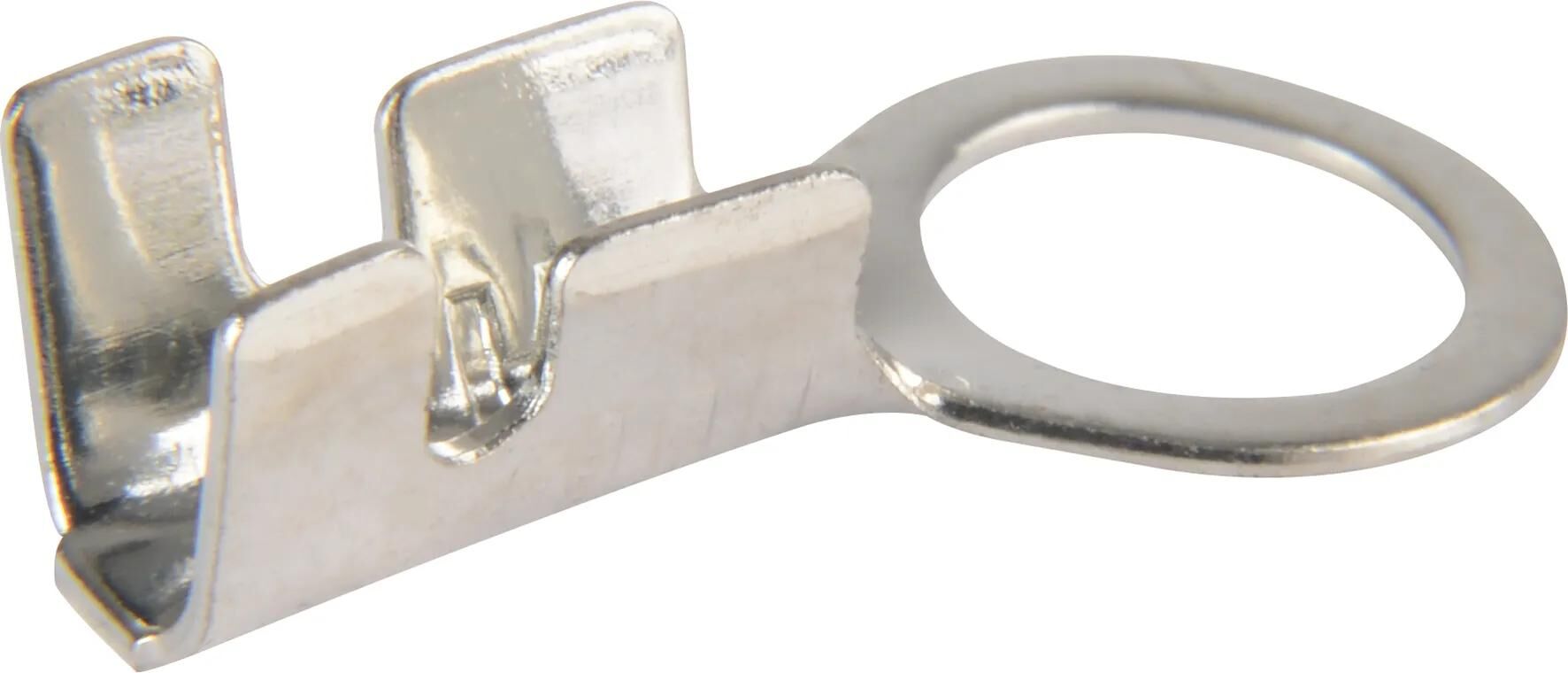

Ring connector, cross-section: 1.5 - 2.5 mm²
Ø hole: 6.3 mm, surface: tin-plated
- Nº de artículo 24330383
- Org.-Nr.: CRIMPVERBINDER
Fork Connector
isolated crimp connector, according to DIN 46 237, form C

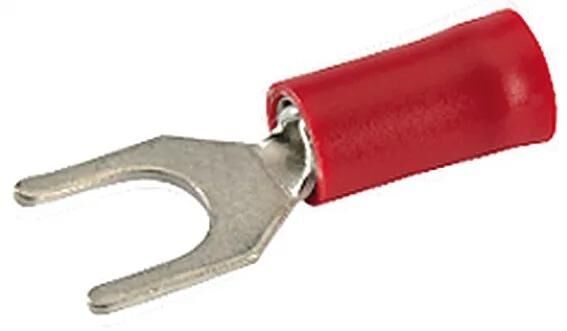

cross section: 0,5 - 1,0mm², Öeyelet hole: 6,5mm / M6, red (HELLA)
- Nº de artículo 24512675
- Org.-Nr.: 8KW 744 780-003

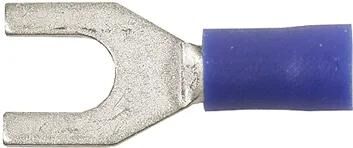

cross section: 1,5 - 2,5mm², eyelet hole: 5,3mm / M5, blue (HELLA)
- Nº de artículo 24500407
- Org.-Nr.: 8KW 044 282-003

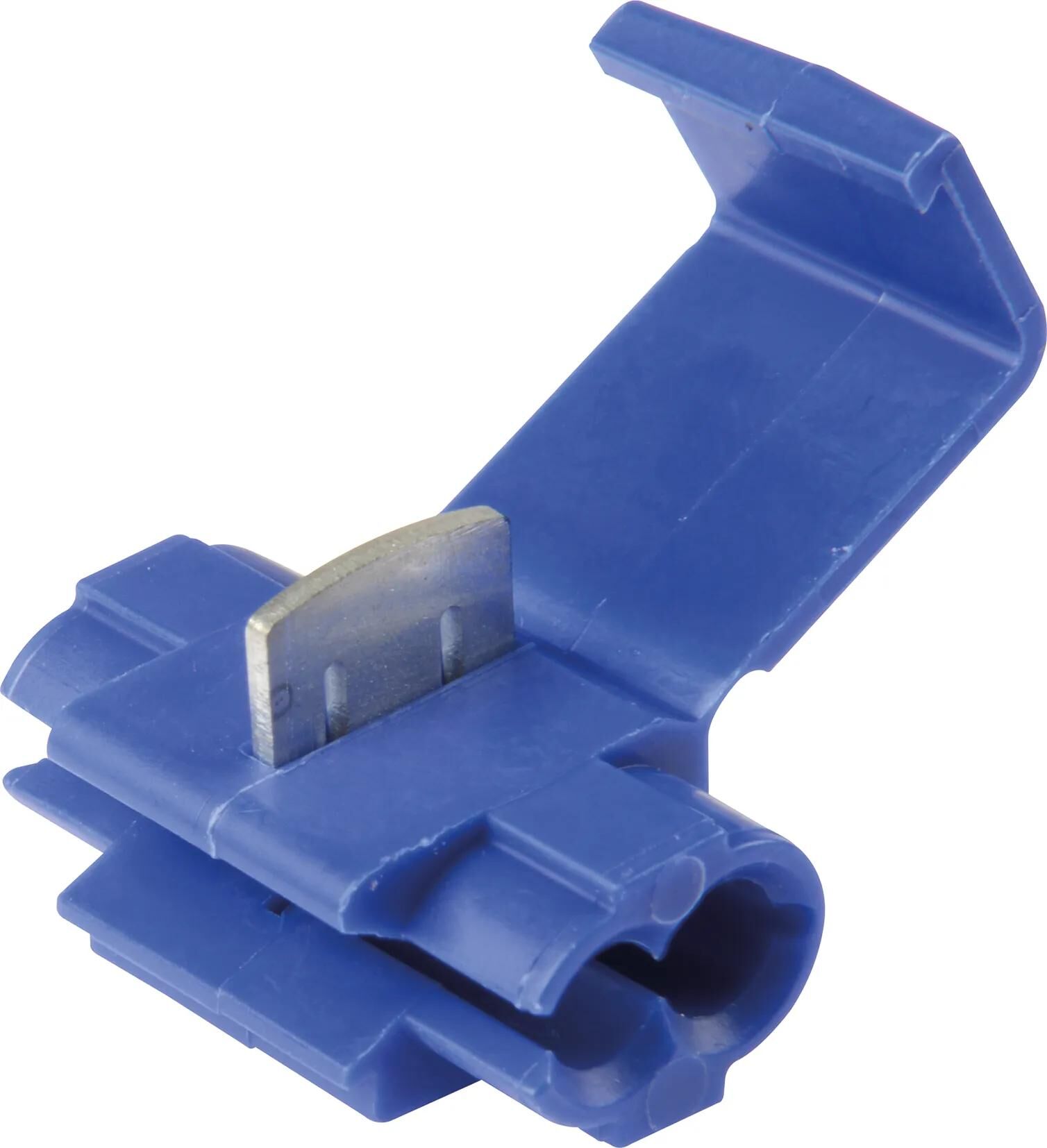

HERTH+BUSS branch connectors
Voltage up to 600 V, temperature range up to 105 C
0,75 - 2,5mm², blue, delivery only in package with 100 pieces, price per piece
- Nº de artículo 2451063H
- Org.-Nr.: 50252569

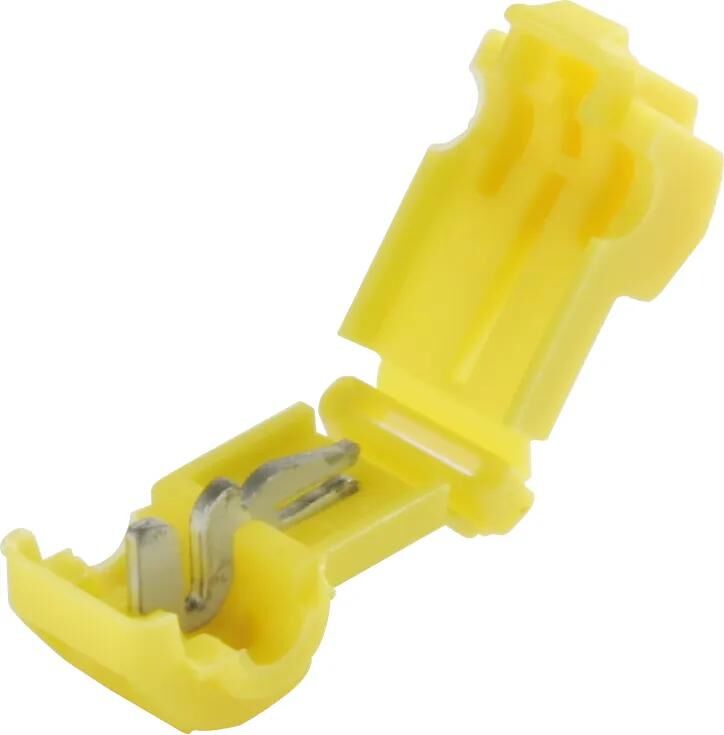

2,5 - 4,0 mm², yellow, delivery only in package with 25 pieces, price per piece
- Nº de artículo 2452756H
- Org.-Nr.: 50252577

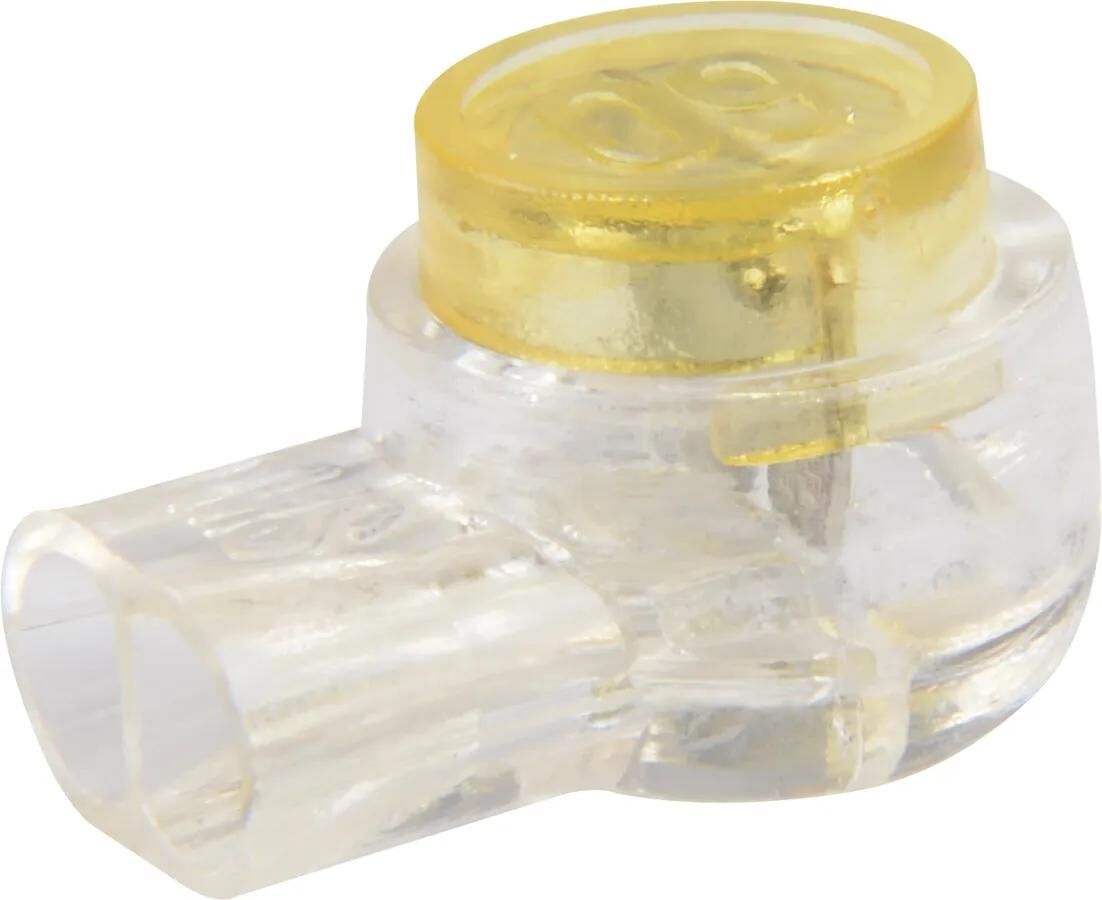

HERTH+BUSS Branch Connector
yellow, 2-pole, cable diameter till 1,5mm, cross section: 0,13 - 0,35mm
sealed design, with gel filling, double cutting element (cutting-clamping technology), splashwater protection, test mark: UL94 V0, voltage: till 500V, temeprature range: -40°C to 125°C, blade material: brass, corrosion resistant, dimensions (WxDxH): 12,5 x 8,8 x 8mm
