HERTH+BUSS Solder Connector
ring connector, cable lug, DIN 46 211 form A, brass, galvanized
Note: package unit (PU): bag with 10 / 25 / 50 pieces, sales package (SP): 1 piece, price shown per 100 pieces
HERTH+BUSS Shrinkable Connector
joint connector, crimp type socket, isolated, voltage till 600V, temperature range from -55°C to +125°C, shring temperature: 100°C
Note: package unit (PU): 50 pieces in bag, sales package (SP): 1 bag with 50 pieces, price shown per 100 pieces
DRESSELHAUS Shrinkable Connector
butt connector
Note: package unit (PU): 25 pieces in bag, sales package (SP): 1 bag with 25 pieces, price shown per 100 pieces
HELLA shrinkable connector
crimp / joint connector with shrinkable isolation (Duraseal)
Has an adhesive-coated, shrinkable nylon cap that can be used to create a watertight connection between the wire and the contact. The nylon cap must be shrunk with a hot air gun or other heating source - shrink temperature: 135°C
Note: delivery only in package with 25 pieces, price per piece
HERTH+BUSS Shrinkable Connector "Solder Sleeve"
solder connector with tin inlay and shrinkable hose isolation for producer TE Raychem, with interior adhesive, temperature range from -55°C to +125°C
Note: package unit (PU): bag with 10 / 50 pieces, sales package (SP): 10 pieces, price shown 100 pieces
Manufacturer information: Solder Sleeve - water tight connector! Solder connector with tin inlay and shrinkable hose isolation. The simple and fast solution for tensile, moisture-density cable connections. Simply insert the appropriately stripped leads into the appropriate connector and then melt the solder ring. Heat the connector until the glue comes out at the ends.
cross section: 0,1 - 0,5mm², inner Ø: 1,7mm, length: 26mm, white/blue
- Art.-Nr.: 2450330H
- Org.-Nr.: 50252639
cross section: 1,0 - 3,0mm², inner Ø: 2,5mm, length: 24,5mm, blue
- Art.-Nr.: 2452991H
- Org.-Nr.: 50252643
cross section: till 4,8mm², inner Ø: 4,3 - 4,8mm, length: 29,3mm, blue
- Art.-Nr.: 2452992H
- Org.-Nr.: 50252644
cross section: 2,8 - 6,7mm², inner Ø: 6,0 - 6,7mm, length: 32mm, grey/blue
- Art.-Nr.: 2452993H
- Org.-Nr.: 50252645
cross section: 4,0 - 11,5mm², inner Ø: 10,8 - 11,5mm, length: 35,5mm, blue
- Art.-Nr.: 2452996H
- Org.-Nr.: 50252648
HELLA shrinkable connector
isolated crimp/ring connector with shrinkable isolation (Duraseal)
Has an adhesive-coated, shrinkable nylon cap that can be used to create a watertight connection between the wire and the contact. The nylon cap must be shrunk with a hot air gun or other heating source - shrink temperature: 135°C
Note: delivery only in package with 25 pieces, price per piece

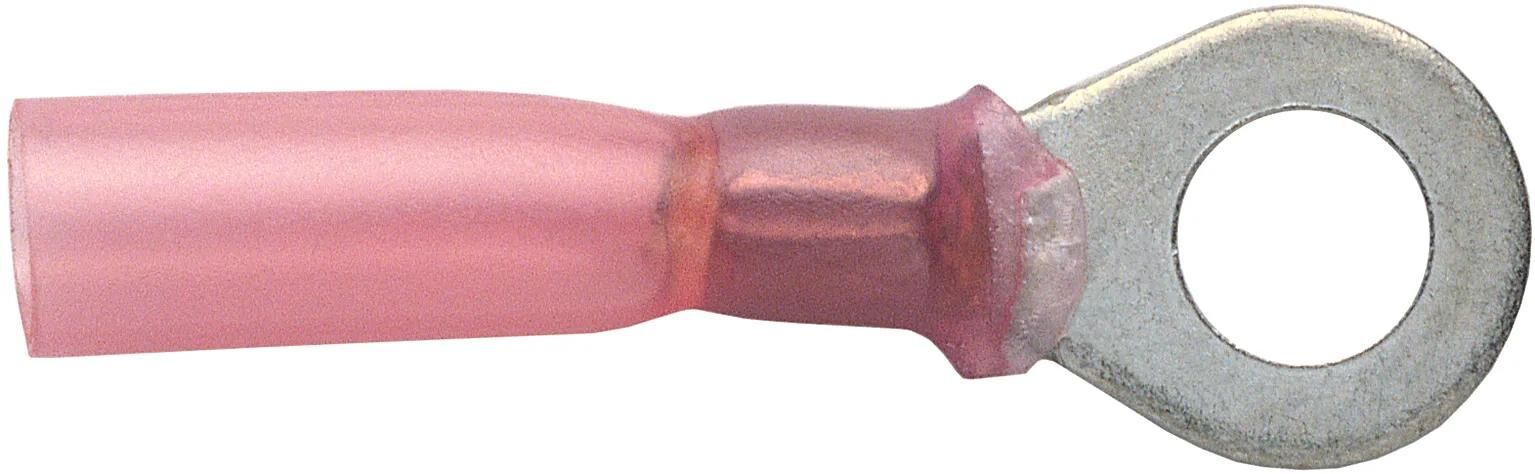

cross section: 0,5 - 1,0mm², eyelet hole: 5,3mm (M5), red
- Art.-Nr.: 24501298
- Org.-Nr.: 8KW 732 572-003

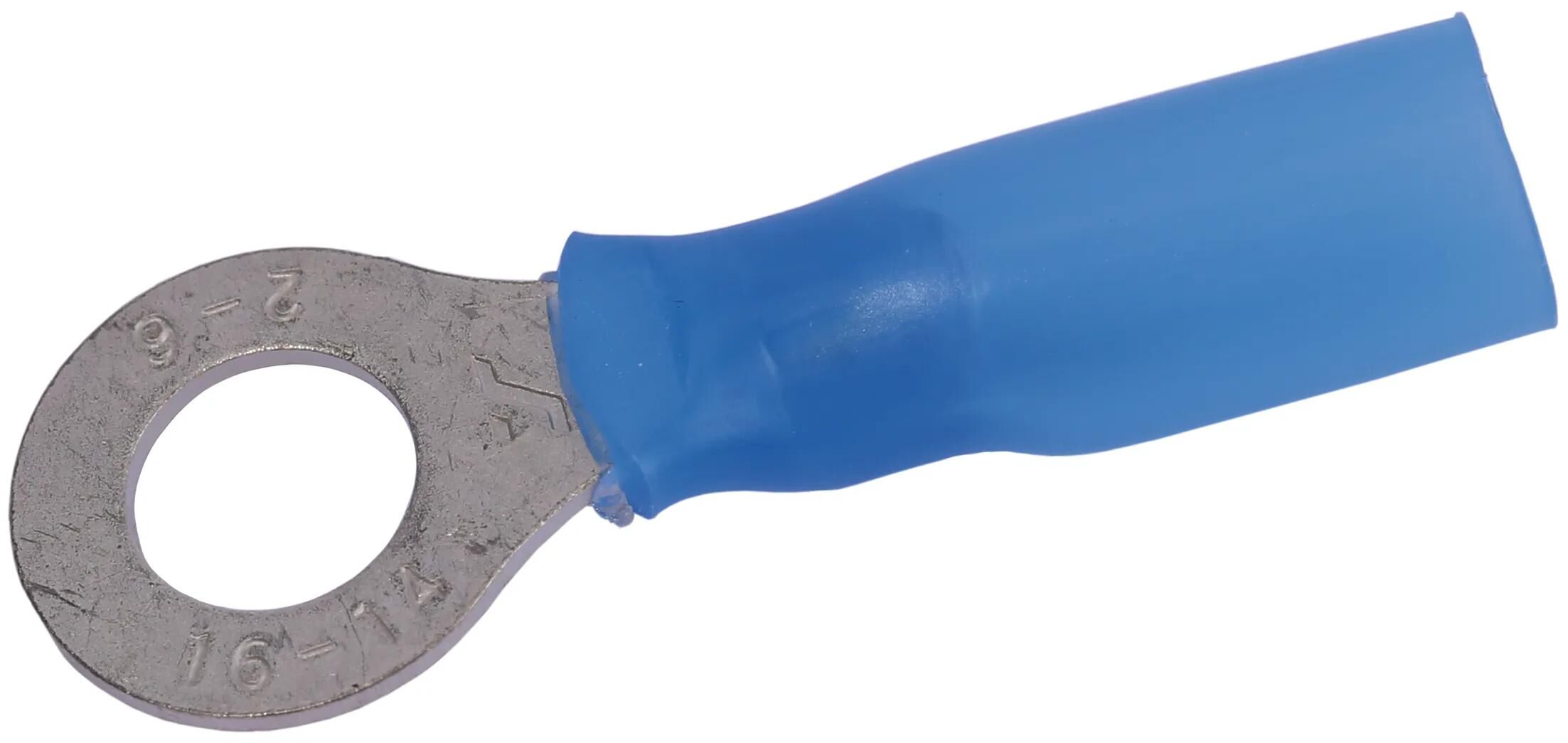

cross section: 1,5 - 2,5mm², eylet hole: 6,5mm (M6), blue
- Art.-Nr.: 24501322
- Org.-Nr.: 8KW 732 575-003

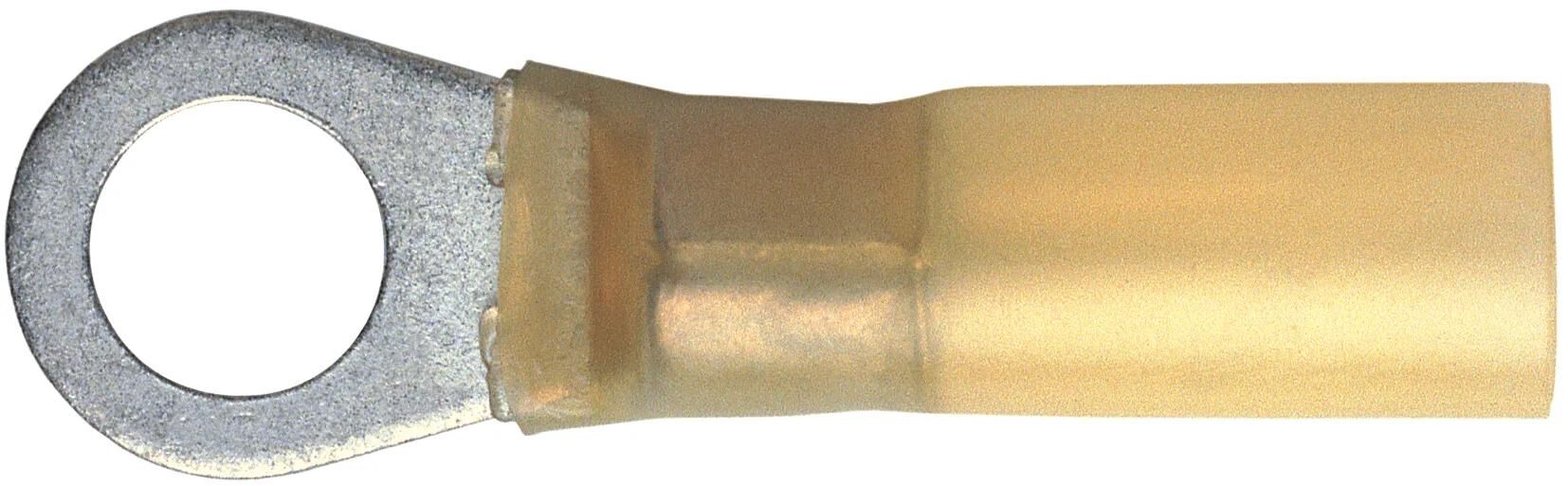

cross section: 4,0 - 6,0mm², eyelet hole: 6,5mm (M6), yellow
- Art.-Nr.: 24501330
- Org.-Nr.: 8KW 732 576-003
HERTH+BUSS Shrinkable Connector "Solder Sleeve"
solder ring, for producer Tyco, with interior adhesive, temperature range from -55°C to +125°C
Note: package unit (PU): 50 pieces in bag, sales package (SP): 1 bag with 50 pieces, price shown per 100 pieces
Manufacturer information: Solder Sleeve - water tight connector! Solder connector with tin inlay and shrinkable hose isolation. The simple and fast solution for tensile, moisture-density cable connections. Simply insert the appropriately stripped leads into the appropriate connector and then melt the solder ring. Heat the connector until the glue comes out at the ends.
cross section: 0,8 - 2,0mm², inner Ø: 2,7mm, length: 42mm, red
- Art.-Nr.: 24506123
- Org.-Nr.: 50 252 640
cross section: 2,0 - 4,0mm², inner Ø: 4,5mm, length: 42mm, blue
- Art.-Nr.: 24506131
- Org.-Nr.: 50 252 641
cross section: 4,0 - 6,0mm², inner Ø: 6,0mm, length: 42mm, yellow
- Art.-Nr.: 24506149
- Org.-Nr.: 50 252 642
HELLA Shrinkable Connector
CWT soldering joint, for temperature-sensitive cables, where soldrenig is not possible
The soldering sleeve is shrunk with the hot air gun, but preferably with the reflector. The integrated solder ring melts and the adhesive shrink tubing connects to the cable insulation. The connection is soldered after warming, insulated, sealed and mechanically relieved. Suitable as a high quality connection for single-line and grounding of shields of coaxial cables.
Note: package unit (PU): 50 pieces in bag, sales package (SP): 1 bag with 50 pieces, price shown per 100 pieces
cross section: 2 x 0,3 - 0,8mm², max. isolation: 1,7mm, transparent
- Art.-Nr.: 24525222
- Org.-Nr.: 8KW 744 890-013
cross section: 2 x 1,0 - 2,0mm², max. isolation: 4,3mm, blue
- Art.-Nr.: 24309528
- Org.-Nr.: 8KW 744 888-013
cross section: 2 x 0,8 - 2,0 mm², max. isolation: 2,7mm, red
- Art.-Nr.: 24525198
- Org.-Nr.: 8KW 744 887-013
DRESSELHAUS Shrinkable Connector
solder connector, with tin inlay and heat shrinkable hose isolation
0,5 - 1,0mm², red
delivery only in package with 2 pieces, price per package
- Art.-Nr.: 42906032
- Org.-Nr.: 418277640 139231
0,5 - 1,0 mm², red, delivery only in package with 25 pieces, price per piece
- Art.-Nr.: 24535395
- Org.-Nr.: 466077617 139231
1,5 - 2,5mm², blue
delivery only in package with 2 pieces, price per package
- Art.-Nr.: 42906016
- Org.-Nr.: 418277240 139232
1,5 - 2,5 mm², blue, delivery only in package with 25 pieces, price per piece
- Art.-Nr.: 24535411
- Org.-Nr.: 466077217 139232
4,0 - 6,0mm², yellow
delivery only in package with 2 pieces, price per package
- Art.-Nr.: 42906024
- Org.-Nr.: 418277440 139233
HERTH+BUSS Shrinkable Connector "SolderGrip SGRS"
cable end sleeve, end splice, with interior adhesive, temperature range from -40°C to +125°C
Note: package unit: bag with 10 pieces, sales package: 1 piece, price shown per 100 pieces

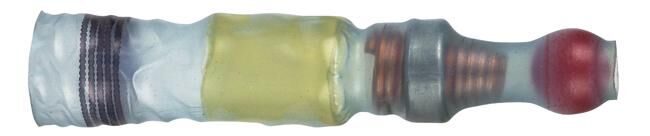

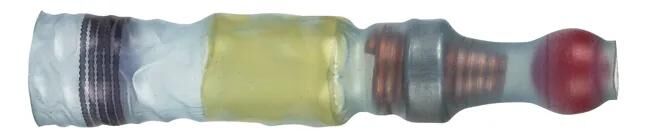

cross section: 2,0 - 4,5mm², inside Ø: 4,5mm, length: 37,7mm, red
- Art.-Nr.: 24512550
- Org.-Nr.: 50252656

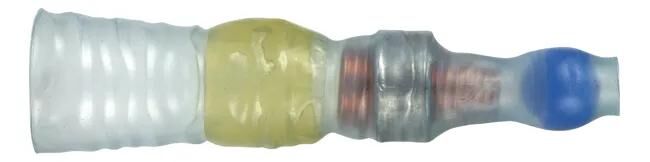

cross section: 3,5 - 9,0mm², inner Ø: 7,0mm, length: 45,5mm, blue
- Art.-Nr.: 24512568
- Org.-Nr.: 50252657
