HELLA Luster Terminal
12 pin, with massive brass binding posts, black
HELLA cable junction box
for linking different, multi-core cables, lockable, with fire-resistant construction to protect the individual wires, protection class: IP52

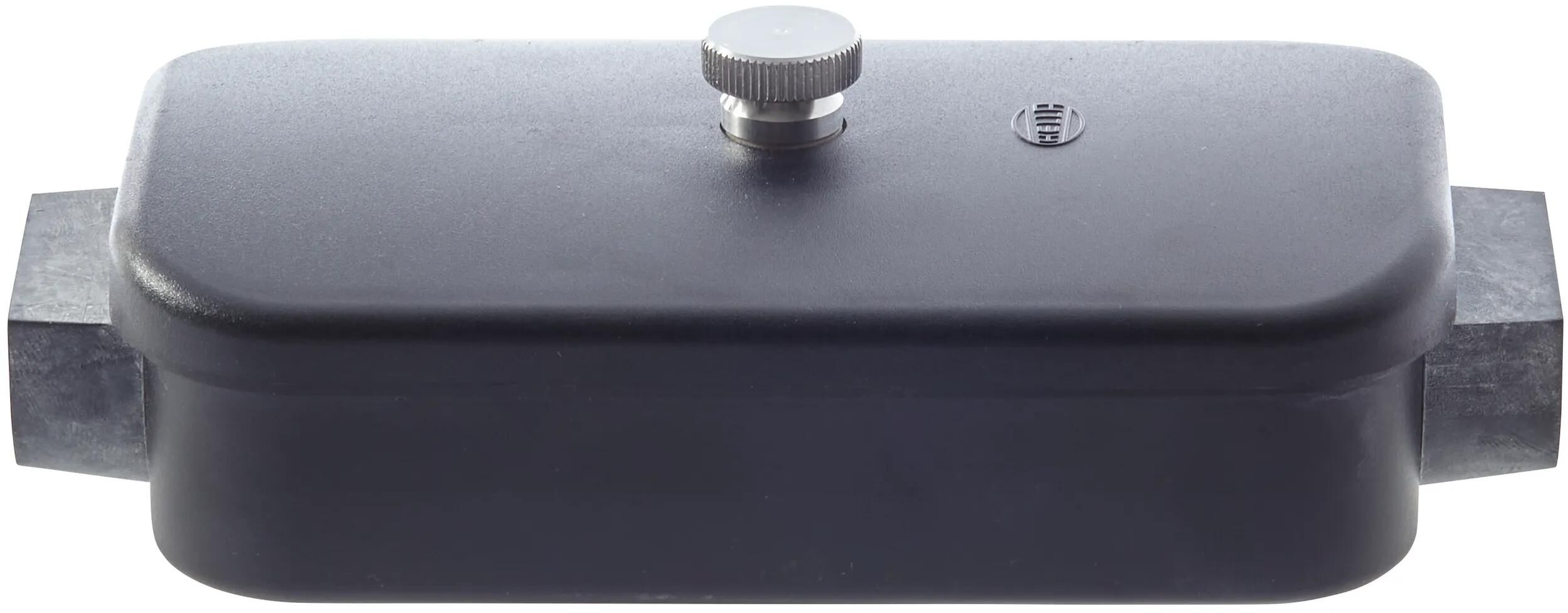

6-pin, with screw connector
for lines till 6mm² (Ø 4,3mm), 125 x 73 x 43mm
- Art.-Nr.: 24525123
- Org.-Nr.: 8KV 002 142-031
8-pin, with screw connections
for cables till 6mm² (Ø 3,5mm), 125 x 73 x 43mm
- Art.-Nr.: 24525131
- Org.-Nr.: 8KV 002 143-031
8-pin, with 8 x 2 flat connectors
6,3 x 0,8mm, 125 x 73 x 43mm
- Art.-Nr.: 24525149
- Org.-Nr.: 8KV 002 144-031

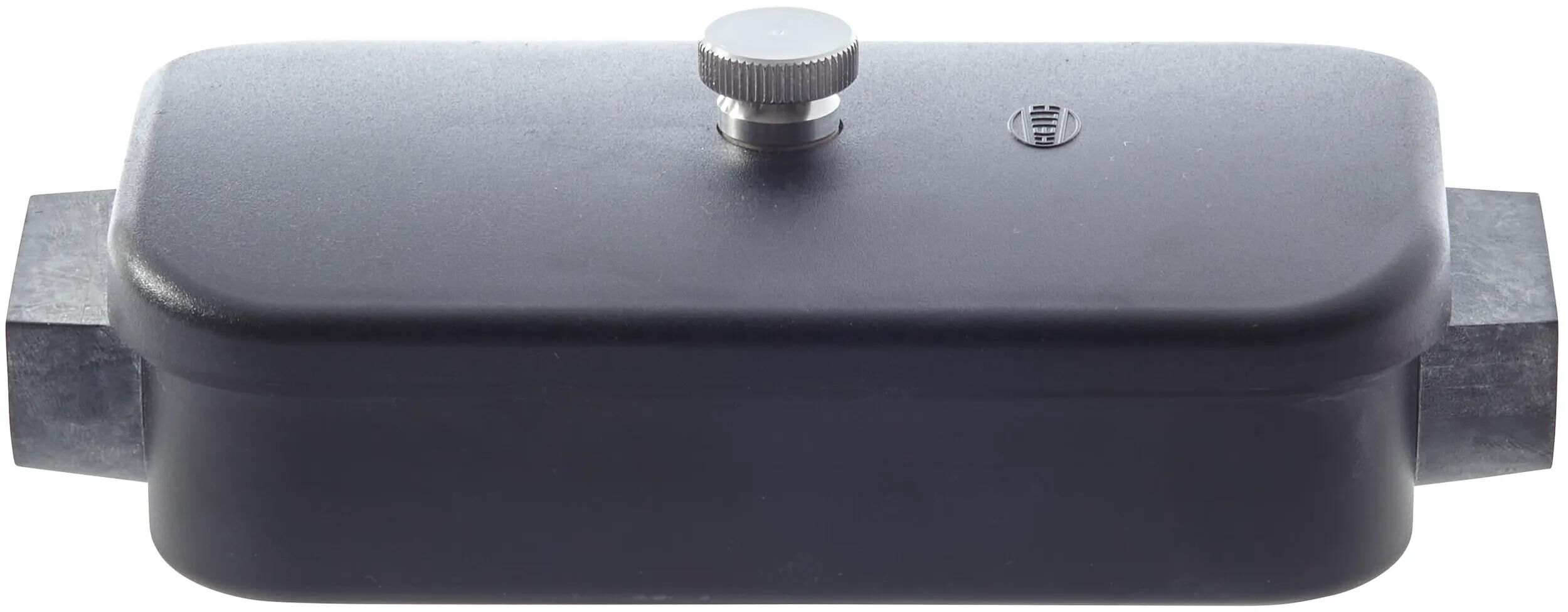

16 pin, with 8 x 4 flat connectors
6,3 x 0,8mm, 125 x 73 x 43mm
- Art.-Nr.: 24525164
- Org.-Nr.: 8KV 002 145-031

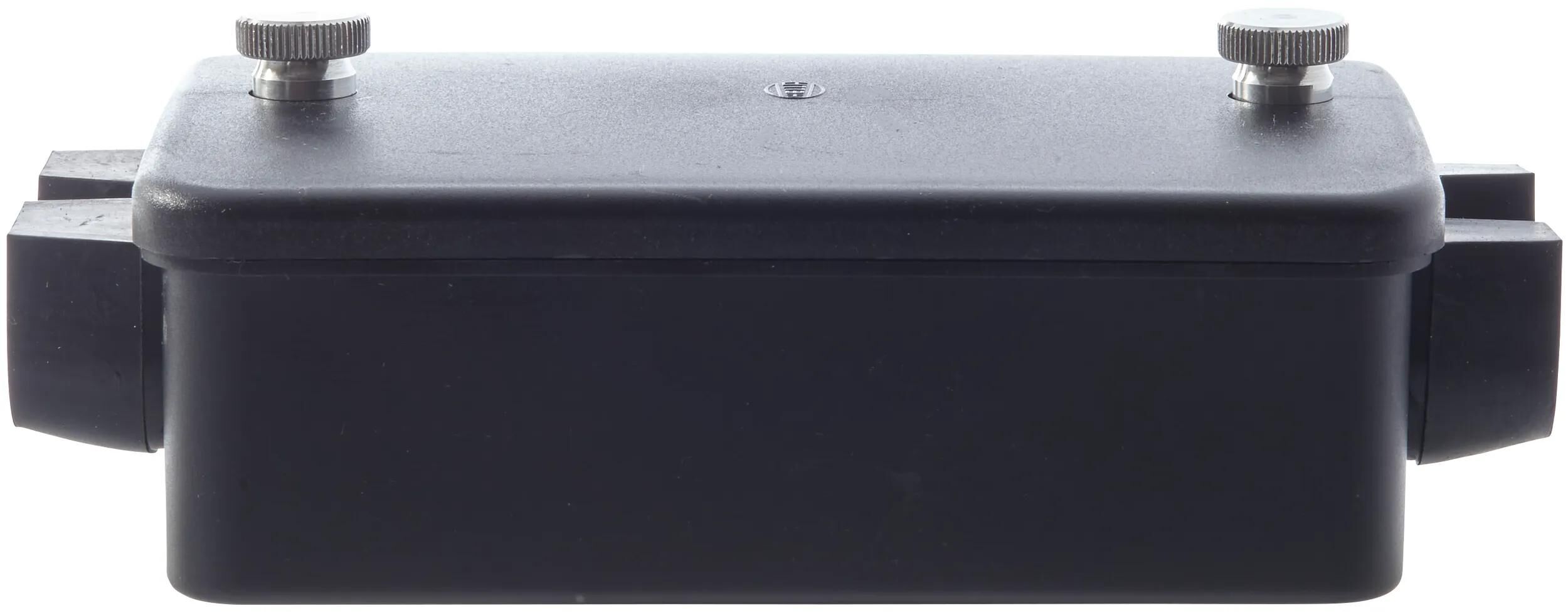

16-pin, with screw connection
for lines till 6mm² (Ø 3,5mm), 140 x 90 x 58mm
- Art.-Nr.: 24525172
- Org.-Nr.: 8KV 004 258-031

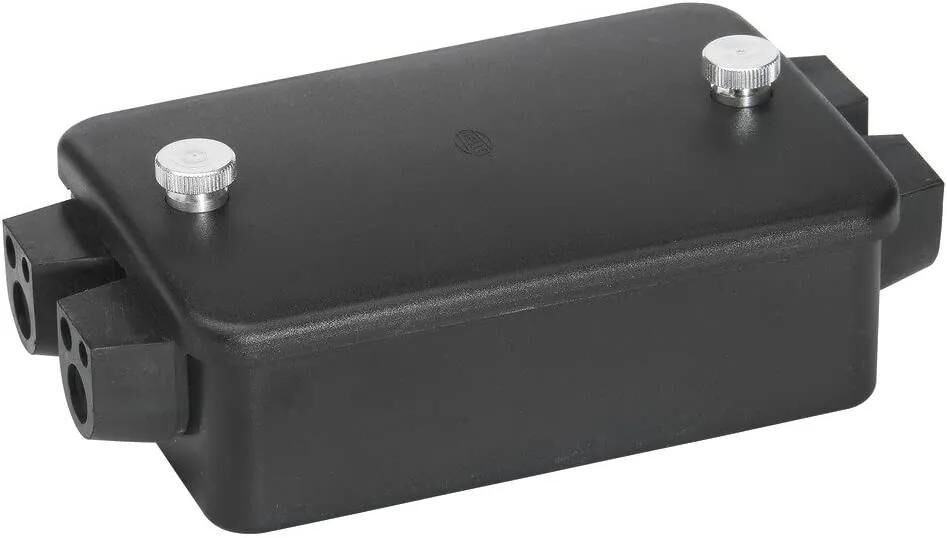

16-pin, with 8 x 4 flat connectors
6,3 x 0,8mm, 140 x 90 x 58mm
- Art.-Nr.: 24525180
- Org.-Nr.: 8KV 004 259-031
HERTH + BUSS Cable Junction Box
for linking different cables, housing with aluminium cover, protection class: IP54, material: polyamide

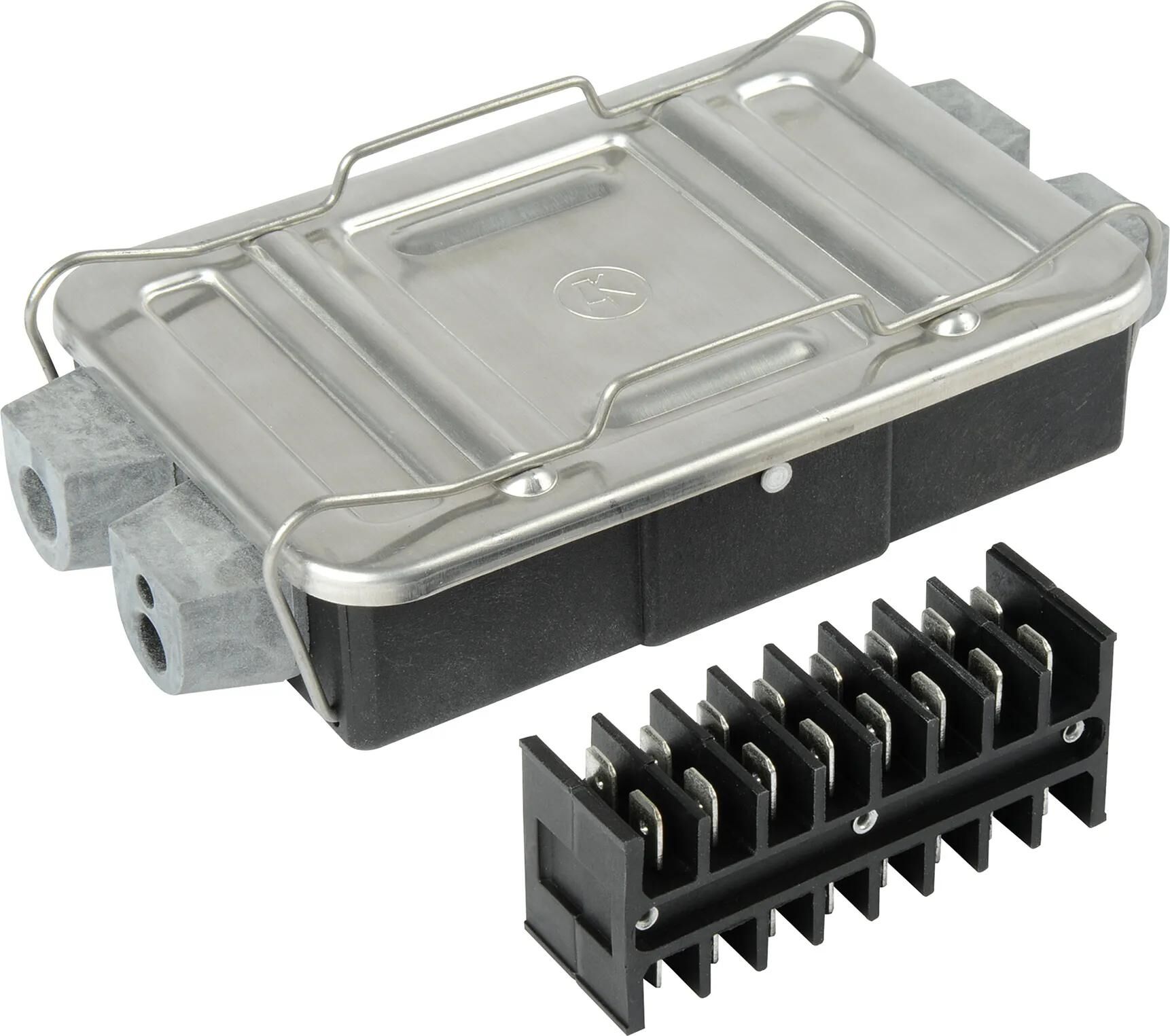

8-pole, with 8 x 4 flat connectors,
socket width: 6,3mm, housing (WxHxD): 150 x 45 x 93mm
- Art.-Nr.: 24526014
- Org.-Nr.: 50 290 038

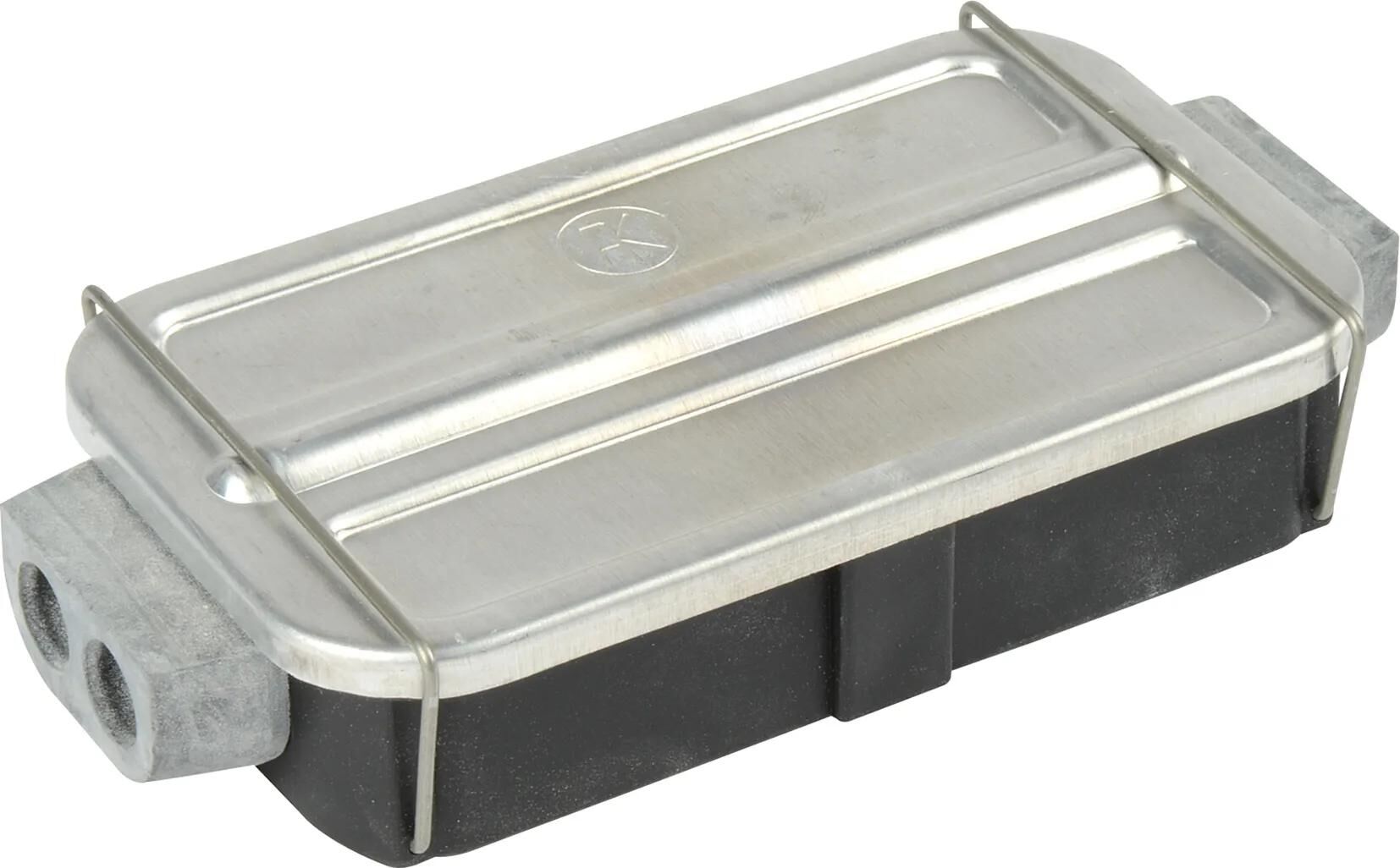

6-pole, with 6 x 1 screw terminals
thread size: M4, housing (WxHxD): 120 x 30 x 69mm
- Art.-Nr.: 24526006
- Org.-Nr.: 50290036
