HELLA Label
symbol disc for Hella switches
suitable for the series 3 100 / 4 100 / 007 832 / 008 948 / 004 570 / 008 910

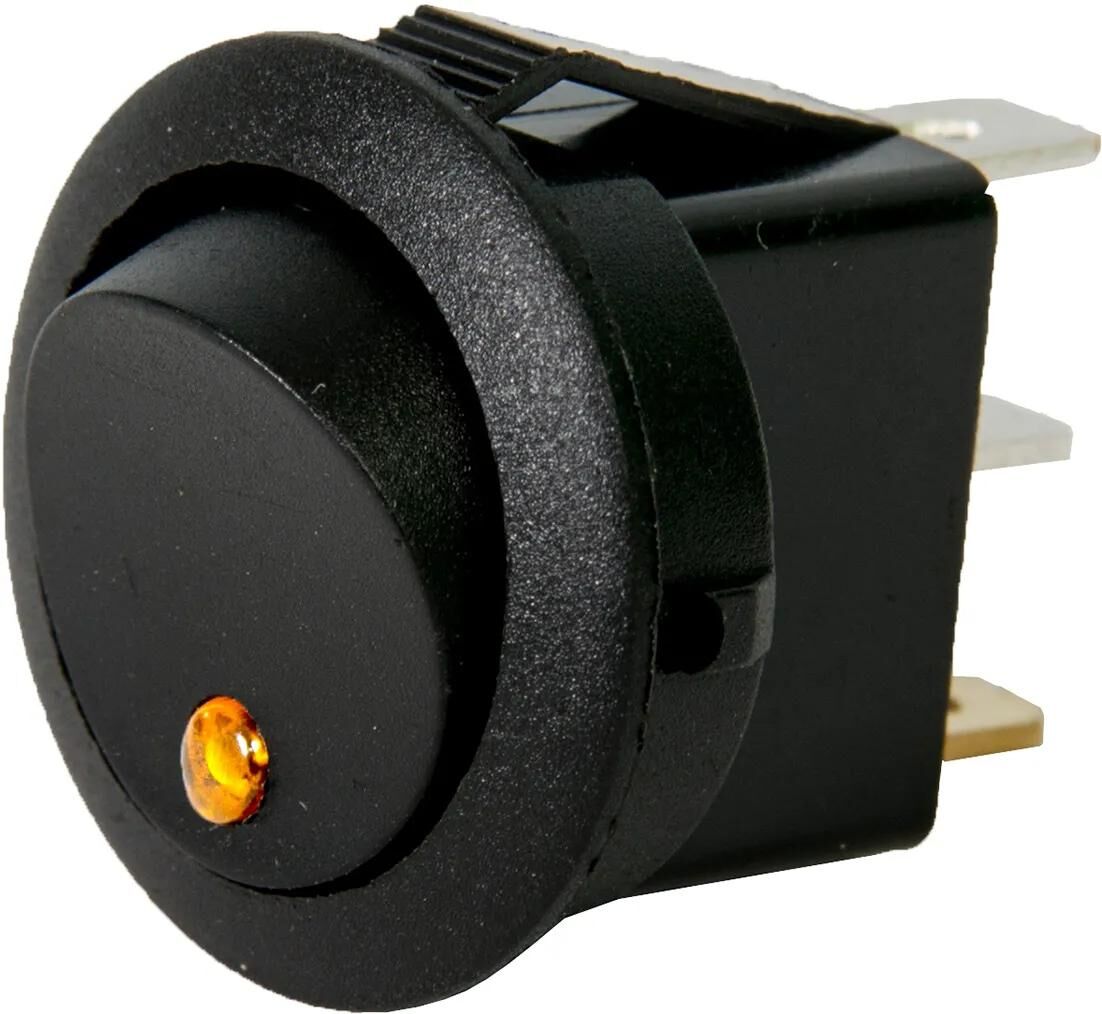

HP Rocket Switch
for auxiliary headlight, rear fog light etc.
With control LED. Switching function on / off, switching capacity 16A / 12V, installation Ø 20mm.
HELLA Rocker Switch
toggle switch with 3 flat connectors 6,3mm
2 switch positions: 1 and 2, capacity: 10A at 12V
HELLA Rocker Switch
on/off switch with 2 flat connectors 6,3mm
2 switch positions: 0 = off, 1 = on, capacity: 10A at 12V

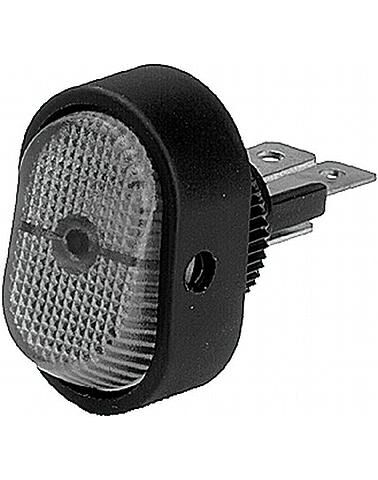

HELLA Rocker Switch
on/off switch with 12V bulb and 3 flat connectors 6,3mm
2 switch positions: 0 = off, 1 = on, capacity: 10A at 12V
HELLA Rocker Switch
on/off switch with 12V bulb and 3 flat connectors 6,3mm
capacity: 10A at 12V

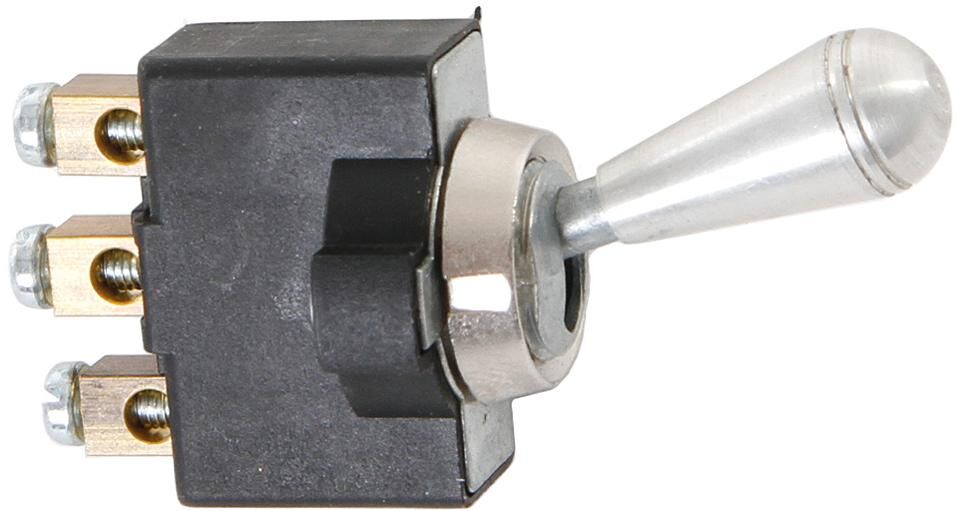

HELLA Toggle Switch
on/off switch with 12V bulb, 3 flat connectors 6,3mm
2 switch positions: 0 = off, 1 = on, capacity: 10A at 12V

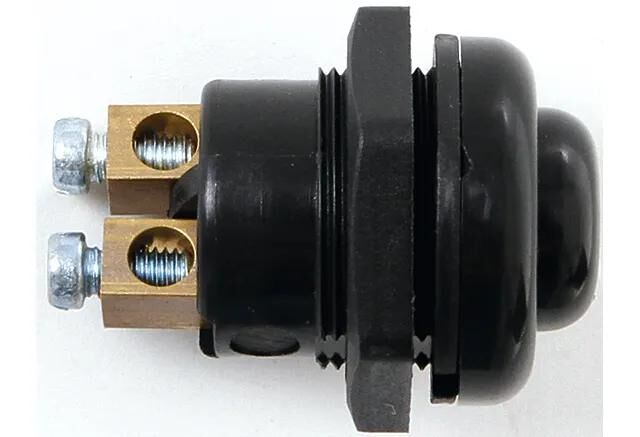

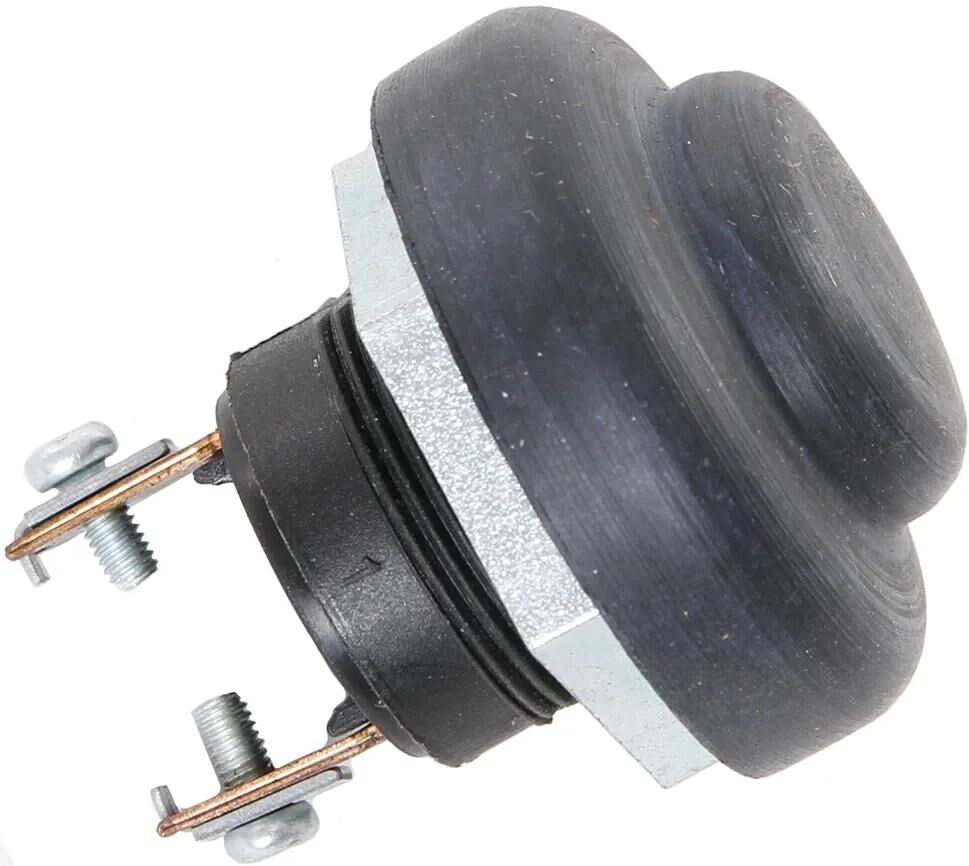

HELLA Pressure Switch
ignition/start switch, button, addition, black, for wall thickness up to max. 7mm, load (short-term): 12,5A at 12V, 6,25A at 24V

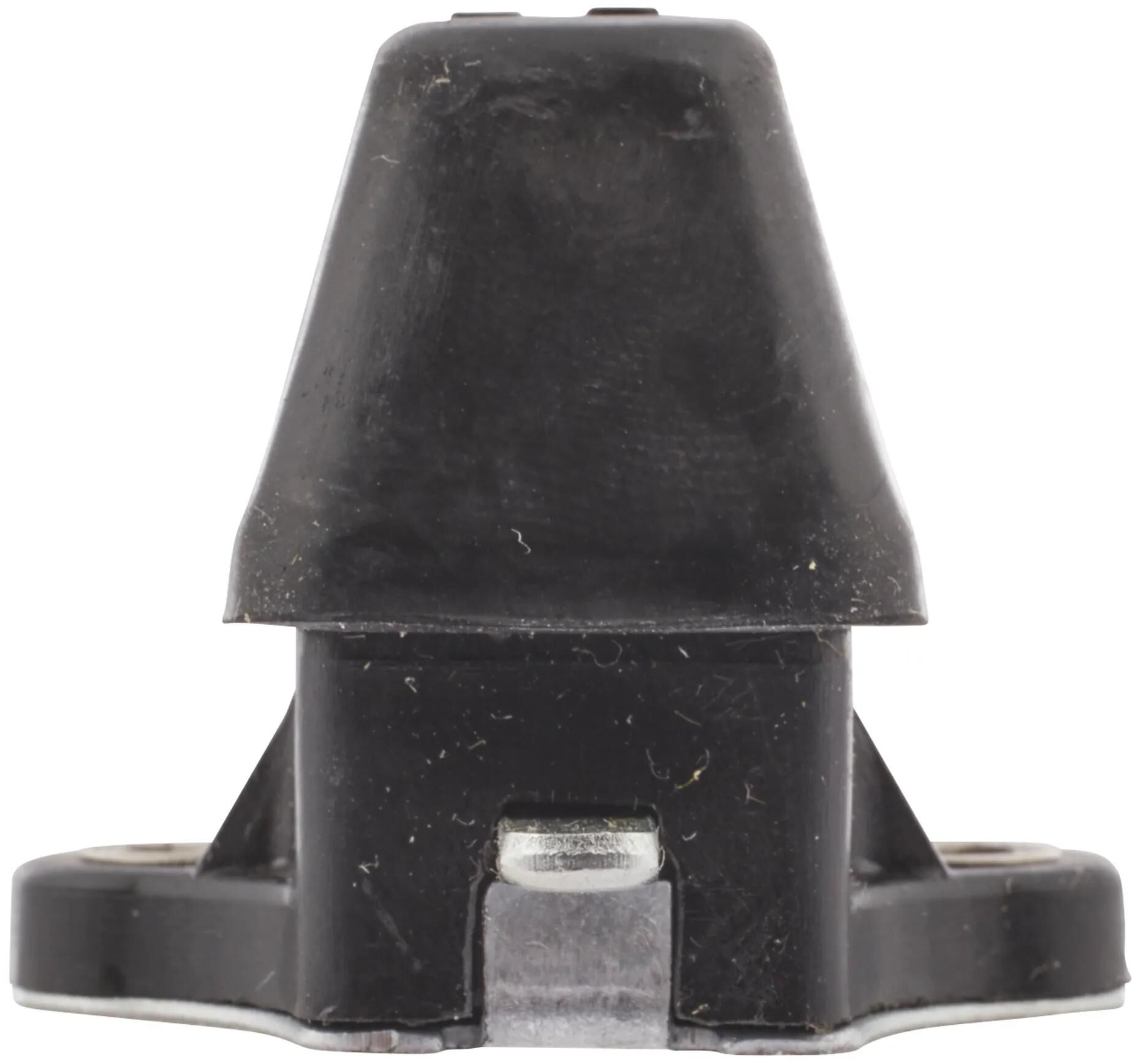

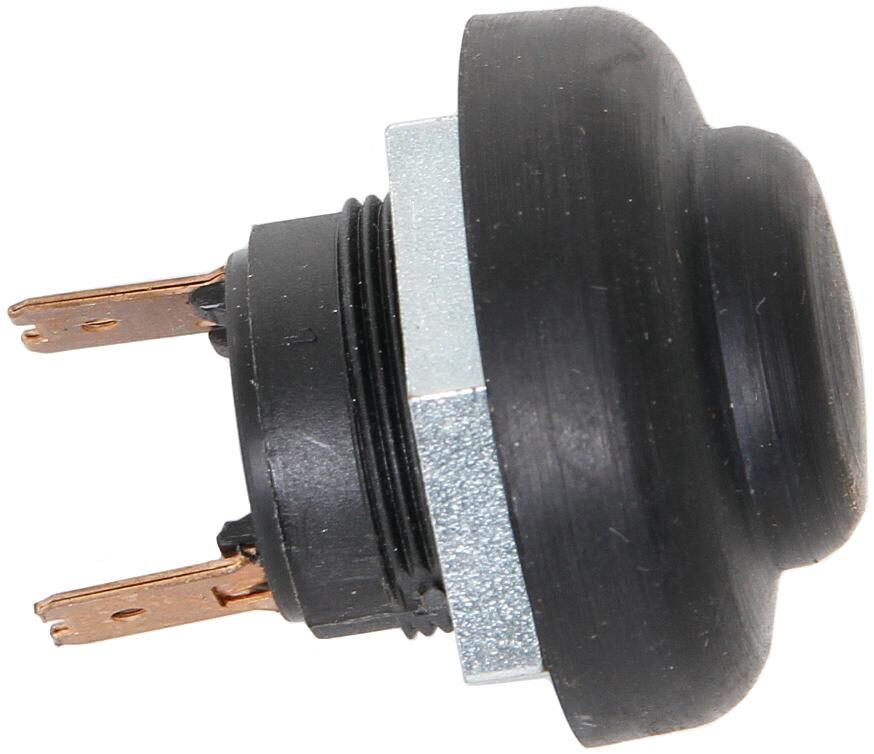

HELLA Pressure Switch
door contact switch, opener, load: 12 / 24V: 1,5 / 0,75A, 2-pole

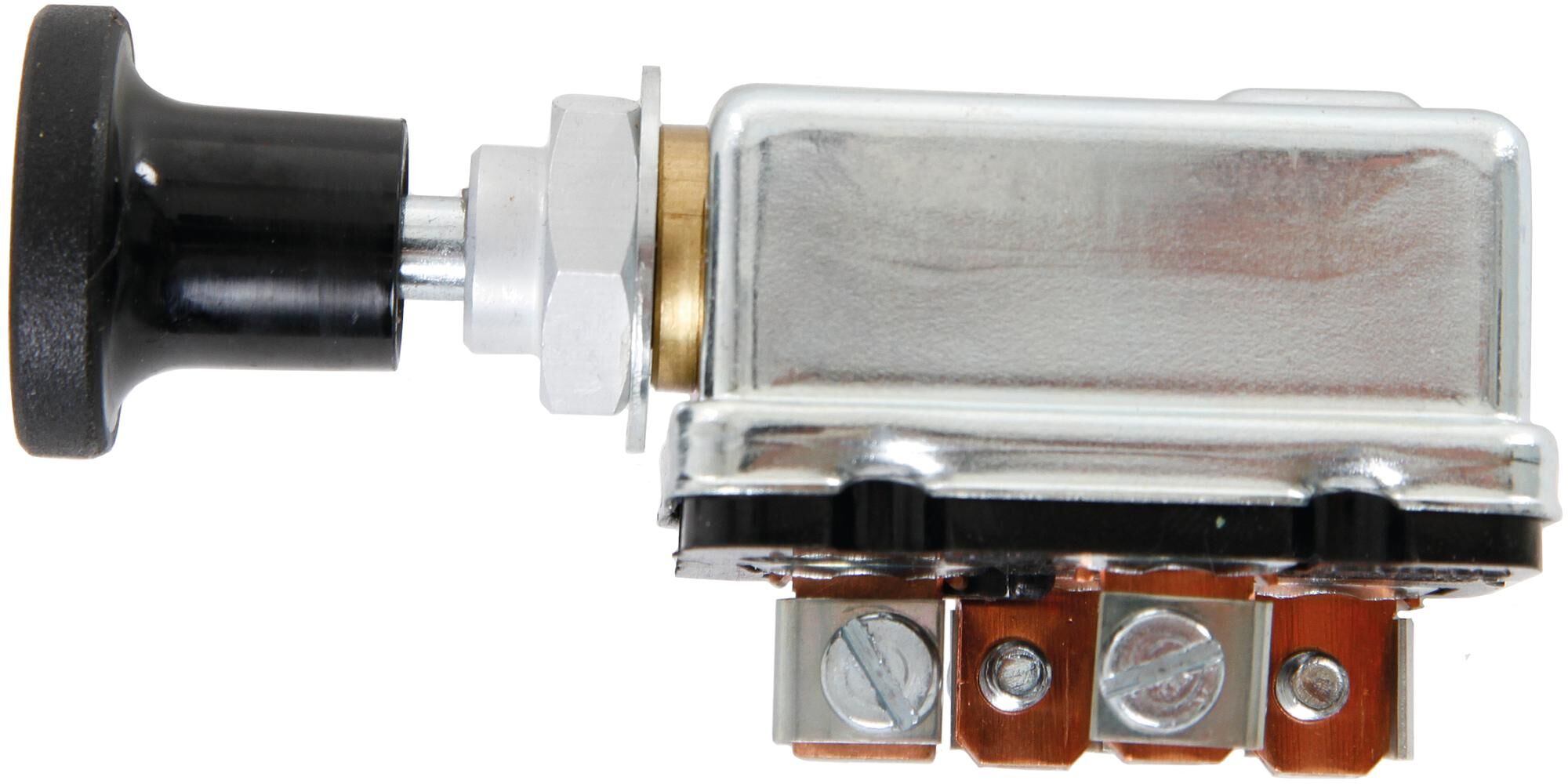

HELLA Pressure Switch
metal design, ignition/start switch, button, addition, for wall thickness up to max. 8,5mm, load (short-term): 16A at 12V, 8A at 24V
