HELLA Label
symbol disc for Hella switches
suitable for the series 3 100 / 4 100 / 007 832 / 008 948 / 004 570 / 008 910

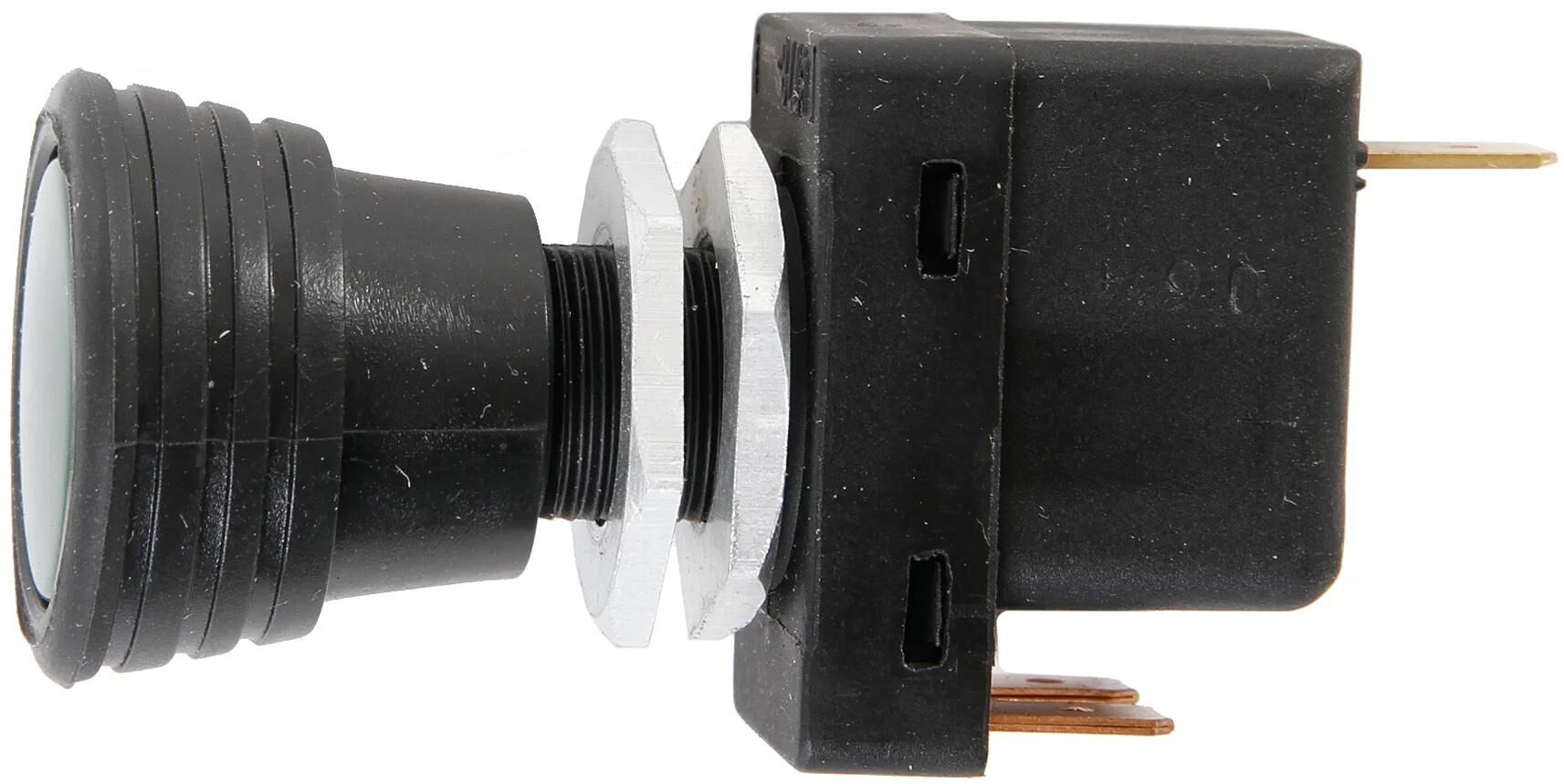

HP Rocket Switch
for auxiliary headlight, rear fog light etc.
With control LED. Switching function on / off, switching capacity 16A / 12V, installation Ø 20mm.

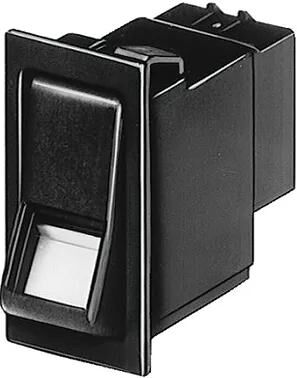

HELLA Rocker Switch
toggle switch with 3 flat connectors 6,3mm
2 switch positions: 1 and 2, capacity: 10A at 12V

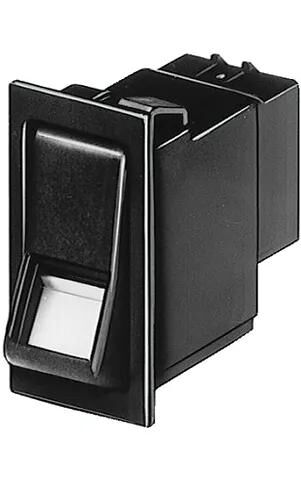

HELLA Rocker Switch
on/off switch with 2 flat connectors 6,3mm
2 switch positions: 0 = off, 1 = on, capacity: 10A at 12V

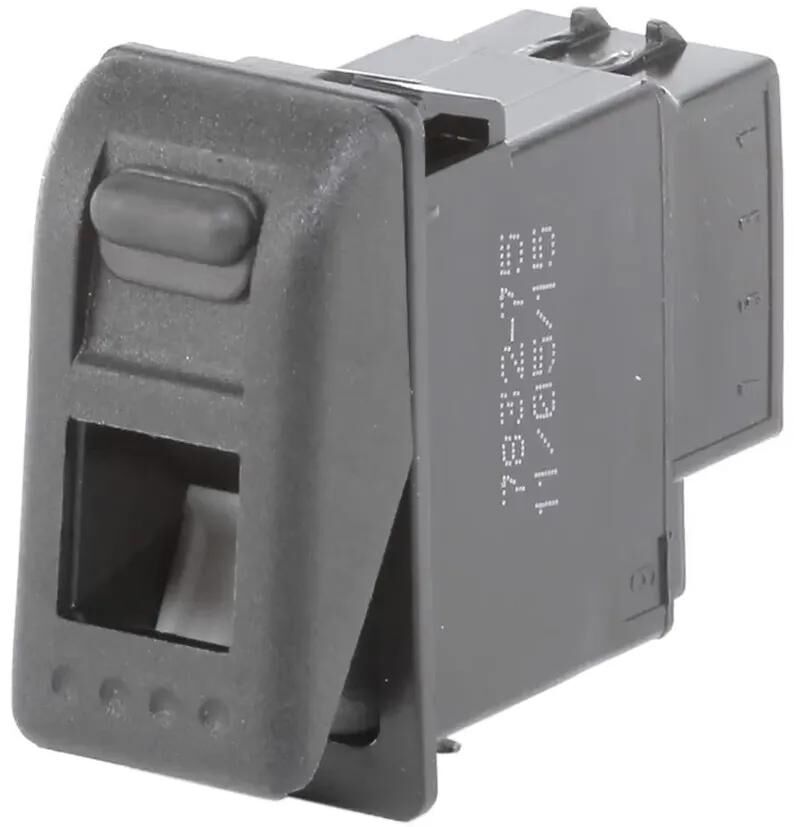

HELLA Rocker Switch
on/off switch with 12V bulb and 3 flat connectors 6,3mm
2 switch positions: 0 = off, 1 = on, capacity: 10A at 12V

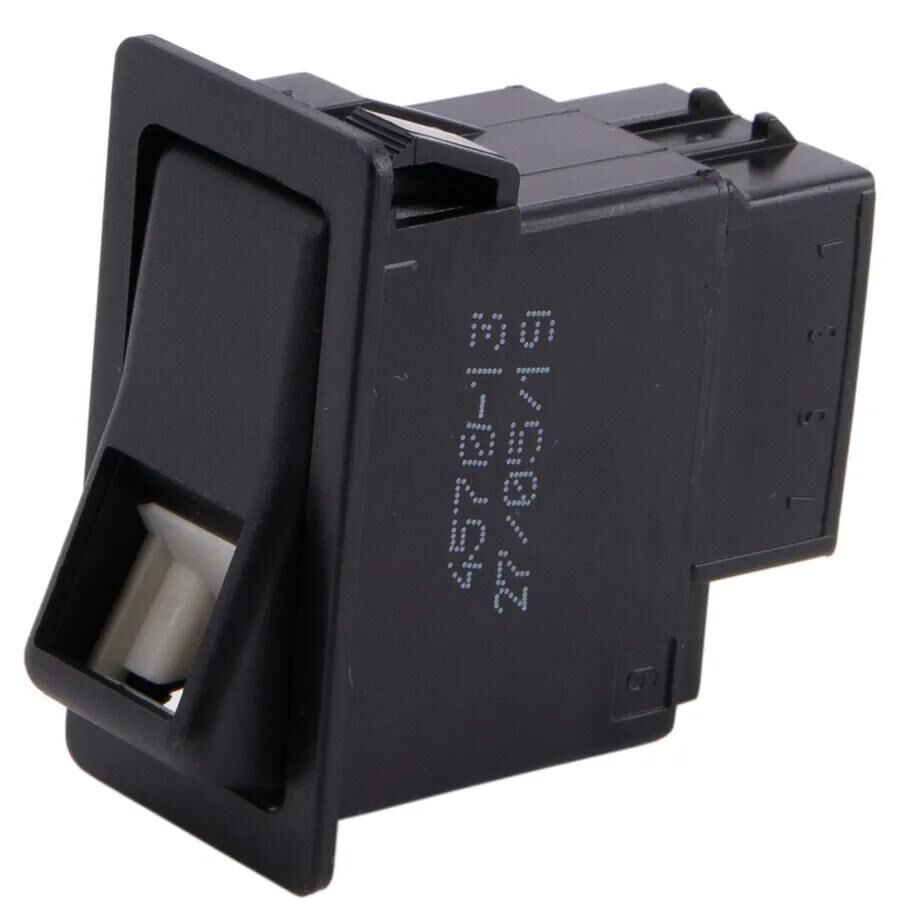

HELLA Rocker Switch
on/off switch with 12V bulb and 3 flat connectors 6,3mm
capacity: 10A at 12V

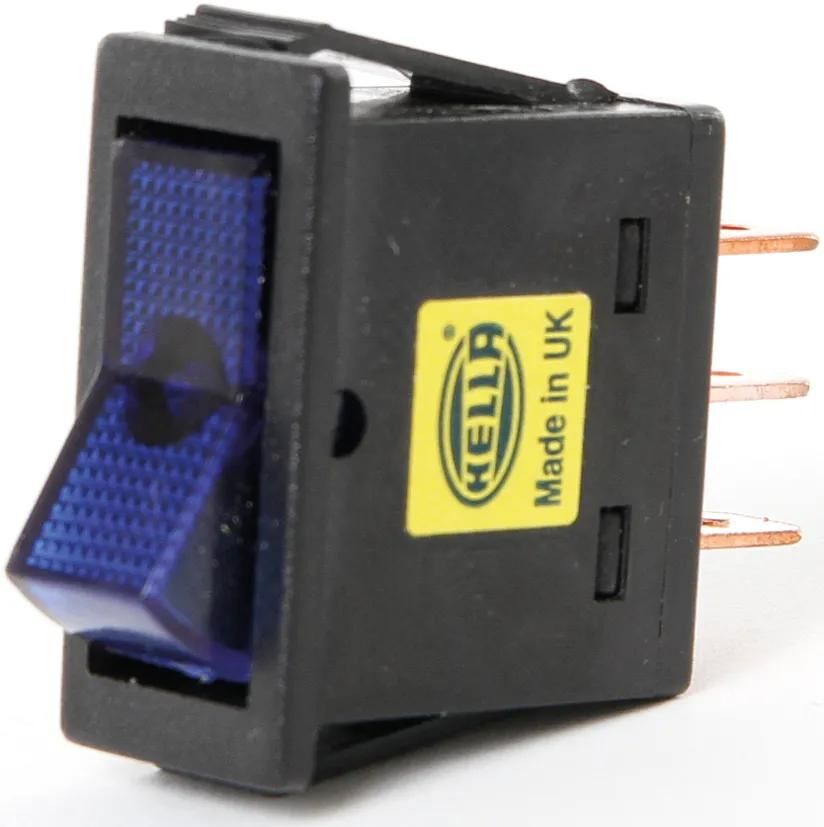

HELLA Toggle Switch
on/off switch with 12V bulb, 3 flat connectors 6,3mm
2 switch positions: 0 = off, 1 = on, capacity: 10A at 12V
HELLA Toggle Switch
with 3 screw connectors
2 switch positions: 1 and 2, capacity: 5A at 12V, 2A at 24V

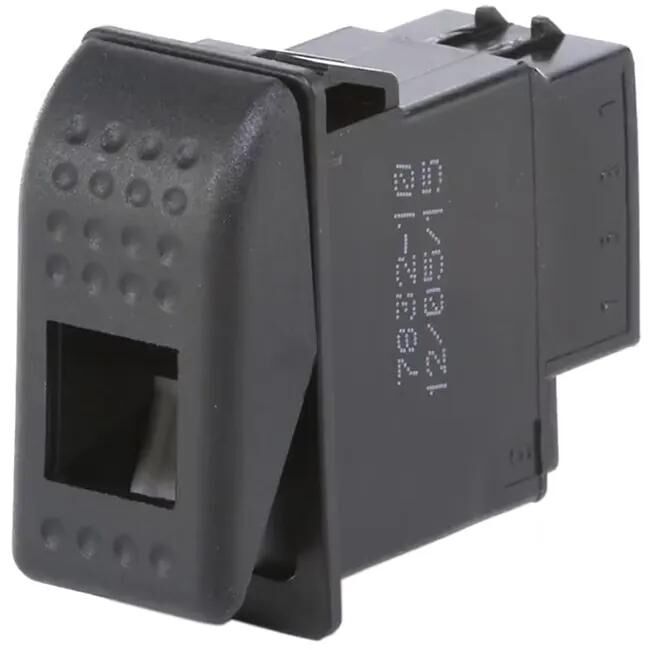

HELLA Rocker Switch
universal, insert switch, push button, 4 connectors, equipement variants I-O
HELLA Rocker Switch
universal, insert switch, latching, 1-stage, with 1 circuit
plastic, black, suitable for interior space after IP6X (DIN 40050), panel thickness: 1-2,5mm, bonding: flat plug 6,3mm (DIN 46 244) led out from metal housing
