for battery and trigger current, with plastic key
max. load 1000 A at 12V (10 sec.), 500 A at 24V (10 sec.), optional switch for + or - line, key is removable in "off" position, stopped current output. 2 screw terminals

24V, closer, rotary actuation, screwed
For the land and construction machines industry as an effective safety measure against theft and fire accidents. Connecting thread: M10 x 1,5mm, load at 24V: 2000A / 5 sec., material: brass, DIN/ISO: 40050 / IP69K

rotary switch for built in install, screwed, DIN/ISO 40050-IP56, 225A, 1 nut each bolt, max. 1000A/10 sec., bolt Ø: 10mm, thread pitch:1,5mm

closer, metal key, rotary actuation
max. load: 2500A at 24V (10 sec.), connecting thread: M10, amount of connectors: 2, voltage: 12V, current: 250A, thread pitch: 1,5mm, DIN/ISO: 40050

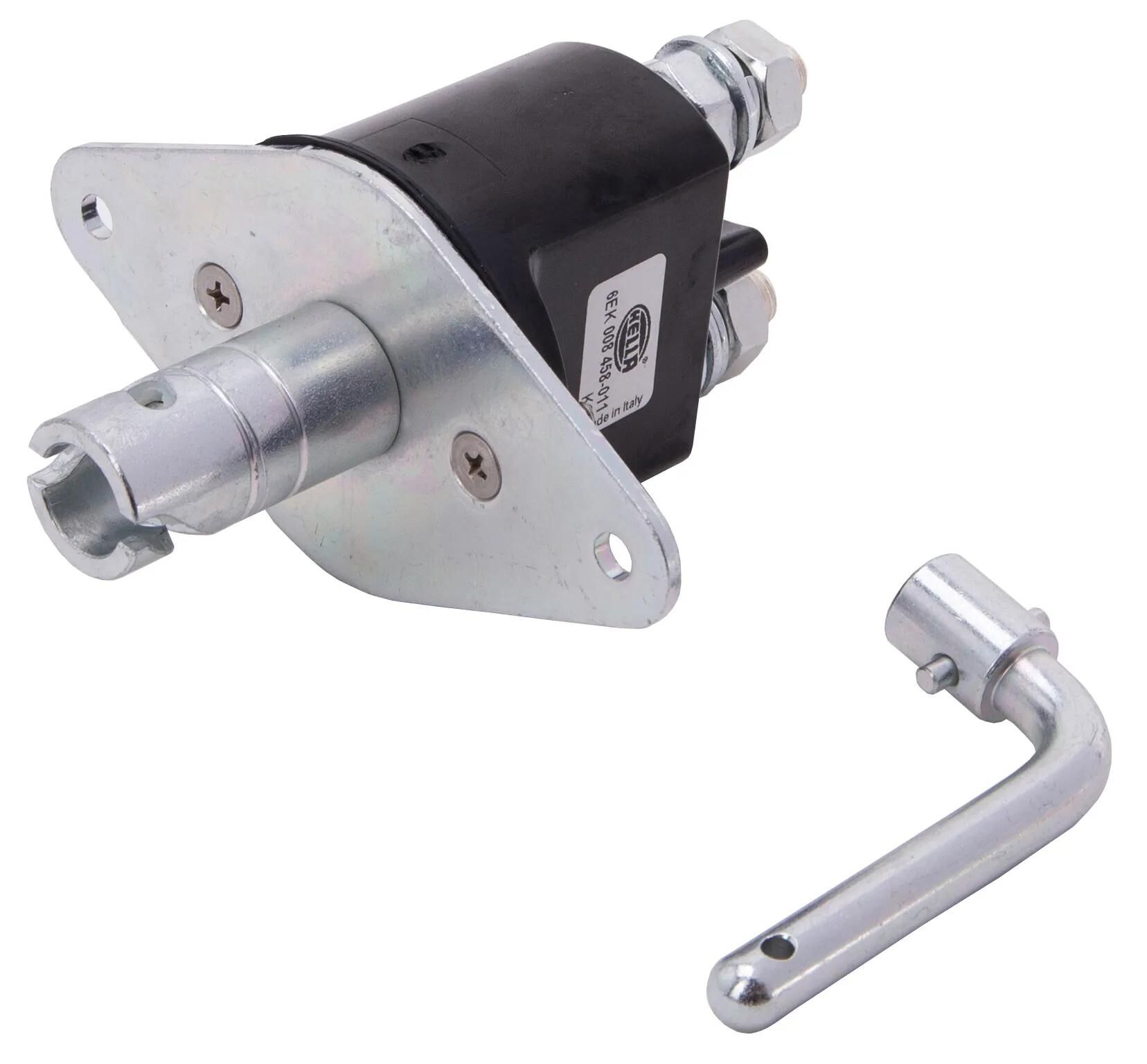

breaker with metal key
max. load: 2500A at 24V (10 sec.). The load capacity at constant state is max. 100 A at max. 60°C ambient temperature and of a line connected with a ring of at least 50 mm². Optional switch for + or - line, key is removable in "off" position, stopped output. 2 screw terminals
