for 7-pole sockets, 7 pieces

for lines with Ø 8 - 11mm, 180° cable outlet, material: rubber

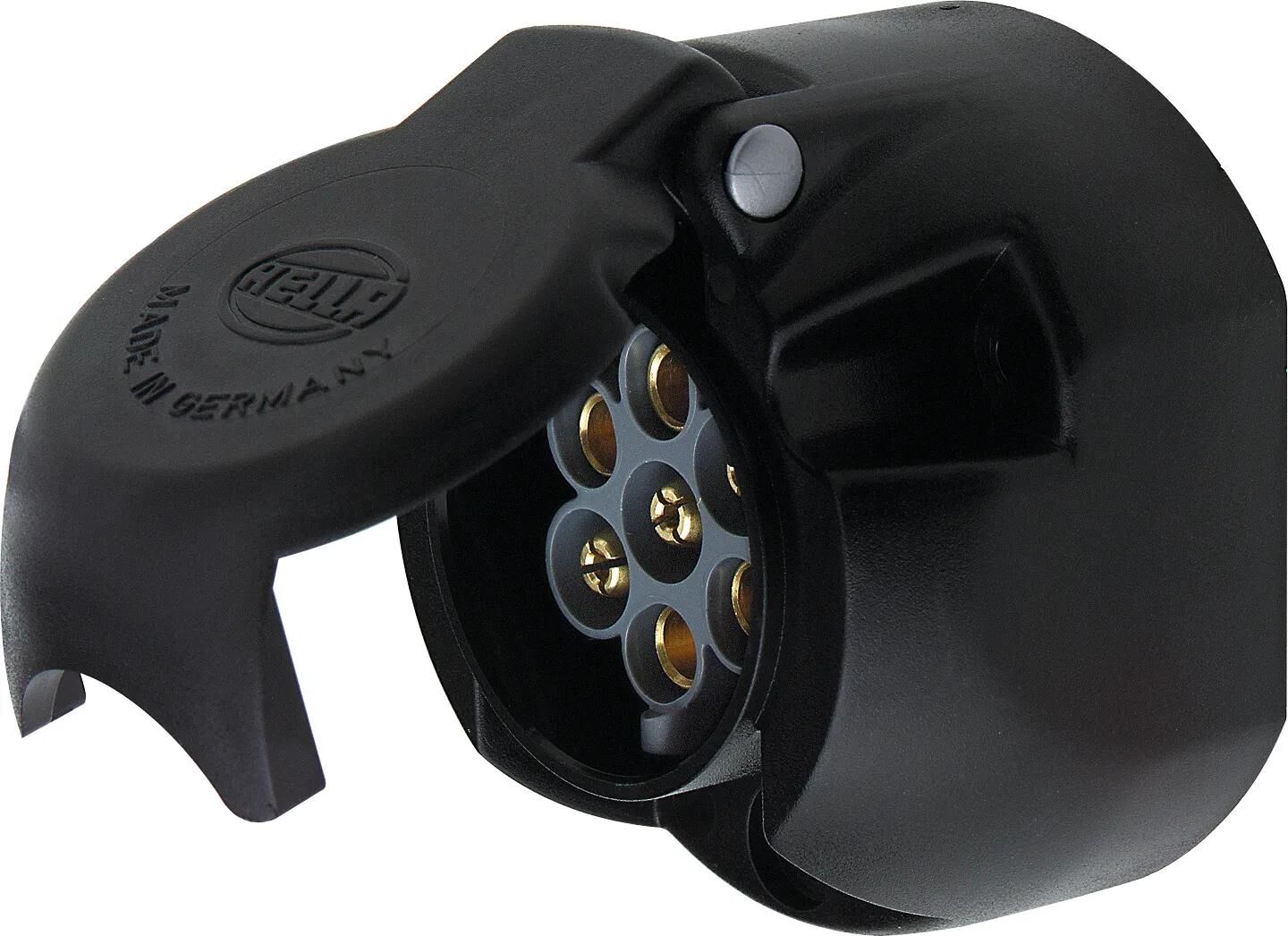

7-pin, 6-12V, according to ISO 1724 (N-type), with cover, plastic, removable insert
For electrical connections between towing vehicle and trailer, primarily for applications with average requirements. Various connection options (screw and flat connector). Capacity max. 16A at 12V (1,5mm²) 25A (2,5mm²).

7-pin, 12V, with cover, diabling contact and rubber base

7-pin, 6 - 12 V, to DIN / ISO 1724 (N-type)
For electrical connections between towing vehicle and Trailer. With Cover, removable contact insert and screw connection. Shape: flat, material: aluminum (coated), height 47 mm, load capacity: max. 16 A at 12 V (1.5 mm²) 25 A (2.5 mm²)

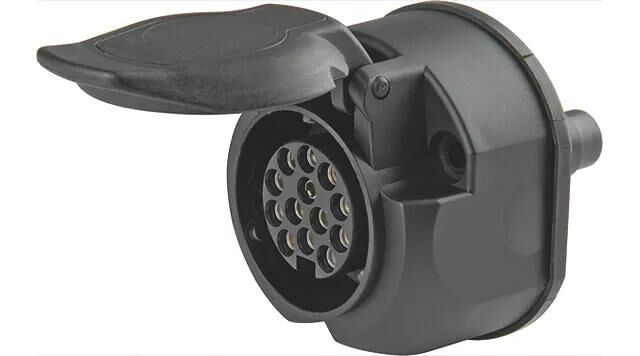

13-pin, 12V, with cover, disabling contact and rubber base

2-pin, according DIN ISO 4165, plastic housing, to to mount
installation opening Ø 23mm, for switch panel thickness up to max. 2mm, capacity max. 8A at 6-24V

2-pole, after DIN ISO 4165, plastic, to mount
installation opening Ø 18,5mm, for panel thickness max. 7mm, capacity max. 6A at 6 - 24V

2-pin, according to DIN ISO 4165, plastic housing, to mount

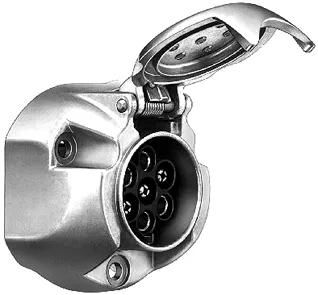

7-pin, 12V, according to DIN ISO 1724, massive metal design, remoavble insert connector
For electrical connections between towing vehicle and trailer, primarily for applications with average requirements. Various connection options (screw and flat connector). Capacity max. 15A at 12V, base Ø: max. 72mm, line cross section: max. 1 x 2,5mm² or 2 x 1,5mm², allowable temperature range: -25 to+70°C ambient temperature
