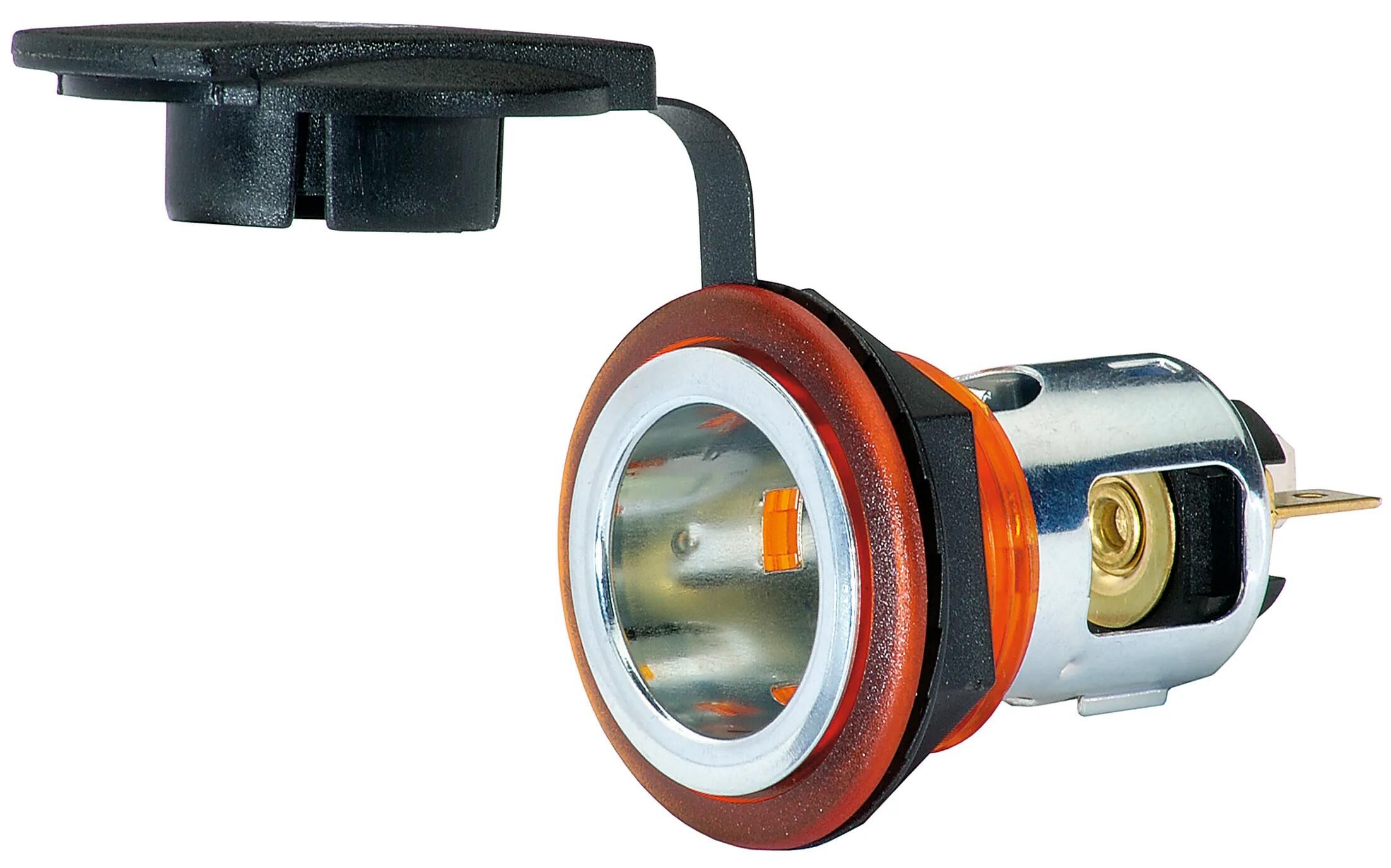

HELLA Power Socket
12V / 24V, installation opening Ø 28mm, inner Ø: 21mm, panel thickness: 2 - 8mm
For the electrical connection of consumers such as lamps, fans, coolers, phones, portable refrigerators, coffee machines, laptops and much more. Connection type: flat connector 6,3mm, attachment via hex nut, max. capacity: 20A at cable cross-section 2,5mm², 15A at cable cross-section 1,5mm².

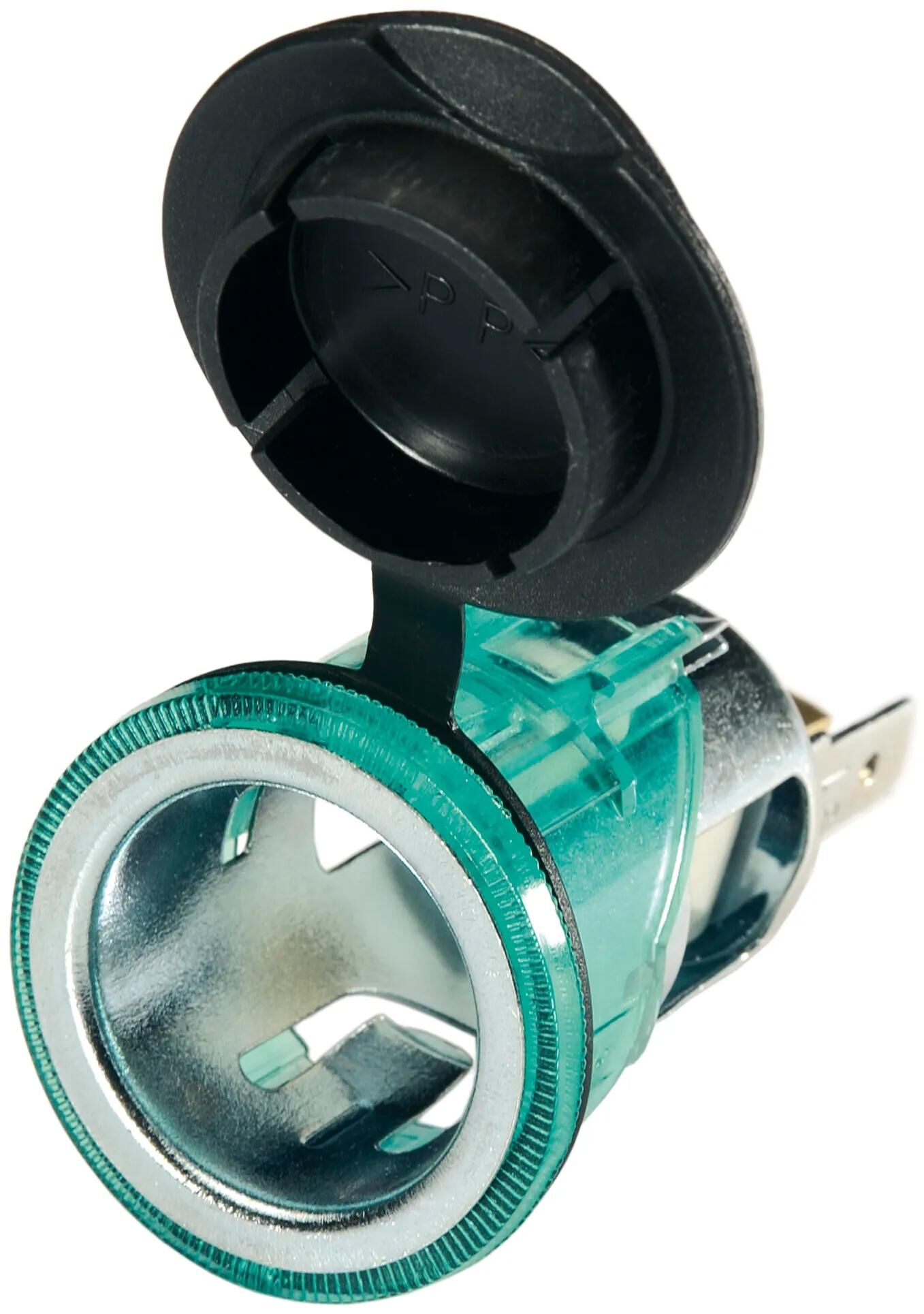

HELLA Power Socket
15A, installation opening Ø 28mm, panel thickness: max. 2,5mm
For the electrical connection of e.g. lamps, fans, coolers, phones, portable refrigerators, coffee machines, laptops and much more. Connection type: flat connector 6,3mm, attachment over green clamping sleeve
Note: 12V bulb is already installed, for 24V application additionally must be ordered an incandescent lamp

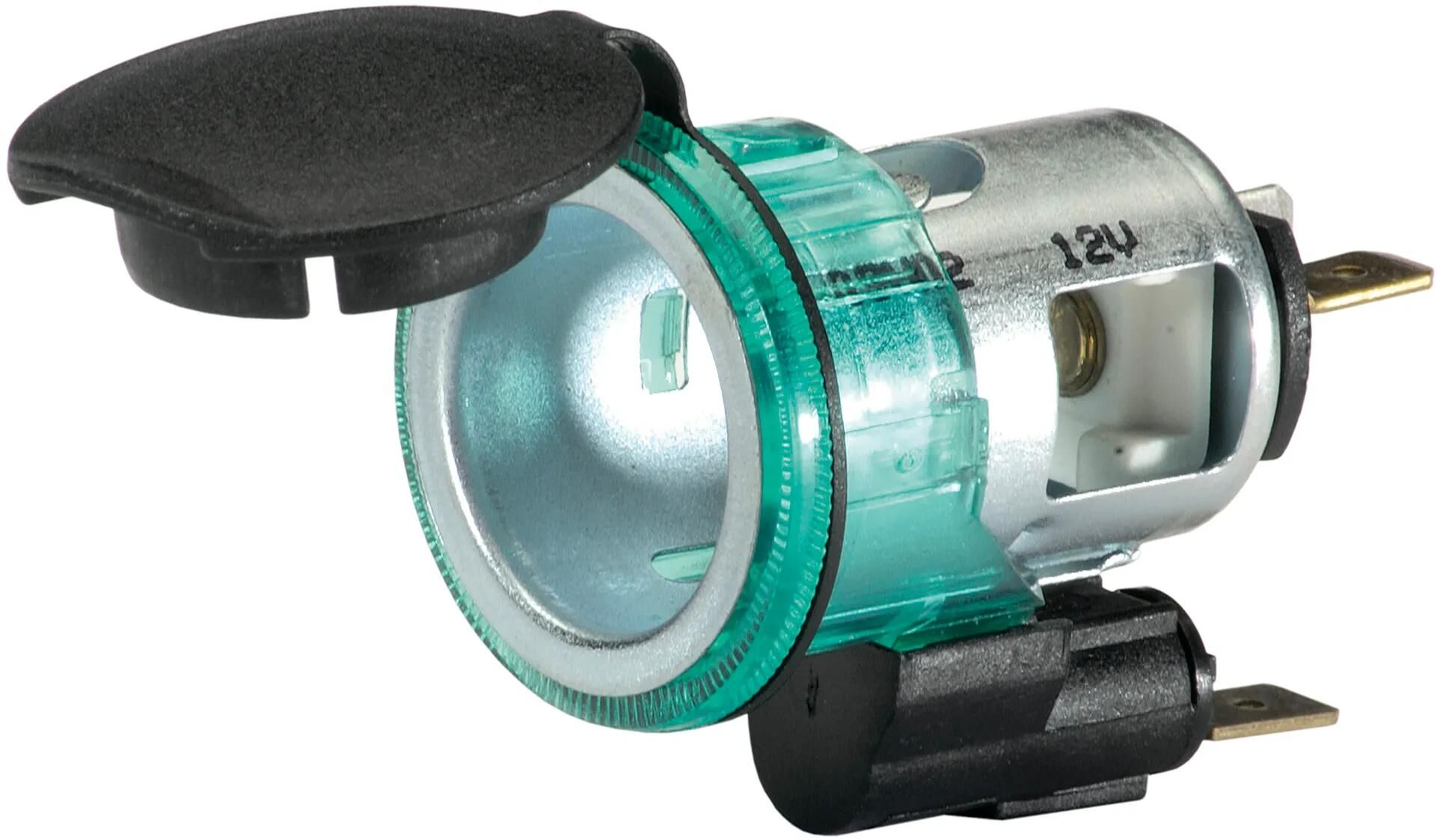

12V / 24V, with lighting and cover
Note: 12V light bulb already installed, for 24V must be ordered in addition a bulb
- Nº de artículo 24804064
- Org.-Nr.: 8JB 008 023-011

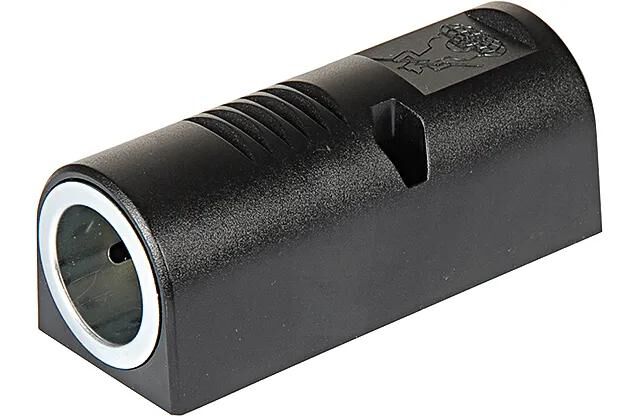

HERTH+BUSS Socket
2-pin, 12 - 24V, till 20A, plastic, surface-mounted socket for cigarette lighter socket, SAE, inner diameter: 20,95mm, dimensions (WxHxD): 34 x 33 x 85mm

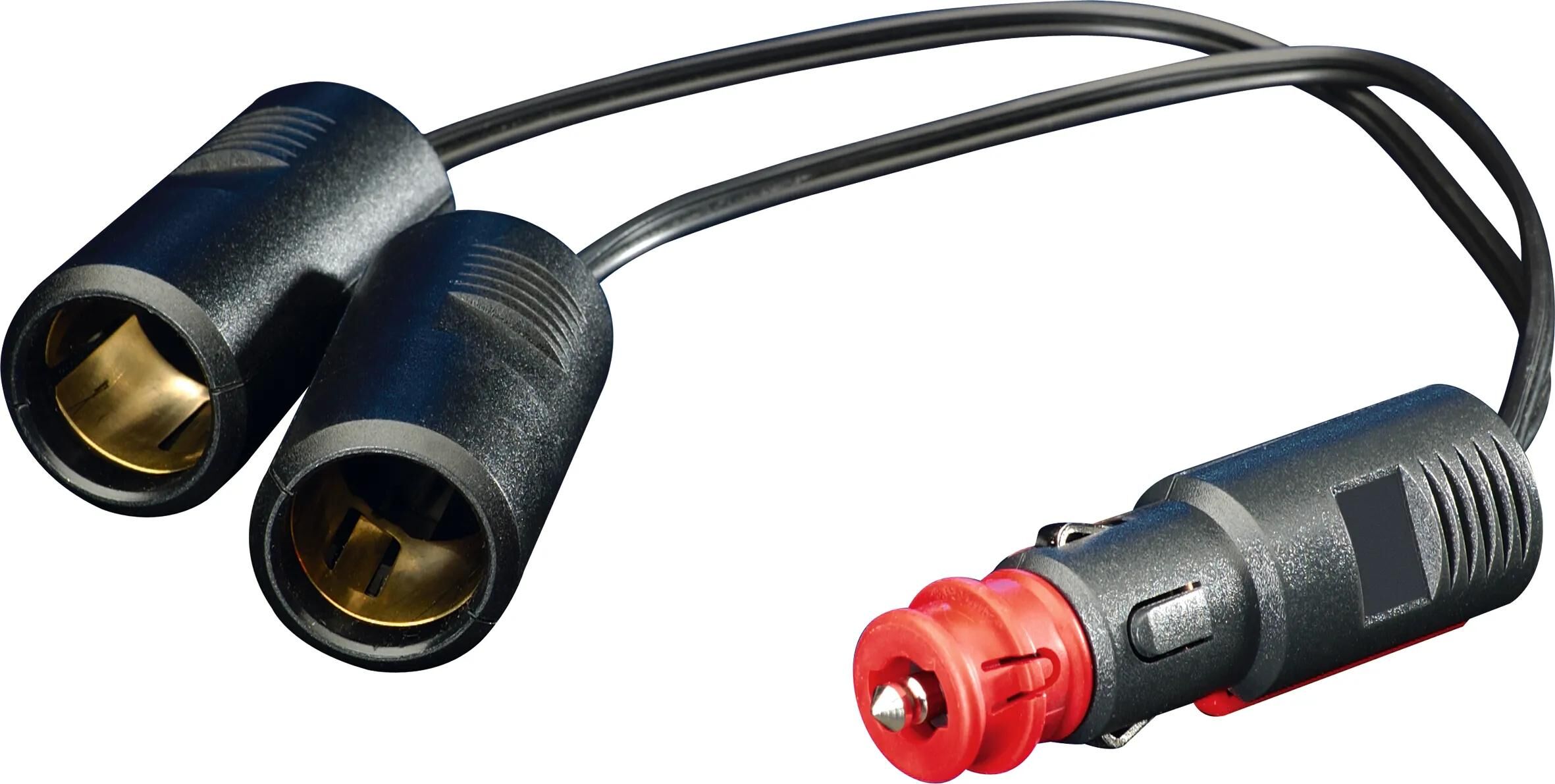

HELLA Adapter
twin coupling, for adapting standard or cigarette lighter sockets to 2 cigarette lighter plugs. Cable: 2x 0,75mm², Plug: safety-universal plug with integrated 16A fuse, capacity: max. 2x 8A at 24V

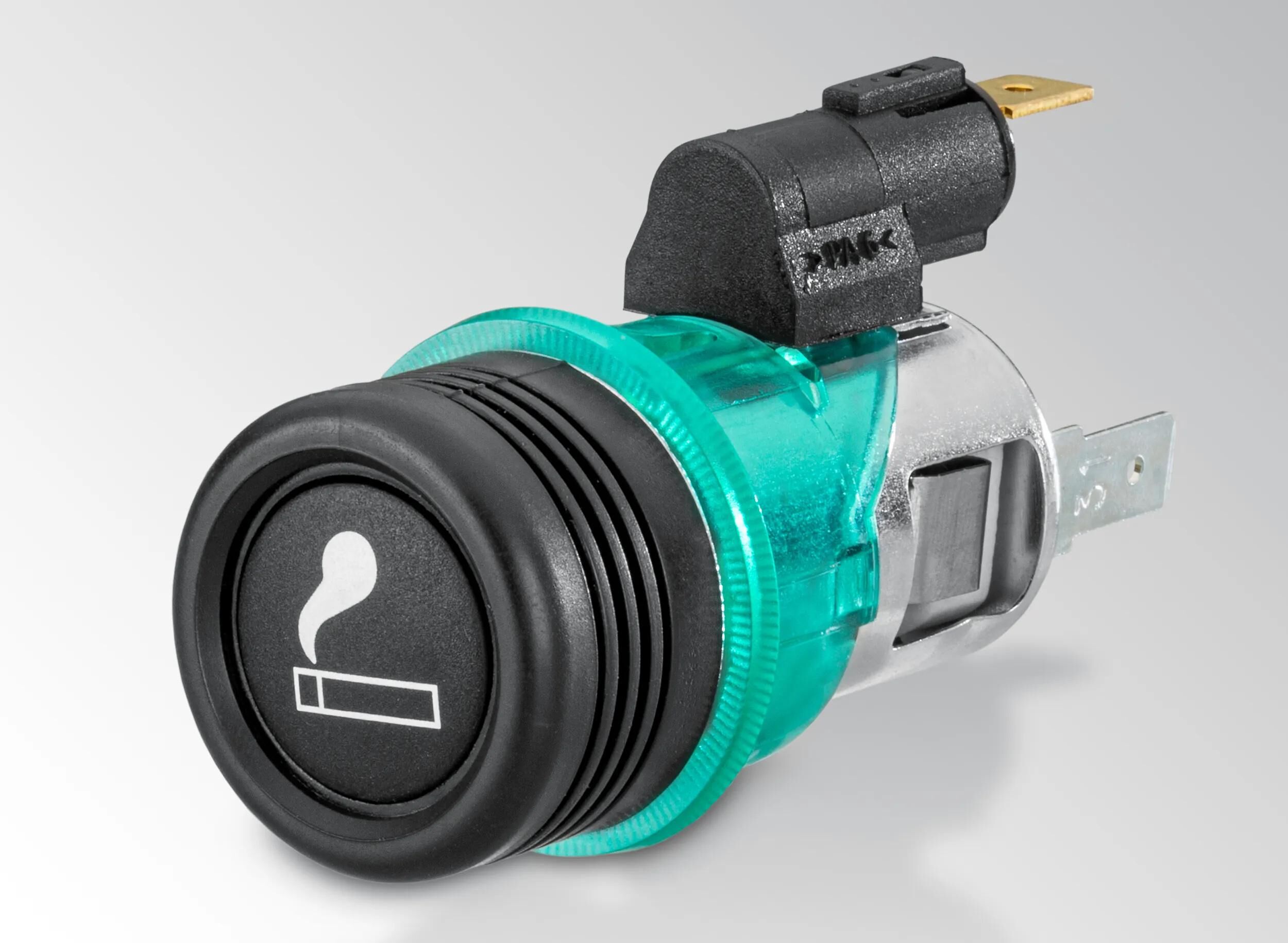

HELLA Cigarette Lighter
universal, with ilumination, 12V, installation opening: Ø 28mm, control panel thickness: max. 2,5mm, connection type: flat connector (6,3mm), max. capacity: 10A
flat connector (6,3mm), attachment via clamping sleeve
- Nº de artículo 23500606
- Org.-Nr.: 8EZ 008 021-001
