1000mm

1400mm

1600mm

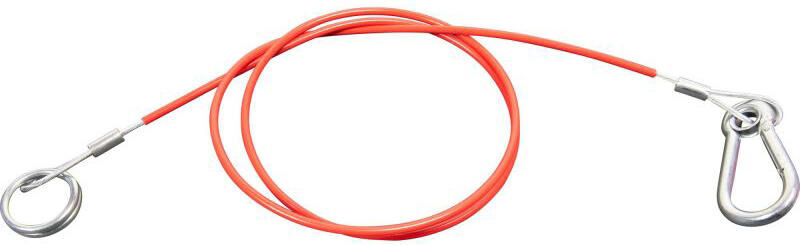

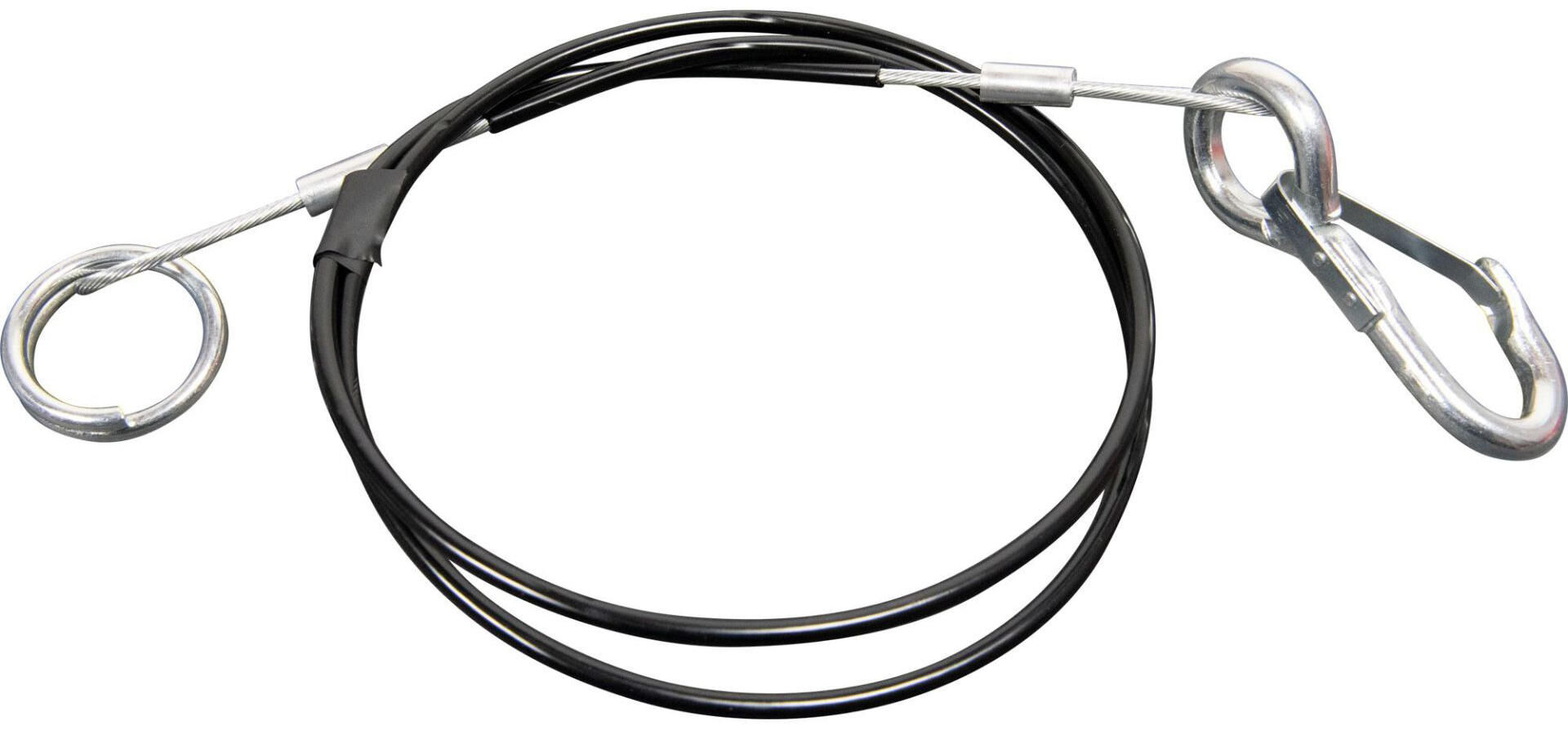

ring for breakaway cable

M8, 16 x 58mm, bore Ø 8mm, inside thread M8, clear width 8mm, eff. length 48mm

M10, 20 x 72 mm, bore Ø 10mm, inside thread M10, clear width 10mm, eff. length 60mm

M12, 24 x 86 mm, bore Ø 12mm, inside hexagon M12, clear width 12mm, eff. length 72mm

Ø 8mm, 21,6 x 52 mm, eff. length 46mm, for fork head #40200 (5.48 86 76/7)

Ø 10mm, 26,3 x 66 mm, eff. length 58mm, for fork head #40201 (5.48 09 3A/4)

Ø 12mm, 31,2 x 78mm, eff. length 69mm, for fork head #40202 (5.48 09 4A/3)

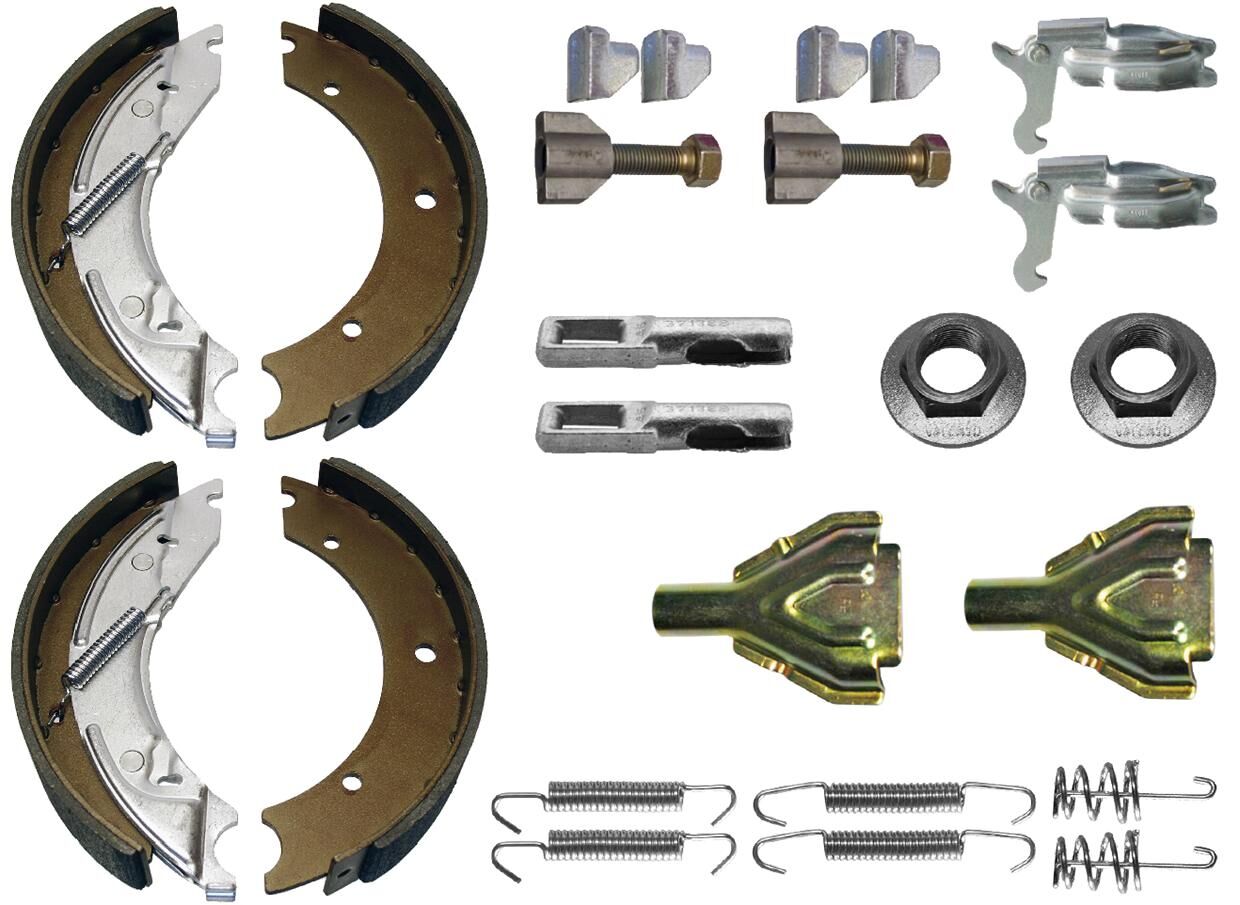

suitable for Knott 20-2425/1, 20-964/1 - size: 200 x 50

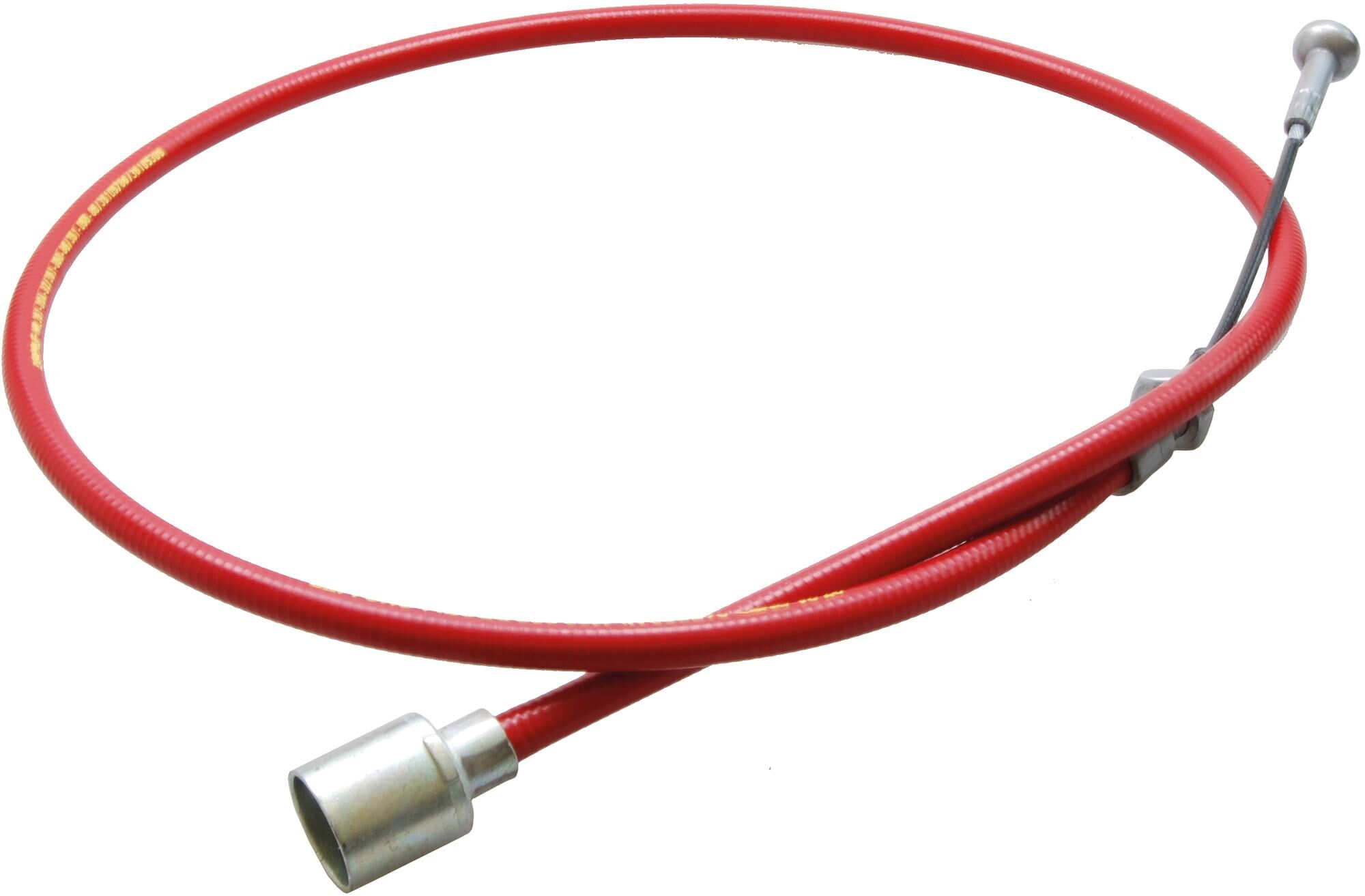

CL: 800mm, TL: 1100mm

CL: 900mm, TL: 1200mm

CL: 1000mm, TL: 1300mm

CL: 1100mm, TL: 1400mm

CL: 1200mm, TL: 1500mm

CL: 1300mm, TL: 1600mm

CL: 1600mm, TL: 1900mm

suitable for AL-KO 2050 / 2051

suitable for Knott 20-2425/1, 20-943/1, 20-964/1

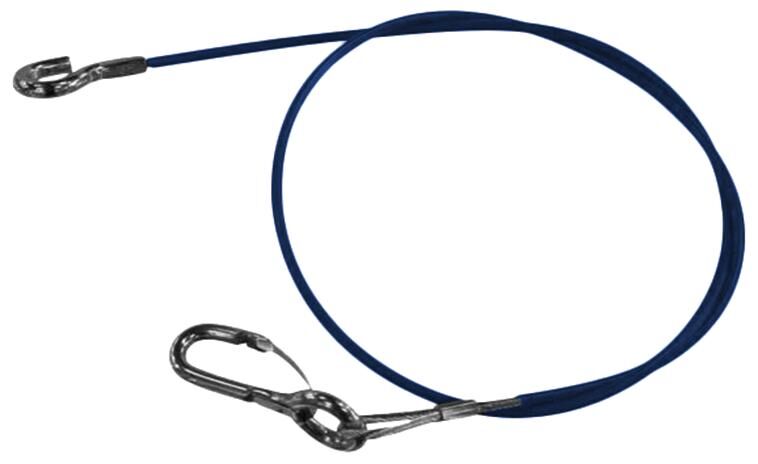

1000mm, with hooks (suitable for AL-KO)

CL: 770mm, TL: 966mm (247283)

CL: 890mm, TL: 1086mm (247284)

CL: 1020mm, TL: 1216mm (247285)

CL: 1130mm, TL: 1326mm (247286)

CL: 1320mm, TL: 1496mm (247287)

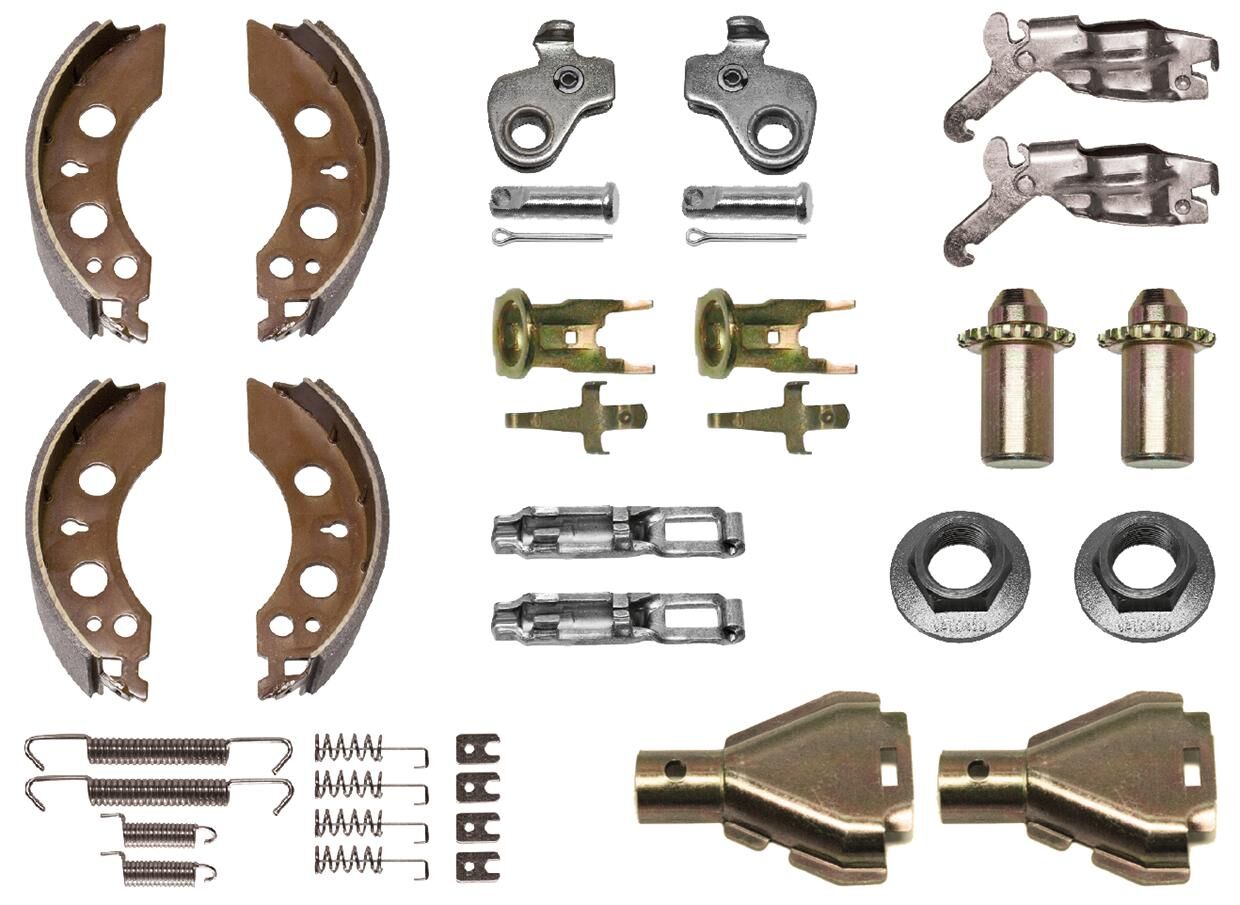

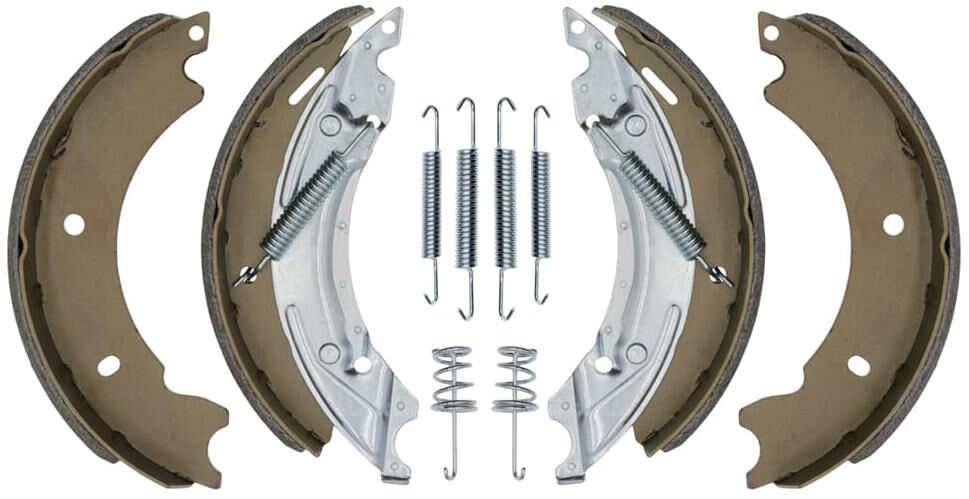

suitable for AL-KO 1635/ 1636/ 1637 - size: 160 x 35

suitable for AL-KO 2050 / 2051 - size: 200 x 50

suitable for AL-KO 2360 / 2361 - size: 230 x 60

suitable for Knott 20-2425/1, 20-964/1 - size: 200 x 50

suitable for Knott 25-2025 / size: 250 x 40
