travel100mm, steel spring, incl. ahead steering tube 28,6 x 255mm, 1 1/8" thread
9mm quick release dropouts, disc brake mount (Post Mount for max. Ø 180mm), aluminium sliders, steel steering tube, stanchion Ø 28mm

matt black, incl. shaft 1 1/8" 200mm, oil right / lockable steel spring right
preload adjustable, hydraulic compression, aluminium black satined bridge, aluminium black sliders, 30mm CrMo polish stanchion, for PM disc brake, max. rotor diameter 180mm, 2,76kg

100mm travel, oil right/steel spring left lockable, incl. steering tube 28,6 x 260 ahead 1 1/8" CroMo pressfit
Preload adjuster, aluminium black satined fork brace, aluminium black sliders, CroMo polished stanchion 30mm, hydraulic copmression, max. disc brake diameter 180mm, weight approx. 2,69kg

100mm travel, oil right/steel spring left lockable, incl. steering tube 28,6 x 260 ahead 1 1/8" CroMo pressfit
Preload adjuster, hydraulic compression, aluminium black satined brake brace, magnesium sliders, steel black stanchion 32mm, for disc barke attachment (post mount), max. disc barke-Ø 180mm, weight approx. 2,60kg

travel100mm, steel spring, incl. ahead steering tube 255mm, tapered 1,5" to 1 1/8", lockable
9mm quick release dropouts, for tires up to 62mm, disc brake mount (Post Mount for max. Ø 180mm), aluminium sliders, steel steering tube, stanchion Ø 32mm, with hydraulic lock out function (NLO)

travel75mm, steel spring, incl. ahead steering tube 255mm, tapered 1,5" to 1 1/8", lockable
9mm quick release dropouts, for tires up to 62mm, disc brake mount (Post Mount for max. Ø 180mm), magnesium sliders, steel steering tube, stanchion Ø 32mm, with remote lock-out function (RL), with hole for light bracket, with long fender bracket, suitable for e-bikes and pedelecs

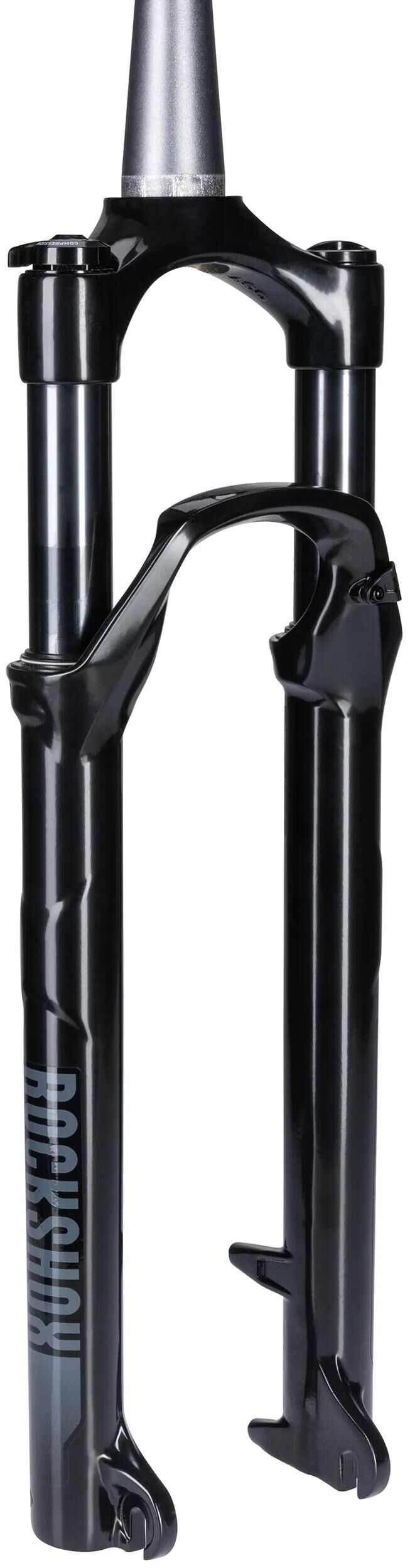

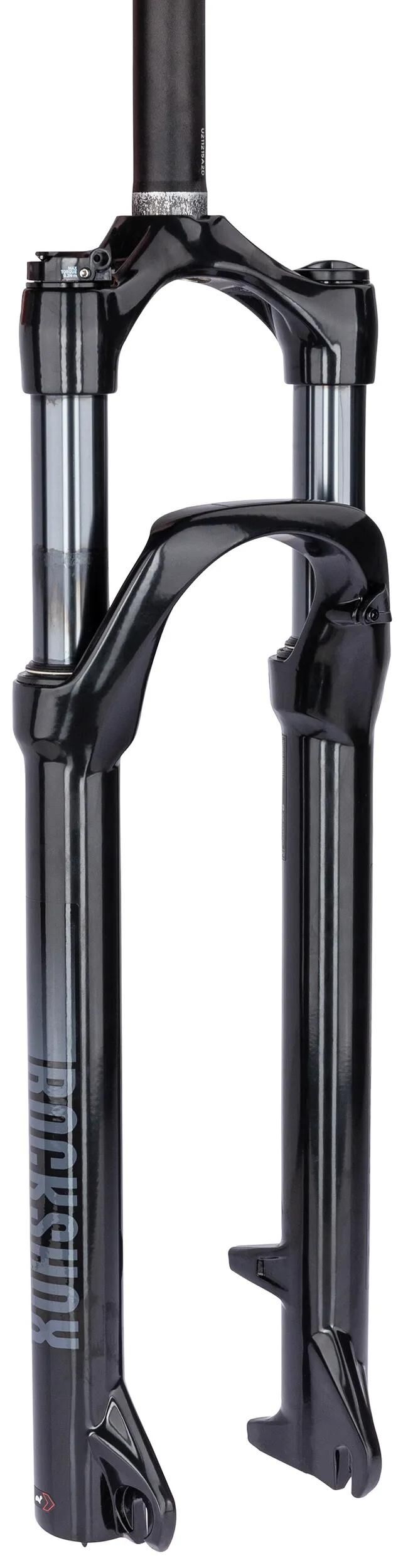

application: cross country
travel: 100mm
spring: Solo Air
adjustment: air pressure via Schrader valve
damping: TurnKey Lockout
adjustment: external rebound, external low speed compression up to lockout
steering tube: aluminium, approx. 265mm, 1 1/8" ahead
crown: aluminium, forged
stanchion: steel, 30mm Ø
sliders: magnesium, for PM disc brake 160 up to 185mm Ø, for 9mm QR axle, 51mm offset, max. tire width 62mm
weight: 2670g, 2685g with remote control

travel75mm, air spring, incl. ahead steering tube 255mm, tapered 1,5" to 1 1/8", lockable
9mm quick release dropouts, for tires up to 62mm, disc brake mount (Post Mount for max. Ø 180mm), magnesium sliders, steering tube, stanchion Ø 32mm, with remote lock-out function (RL), with hole for light bracket, with long fender bracket, suitable for e-bikes and pedelecs

travel100mm, air spring, incl. ahead steering tube 255mm, tapered 1,5" to 1 1/8", lockable
9mm quick release dropouts, for tires up to 62mm, disc brake mount (Post Mount for max. Ø 180mm), magnesium sliders, steel steering tube, stanchion Ø 32mm, with remote lockout function (RL), with hole for light bracket, with long fender bracket, suitable for e-bikes and pedelecs

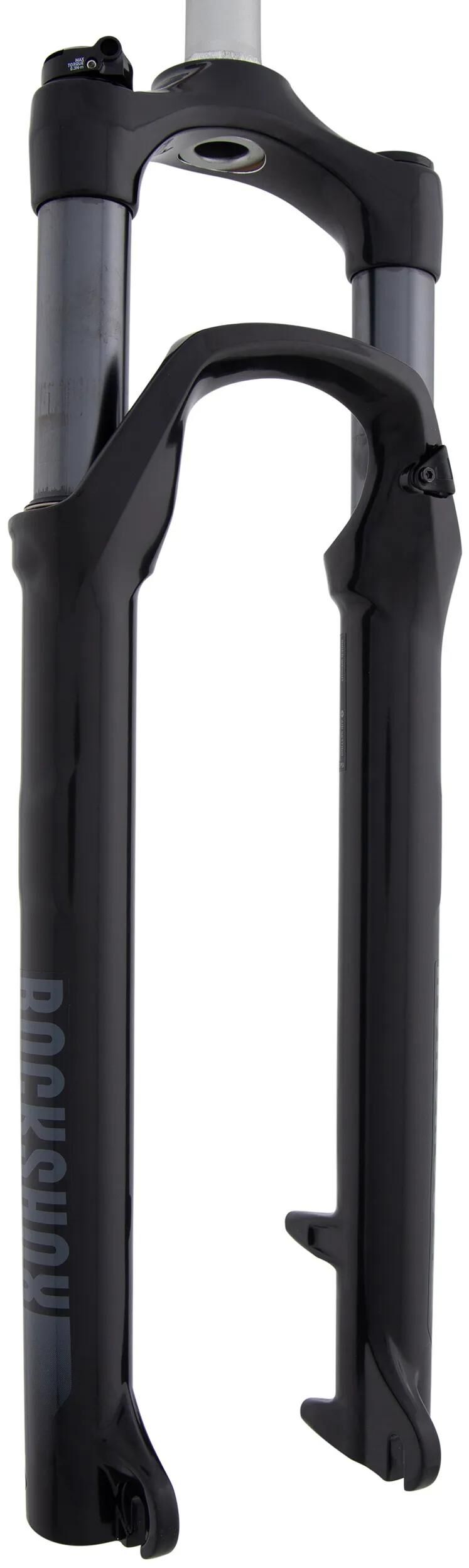

application: cross country
spring: Solo Air
travel: 100mm
adjustment: air pressure via Schrader valve
damping: Motion Control
adjustment: external rebound, external low speed compression up to lockout
steering tube: aluminium, approx. 265mm
crown: hollow forged aluminium
stanchion: steel, 32mm Ø
sliders: magnesium, for PM disc brake 160 up to 220mm Ø, 51mm offset, max. tire width 62mm
accessories: ahead clamp
