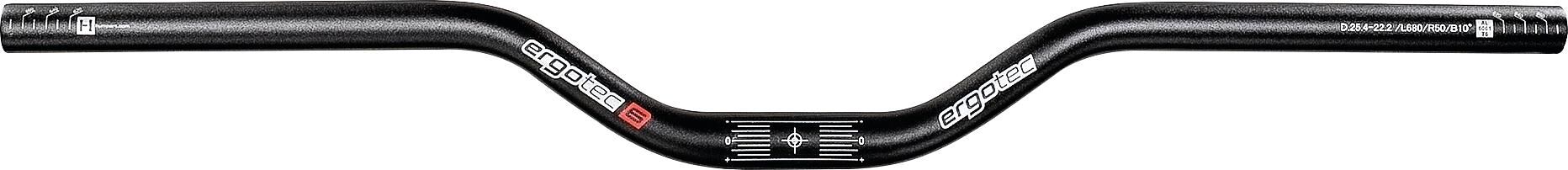

ERGOTEC handlebar "Riser Bar 30-50-70-100"
self-service package, grip width: 780mm, butted aluminium 6061 T6, Ø 31,8mm, sandblasted black
e-Bike ready according to ergotec Safety Level Table, approx. 400g
grip length: 260mm, rise: 30mm, Level 6, back-/upsweep 12°/4°, wall thickness: 2,4-2,8-2,4mm
- Nº de artículo 03163474
- Org.-Nr.: 16712001
grip length: 230mm, rise: 50mm, Level 6, back-/upsweep 12°/5°, wall thickness: 2,4-2,8-2,4mm
- Nº de artículo 03162641
- Org.-Nr.: 16723001
grip length: 220mm, rise: 70mm, Level 6, back-/upsweep 12°/5°, wall thickness: 2,4-2,8-2,4mm
- Nº de artículo 03163490
- Org.-Nr.: 16736001
grip length: 245mm, rise 30mm, Level 6, back-/upsweep 16°/4°, wall thickness: 1,9-2,-1,9mm
- Nº de artículo 03163475
- Org.-Nr.: 16711001
grip length: 220mm, rise 50mm, Level 6, back-/upsweep 12/5°, with cable openings: 20 x 10mm + 20 x 25mm for internal cable routing, wall thickness: 1,85-2,8-1,85 mm
- Nº de artículo 03162645
- Org.-Nr.: 16723101
grip length: 205mm, rise 100mm, Level 6, back-/upsweep 12/11°, wall thickness: 1,9-2,7-1,9 mm
- Nº de artículo 03163491
- Org.-Nr.: 16705001
ERGOTEC handlebar "Low Riser"
grip width: 720mm, aluminium 6061, Ø 31,8mm, rise: 15mm, 9/5° backsweep
Level 5, e-bike ready according to ergotec Safety Level Table, self-service package, grip length: 200mm, wall thickness: 1,5-2,5-1,5mm, approx. 300g
ERGOTEC handlebar "Riser Bar 30-50-70"
grip width: 780mm, aluminium 6061 T6 butted, Ø 35,0mm, backsweep 12/5°, sandblasted black
Level 6, e-bike ready according to ergotec Safety Level Table, self-service package, wall thickness: 1,9-2,7-1,9mm, approx. 400g
grip length: 200mm, rise: 50mm, wall thickness: 1,9-2,7-1,9mm
- Nº de artículo 03162690
- Org.-Nr.: 16725001
grip length: 260mm, rise 30mm, wall thickness: 2,4-2,8-2,4mm
- Nº de artículo 03162691
- Org.-Nr.: 16715001
grip length: 220mm, rise 70mm, wall thickness: 2,4-2,8-2,4mm
- Nº de artículo 03162692
- Org.-Nr.: 16737001
grip length: 210mm, rise 50mm, with cable openings: 20 x 10mm + 20 x 25mm for internal cable routing, wall thickness: 1,7-2,4-1,7 mm
- Nº de artículo 03162693
- Org.-Nr.: 16725101
ERGOTEC handlebar "Riser Bar 50 Comfort"
grip width: 720mm, butted aluminium 6061 T6, Ø 31,8mm, rise 50mm, back-/upsweep 25°/5°, sandblasted black
e-bike ready according to ergotec Safety Level Table, self-service package, grip length: 200mm, approx. 400g
ERGOTEC handlebar "Ergo"
aluminium 6061 T6, Ø 31,8mm, rise: 30mm, sandblasted black
Level 5, e-bike ready according to ergotec Safety Level Table, self-service package, wall thickness: 1,7-2,5-1,7mm, approx. 270g (XS)- 310g (XXL)
XS, grip width: 600mm, grip length: 172mm, 6/5° backsweep
- Nº de artículo 03162336
- Org.-Nr.: 16441501
M, grip width: 640mm, grip length: 193mm, 10/5° backsweep
- Nº de artículo 07160708
- Org.-Nr.: 16445501
L, grip width: 660mm, grip length: 205mm, 12/5° backsweep
- Nº de artículo 03162369
- Org.-Nr.: 16220501
XL, grip width: 680mm, grip length: 213mm, 14/5° backsweep
- Nº de artículo 03163987
- Org.-Nr.: 16231501
XXL, grip width: 700mm, grip length: 228mm, 16/5° backsweep
- Nº de artículo 03163995
- Org.-Nr.: 16447501
ERGOTEC handlebar "Riser Bar 70"
grip width: 700mm, butted aluminium 6061 T6, Ø 25,4mm, rise: 70mm, 12/5° backsweep
Level 6, e-bike ready according to ergotec Safety Level Table, self-service package, grip length: 175mm, wall thickness: 2,2-3,4-2,2mm, approx. 330g
TRUVATIV handlebar "Hussefelt Comp"
grip width: 700mm, aluminium 6061-T6, Ø 31,8mm, 9° backsweep, 5° upsweep, matt black
self-service package, approx. 330g
ERGOTEC handlebar "Low Riser Bar"
grip width: 780mm, aluminium 6061, Ø 31,8mm, rise: 15mm, 12/5° backsweep
Level 6, e-Bike ready according to ergotec Safety Level Table, self-service package, grip length: 230mm, 390g
sandblasted black, with cable openings: 20 x 10mm and 20 x 25mm for internal cable routing
- Nº de artículo 03160264
- Org.-Nr.: 16763001
KALLOY handlebar "AL-027T"
grip width: 610mm, aluminium 6061, Ø 25,4mm, rise: 30mm
MTB
ERGOTEC handlebar "Riser 30 MAS"
steel with aluminium content (MAS-Nb), Ø 25,4mm, rise: 30mm, 13° backsweep
Level 4, e-Bike ready according to ergotec Safety Level Table, self-service package, wall thickness: 1,2mm, approx. 360g (590mm) - 415g (660mm)
