Ø 10mm aluminium tube, for mounting on the head tube by 4-point mount (distance: 12cm), incl. height adjustable KLICKfix adapter with lock
an inserted aluminum plate provides a larger bearing surface, without mounting screws, suitable for all QiO bikes, max. carrying capacity: 15kg for the rack and 7kg for the KLICKfix adapter
width: 22cm, depth: 17,7cm, height: 29cm, weight: 1125g
Adapter 0.738.707/0 is required to mount the rack on the QiO EINSx!

Ø 10mm aluminium pipe, for mounting on the head tube by 4-point mounting (distance: 12cm), incl. MIK profile and height adjustable KLICKfix adapter with lock
an inserted aluminum plate provides a larger bearing surface, without mounting screws, suitable for all QiO bikes, max. load 15kg for the rack and 7kg for the KLICKfix adapter
width: 24,9cm, length: 25,0cm, height: 30,0cm
Adapter 0.738.707/0 is required to mount the rack on the QiO EINSx!

26" - 28", aluminium, steering tube head attachment
vintage-style, possible light attachment, support over stay (suitable for axle Ø 12/13mm), mounting strap, load till max.10kg, dimensions (LxWxH): 33 x 41 x 51cm, base surface (LxD): 40,5 x 30,0cm

universal size, aluminium / plastic, fork / rear stay loop attachment
patented and easy to use mounting system, with rails to attach the luggage, robust design, vibration and noisless, load: rear till max. 11kg, front till max. 10kg, 1100g

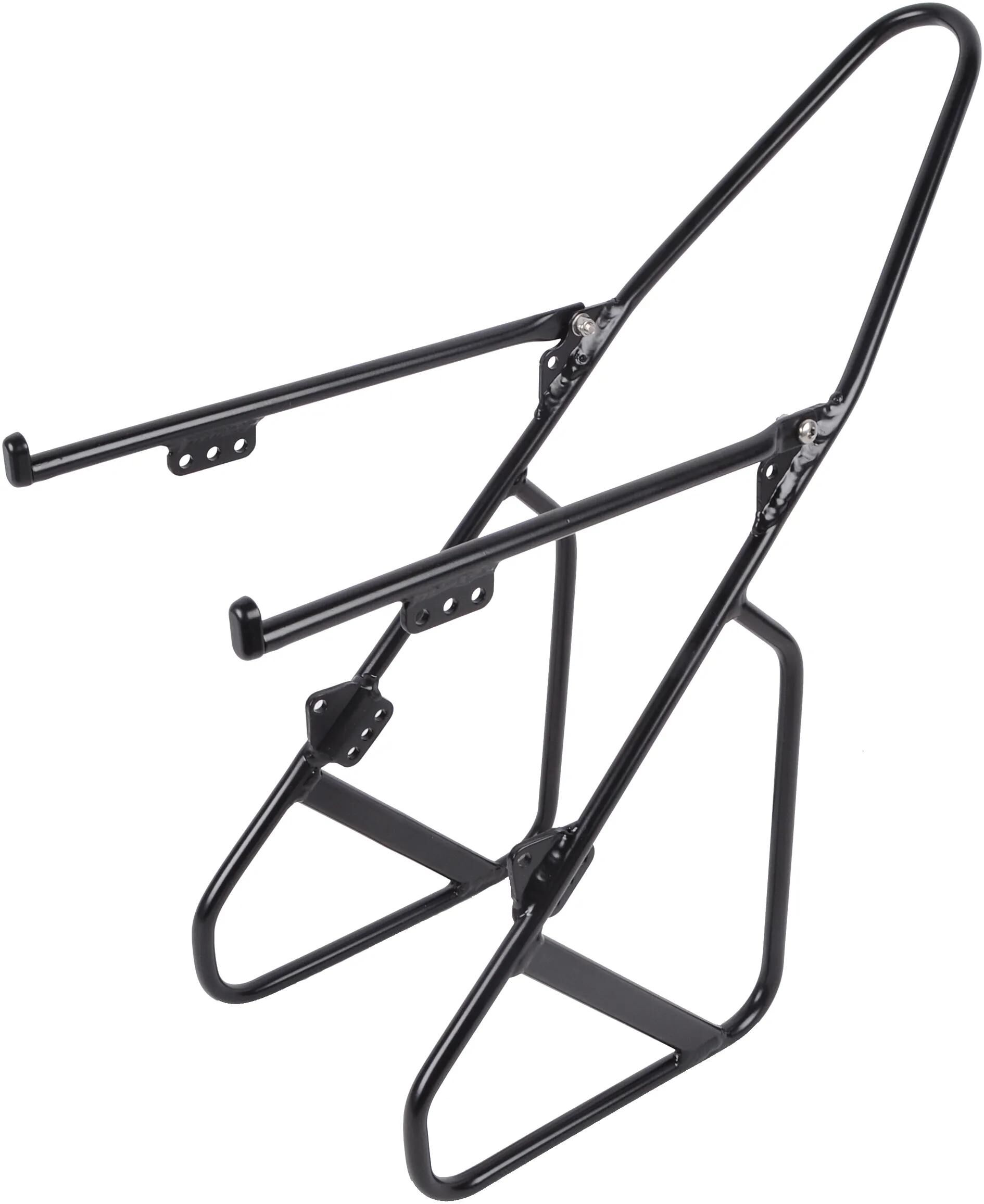

26" - 28", Ø 10mm aluminium tube, lowrider eyelets attachment
cross-reinforcing bracket over the front wheel, separate mounting eyelets for fender stays, max. load: 10kg, 400g

Ø 19mm powder coated steel tube, for mounting to the steering tube
for tube Ø till 42mm, mounting with 1 or 2 U-locks (incl.), max. additional load: by 1 U-lock= 8kg, by 2 U-locks= 10kg, width: 36cm, depth: 25cm, weight: 1695g

26" - 28", Ø 22mm aluminium tube, axle / fork attachment, powder coated
self-service package, with lamp bracket, max. additional load: 10kg, width: 31cm, depth: 27,5cm, 1670g

26"+ 28", aluminium, mounting on fork crown
vintage style, possibility to mount front light, luggage carrier struts for axle mounting
(Ø 12/12mm axle), adjustable luggage strap, max. load: 10kg, capacity: 25l, dimensions: 43,5 x 36 x 22,5cm, weight: 950g

24" - 28", aluminium, fork eyelets attachment, incl. Atranvelo transport system
self-service package, with stainless steel spring clamp, with light holder, max. load: 10kg, 565g, ISO 11243

26" - 28", Ø 12mm aluminium tube, axle / fork attachment, powder coated
self-service package, incl. Atranvelo transport system, with light bracket, max. load: 10kg, 710g
