12V, 21W

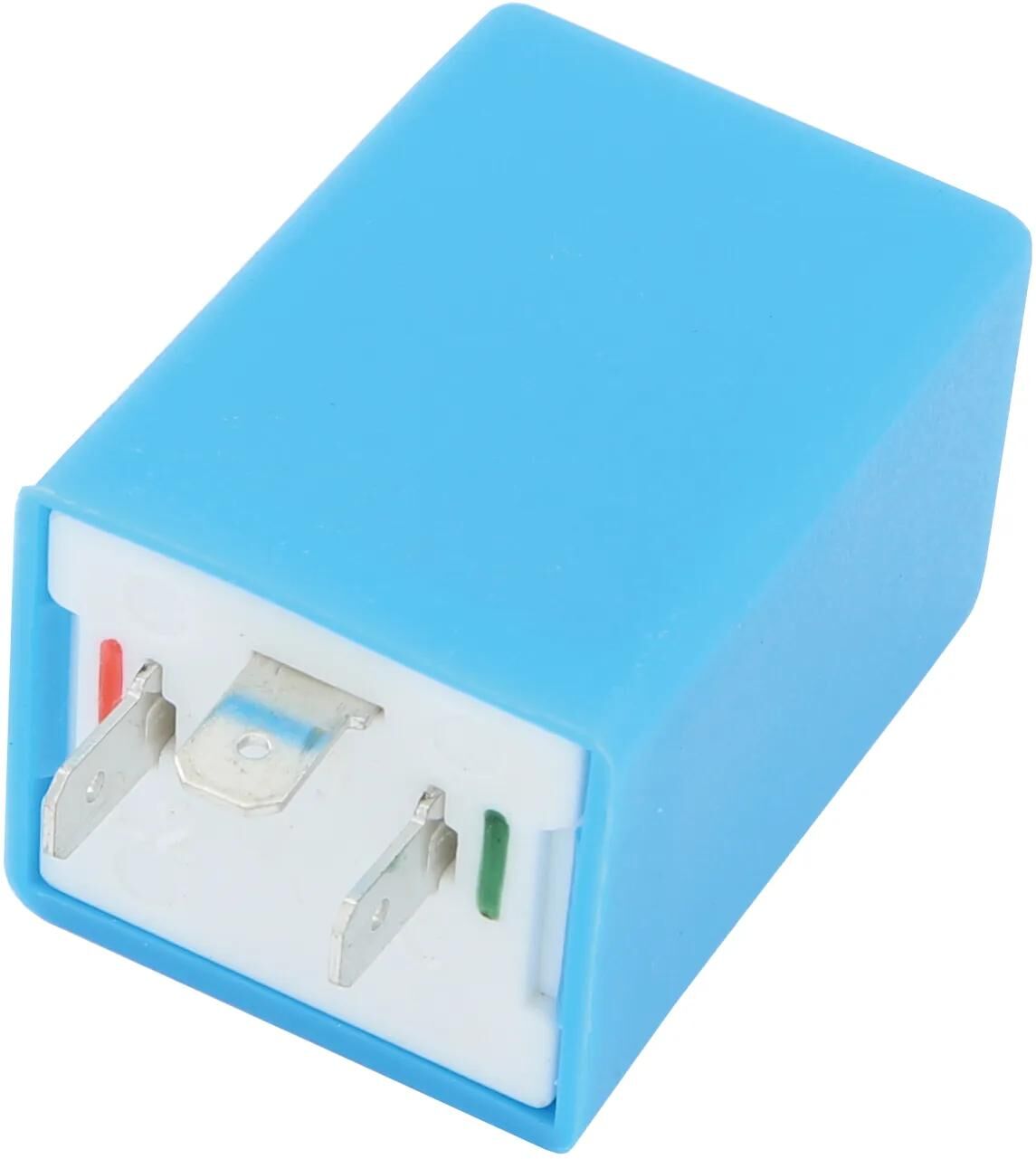

Universal problem solver by usage of LED and halogen turn signals. It replaces all original 2-3 pin flasher relays and ensures a constant and correct flashing rate. The blink control light must be mounted with one left and one turn signal light, to remove reliably this effect (if necessary, the hazard warning lights must be turned off). All required components for installation are included. Made in Germany, ECE-tested, replaces the original 2-3 pin flasher relay, independent, small size: (LxWxH) 30 x 30 x 10mm, suitable for turn signal switch

self-service package, special designed universal digital LED relay with extreme large operating range from 0,1 till 90W. Nearly constant, is integrated into the circuit. Usable for all LED and standard turn signal lights, also in mix. Usable voltage range from 5-16V, size: L x W x H: 21 x 17 x 11mm

2 plug connectors

12V 10 + 10 + 3W

12V

12V 150W

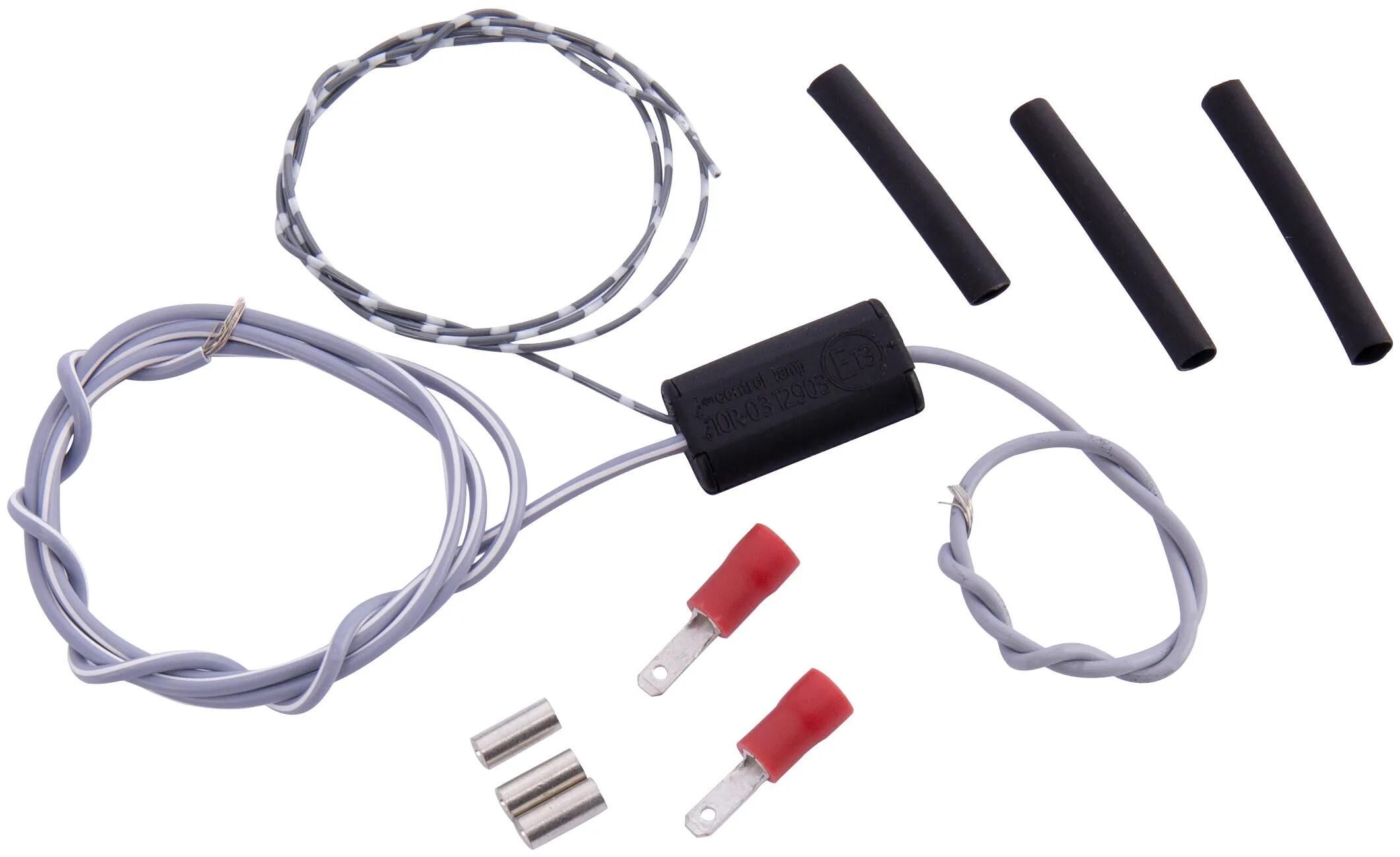

very small, flashes constantly with calm 75 flashing impulses per minute and has a connection for the flash warning light. The blink controll light must be mounted to the R1, by an upgrade to LED when the turn signals blink without indicating. All required components for installation are included. Made in Germany, ECE-tested, simple installation to the turn signal switch supply cable, independent /calm blinking ( 75/min ), size: (LxWxH) 21 x 11 x 6mm, suitable for turn signal switch

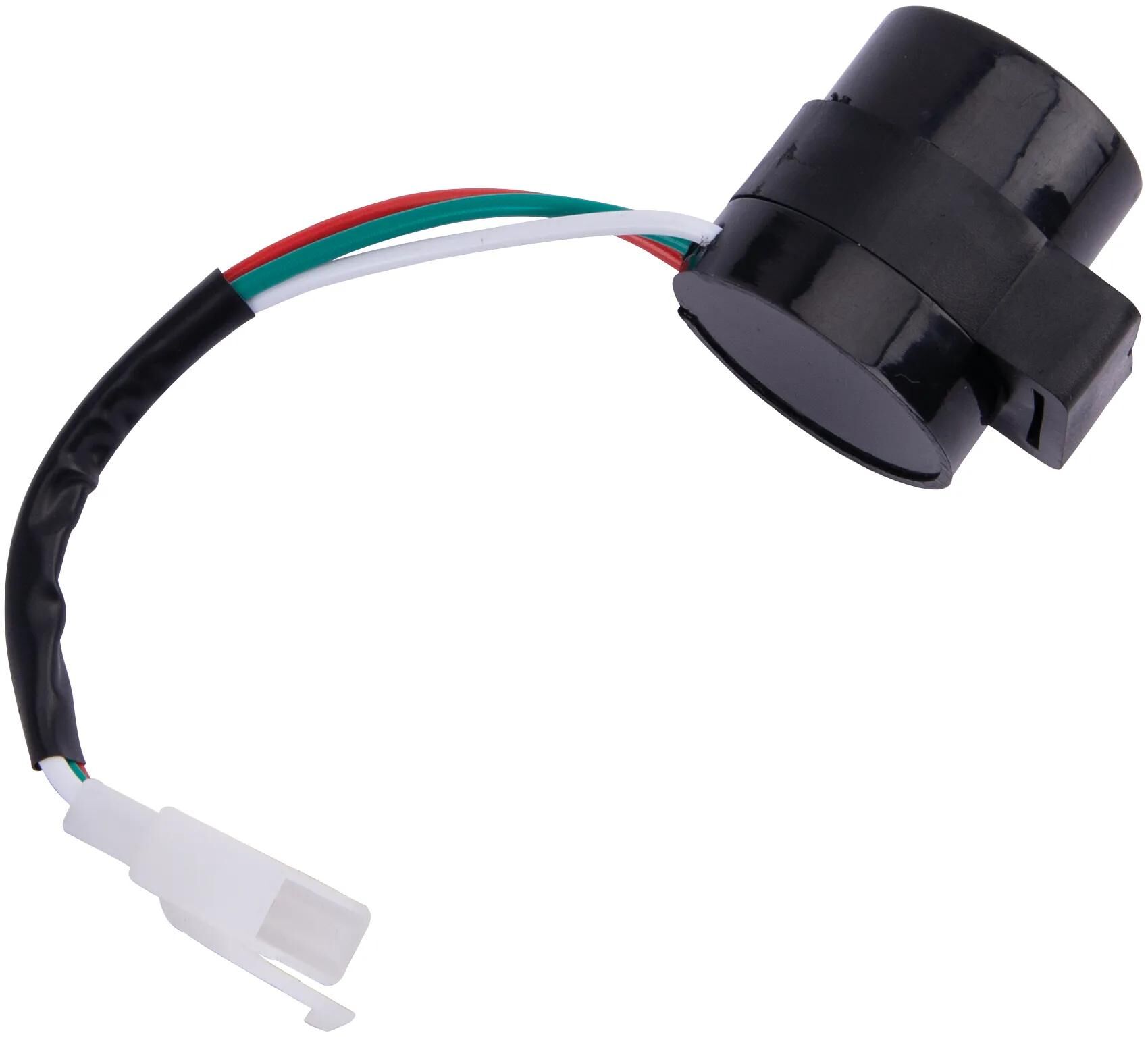

12V 10/21W AC

green = AC input
white = clocked current output
red = clocked current output

The current is alternately clocked to white and red. The alternating cycles of the turn signals are achieved at the front and rear. As a result, the on-board load is reduced to a minimum so that the turn signals still clock well even when idling.
