made in Germany

D-type, 2-component grip. Tool for adjusting the mixture adjustment screw for hard-to-reach carburettors

For easy adjusting the idle mixture adjusting screw at the carburettor. The wrench can be used also for other, hard-to-reach screws

Technical data:
cassette total dimensions (LxWxH): 110 x 550 x 45mm

The set contains following articles:
angled screwdriver, length: 470mm
length: 365mm (without handle)
handle - length: 112mm
adapter slotted - 5mm, length: 9,5mm, 90° angled
quick-change adapter 90° angled
carburator special socket - D-type, length: 25mm
Phillips - 2mm, length: 19mm
Phillips - 2mm, length: 42mm
slot - 5 mm, length: 19mm
slot - 5 mm, length: 42mm
slot - 5 mm, length: 78mm

Note:
The offset screwdriver set can not be used for tight screws because the bevel gear could be damaged under high loads!

for fuel supply during adjustment work, such e.g. the synchronization of the carburetor. Content: 1l bottle with hooks, hose 120cm, cock, 3 hose clamps

For easy carburetor synchronization by means of vacuum synchronous clocks. The tester can be used for 2-4 carburetors

The holding plate has an adjustable wire rope with plastic protection. The tester can thus be attached to the vehicle or to a diagnostic stand.

Technical data:
cassette total dimensions (LxWxH): 200 x 300 x 85mm
measuring range: 0 to -76 cmHg (20 cmHg / 0,013 Bar)

The set contains of following articles:
Synchronous tester 4 vacuum synchronous clocks on a holding plate
4x hoses length: 120mm, inner Ø: 5mm
4x extensions M5 x 0,8mm, length: 165mm
4x extensions M5 x 0,8mm, length: 100mm
4x extensions M6 x 0,75mm, length: 55mm
4x extensions M6 x 1,0mm, length: 60mm
4x extensions M5 x 0,8mm, length: 55mm
4x extensions 6mm, length: 55mm
4x spare sealings 4 x 7mm
4x hose clamps 8mm
2x spare valves

The perfect helper for setting and service work in the workshop. The storage surface can be used for test and adjustment devices, e.g. diagnostic and synchronization devices or other tools. In addition, the mobile diagnostic monitor has a base where e.g. a gasoline bottle for carburetor settings or a charger can be attached. The height of the stand can be adjusted by means of the telescopic construction and the adjusting screws

to regulate the idle-mixture-adjusting screw

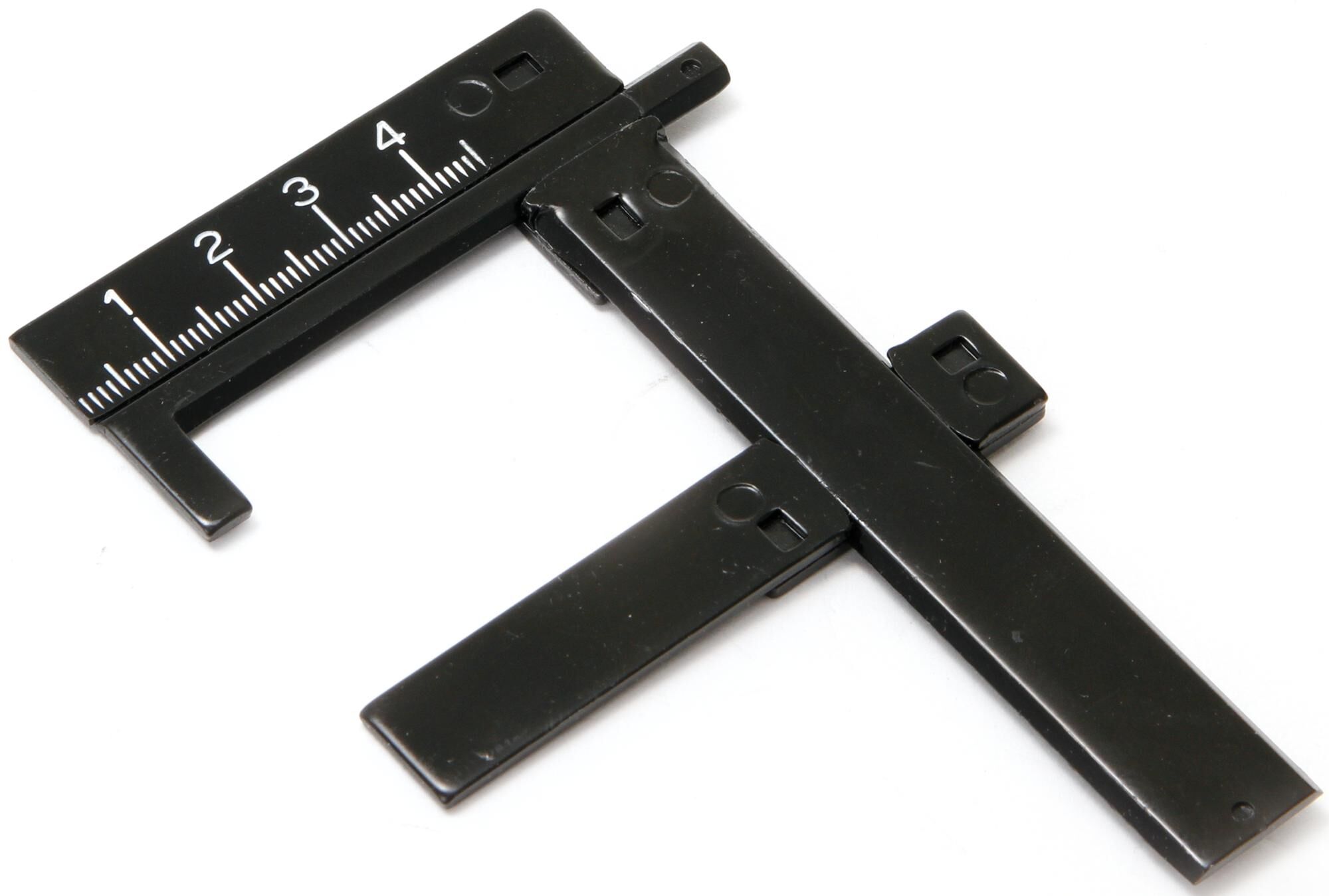

for precise adjustment of the float level for all common carburettors

sizes: 0,45; 0,50; 0,55; 0,60; 0,65; 0,70; 0,75; 0,80; 0,85; 0,90; 0,95; 1,00; 1,05; 1,10; 1,15; 1,20; 1,25; 1,30; 1,40; 1,50

Zum Aus- und Einbau des Benzinhahns
