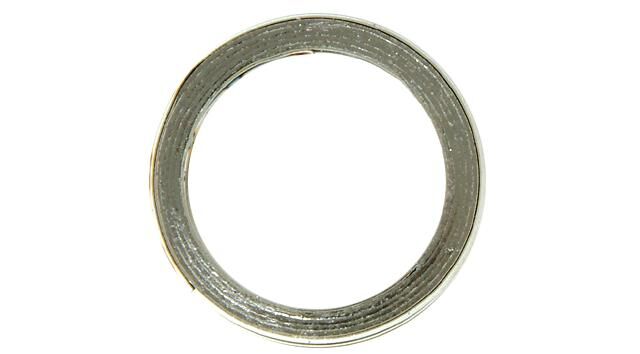

Manifold Gasket
for cylinder outlet
outer Ø: 48,0 mm
inner Ø: 40,0 mm
height: 5,0 mm
material: aluminium gasket
- Art.-Nr.: 04541488
- Org.-Nr.: 88963006
outer Ø: 35,5 mm
inner Ø: 29,0 mm
height: 5,0 mm
material: aluminium gasket
- Art.-Nr.: 04541447
- Org.-Nr.: 88963001
outer Ø: 41,5 mm
inner Ø: 35,5 mm
height: 5,0 mm
material: copper/aluminium gasket
- Art.-Nr.: 04541546
- Org.-Nr.: 88963022
outer Ø: 61,5 mm
inner Ø: 51,5 mm
height: 5,5 mm
material: aluminium gasket
- Art.-Nr.: 04541512
- Org.-Nr.: 88963019
outer Ø: 45,3 mm
inner Ø: 37,4 mm
height: 5,0 mm
material: aluminium gasket
- Art.-Nr.: 04541462
- Org.-Nr.: 88963003
outer Ø: 42,0 mm
inner Ø: 33,2 mm
height: 5,0 mm
material: aluminium gasket
- Art.-Nr.: 04541454
- Org.-Nr.: 88963002
outer Ø: 42,0 mm
inner Ø: 34,0 mm
height: 5,0 mm
material: copper/aluminium gasket
- Art.-Nr.: 04541579
- Org.-Nr.: 88963025
Manifol Gasket
for cylinder outlet
outer Ø: 45,3 mm
inner Ø: 37,4 mm
height: 5,0 mm
material: aluminium gasket
- Art.-Nr.: 04541611
- Org.-Nr.: 88972002
outer Ø: 39,7 mm
inner Ø: 31,0 mm
height: 5,2 mm
material: aluminium gasket
- Art.-Nr.: 04541603
- Org.-Nr.: 88972001
outer Ø: 53,0 mm
inner Ø: 37,3 mm
height: 5,0 mm
material: aluminium gasket
- Art.-Nr.: 04541660
- Org.-Nr.: 88972009
outer Ø: 53,0 mm
inner Ø: 37,3 mm
height: 6,0 mm
material: aluminium gasket
VESRAH
- Art.-Nr.: 04541702
- Org.-Nr.: 88972020
outer Ø: 47,0 mm
inner Ø: 36,5 mm
height: 3,0 mm
material: copper hollow ring
- Art.-Nr.: 04541652
- Org.-Nr.: 88972007
outer Ø: 42,3 mm
inner Ø: 31,6 mm
height: 3,5 mm
material: copper/aluminium gasket
- Art.-Nr.: 04541728
- Org.-Nr.: 88972026
outer Ø: 49,5 mm
inner Ø: 39,0 mm
height: 5,2 mm
material: aluminium gasket
- Art.-Nr.: 04541637
- Org.-Nr.: 88972005
outer Ø: 39,5 mm
inner Ø: 30,5 mm
height: 3,5 mm
material: copper/aluminium
- Art.-Nr.: 04541736
- Org.-Nr.: 88972027
outer Ø: 40,0 mm
inner Ø: 32,0 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541686
- Org.-Nr.: 88972012
outer Ø: 40,0 mm
inner Ø: 32,0 mm
height: 4,5 mm
material: copper hollow ring
- Art.-Nr.: 04541694
- Org.-Nr.: 88972018
Manifold Gasket
An Zylinderauslass.
outer Ø: 43,0 mm
inner Ø: 35,0 mm
height: 5,0 mm
material: aluminium gasket
- Art.-Nr.: 04541306
- Org.-Nr.: 88951009
outer Ø: 37,8 mm
inner Ø: 30,0 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541322
- Org.-Nr.: 88951031
outer Ø: 39,6 mm
inner Ø: 31,7 mm
height: 4,0 mm
material: aluminium gasket
- Art.-Nr.: 04541256
- Org.-Nr.: 88951002
outer Ø: 52,0 mm
inner Ø: 44,0 mm
height: 3,5 mm
material: copper hollow ring
- Art.-Nr.: 04541314
- Org.-Nr.: 88951012
outer Ø: 45,0 mm
inner Ø: 37,0 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541272
- Org.-Nr.: 88951005
outer Ø: 43,0 mm
inner Ø: 35,3 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541298
- Org.-Nr.: 88951008
outer Ø: 46,5 mm
inner Ø: 38,8 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541280
- Org.-Nr.: 88951006
outer Ø: 39,7 mm
inner Ø: 31,6 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541264
- Org.-Nr.: 88951003
Manifold Gasket
for cylinder outlet
outer Ø: 44,8 mm
inner Ø: 33,1 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541389
- Org.-Nr.: 88954006
outer Ø: 46,5 mm
inner Ø: 38,5 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541363
- Org.-Nr.: 88954004
outer Ø: 47,5 mm
inner Ø: 40,0 mm
height: 3,0 mm
material: copper hollow ring
- Art.-Nr.: 04541355
- Org.-Nr.: 88954003
outer Ø: 43,9 mm
inner Ø: 36,0 mm
height: 3,5 mm
material: copper hollow ring
- Art.-Nr.: 04541413
- Org.-Nr.: 88954014
outer Ø: 39,6 mm
inner Ø: 31,7 mm
height: 4,0 mm
material: copper hollow ring
- Art.-Nr.: 04541348
- Org.-Nr.: 88954002
outer Ø: 42,0 mm
inner Ø: 33,0 mm
height: 3,0 mm
material: copper hollow ring
- Art.-Nr.: 04541371
- Org.-Nr.: 88954005
Z 900/1000
outer Ø: 45,0 mm
inner Ø: 39,5 mm
height: 2,8 mm
material: copper gasket
- Art.-Nr.: 04541439
- Org.-Nr.: 88954050
