as Dell'Orto PHVA 17,5mm

with metal cover

carburetor

PHVA 10SD, autolubeslide: 40, needle: A15, atomiser: 210FQ, main jet: 74, idle jet: 36

PHVA 12DD

PHVA 12FS , autolubethrottle slide: 40, needle: A28, atomiser: 209GN, main jet: 66, idle jet: 35

PHVA 12KS , autolubethrottle slide: 30, needle: A21, atomiser: 208HA, main jet: 46, idle jet: 30

PHVA 12PS, autolubethrottle slide: 40, needle: A12, atomiser: 211GA, main jet: 78, idle jet: 38

PHVA 12PS , autolubethrottle slide: 40, needle: A20, atomiser: 211GA, main jet: 74, idle jet: 38

PHVA 12QD, autolubeslide: 40, needle: A12, atomiser: 210FQ, main jet: 70, idle jet: 38

PHVA 12QD, autolubeslide: 40, needle: A15, atomiser: 209FQ, main jet: 76, idle jet: 38

PHVA 12QD, autolubeslide: 40, needle: A15, atomiser: 209FQ, main jet: 66, idle jet: 38

PHVA 14QD, autolubeslide: 40, needle: A02, atomiser: 211FA, main jet: 60, idle jet: 34

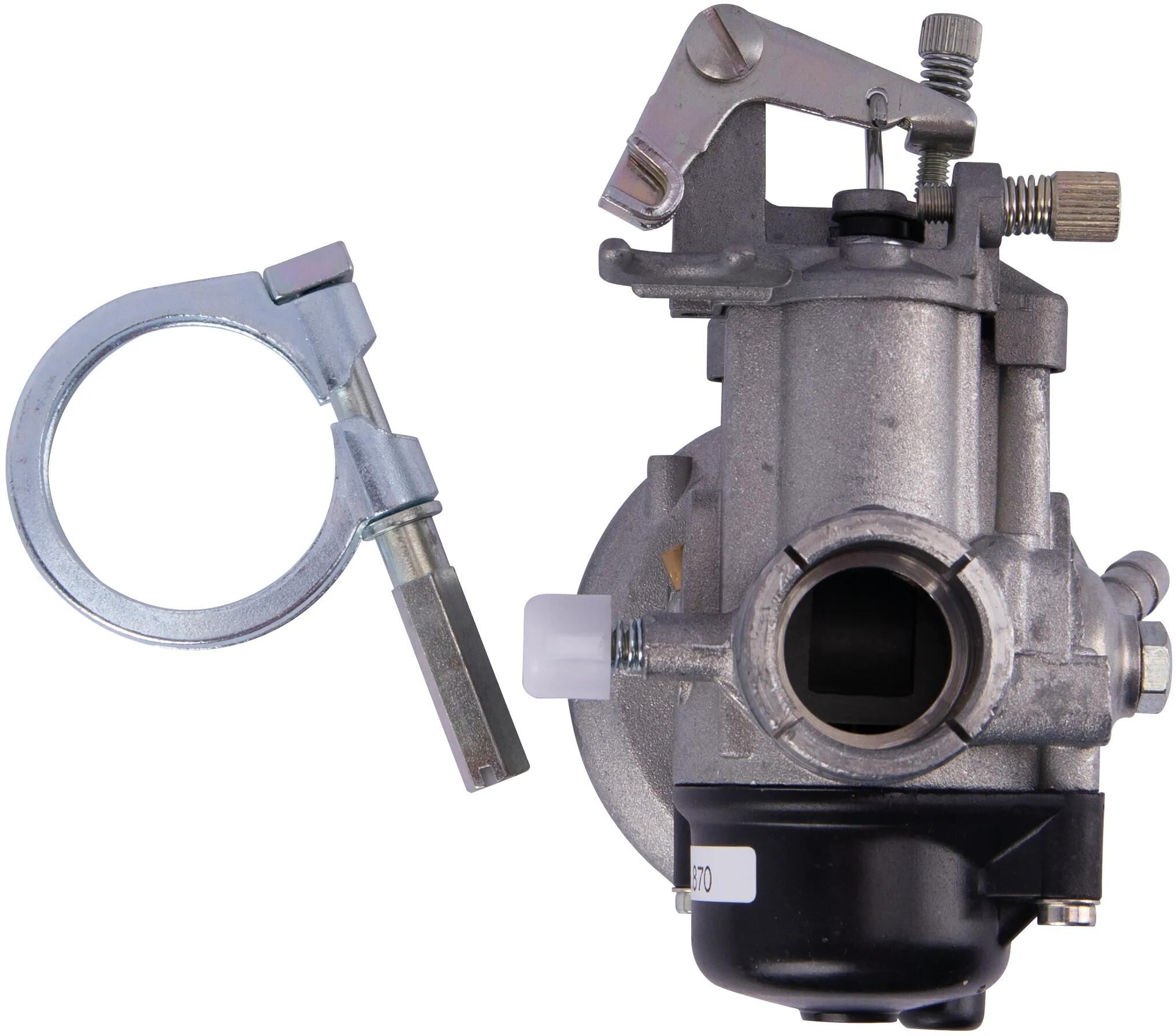

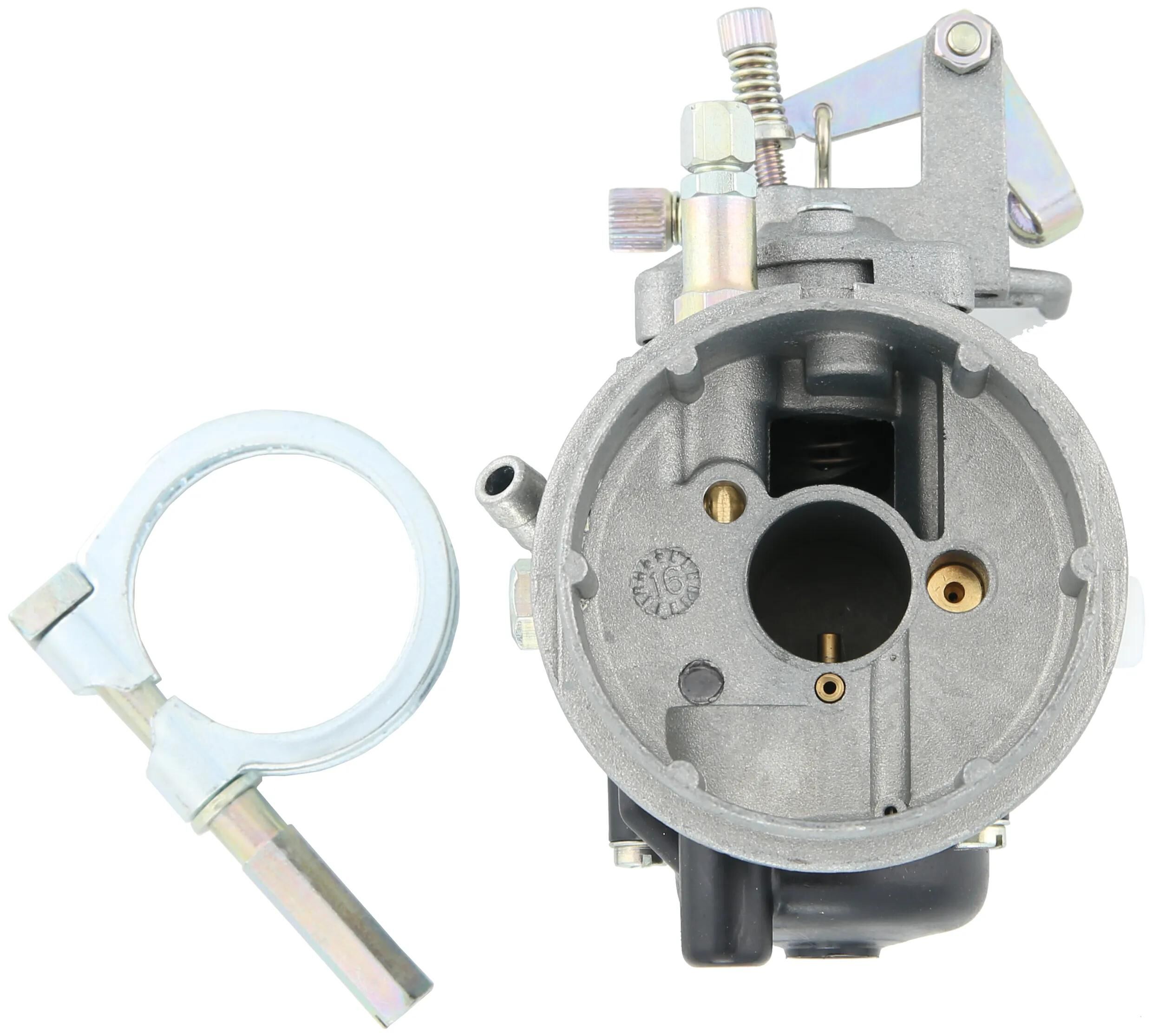

SHBC 19/19E (clamp attachment)

SHBC 19/19E

SHBC 18/16PGasschieber: 03, Hauptdüse: 56, Leerlaufdüse: 42, Starterdüse: 50, Schwimmer: 3,5 g

SHBC 18/16Nthrottle slide: 03, main jet: 60, idle jet: 42, starter jet: 50, float: 3,5g

PHVB 20,5ED, autolubethrottle slide: 40, needle: M06, atomiser: 212GH, main jet: 86, idle jet: 45

PHVB 22DD, autolube

SHA 12/7

SHA 12/10

SHA 12/10

SHA 12/10

SHA 12/10

SHA 12/12

SHA 12/12

SHA 13/13throttle slide: 6, main jet: 66, float: 2,5g

SHA 14/10throttle slide: 11, main jet: 55, float: 3,5g
