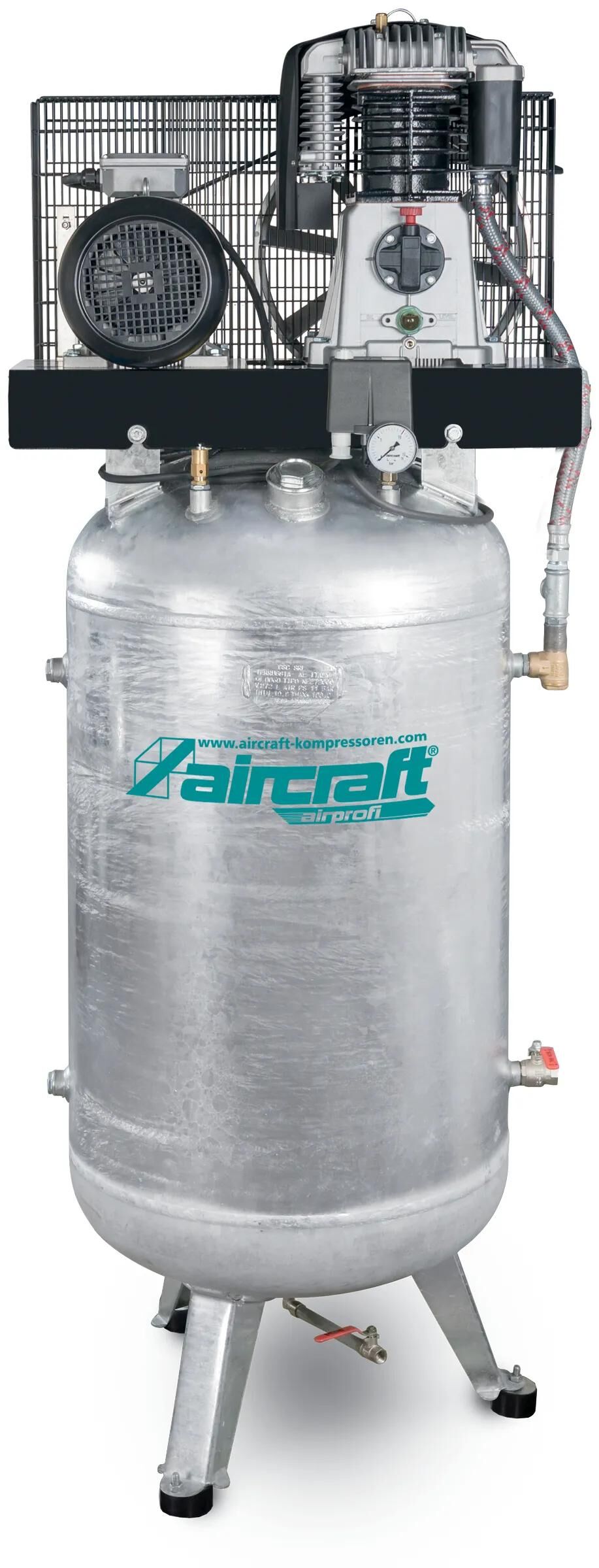

AIRCRAFT compressor "AIRPROFI 703/270/10 V"

Stationary piston compressor with upright 270 l tank
The compressor is completely ready for connection and equipped with all safety devices. Other features include fully automatic on/off operation, automatic star-delta switch (standard from 7.5 kW), 15-year guarantee against rusting through on the inside and outside of the hot-dip galvanized air receiver, compressed air compression via a high-performance unit (HOS) and much more.

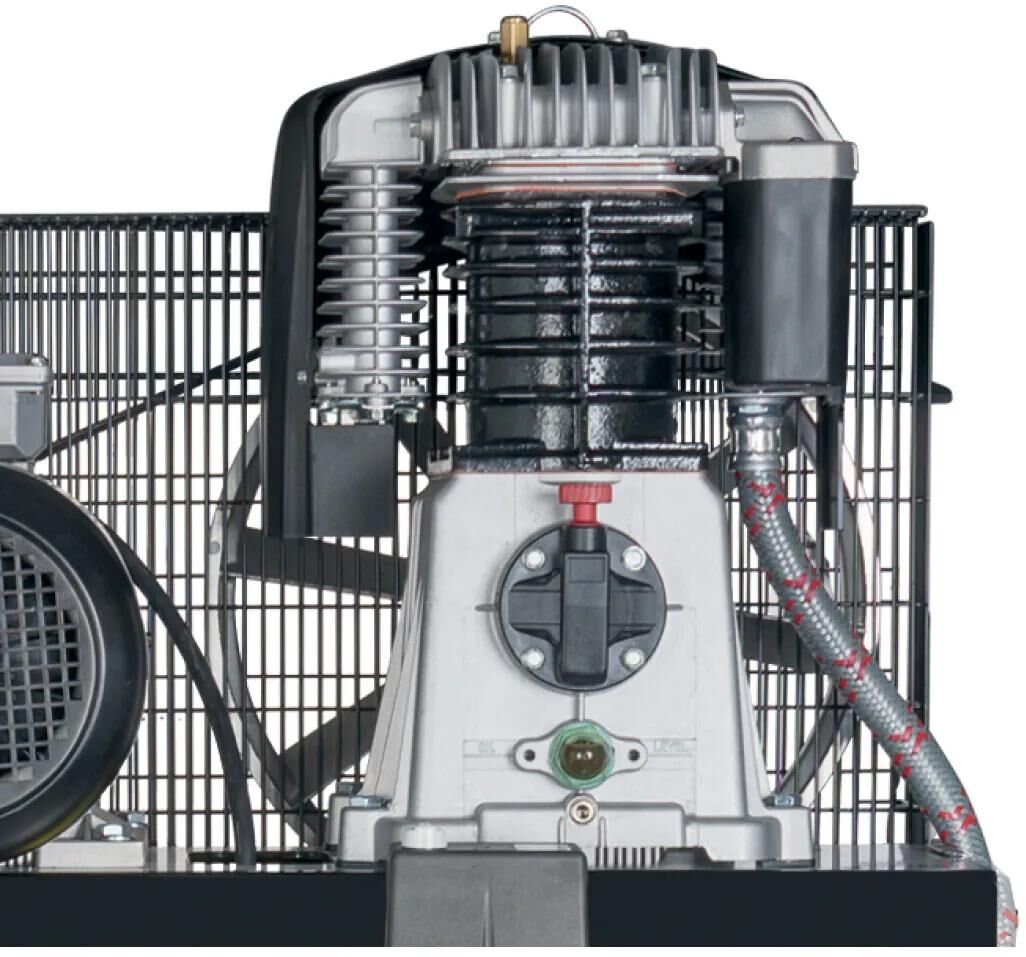

Scope of delivery: Two-stage compressing two-cylinder high-performance unit, toothed Drive Belt, automatic CONDOR pressure switch, power plug with phase inverter for manual reversal of the direction of rotation, 1 Pressure Gauge for tank pressure, 1 ball valve on the tank, flexible armoured hose line with heat protection, internally and externally hot-dip galvanized compressed air tank, three compressed air tapping points on the tank, safety valve, condensate drain valve, oscillating elements

Technical data:
Suction capacity: 650 l/min
Filling capacity: 520 l/min
Maximum pressure: 10 bar
Tank volume: 270 l
Voltage: 400 V / 50 Hz
Output power: 4 kW
Sound power level: 83 dB(A)
Dimensions (LxW/DxH): approx. 780 x 680 x 1870 mm
Weight: approx. 152 kg
