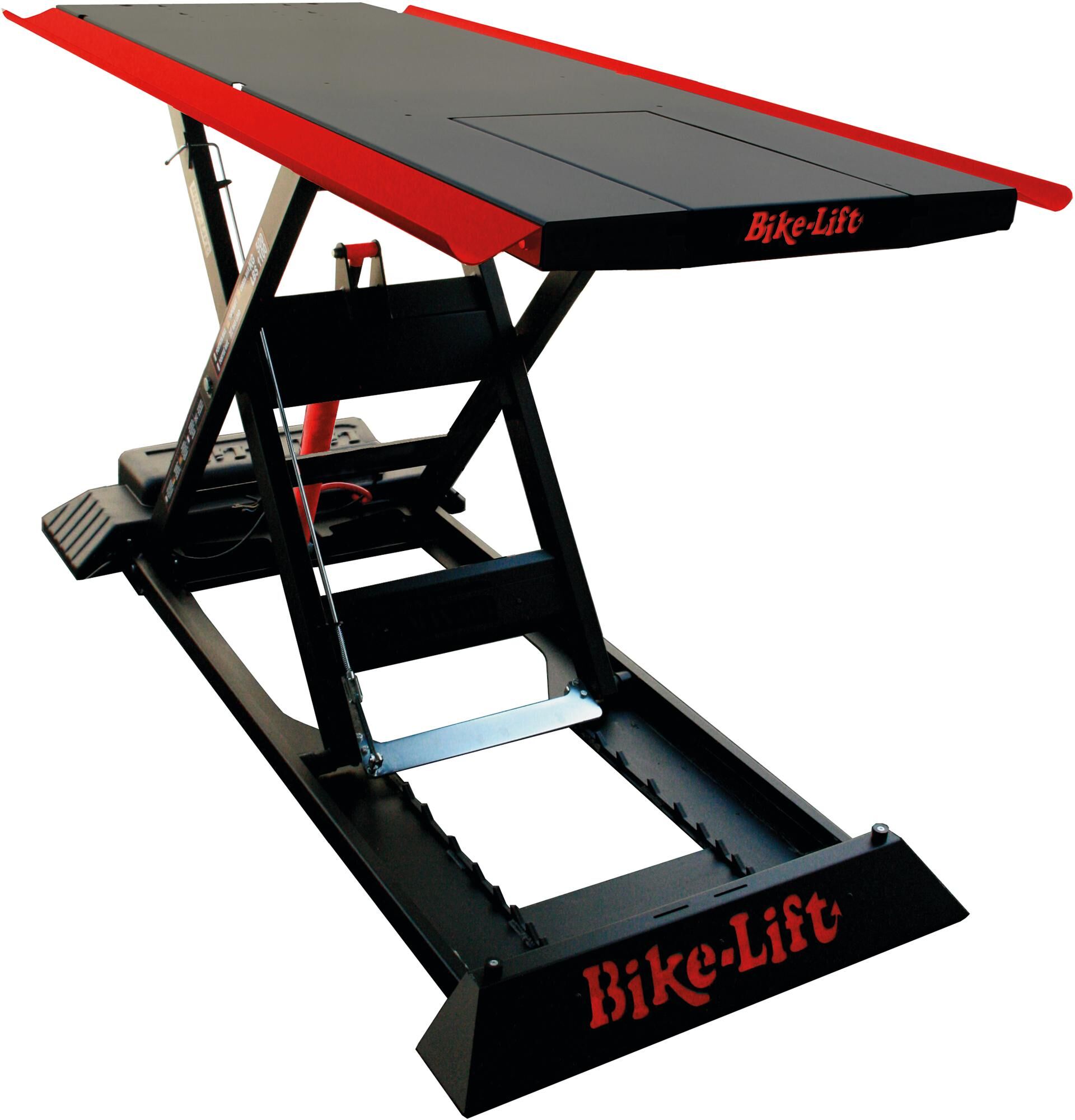

BIKE LIFT lift "Max 516 Gate"
electrohydraulic, BLACK EDITION
- Nº de artículo 05762429
- Org.-Nr.: MG-516-03/BLACK EDIT
500kg load capacity, max. lifting height: 120cm, min. lifting height: 20cm, working surface: 210 x 75cm, ramp: 82 x 51cm, weight: 235kg, total dimensions: 220 x 99cm, cable length of handset 2 m

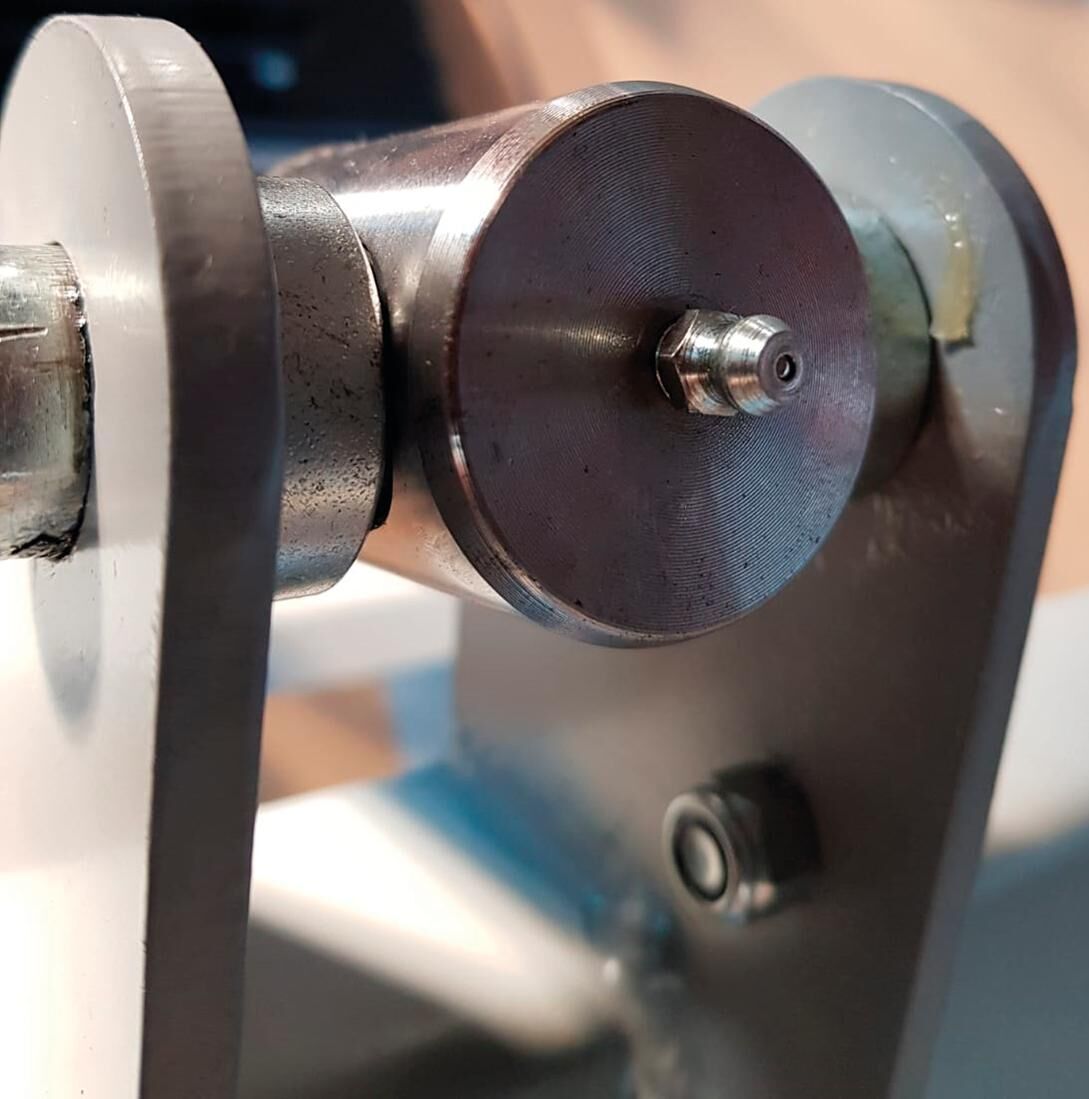

With grease nipple on the upper cylinder guide, which simplifies regular lubrication. Suitable for motorcycles, scooters and quads (only with widening). With retractable gate for easy disassembly of the rear wheel. Delivery incl. safety bar, tool tray and ramp.
Shipping notice:
Each lift will be delivered in a stable transport packaging via freight truck with a tail lift. Delivery within Germany (islands excl.) between 2-3 working days after ordering. The net shipping fee amount is €109,00 for this puproset
Información sobre el producto
- Altura de elevación máx.: 120.0 cm
- Altura de elevación mín.: 20.0 cm
- Anchura: 99.0 cm
- Artículo: Article
- Características: roll bar , tool tray
- Carga: 500.0 kg
- Categoría: motorcycle / quad
- Color principal: Negro
- Longitud: 220.0 cm
- Propulsión: electrohydraulic
- Tensión de propulsión: 230.0 V
- Versión: lift
- Número de artículo del proveedor:: MG-516-03/BLACK EDIT
- UVP: 4.083,78 €
- Marca/Proveedor Bike-Lift
- Unidad de medida: PIECE
