Bikeservice Chain separating and riveting tool set "Eco"

For easy separating of hollow and solid riveting chains. The riveting is suitable with the Eco set only for hollow rivet chains. Suitable for all sizes of drive chains (415 - 632).

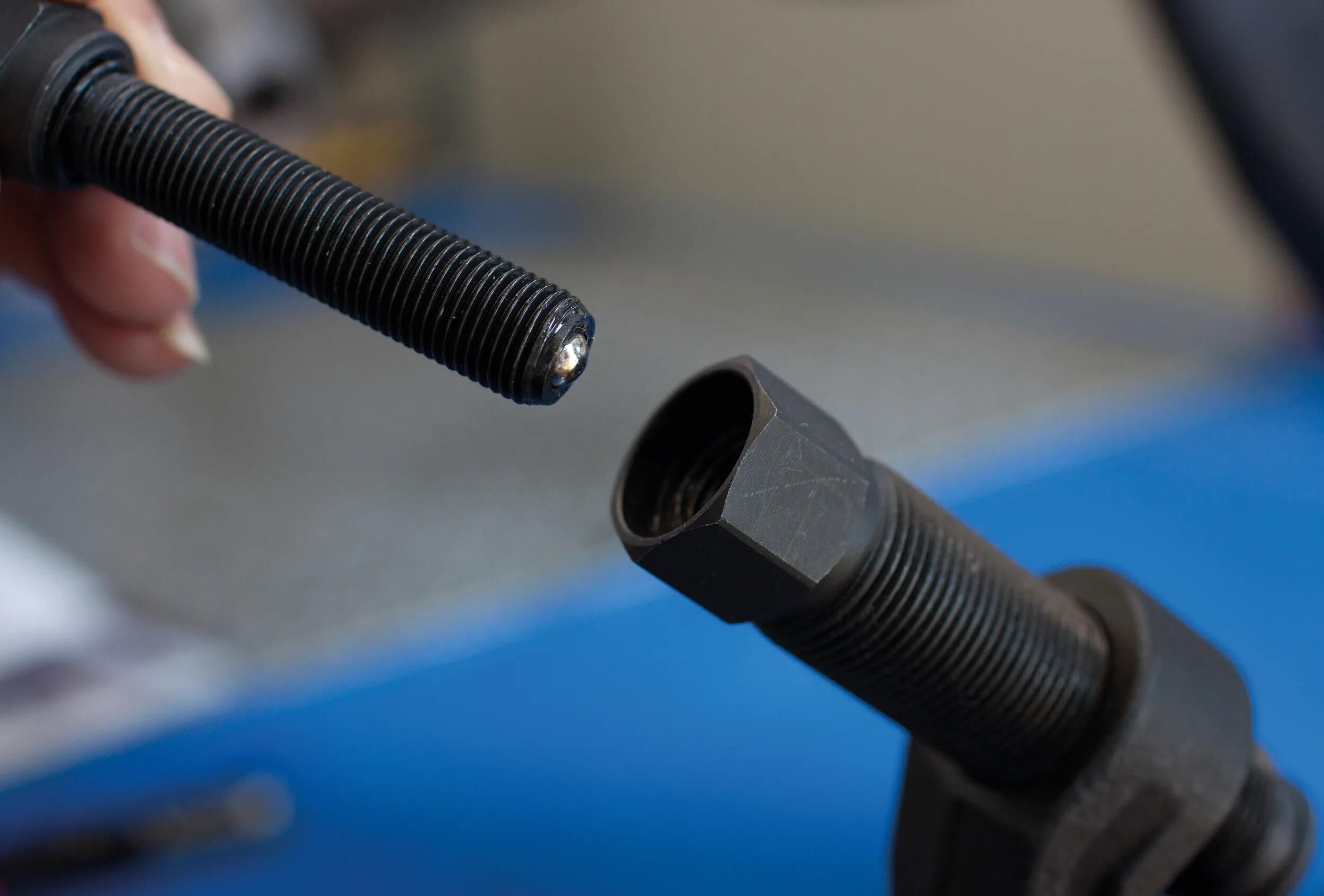

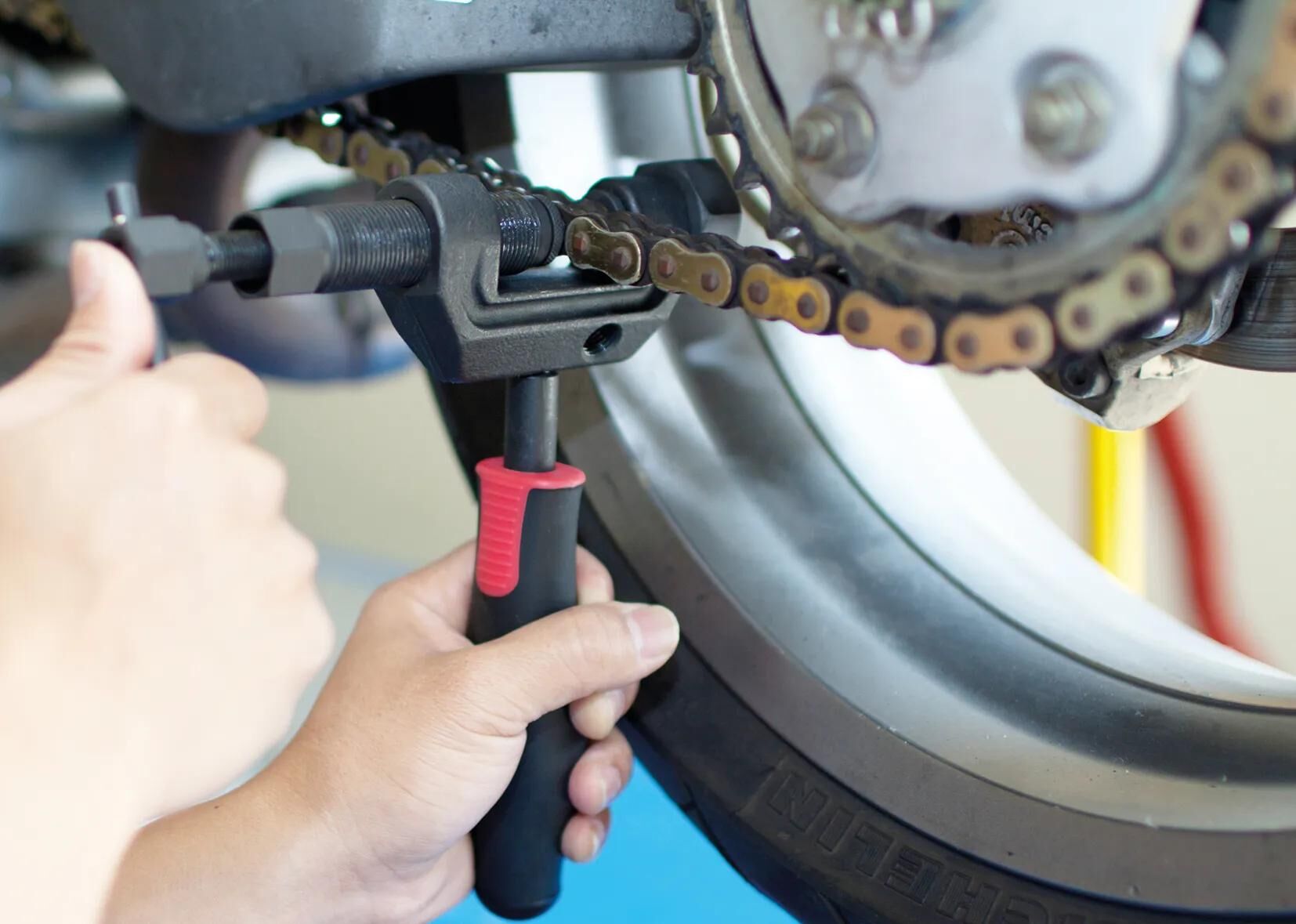

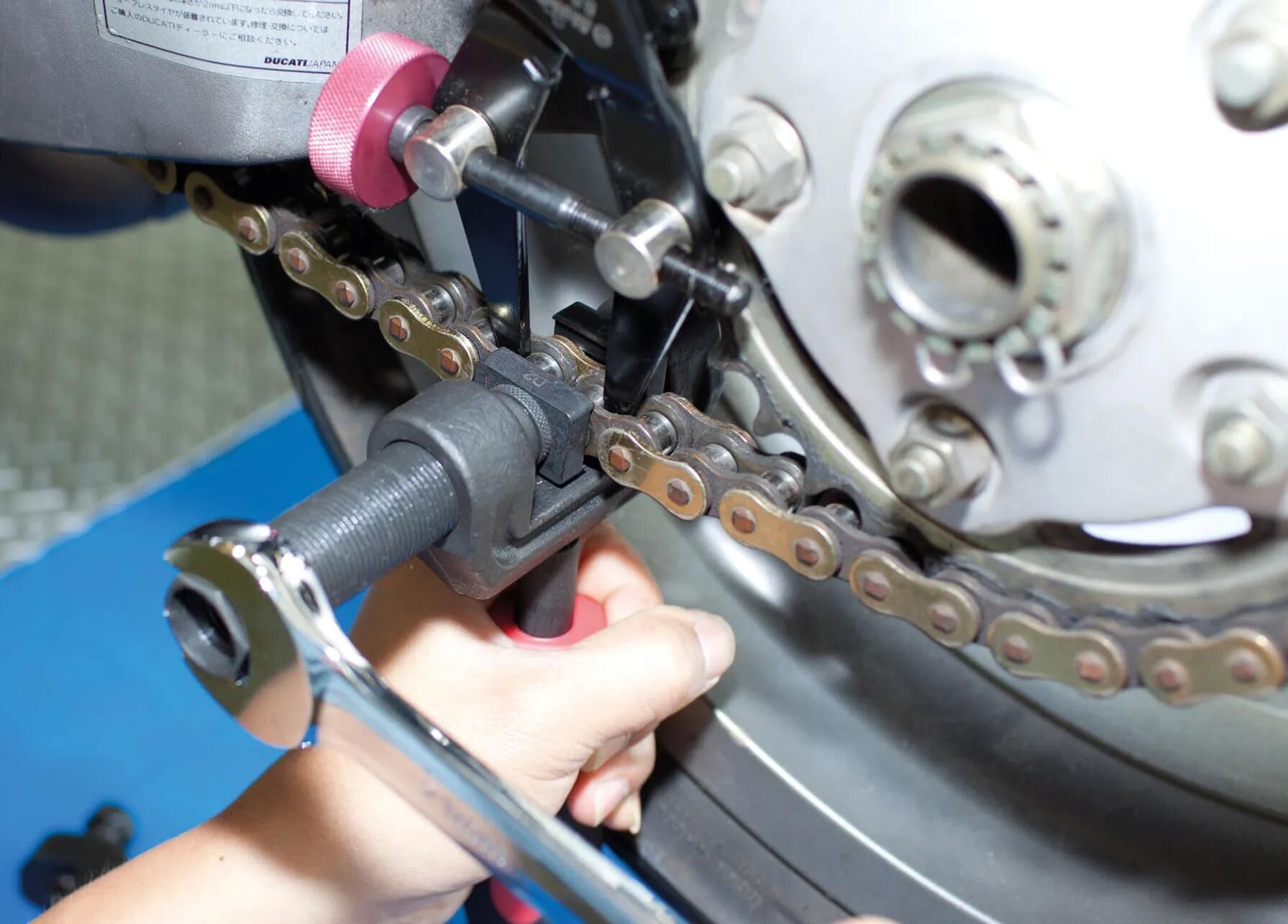

The spindle for removing the rivet bolts can be operated by hand gag, ring spanner or ratchet. The handle of the chain tool can be unscrewed and mounted on the side threads to change the handle position and improve ergonomics.

Technical data:

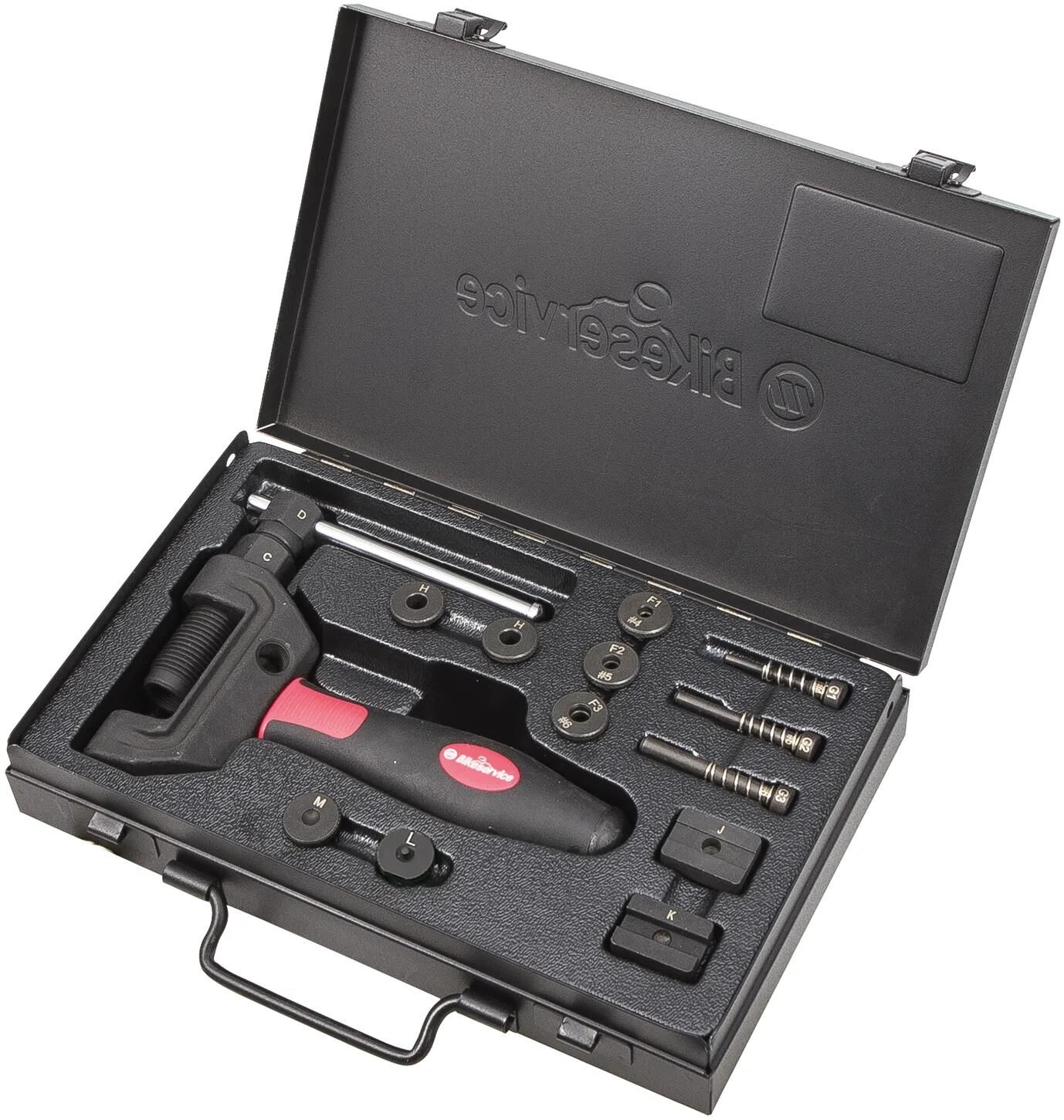

cassette total dimensions (LxWxH): 160 x 260 x 43mm

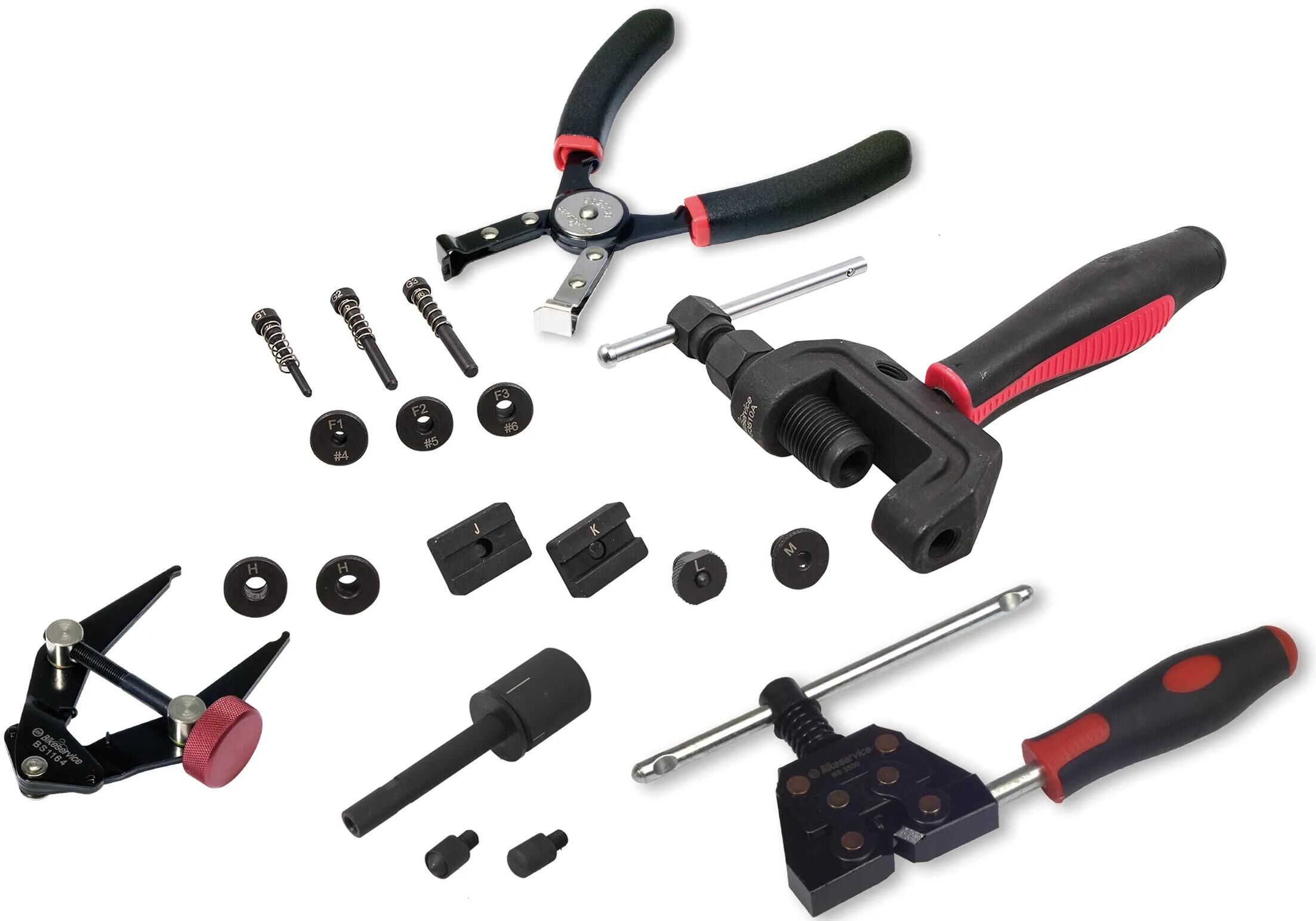

The set contains following articles:

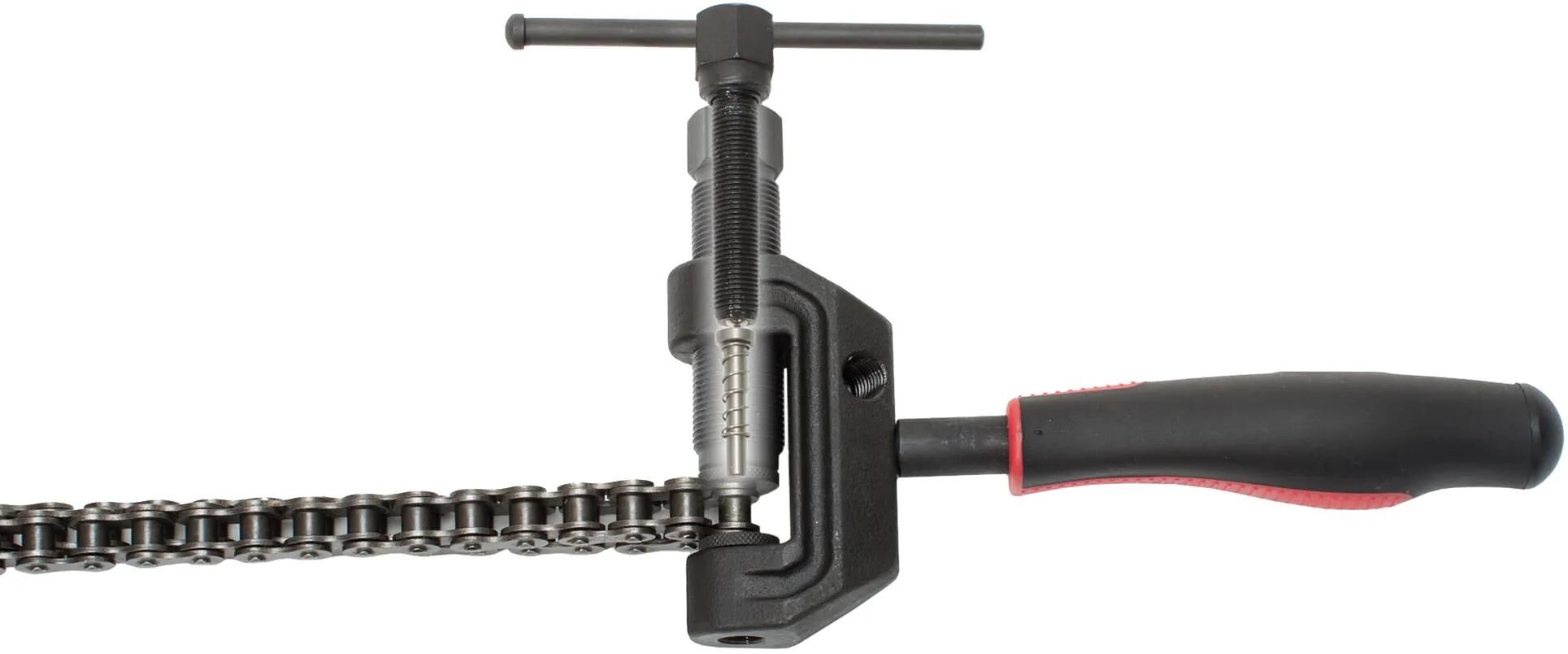

chain tool A - with ergonomic handle
spindle C - drive SW 21
spindle D - drive SW 19 / inside square 3/8" / hand operation with hand leverl

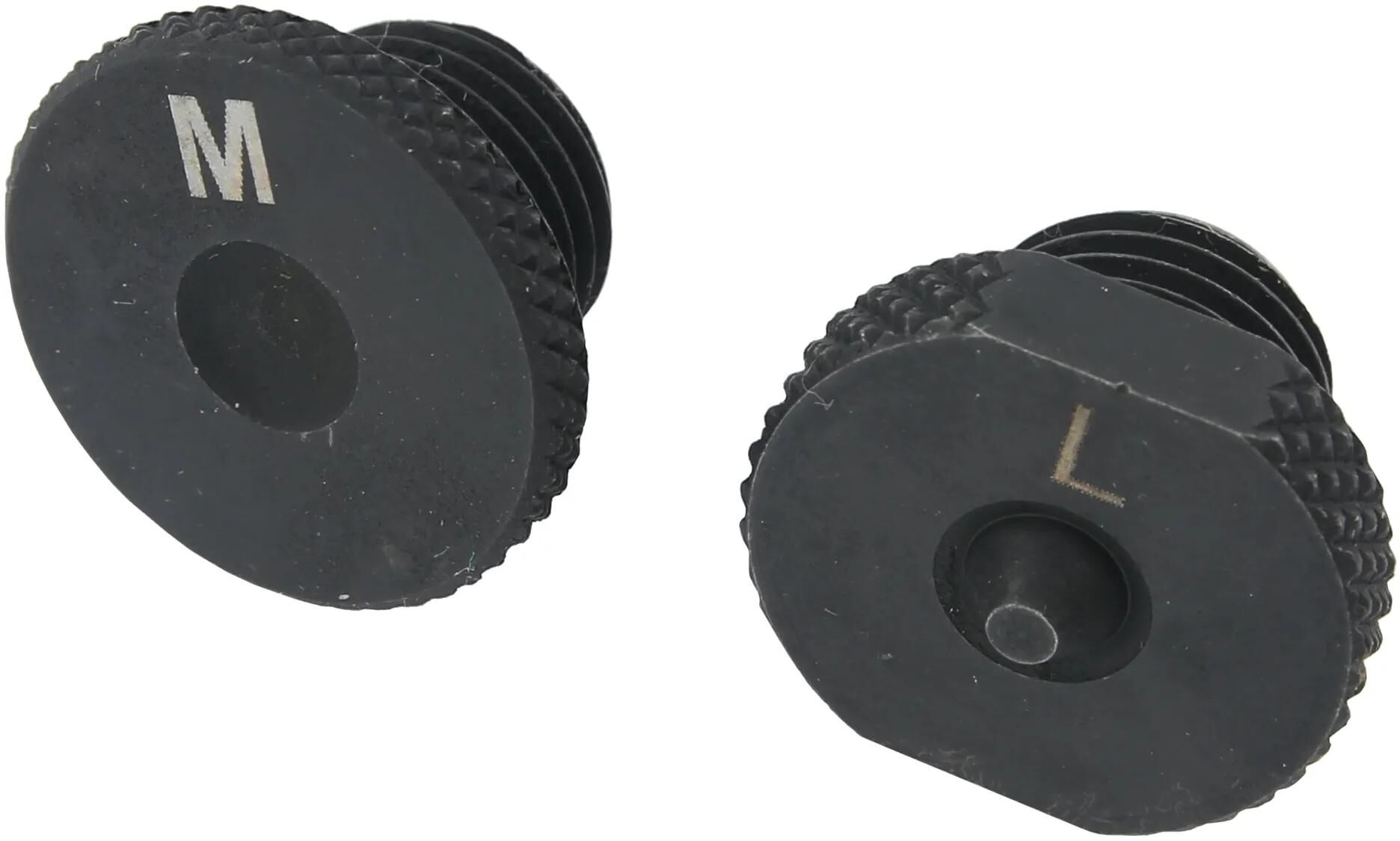

press plate M - for hollow and solid rivet bolts (BS3510T), 0.577.013/6 (set)
press plate L - for hollow rivet bolts (BS3510T), 0.577.013/6 (set)

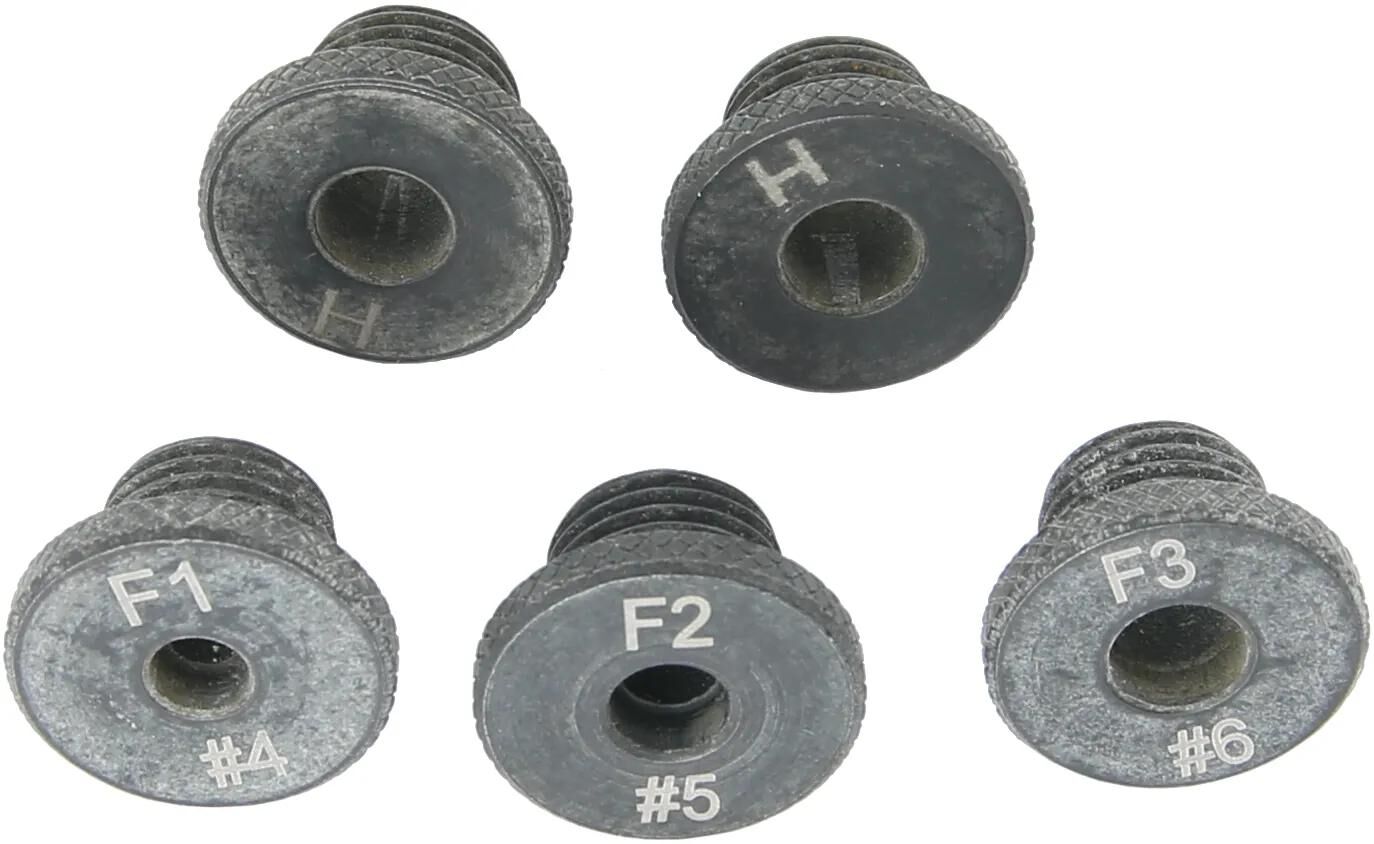

2x guide sleeves H - lower guide sleeve for 4er, 5er, 6er chains (Ø 6,9mm) (BS3510V), 0.577.015/1 (set)
guide sleeve F1 - for 4er chains (Ø 3,9mm) (BS3510V), 0.577.015/1 (set)
guide sleeve F2 - for 5er chains (Ø 5mm) (BS3510V), 0.577.015/1 (set)
guide sleeve F3 - for 6er chains (Ø 6mm) (BS3510V), 0.577.015/1 (set)

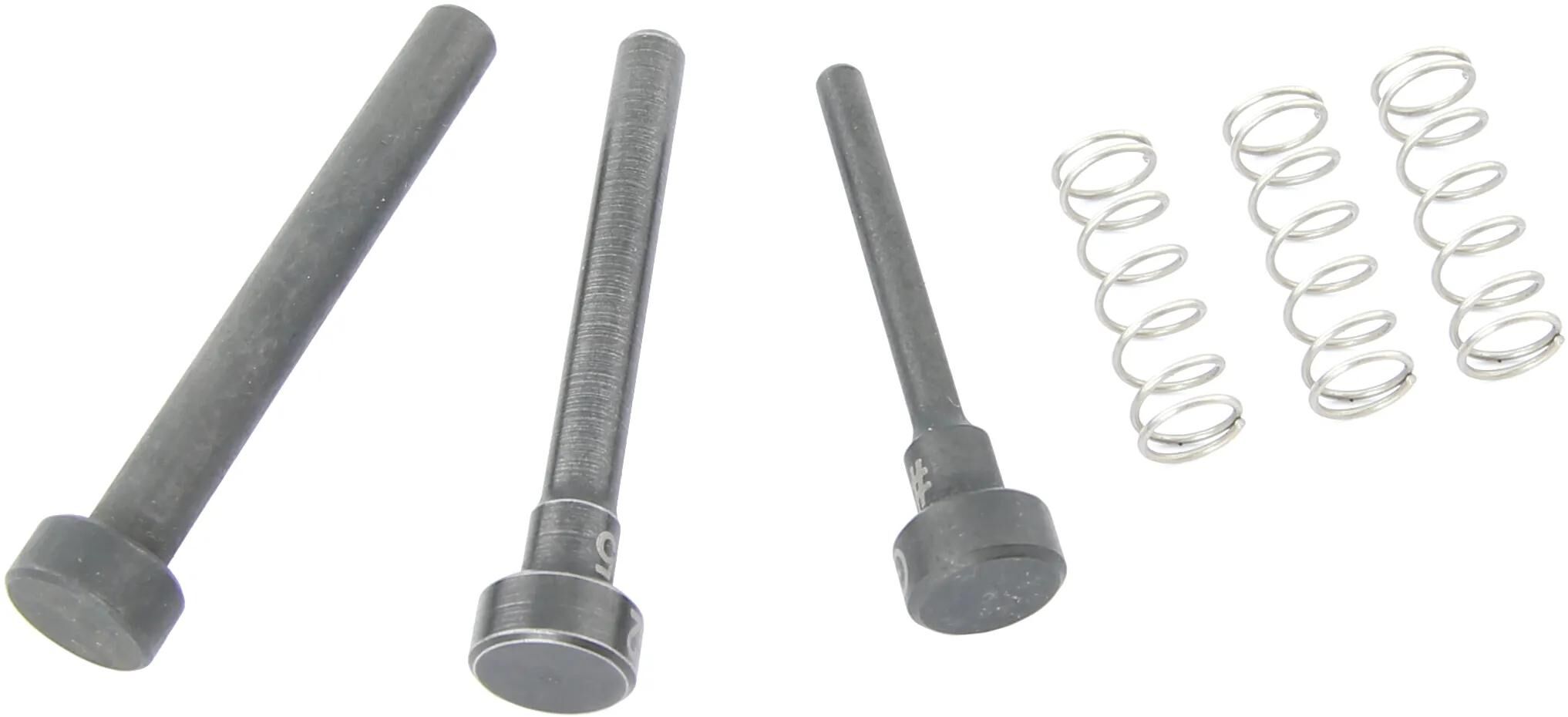

separating bolt G1 - for 4er chains (Ø 3,5mm) (BS3510S), 0.577.012/8 (set)
separating bolt G2 - for 5er chains (Ø 4,9mm) (BS3510S), 0.577.012/8 (set)
separating bolt G3 - for 6er chains (Ø 5,9mm) (BS3510S), 0.577.012/8 (set)

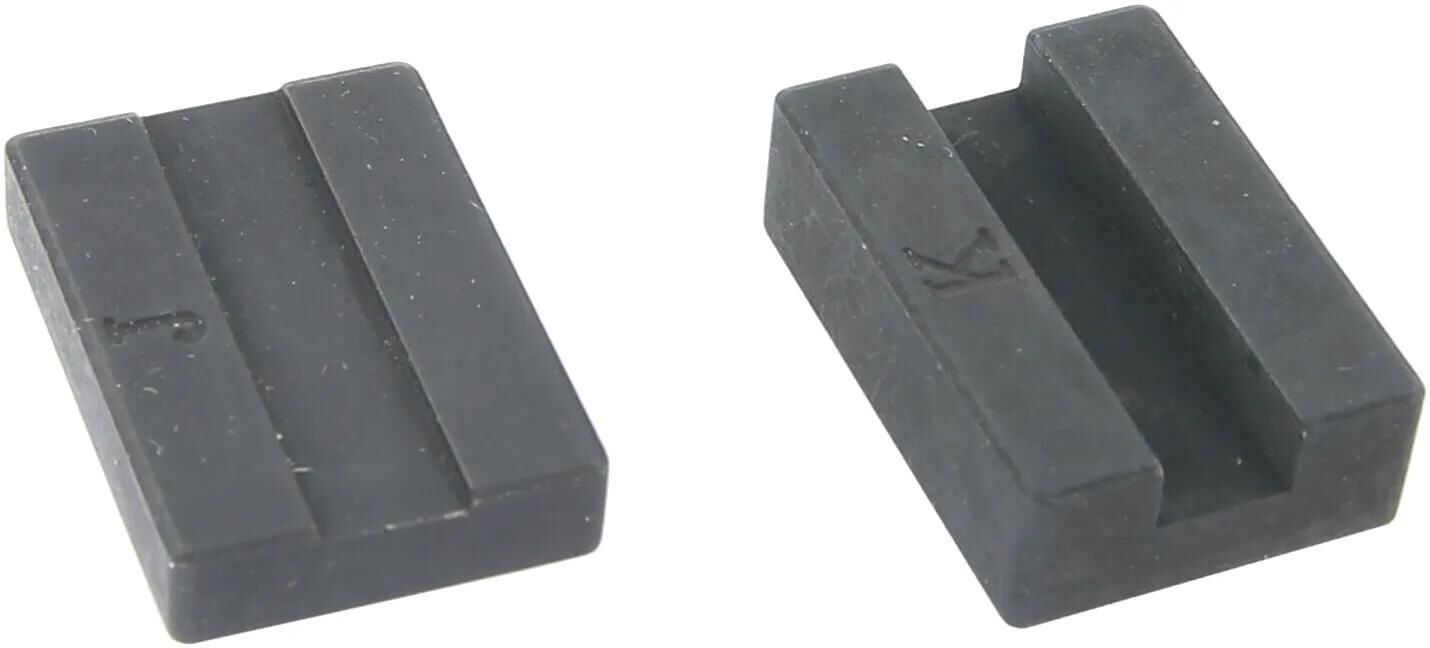

guide plate K - top guide plate (for placing the loose outer plate) (BS3510U), 0.577.014/4 (set)
guide plate J - below guide plate (for aligning the fixed outer plate) (BS3510U), 0.577.014/4 (set)

Usage:
For 4 and 5-link chains, make sure that the guide plate K (4mm recess) is not allowed to hit the rivet pins to the end. The outer dimension of the attached outer plate should be checked with the measurement of an original pressed outer plate to ensure the movability of the chain rolls!
