Bikeservice Steuerkettentrenn- und Nietwerkzeugsatz

For easy cutting and riveting of timing chains. Suitable for all timing chains up to 5 plates wide.

Important: Riveting with the tools is only suitable for an emergency, as the rivet is only driven in and not riveted correctly. In addition, the rivet must already be firmly seated in the first Flap before it can be driven in with the tool.

Technical data:
Overall dimensions of cassette (L x W x H): 140 x 90 x 35 mm

The set contains the following items:

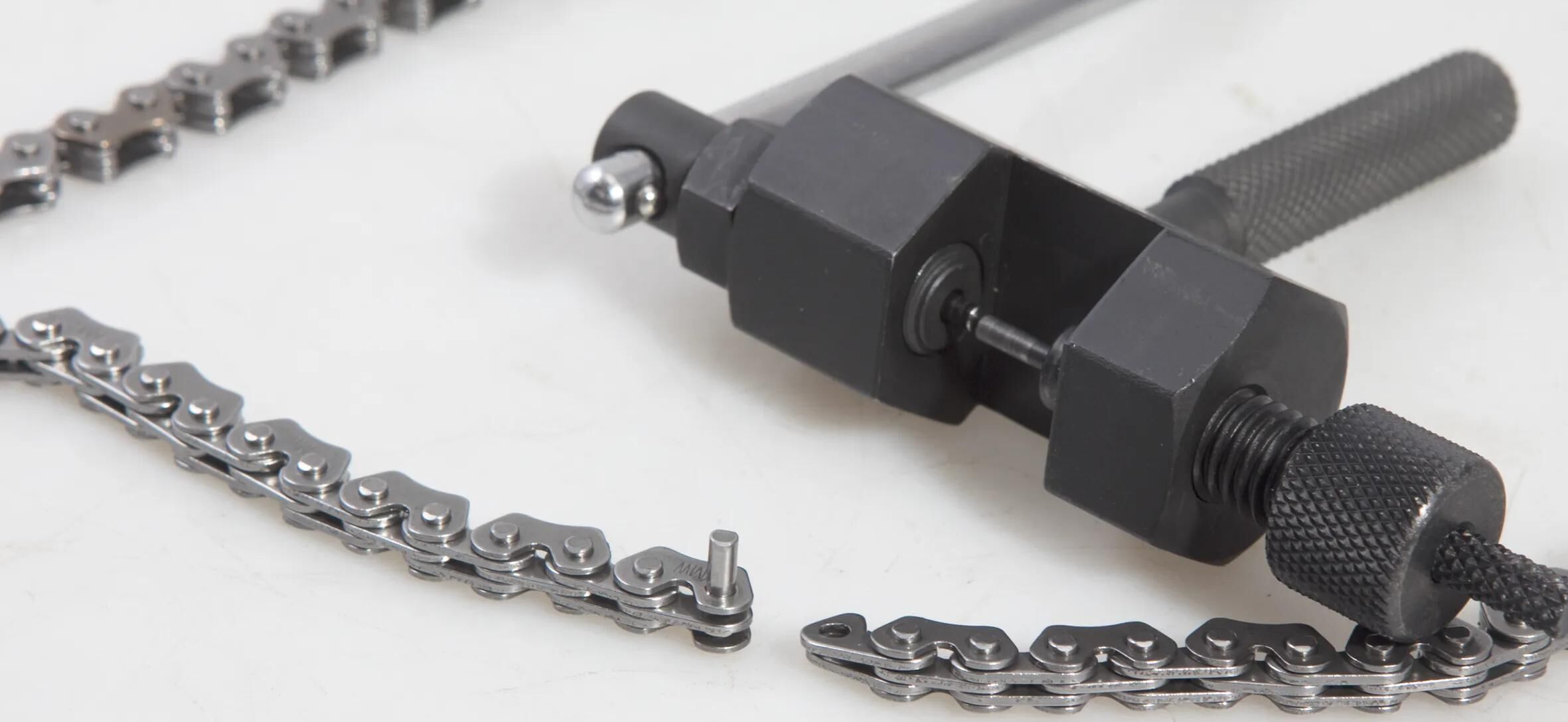

Timing chain tool with hand lever
Spindle for adapter bolt
Rivet pin length: 4 mm, Ø 2.1 mm (BS3550F), 0.577.398/1 (set)

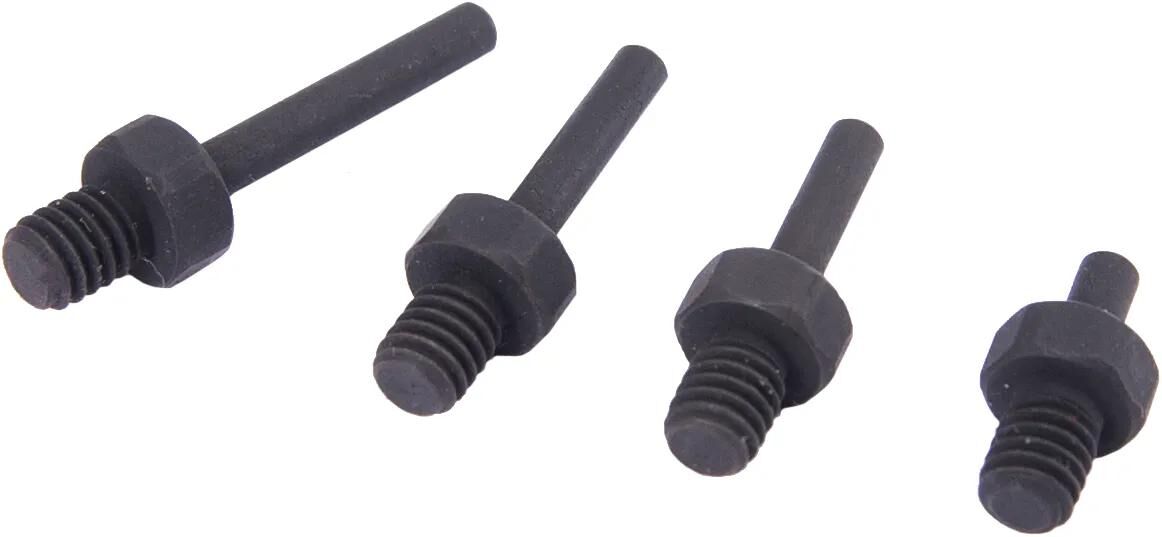

Separating bolt length: 9 mm, Ø 2.1 mm (BS3550F), 0.577.398/1 (set)
Separating pin length: 11 mm, Ø 2.1 mm (BS3550F), 0.577.398/1 (set)
Separating pin length: 15 mm, Ø 2.1 mm (BS3550F), 0.577.398/1 (set)
