BIKESERVICE Synchronizer Vacuum

For easy carburetor synchronization by means of vacuum synchronous clocks. The tester can be used for 2-4 carburetors

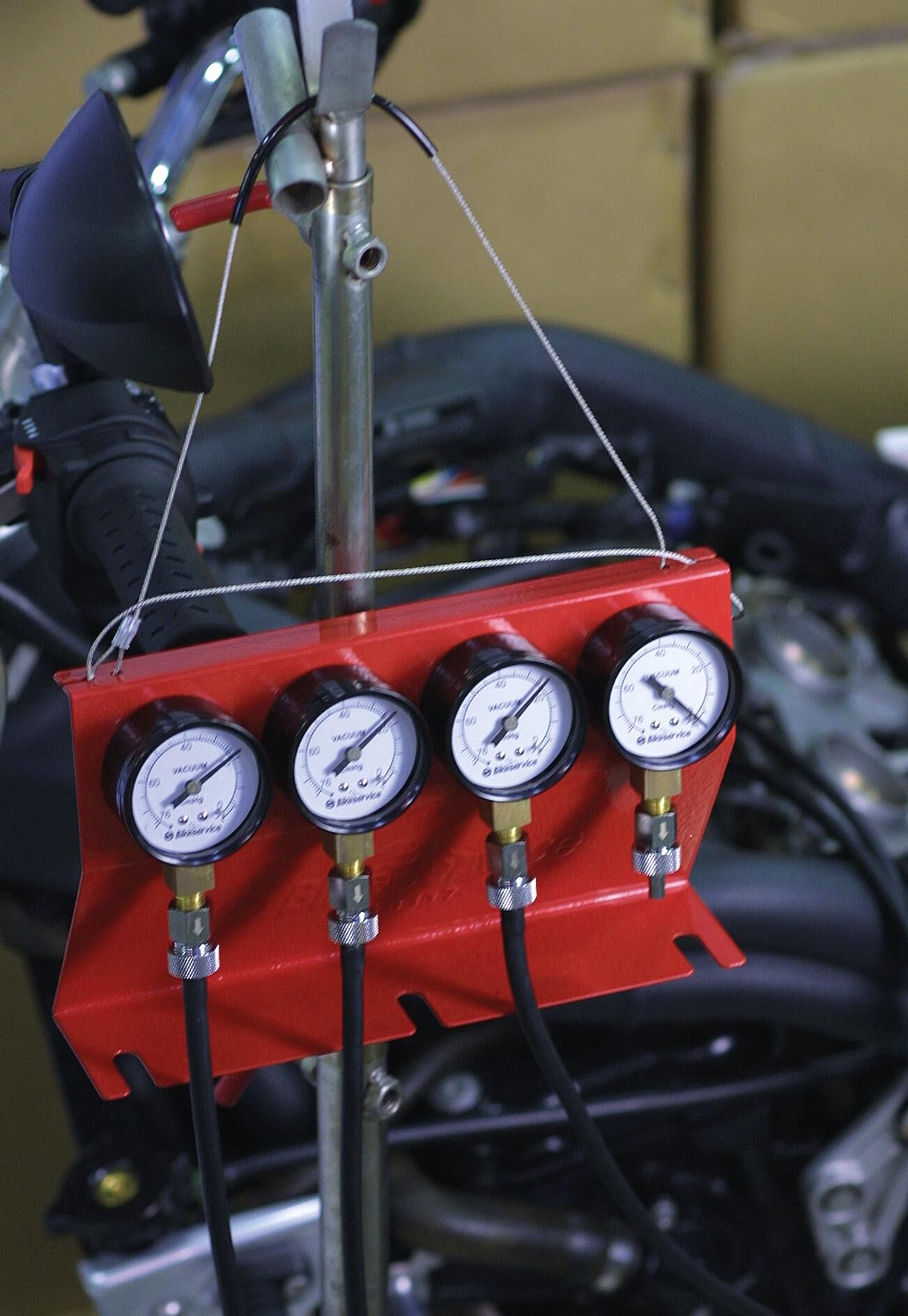

The holding plate has an adjustable wire rope with plastic protection. The tester can thus be attached to the vehicle or to a diagnostic stand.

Technical data:
cassette total dimensions (LxWxH): 200 x 300 x 85mm
measuring range: 0 to -76 cmHg (20 cmHg / 0,013 Bar)

The set contains of following articles:
Synchronous tester 4 vacuum synchronous clocks on a holding plate
4x hoses length: 120mm, inner Ø: 5mm
4x extensions M5 x 0,8mm, length: 165mm
4x extensions M5 x 0,8mm, length: 100mm
4x extensions M6 x 0,75mm, length: 55mm
4x extensions M6 x 1,0mm, length: 60mm
4x extensions M5 x 0,8mm, length: 55mm
4x extensions 6mm, length: 55mm
4x spare sealings 4 x 7mm
4x hose clamps 8mm
2x spare valves
