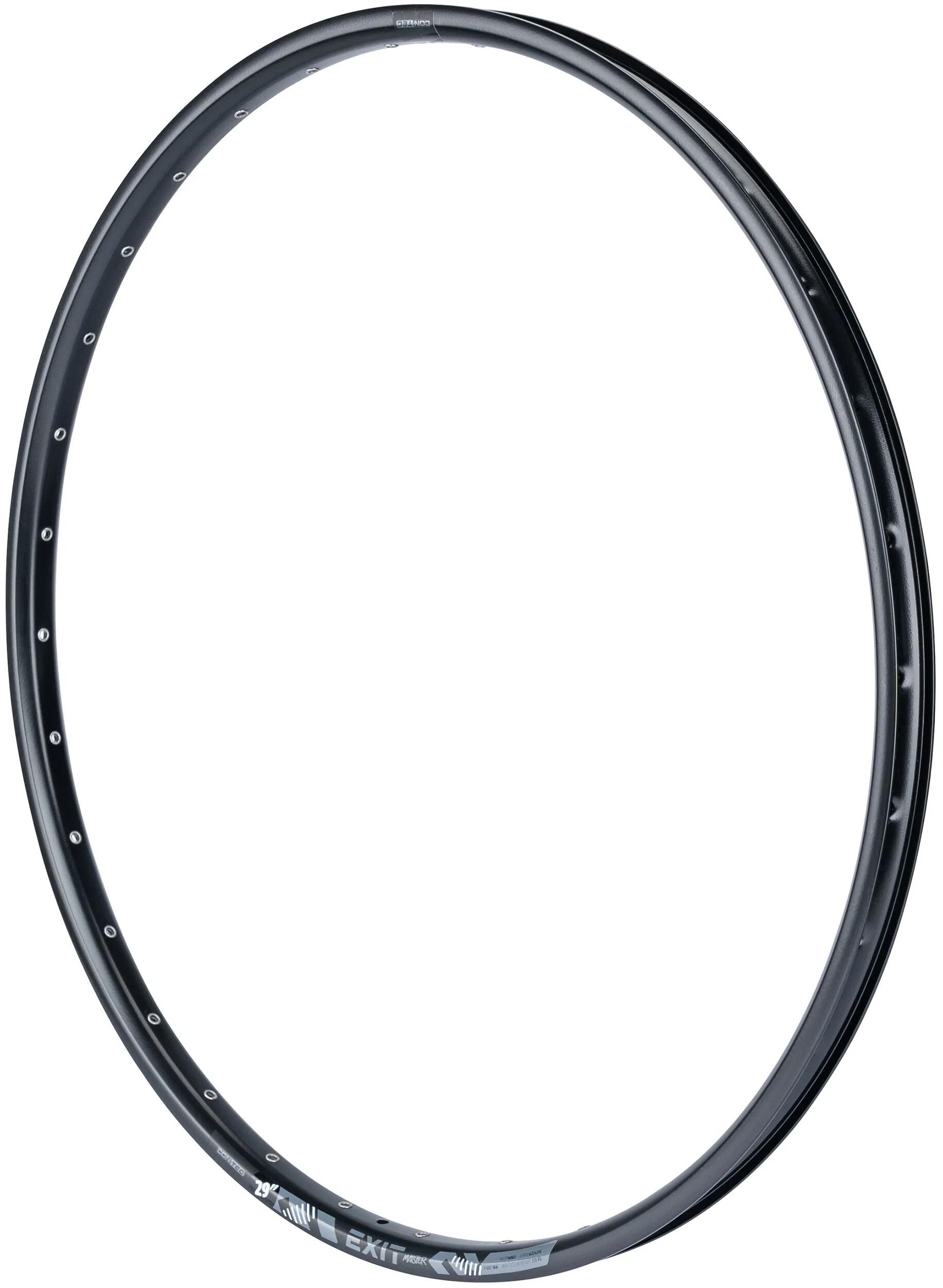

CONTEC Aluminium Rim "Exit"

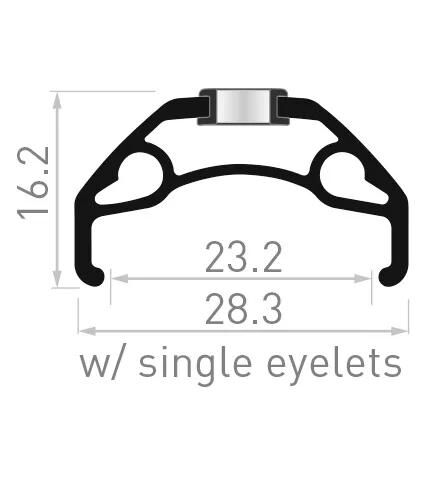

23-622, 609 mm ERD (measured incl. spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 566 g
- Nº de artículo 03498174
- Org.-Nr.: 3128R32PH0
29", 32 holes, black
aluminum, hollow chamber
single eyelet, SV, max. load up to 150 kg system weight, max. spoke tension 1200 Nm, suitable for e-bikes, for Disc Brakes
VE 25
Información sobre el producto
- Agujero 32 holes
- Agujero del radio easy eyelets
- Alojamiento de freno disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Artículo Article
- Cerchio del freno no
- Color principal Negro
- Compatibilidad frenos disc
- ERD 609 mm
- ETRTO 23-622
- Felgenaußenbreite 28 mm
- Felgenhöhe 16 mm
- Felgeninnenbreite 23 mm
- Forma de cámara hueca symmetrical
- Medida de Ruedas 28 / 29 "
- Para rueda yes
- Peso máximo admisible del sistema 150 kg
- Speichenlochdurchmesser für 2,00 mm
- Texto configurador de ruedas suitable for E-bike
- Tipo de válvula Sclaverand (SV)
- Versión doublewall
- max. Speichenspannung 1.200 Nm
- Ösenfarbe silber
- Número de artículo del proveedor: 3128R32PH0
- EAN: 4251971141186
- UVP: 29,95 €
- Bidex-Code: 204010
- Fedas-Code: 160464
- DST-Code: 2P02
- SB-Artículo: No
- Marca/Proveedor CONTEC
- Unidad de medida: PIECE
- Gewicht: 0.566 kg
| Artículo | Precio | |
|---|---|---|
 | VE 9 |
A robust rims for building a classic wheel for 29" wheels with 32 spokes. Thanks to the hollow chamber design, the 6063 aluminum rims are particularly light and stable. In the finished Wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 23 mm, tires ranging in size from 37 to 62 mm fit on the rim. The single eyeletted nipple holes ensure additional durability of the rim by reducing the friction between the Spoke Nipple and the rim and also prevent the Nipples from working their way into the rim. The Exit Master rim is only suitable for wheels with disc brakes.
Ejecuciones
Con la ayuda del campo de búsqueda, puede refinar la selección de variantes de producto.
| Artículo | Precio | |
|---|---|---|
 21-622, 608 mm ERD (measured incl. spoke holes), 16.2 mm high, 21.2 mm inner width, 26.3 mm outer width, approx. 536 g Leer más... Weniger lesen
| VE 25 | |
 23-622, 609 mm ERD (measured incl. spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 566 g Leer más... Weniger lesen
| VE 25 | |
 25-622, 607 mm ERD (measured incl. spoke holes), 18 mm high, 24.8 mm inner width, 30 mm outer width, approx. 589 g Leer más... Weniger lesen
| VE 25 |
