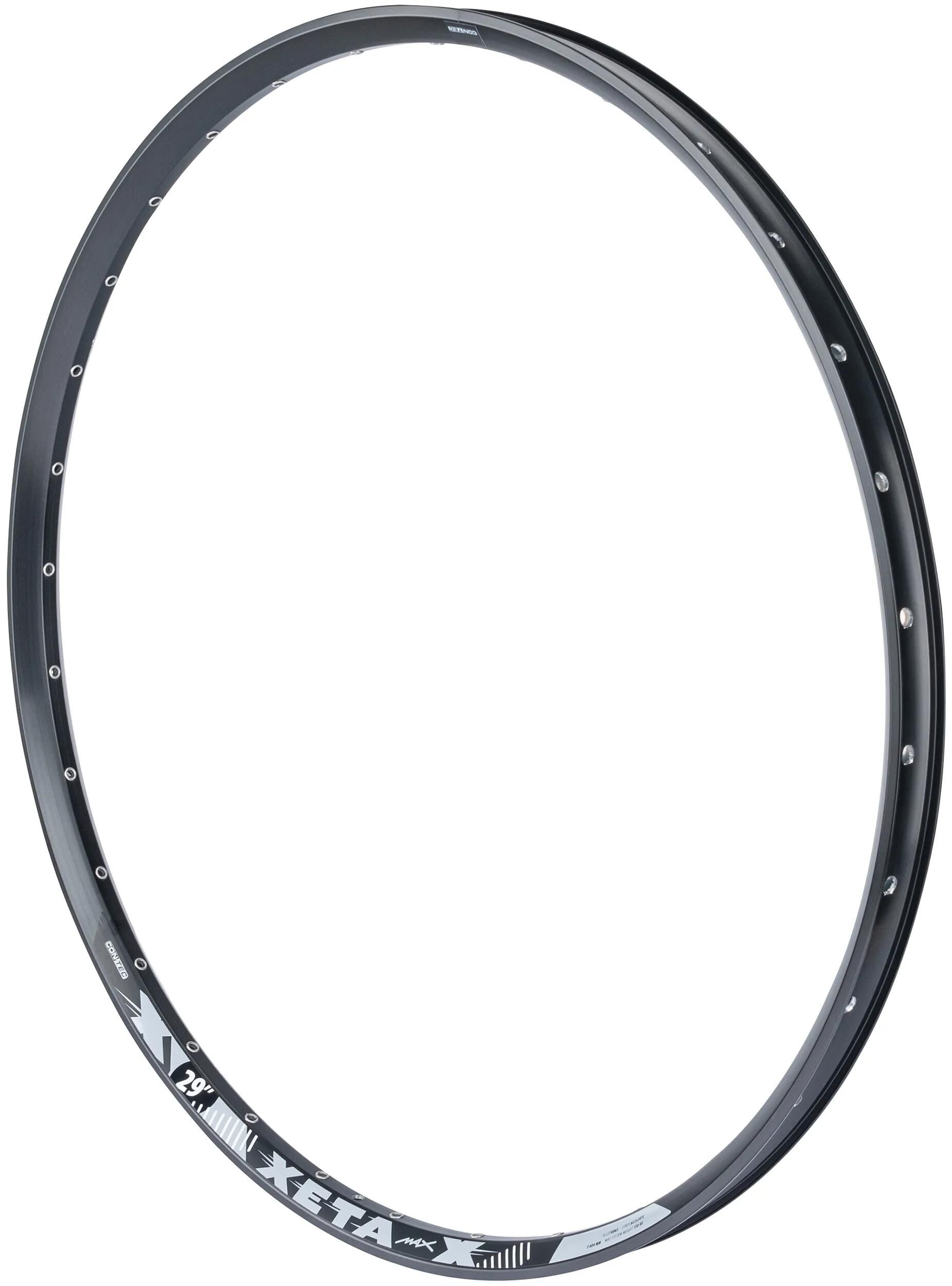

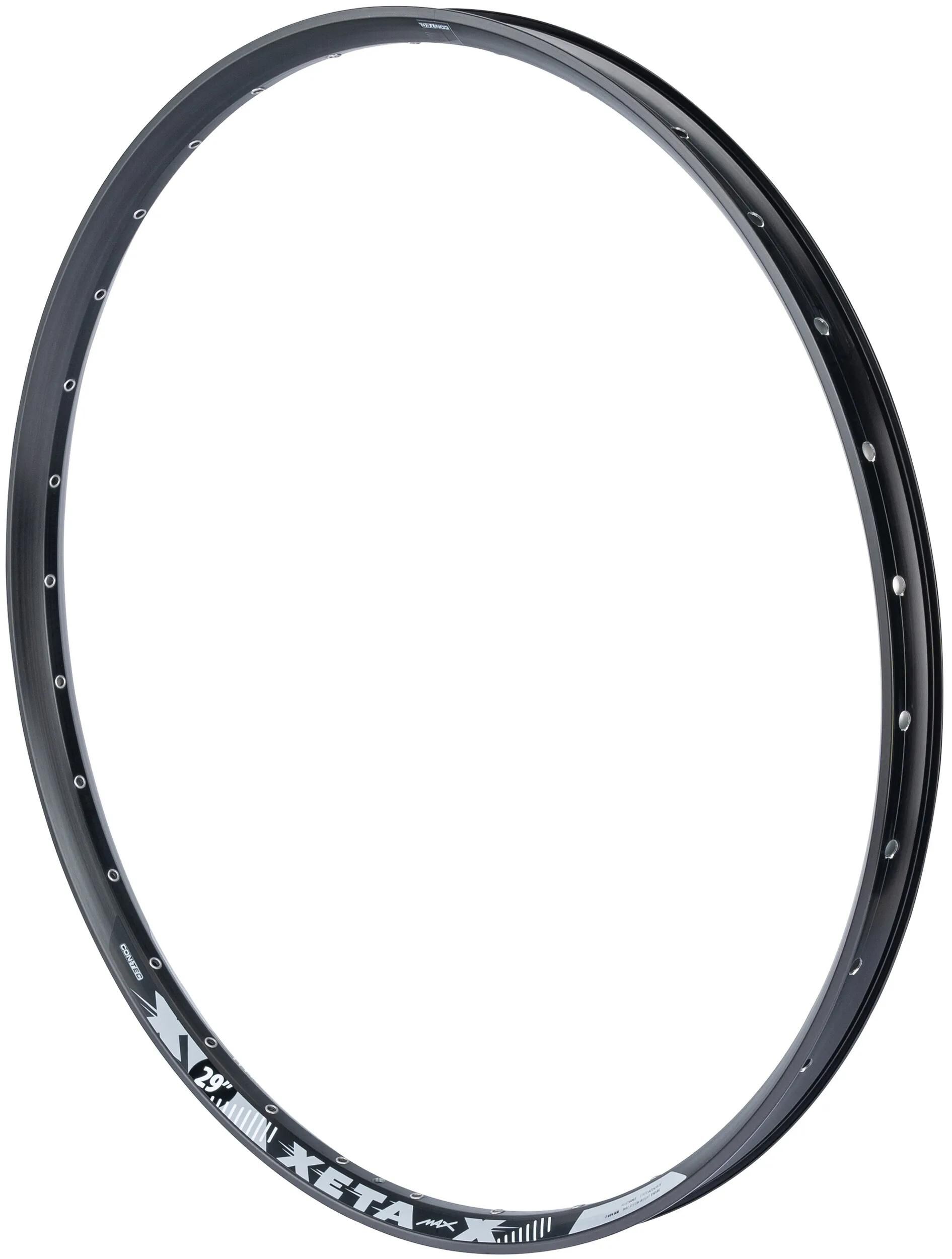

CONTEC Aluminium Rim "Xeta"

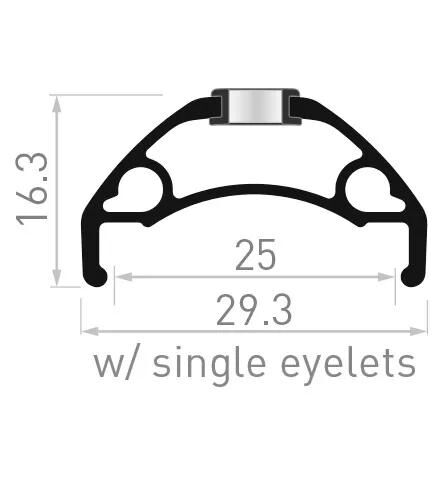

25-622, 608 mm ERD (measured incl. spoke holes), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 569 g
- Nº de artículo 03498163
- Original number: 30008498
29", 32 hole, tubeless ready, black
aluminum, hollow chamber
single eyelet, SV, max. load up to 150 kg system weight, max. spoke tension 1200 Nm, suitable for e-bikes, for Disc Brakes
PU 25
Información sobre el producto
- Agujero del radio easy eyelets
- Alojamiento de freno disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Altura 16.0 cm
- Anchura 29.3 cm
- Artículo Article
- Cerchio del freno no
- Color principal Negro
- Compatibilidad frenos disc
- ETRTO 25-622
- Medida de Ruedas 28 / 29 "
- Modelo de llanta Xeta
- Número de agujeros 32 holes
- Para rueda yes
- Peso máximo admisible del sistema 150 kg
- Sistema tubeless tubeless ready
- Texto configurador de ruedas suitable for E-bike
- Tipo de válvula Sclaverand (SV)
- Versión doublewall
- Número de artículo del proveedor: 30008498
- EAN 4251971141117
- UVP 39,95 €
- Bidex-Code 204010
- Fedas-Code 160464
- DST-Code 2P02
- SB-Artículo No
- Marca/Proveedor CONTEC
- Unidad de medida: PIECE
- Weight 0.55 kg
The ideal basis for building a tubeless-ready Wheel for 29" wheels with 32 Spokes. Thanks to the hollow chamber design, the Xeta Max rims made of 6063 aluminum are particularly light and stable. In the finished Wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 25 mm, tires ranging in size from 42 to 62 mm fit on the rim. The single eyeletted nipple holes ensure additional durability of the rim by reducing the friction between the Spoke Nipple and the rim and also prevent the Nipples from working their way into the rim. The Xeta Max rim is only suitable for wheels with disc brakes. You can find suitable tubeless rim tapes in our CONTEC range.
Ejecuciones
Con la ayuda del campo de búsqueda, puede refinar la selección de variantes de producto.
| Artículo | Precio | |
|---|---|---|
 25-622, 608 mm ERD (measured incl. spoke holes), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 569 g Leer más... Read less
| PU 25 | |
 27-622, 605 mm ERD (measured incl. spoke holes), 18 mm high, 27 mm inner width, 31 mm outer width, approx. 578 g Leer más... Read less
| PU 25 | |
 30-622, 604 mm ERD (incl. spoke holes measured), 18.15 mm high, 30 mm inner width, 34 mm outer width, approx. 616 g Leer más... Read less
| PU 25 | |
 35-622, 604 mm ERD (measured incl. spoke holes), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 674 g Leer más... Read less
| PU 25 |
