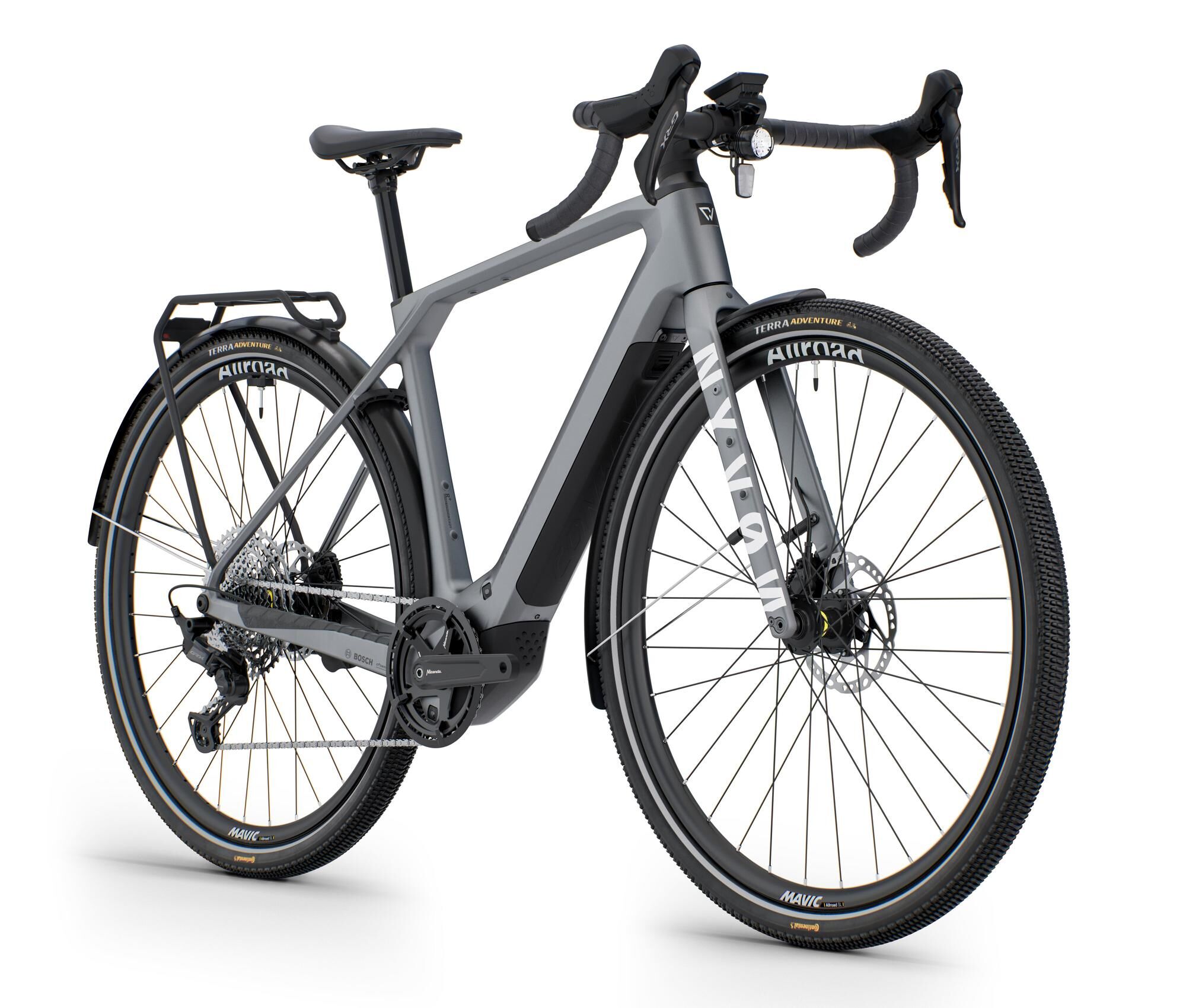

CONWAY Todo terreno Eléctrico "Nyvon 10.0 C" (#1)
Diamante, 28", metallic grey matt, SHIMANO «GRX» de 12 velocidades, 54 cm / XL
Leer más... Read less - Nº de artículo 02810881
- Número original: BK26HA2040
- Motor central de 250 W y batería con una capacidad de 400,0 Wh.
- Cambio de marchas SHIMANO «GRX» de 12 velocidades y transmisión por cadena.
- Freno de disco hidráulico.
- Ruedas de 28".
- Cuadro de carbono en gris metalizado mate.
- Peso máximo admisible del sistema: 130 kg.
PU 1
Información sobre el producto
- Altura de cuadro 54 cm
- Asistencia Hasta 25 km/h
- Bosch Smart System sí
- Capacidad de batería 400.0 Wh
- Categoría Todo terreno
- Color principal Gris
- Descripción del color metallic grey matt
- E-bike sí
- Forma del cuadro Diamante
- Homologación para remolque nein
- Homologación para sillita infantil nein
- Material Carbono
- Medida de Ruedas 28 "
- Nombre de cambio 12-Gang SHIMANO "GRX"
- Peso máximo admisible del sistema 130 kg
- Potencia del motor 250 W
- Propulsión Cadena
- Serie de modelos Nyvon
- Sistema de accionamiento BOSCH Performance Line SX
- Sistema de accionamiento Motor central
- Sistema de frenado Freno de disco hidráulico
- Talla de cuadro XL
- Tipo de Cambio Desviador
- Transmisión 1x 12 velocidades
- Variante (Género) Hombre
- Velocidades 12 velocidades
- Distancia entre ejes 1081 mm
- Longitud de tallo 110.0 mm
- Reach 412 mm
- Stack 622 mm
- Standover 848 mm
- Tubo de dirección 175 mm
- Tubo de sillín 540 mm
- Tubo superior 590 mm
- Vaina inferior 440 mm
- Ángulo de dirección 71.5 °
- Ángulo de sillín 74.0 °
- Batería BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh
- Biela MIRANDA "Omega", 170 mm
- Buje Delantero MAVIC "Allroad 1 CL", 12 x 100
- Buje Trasero MAVIC "Allroad 1 CL", 12 x 142
- Caballete HEBIE "0661"
- Cadena / correa SHIMANO "CN-M7100"
- Cambio SHIMANO "GRX RD-RX822", 12speed
- Cargador Bosch 2 Ah
- Cassette SHIMANO "CS-M6100-12", 10-51 Z.
- Cuadro CONWAY E-Gravel Intube Bosch, Carbon/Carbon
- Dirección ACROS "IS52 / IS52 ICR"

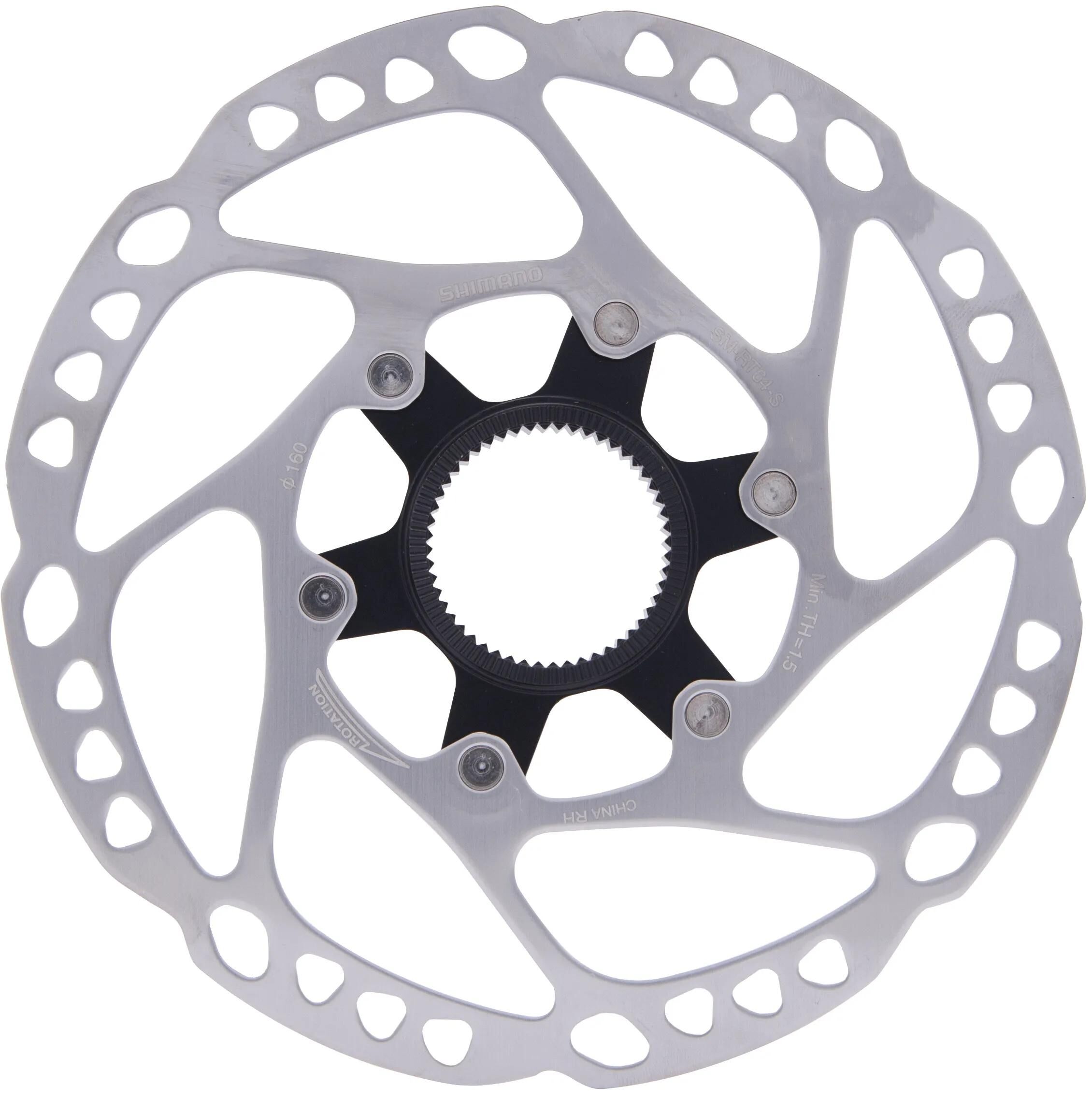

- Disco de Freno Delantero SHIMANO "SM-RT64", 160 mm
- Disco de Freno Trasero SHIMANO "SM-RT64", 160 mm

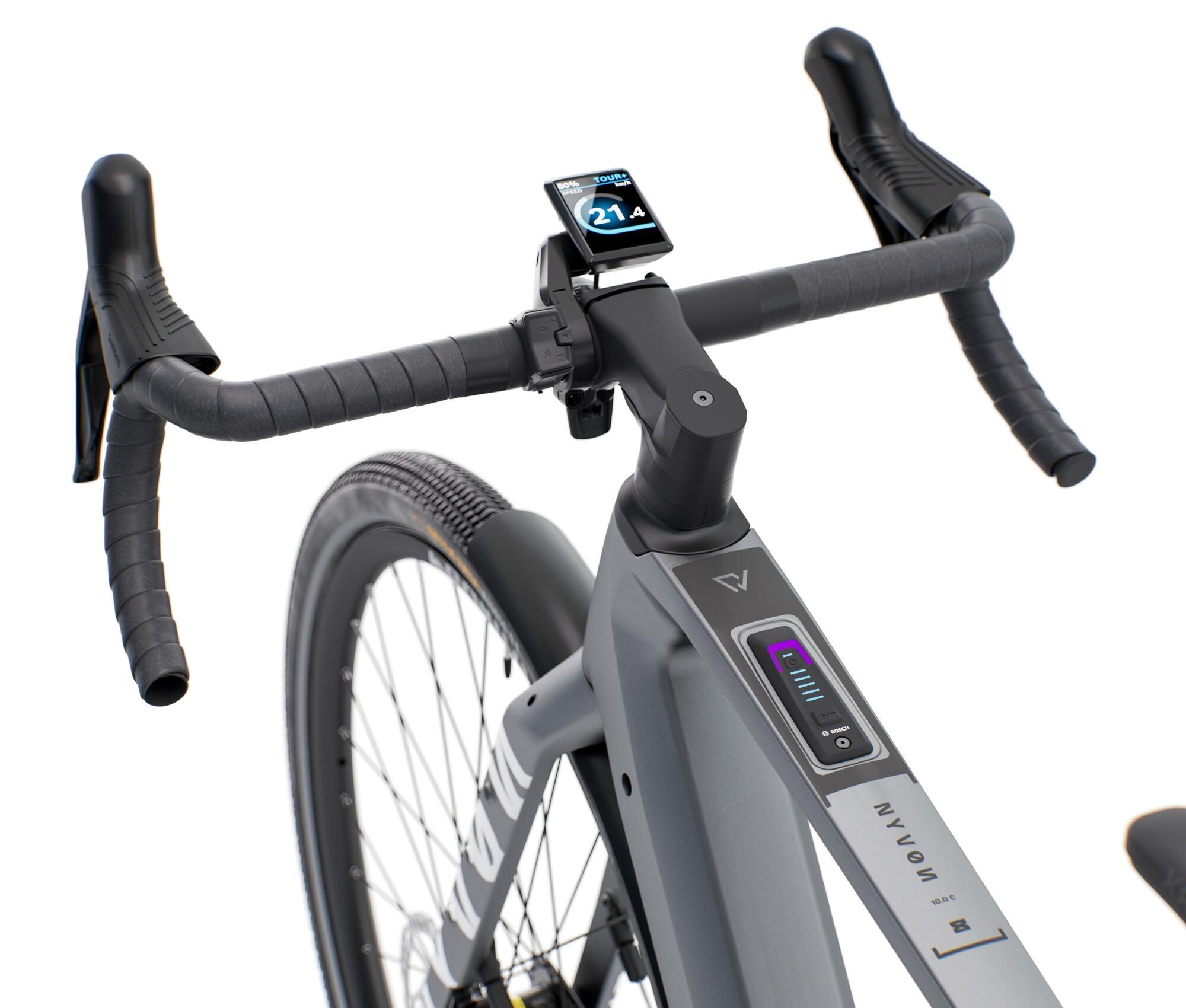

- Display BOSCH, "Kiox 300", 4-Stufen, Remote Control, Schiebehilfe
- Freno SHIMANO "GRX"
- Guardabarros CURANA "C-Lite 60"
- Horquilla Carbon/Carbon "Gravel Disc"
- Llantas MAVIC
- Luz Delantera SUPERNOVA "Mini2"
- Luz Trasera B&M "XELTEC", integriert
- Mando Remoto BOSCH "BRC3310"
- Maneta de Cambio SHIMANO "GRX ST-RX610"
- Maneta de freno SHIMANO "GRX"
- Manillar SATORI "X-Race Aero", 440mm

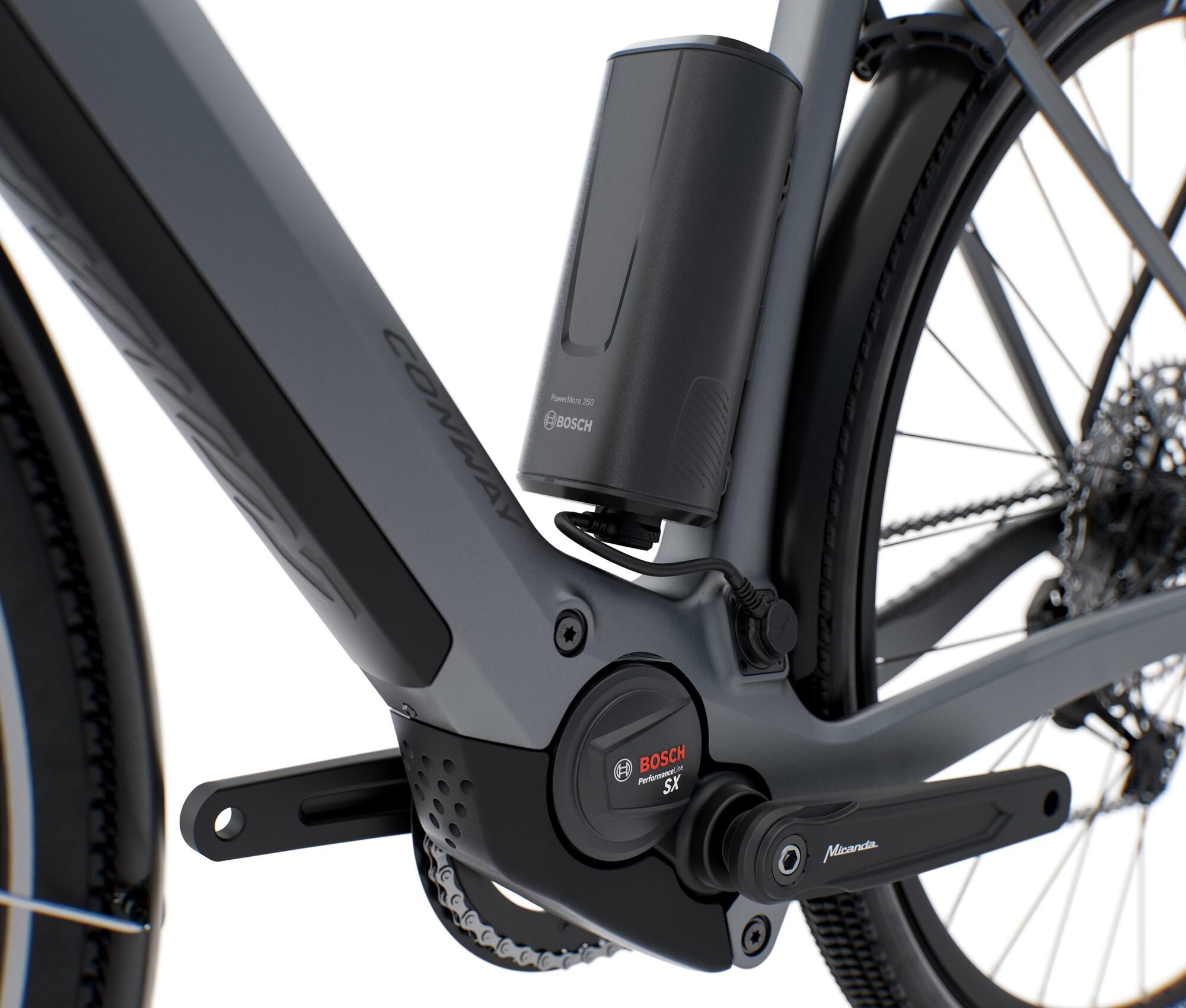

- Motor BOSCH Mittelmotor "Performance SX", 36 V, 250 W
- Neumático Delantero CONTINENTAL "Terra Adventure", 50-622
- Neumático Trasero CONTINENTAL "Terra Adventure", 50-622
- Patilla de Cambio 0347028/3
- Pedalier BOSCH
- Plato MIRANDA "Alloy One Piece", 42 Z. with Chainguard

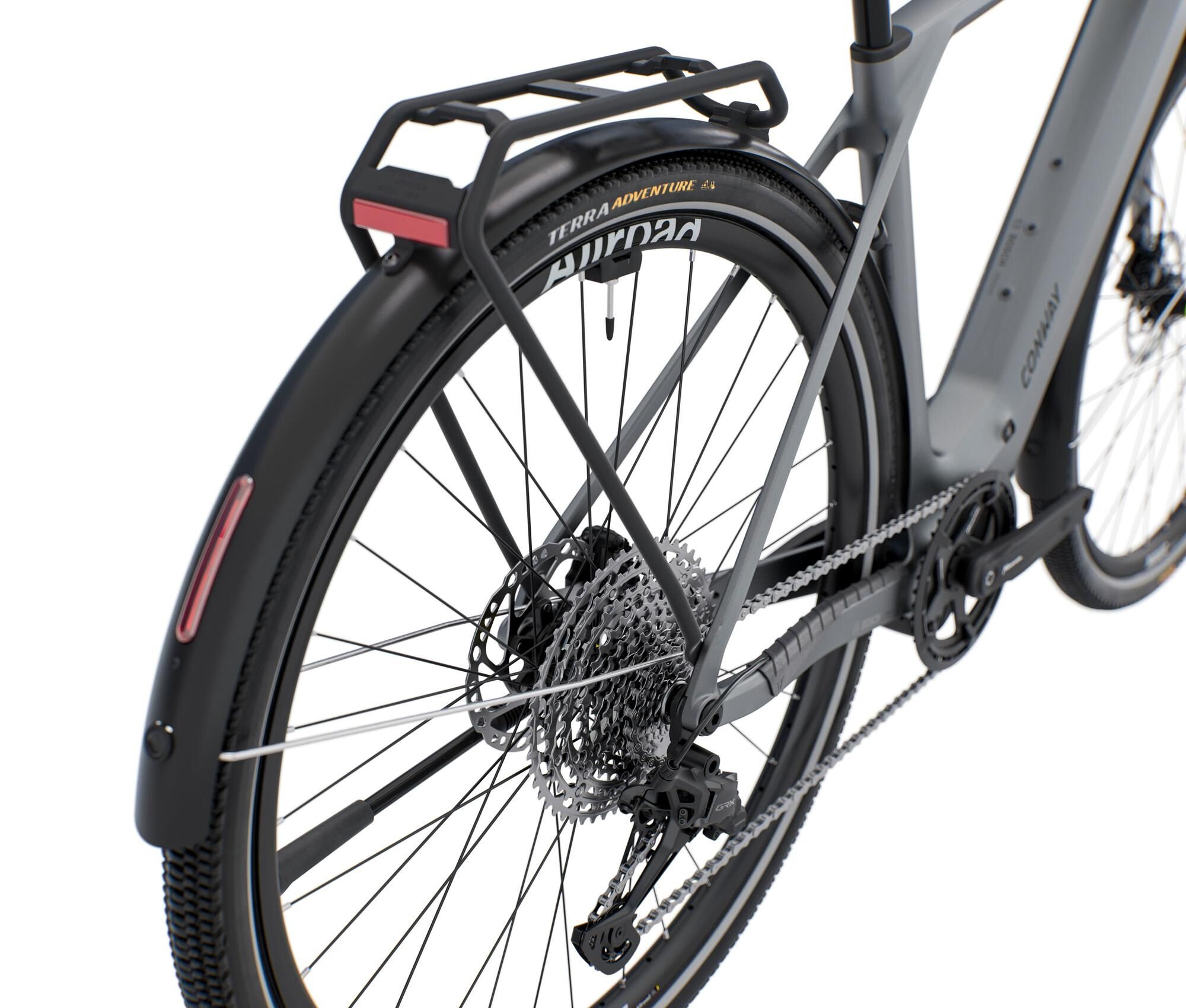

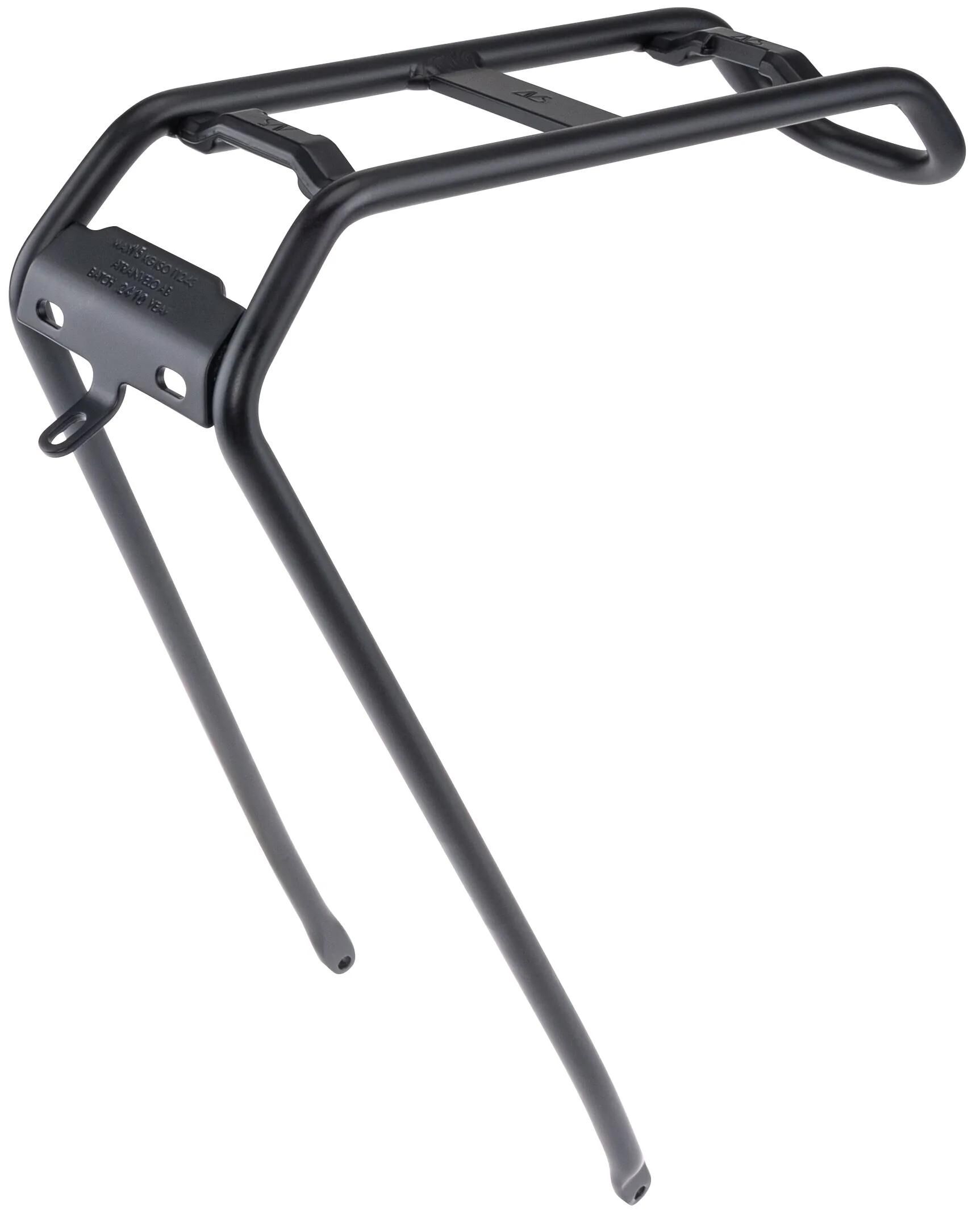

- Portabultos Trasero ATRAN "Urban Light"
- Potencia SATORI "Viper", ICR, 110mm
- Puños VELO "VLT-1051 black"
- Radios MAVIC
- Sensor Tretkraftmessung im Motor + Geschwindigkeitssensor
- Sillín SELLE ROYAL "SRX"
- Tija SATORI "Trident", 27,2 mm, 350 mm
- Número de artículo del proveedor: BK26HA2040
- EAN 4251971177000
- UVP 4.899,95 €
- Número de registro RAEE DE92509320
- Fedas-Code 154020
- Bidex-Code 121010
- DST-Code 1E01
- SB-Artículo No
- Marca/Proveedor CONWAY
- Unidad de medida: PIECE
- Weight 18 kg
- product data sheet CONWAY Electric allroad Nyvon 10.0 C DA
- product data sheet CONWAY Electric allroad Nyvon 10.0 C DE
- product data sheet CONWAY Electric allroad Nyvon 10.0 C EN
- product data sheet CONWAY Electric allroad Nyvon 10.0 C ES
- product data sheet CONWAY Electric allroad Nyvon 10.0 C FR
- product data sheet CONWAY Electric allroad Nyvon 10.0 C IT
- product data sheet CONWAY Electric allroad Nyvon 10.0 C NL
- exploded view plastic parts
- exploded view small parts
| Artículo | Precio | |
|---|---|---|
![]() suitable for all Bosch chargers Leer más... Read less
| PU 1 | |
![]() | PU 36 | |
![]() Successor: 07106507 Polished black Leer más... Read less
| PU 10 | |
![]() | PU 50 | |
![]() | PU 40 | |
![]() 10-12-14-16-18-21-24-28-33-39-45-51Teeth Leer más... Read less
| PU 10 | |
![]() | PU 50 | |
![]() black, fits Conway eWME from 2021 and Victoria eParcour, among others Leer más... Read less
| PU 100 | |
![]() Integrated, compatible with GRV Carbon (2022 and later) and Nyvon (Z17) Leer más... Read less
| PU 1 | |
![]() for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Leer más... Read less
| PU 1 | |
![]() | PU 1 | |
![]() | PU 1 | |
![]() | PU 1 | |
![]() Artículo agotado UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Leer más... Read less
| PU 1 | |
![]() suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Leer más... Read less
| PU 1 | |
![]() | PU 10 | |
![]() Suitable for the smart system (BES3)Note: only for battery sizes CPT400 , PT500, PT625, PT750 Leer más... Read less
| PU 1 | |
![]() for cassettes 10/11 - 36/44 teeth Leer más... Read less
| PU 8 | |
![]() | PU 1 | |
![]() 26" - 28", with thread (M6), matt black Leer más... Read less
| PU 20 | |
![]() for down tube inner side, suitable for Nyvon (Z17), Ryvon (Z18) and Xyron LT / ST (Z20)(Only two brackets are required for Nyvon models) Leer más... Read less
| PU 1 | |
![]() | PU 1 | |
![]() plug sideNote: mounting screws (0.230.350/1) are not incl.! Leer más... Read less
| PU 1 | |
![]() non plug sideNote: mount. screws (0.230.350/1) are not incl.! Leer más... Read less
| PU 1 | |
![]() Plastic, suitable for Nyvon (Z17) Leer más... Read less
| PU 1 | |
![]() | PU 1 | |
![]() | PU 1 | |
![]() | PU 1 | |
![]() Complete, suitable for Nyvon (Z17) Leer más... Read less
| PU 1 | |
![]() | PU 1 | |
![]() industrial bearings, IS52/IS52, ICR, suitable for Nyvon (Z17) Leer más... Read less
| PU 1 | |
![]() suitable for Nyvon Z17 Leer más... Read less
| PU 1 | |
![]() | PU 1 | |
![]() suitable for New Viper stem, e.g. suitable for Conway Nyvon (Z17) Leer más... Read less
| PU 1 | |
![]() e.g. suitable for Conway Nyvon Z17 Leer más... Read less
| PU 10 | |
![]() suitable for Nyvon (Z17), hub standard 12 x 142 mm, total length 172 mm, thread pitch M12 x 1.0, thread length 14.5 mm, for UDHNote: matching Locking Lever 0.281.503/3 Leer más... Read less
| PU 1 | |
![]() suitable for Nyvon Z17, hub standard 12 x 100 mm, total length 119 mm, thread pitch M12 x 1.0, thread length 15 mmNote: matching Locking Lever 0.281.503/3 Leer más... Read less
| PU 1 | |
![]() | PU 1 | |
![]() | PU 250 | |
![]() | PU 250 | |
![]() for VR, incl. screw, suitable for Nyvon (Z17) Leer más... Read less
| PU 1 | |
![]() | PU 1 | |
![]() | PU 1 | |
![]() without pin release, horizontal Leer más... Read less
| PU 1 | |
![]() | PU 1 | |
![]() | PU 1 | |
![]() rear, 12-way lever for right Leer más... Read less
| PU 10 | |
![]() | PU 1 | |
![]() Chainring Spiderless, with Chain Guard Ring Leer más... Read less
| PU 1 | |
![]() front, single lever for left Leer más... Read less
| PU 10 |
Imagina que por la mañana recorres la ciudad en bici: con ligereza, en silencio y con el empuje de la batería a tu favor. Al terminar la jornada laboral, sigues sin parar: sales de la oficina, te subes a la bici y te lanzas a la aventura. La «Nyvon 10.0 C» está hecha precisamente para eso.El cuadro totalmente de carbono no solo llama la atención, sino que también es funcional: ligero, rígido y con numerosos puntos de fijación para sistemas de equipaje. Su geometría te colocaa adoptar una postura deportiva y compacta: pedaleo eficiente y manejo preciso. La geometría del Cuadro está pensada para ofrecer dinamismo y comodidad; la larga distancia entre ejes garantiza una marcha suave, mientras que las vainas inferiores aportan agilidad.Con el motor central Bosch y un par de 60 Nm en modo eMTB+, obtienes una potente asistencia. El cambio Shimano GRX de 12 velocidades, los frenos de disco hidráulicos, la potencia y la abrazadera del sillín integradas, así como el faro delantero, hacen que la bicicleta sea totalmente apta para los desplazamientos diarios. Una elegante bicicleta todoterreno con ADN de Gravel.
Ejecuciones
Con la ayuda del campo de búsqueda, puede refinar la selección de variantes de producto.
| Artículo | Precio | |
|---|---|---|
![]() Diamante, 28", metallic grey matt, SHIMANO «GRX» de 12 velocidades, 48 cm / M Leer más... Read less
| PU 1 | |
![]() Diamante, 28", metallic grey matt, SHIMANO «GRX» de 12 velocidades, 54 cm / XL Leer más... Read less
| PU 1 | |
![]() Artículo agotado Diamante, 28", metallic grey matt, SHIMANO «GRX» de 12 velocidades, 45 cm / S Leer más... Read less
| PU 1 | |
![]() Artículo agotado Diamante, 28", metallic grey matt, SHIMANO «GRX» de 12 velocidades, 51 cm / L Leer más... Read less
| PU 1 |
