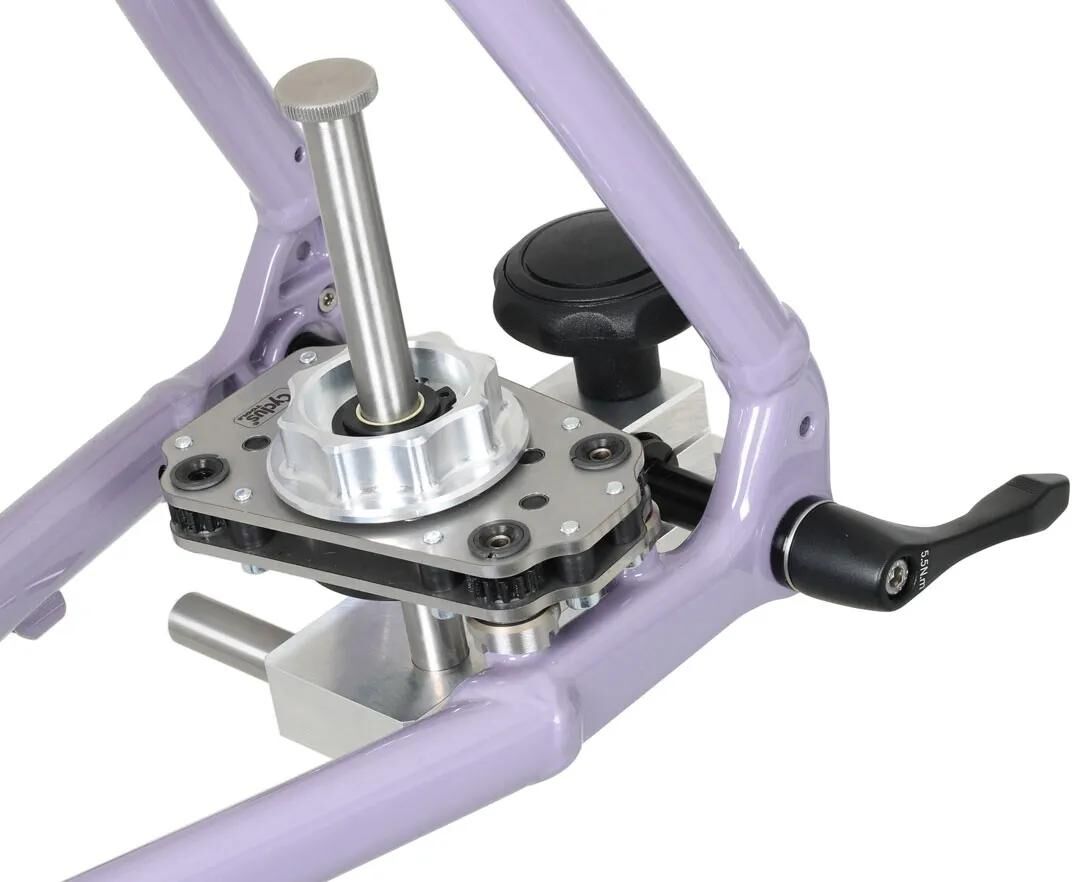

Cyclus TOOLS Face milling tool

for brake caliper mount on frames and forks
universal use

The face milling tool can be used universally by simply changing the milling cutter and changing the clamping and mills exactly at 90 ° angle 100% parallel discs brake mounts. The exact 90 ° angle and the parallelism of the disc brake mounts are ensured by the fact that the face milling cutter is clamped only once and both disc brake mounts are milled simultaneously.

his is the only way to guarantee an absolutely identical milling depth, which is a prerequisite for the correct assembly and perfect functioning of the disc brake. Before you clamp the face milling machine, you must check the parallelism of the dropouts, because only then is a 100% surface milling of the disc brake mountings guaranteed.
- incl. Flat Mount milling pair
- optional milling pair (Ø 12 mm, heighth 15 mm) Art.-No. 720237

Flat Mount Front
for front disc brake / front caliper mounting to Flat Mount standard

Flat Mount Rear
for rear-wheel disc brake / rear brake caliper attachment to Flat Mount standard

Post Mount
for disc brake / brake caliper attachment to postmount standard diameter of the brake disc 140-203 mm (nominal size: 5-8 inch)

International Standard 2000 (IS2000)
for disc brake / caliper mounting to IS2000 standard
diameter of the brake disc 140-203 mm
