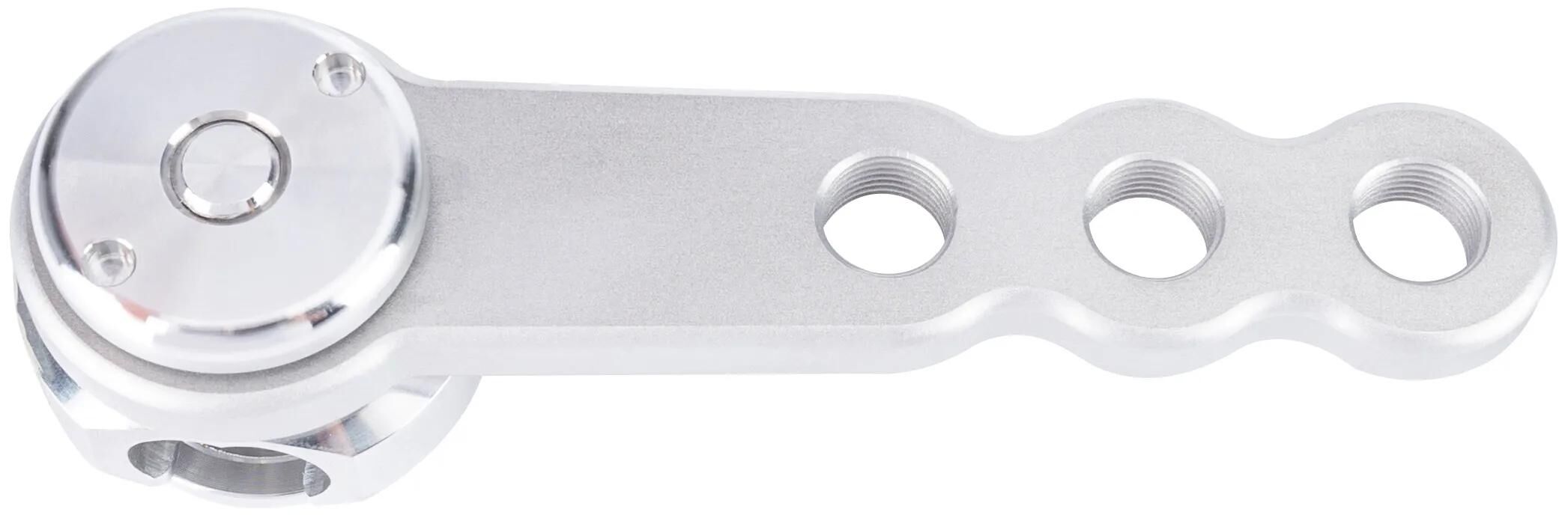

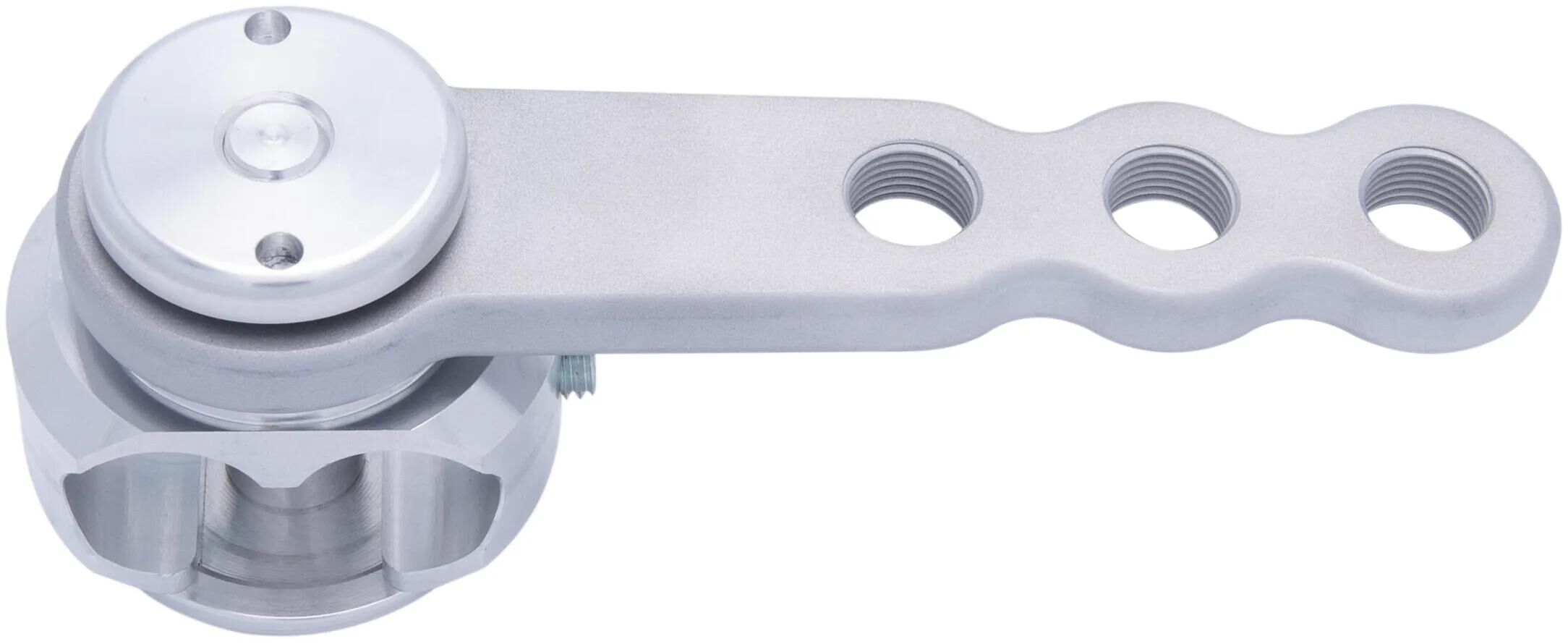

FALISOMED handicap crank "LM"
left, hanger bracket inner-Ø 14 x 21mm
- Art.-Nr.: 03330214
- Org.-Nr.: 101 LM02 A
aluminium, silver
These cranks are for diasabled people, which cannot improve the joint movement. For bike drivers with a shorter leg or with one leg which does not have the whole knee movability. Aluminium, silver, revised construction Mod.12)
! Adjustable to any desired radius of motion by shifting the pedal and shifting the retaining bracket on the crank arm !
Información sobre el producto
- Artículo: Accessories
- Color principal: Plata
- Código Bidex: 202090
- Código DST: 2R11
- Código Fedas: 160362
- Número de artículo del proveedor:: 101 LM02 A
- EAN: 999999991
- UVP: 278,45 €
- Marca/Proveedor FalisoMED
- Unidad de medida: PIECE

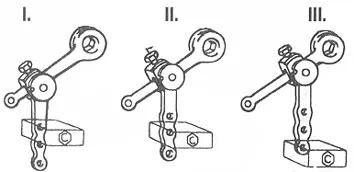

Customize crank radiusThe Crank 101/LM 02 (left) and Crank 102/LM 02 (right) crank extensions from FALISOMED can be used to individually adjust the range of motion of cyclists with restricted mobility or shorter legs. The support block, which is mounted on the standard crank arm, can be individually positioned. For pedal arms of different diameters, there are holding blocks with different inner diameters. The retaining blocks can be individually positioned on the Crank Spider. The Crank Spider offers three different positions for the pedals. The manufacturer recommends careful and precise assembly according to the instructions.
Ejecuciones
Con la ayuda del campo de búsqueda, puede refinar la selección de variantes de producto.
| Artículo | Precio | |
|---|---|---|
 FALISOMED handicap crank "LM" left, hanger bracket inner-Ø 14 x 21mm
| ||
 FALISOMED handicap crank "LM" right, hanger bracket inner-Ø 14 x 21mm
| ||
 FALISOMED handicap crank "LM" left, hanger bracket inner-Ø 17 x 30mm
| ||
 FALISOMED handicap crank "LM" right, hanger bracket inner-Ø 17 x 30mm
| ||
 FALISOMED handicap crank "LM" left, hanger bracket inner-Ø 17 x 35mm
| ||
 FALISOMED handicap crank "LM" right, hanger bracket inner-Ø 17 x 35mm
| ||
 FALISOMED handicap crank "LM" left, hanger bracket inner-Ø 22 x 46mm
| ||
 FALISOMED handicap crank "LM" right, hanger bracket inner-Ø 22 x 46mm
|
