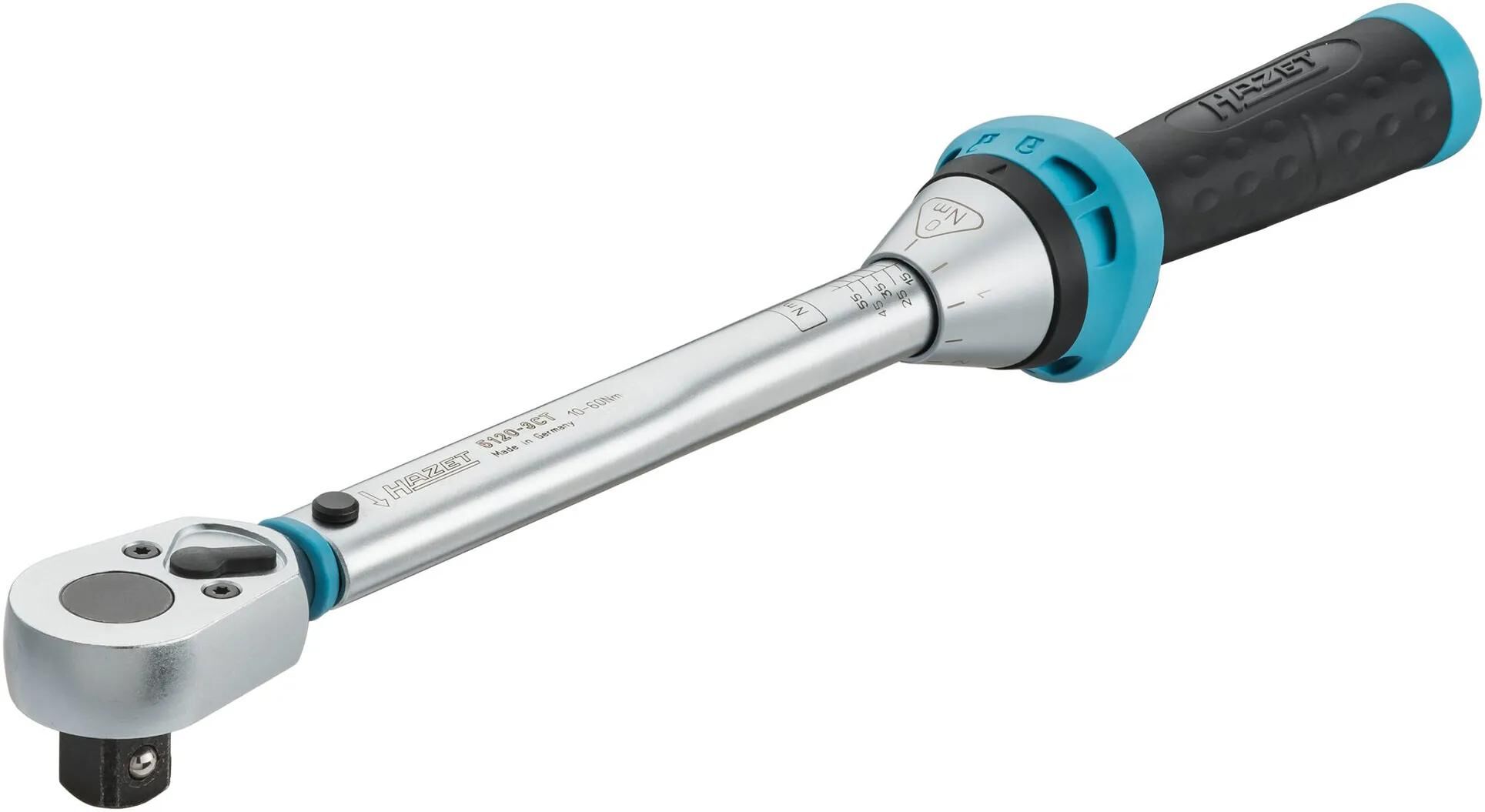

HAZET Torque Wrench "5120-3CT"

• Art.-Nr.: 601598D5
• Org.-Nr.: 5120-3CT

1/2", 10 - 60 Nm, extra short design, particularly compact

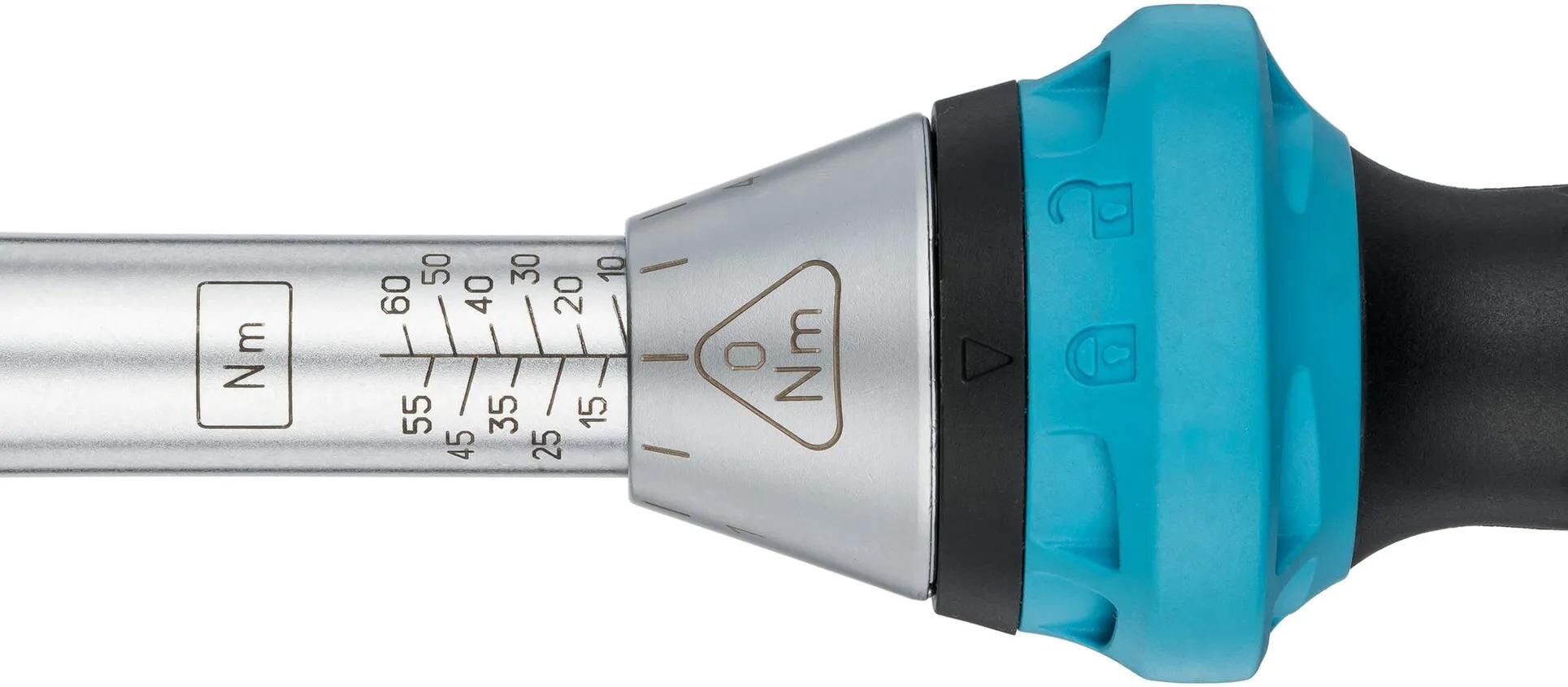

Accuracy ± 3% of scale value (in direction of actuation), adjustment of the desired torque value by turning the handle. Palpable (close gap release), audible ("click" sound), safe locking of the setting values by latching function on the rotary assembly. With integrated shift lever, easy-to-read scale, high-contrast scale, permanent readability due to laser marking on the scale bush, Serial number and certificate. Square acc. to DIN 3120, ISO 1174-1, DIN EN ISO 6789-2:2017. Total length: 320mm, net weight: 594g
Note: Also suitable for commercial vehicles.

Technical data:
number of teeth: 30 teeth
actuating force min.-max.: 3,9-25 kg
opening angle: 12°
head width: 32mm
head thickness: 14,5mm
scale graduation: 0.5 Nm
effective torque wrench length max. l1 mm : 244,2mm
effective torque wrench length min. l1 mm : 258,3mm
