RAVAGLIOLI Extension
accessory for tire changers
clamping jaws-aluminium rim protection set, # G800A98
set with 4 pieces, for all models with chucking table 20" - 22"
- Art.-Nr.: 89651129
- Org.-Nr.: G800A98
tire lever protection (piece), # G1000A13K
all models beside G1150.30 - G1160.30 - G1200.34 in all versions
- Art.-Nr.: 65108573
- Org.-Nr.: G1000A13K
motorcycle plastic mounting head, #G1000A15
suitable for G1065.EL and G7420.Bike
- Art.-Nr.: 65122319
- Org.-Nr.: G1000A15
clamping jaws-aluminium protection set, # G800A6
4 pieces, for all models with chucking table 24" - 26" - 28"
- Art.-Nr.: 65111296
- Org.-Nr.: G800A6
aluminium rim protection set, # G800A8
2 pieces, suitable for all models
- Art.-Nr.: 65111874
- Org.-Nr.: G800A8
threaded pin M10 x 16, with flat end and hexagon socket, DIN 913
- Art.-Nr.: 89651046
- Org.-Nr.: GEWINDESTIFT
threaded pin M12 x 12, with flat end and hexagonal socket, DIN 913
- Art.-Nr.: 89651368
- Org.-Nr.: GEWINDESTIFT
HOFMANN MEGAPLAN extension "Montiermaschinen"
for tire changers
clamping claw aluminum rim protector, #42MB202021 (set with 4 pieces)
- Art.-Nr.: 89668497
- Org.-Nr.: 42MB202021
bead breaker blade guard, #42MB200215, for Megamount MM40, MM50, MM70
- Art.-Nr.: 89668498
- Org.-Nr.: 42MB200215
mounting head aluminum rim protector, #46MB202934 (set with 10 pieces front + 10 pieces rear)
- Art.-Nr.: 89668499
- Org.-Nr.: 46MB202934
HOFMANN extension
accessory for tire changers
plastic cap, #1970012, long, for gentle clamping of alloy rims, for Monty 12 se, 22 se, 32 se, Monty Pro from Machine no. 000312, Monty 1100, 1150, 1200/GP, 1250, 2200/GP, 2250, 3200/GP, 3200 2-speed/GP, Super Plus/GP, XXL/GP, 1 set = 4 pieces
- Art.-Nr.: 65117376
- Org.-Nr.: 1970 012
plastic mounting head, #1977304, suitable for Monty 1200, Monty 2200, Monty 3200
- Art.-Nr.: 89651111
- Org.-Nr.: 1977304
plastic mounting head, #4027646, for wheels with elevated spokes e.g. in Audi / Ford / Peugeot and VW
suitable for: monty 1170 / 1270 / 2300 / 3300/2-speed/GP / 3300 racing/GP / 3550/GP
- Art.-Nr.: 89651210
- Org.-Nr.: 4027646
plastic mounting head, #24335, without main holder, for quick coupling
suitable for Monty 1170, 1270, 2300, 3300, 3300-2-speed and GP, 3300 R and 3550
- Art.-Nr.: 89665236
- Org.-Nr.: 24335
plastic guard for clamping claws, #4027645, for gentle clamping of aluminium rims, for Monty 3300-24 2-speed/GP, 3300 racing/GP, 3550/GP; 1 set = 4 pieces
- Art.-Nr.: 89665350
- Org.-Nr.: 4027645
plastic guard for bead breaker blade
suitable for: Monty 3300 - 24 2-Speed GP, Monty 3300 Racing AT and GP, Monty 3550 GP, Monty 1000, 1170, 1270, 2300
- Art.-Nr.: 89667729
- Org.-Nr.: 26582
taper and centering ring, #41FF86174, for rims with bore Ø 97-170mm
- Art.-Nr.: 89668504
- Org.-Nr.: 41FF86174
BEISSBARTH extension
suitable for tire changers
plastic protection for assembly head, left, suitable for MS 5x0 S, MS 63 S, MS 630 S, MS 650 S
- Art.-Nr.: 89668421
- Org.-Nr.: 1695102725
LONGUS Extension
accessory for tire changers
HOFMANN MEGAPLAN extension "Balancing machines"
Suitable for balancing machines
RAVAGLIOLI auxiliary mounting arm "PLUS73"
suitable for tire changers

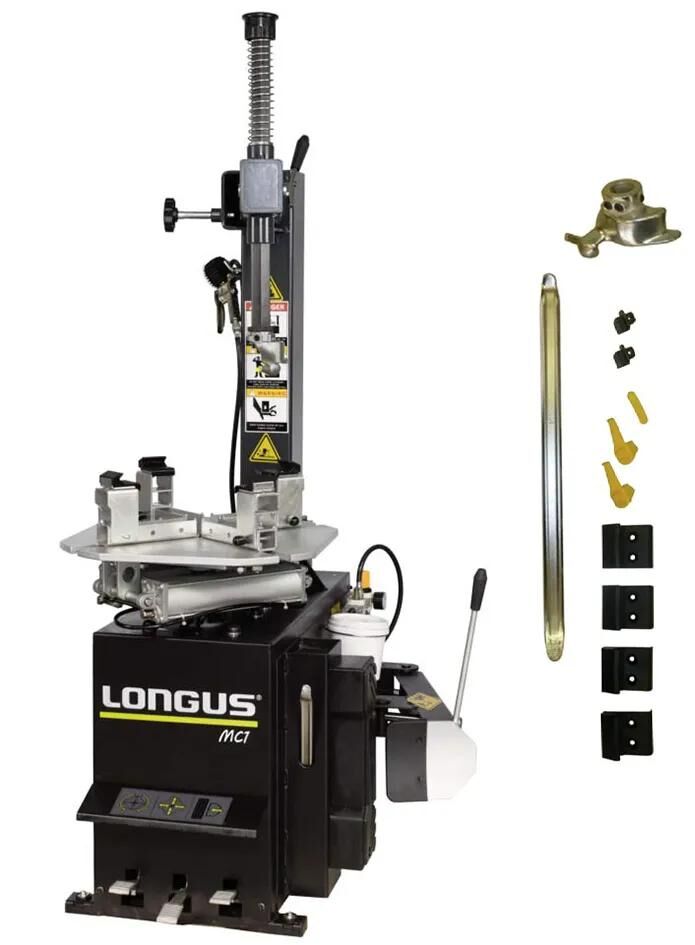

LONGUS Tire Changer "LMM-MC-1"
for motorcycles, outer rim tension 6 - 24", tire width: 2 - 10", tire Ø max. 960mm
With laterally pivoting mounting arm, eccentric clamping of the mounting head, self-centering clamping plate and powerful bead breaker cylinder. Clamping claws made of special steel for stable clamping of the rim from the outside, mounting head with adapter for a replaceable plastic element to protect the rims.
Technical data:
outer rim tension: 6 - 24"
tire width: 2 - 10"
tire diameter max.: 960 mm
compressed air conection: 8 - 10 bar
motor power: 0,75 / 1,1 kW
power connection: 400 V / 3 Ph / 50 Hz
sound level: < 70 db
weight: 215kg

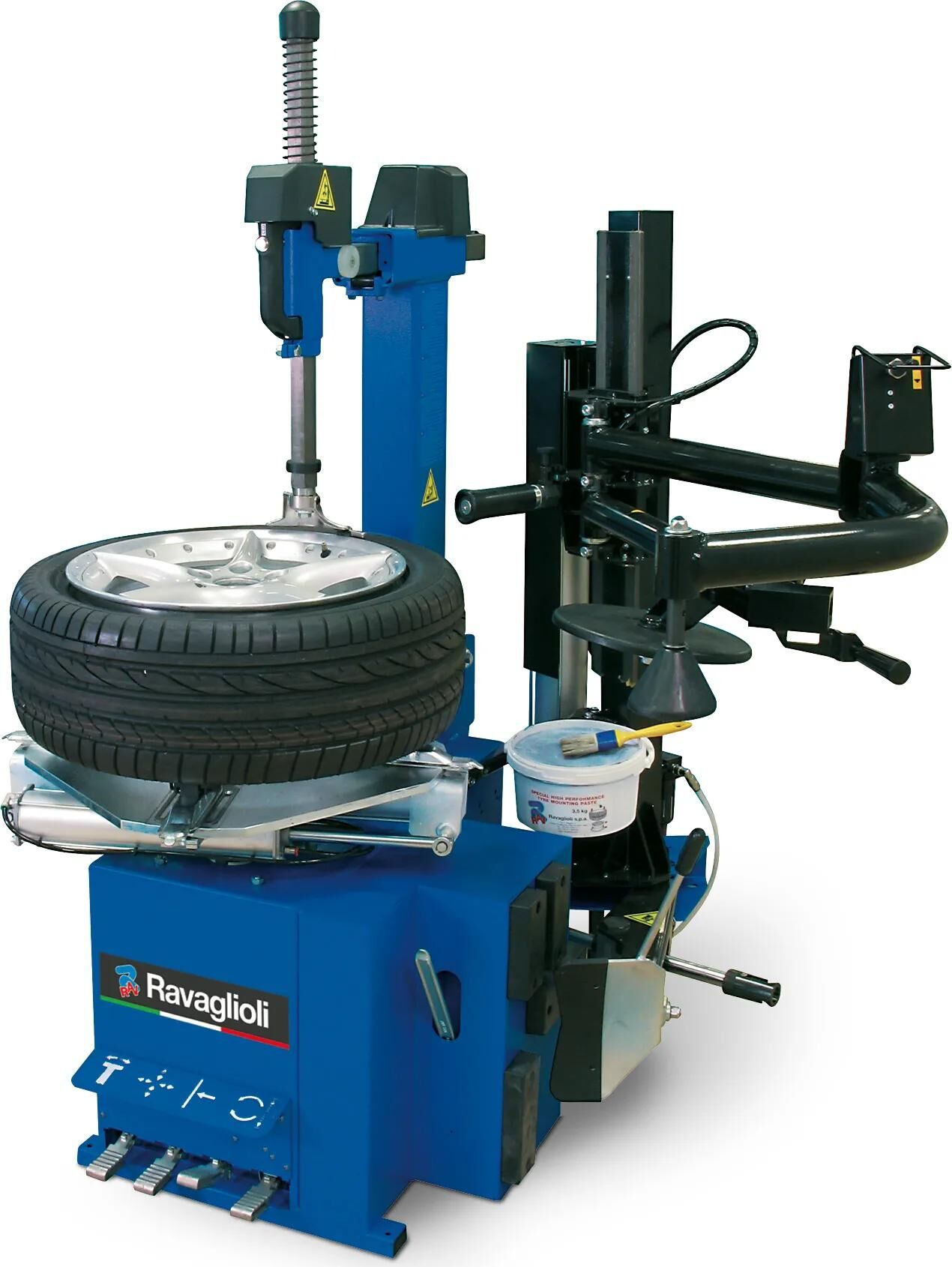

RAVAGLIOLI tire changer "G5440V.22G"
max. tire Ø: 1000mm (39"), max. tire width: 340mm (13")
Automatic tire changer, suitable for car and motorcycle tires. With tiltable mounting column, 2 speeds, pneumatic mounting arm lock and pneumatic bead presser.
Note: plus freight and discharge costs
Technical data:
rotation speed: 7 - 14 rpm
max. torque: 1200 Nm
motor power: 0,8 - 1,1 Kw
internal tension: 13" - 23" (adjustable from 12" - 22" or 14" - 24")
external tension: 11" - 21" (adjustable from 10" - 20" or 12" - 22")
working pressure: 10 bar (140 psi)
force of the bead breaker cylinder at 10 bar: 3000 kg
without auxiliary arm (available separately #PLUS73 / 8.96 51 11/3)
- Art.-Nr.: 89651105
- Org.-Nr.: G5440V.22G
RAVAGLIOLI tire changer "G7240.Bike"
special designed for motorcycle tires, max. tire diameter: 990mm, max. rim width: 12"
Chucking table with fixed clamping claws guaratnees maximum rigidity during assembly. With self-centering locking, internal clamping 12 - 19,5" and external clamping 5 - 24".
Technical data: pressure force: 3000kg, max. locking device turning moment: 1200 Nm, locking device turning speed: 6,5 rpm, three-phase motor: 400V / 50Hz / 0,55KW, working pressure: 8 - 10 bar, colour: anthracite / RAL 7016
