HOFMANN MEGAPLAN tire changer "Megamount"
"Megamount 50F", max. tire width: 360mm / 14"
Technical data:
clamping range outside: 10" - 22"
clamping range inside: 12" - 24"
max. wheel diameter: 1170mm / 46"
max. wheel width: 360mm / 14"
workspace: 8" - 24"
motor power: 0,8 / 1,1 kW - 3 Ph - 400 V - 50 Hz
max. torque: 1200 Nm
rotation speed: 8 - 16 rpm
max. opening bead breaker: 380mm / 15"
bead pressure force on blade (10 bar): 15000 N
working pressure (recom.): 8 - 10 bar
plate height from the floor: 670mm
- Nº de artículo 89668446
- Org.-Nr.: 40050F
max. wheel Ø 46", working range bead breaker blade 17”, wheel clamping diameter: 10" - 24"

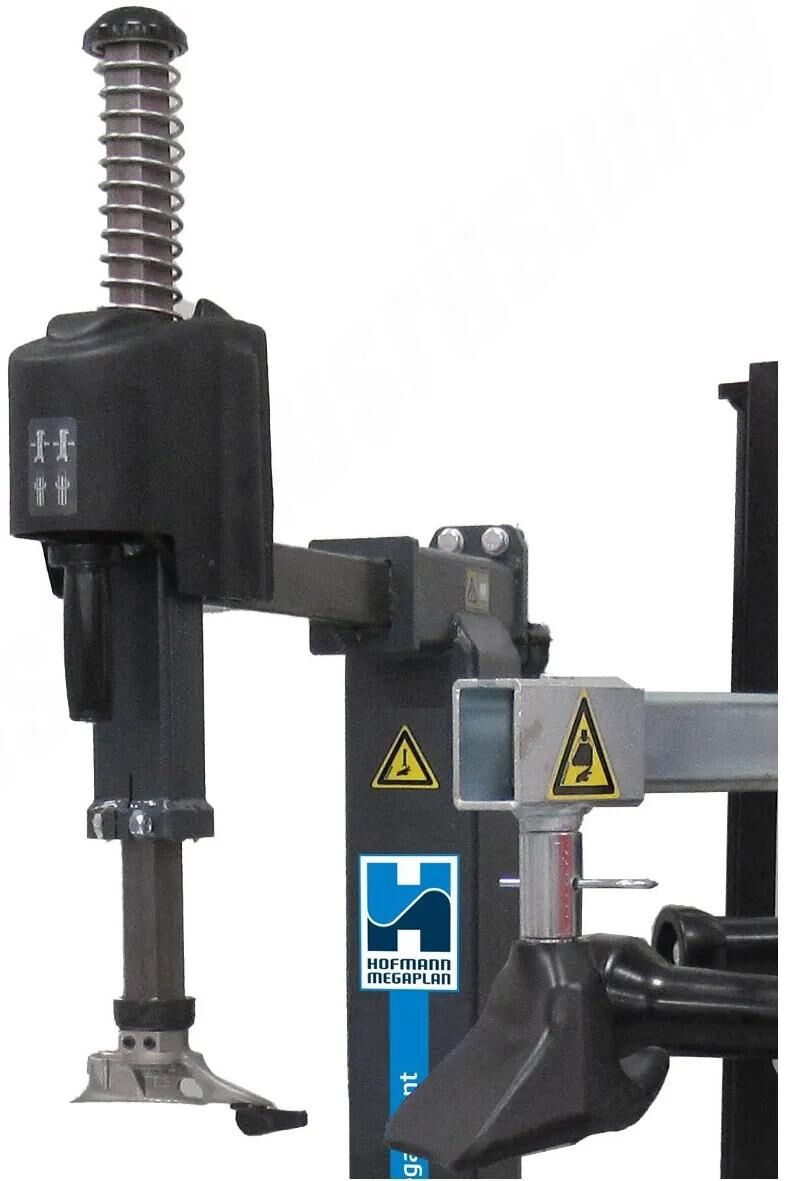

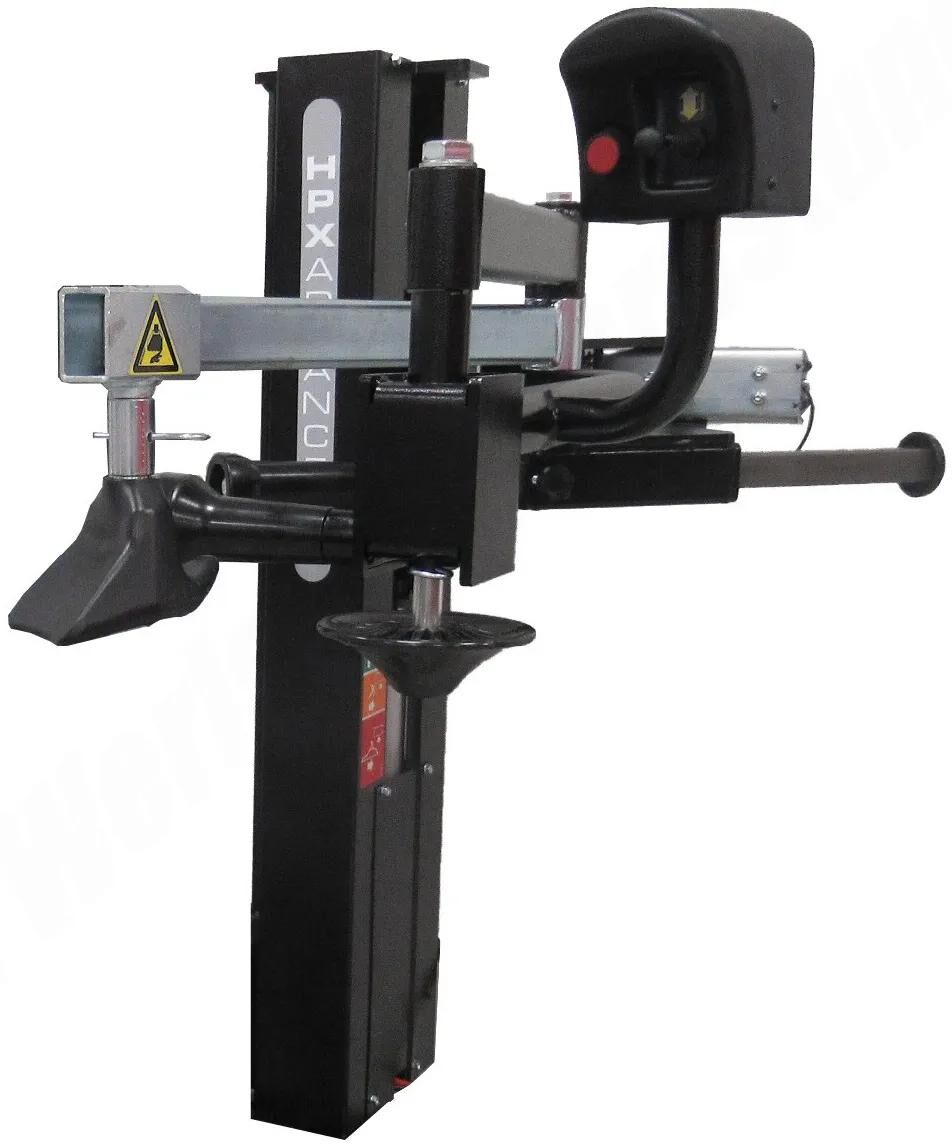

Fully automatic tire changer with pneumatic rear-tilting mounting column and self-centering, pre-adjustable 4-clamping jaw system, as well as two double-acting clamping cylinders.
Note: plus freight and discharge costs
Información sobre el producto
- Anchura de llanta desde: 10 "
- Anchura de llanta hasta: 24 "
- Artículo: Article
- Características: tiltable
- Color principal: Negro
- Color secundario: Gris
- Diámetro de rueda máx.: 46.0 "
- Versión: assembly machine
- Ámbito de aplicación: car
- Número de artículo del proveedor:: 40050F
- UVP: 8.782,20 €
- Marca/Proveedor HOFMANN MEGAPLAN
- Unidad de medida: PIECE
| Artículo | Precio | |
|---|---|---|

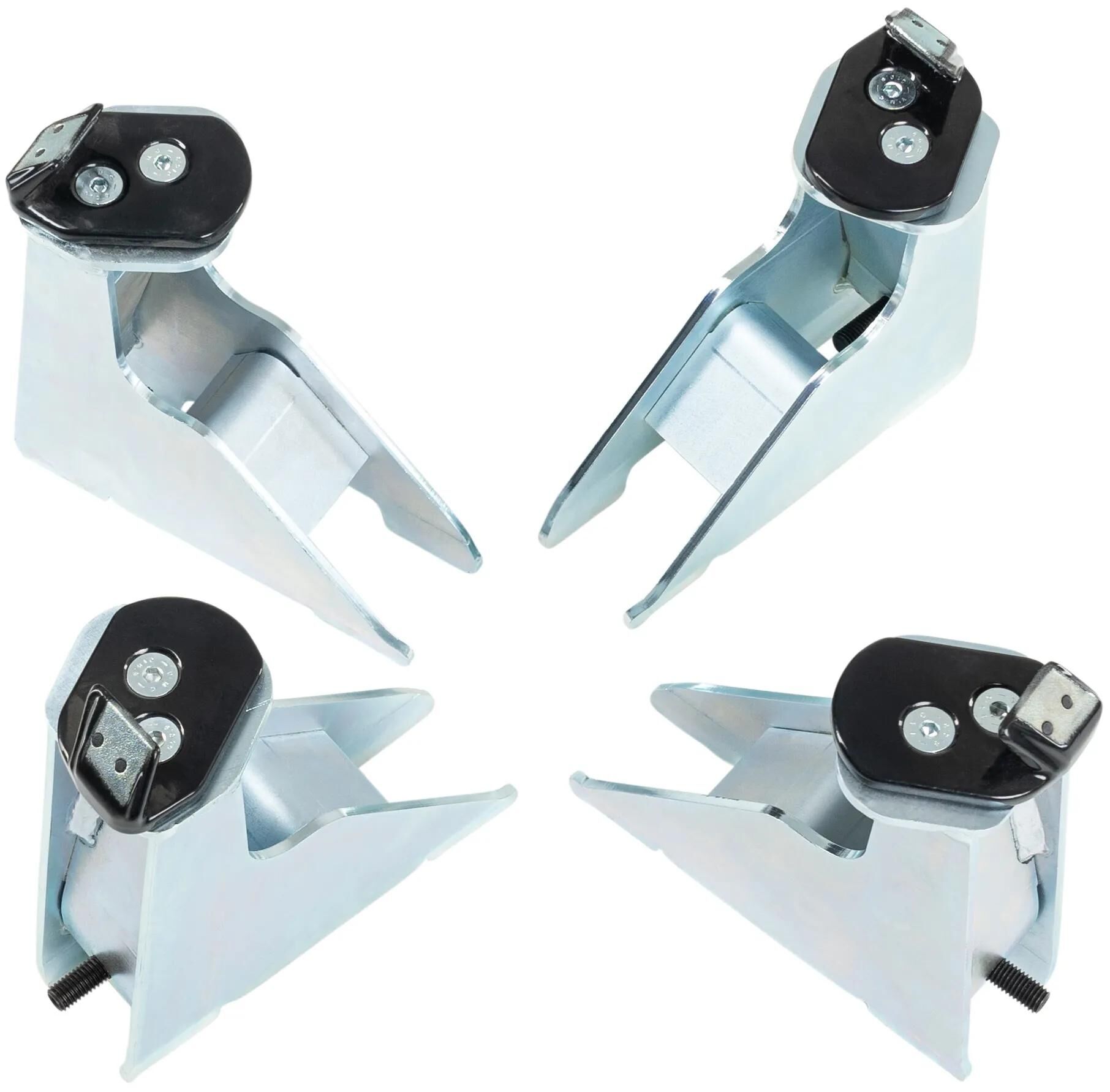

 HOFMANN MEGAPLAN extension "Montiermaschinen" clamping claw aluminum rim protector, #42MB202021 (set with 4 pieces)
| ||
 HOFMANN MEGAPLAN extension "Montiermaschinen" bead breaker blade guard, #42MB200215, for Megamount MM40, MM50, MM70
| ||
 HOFMANN MEGAPLAN extension "Montiermaschinen" wheel claw set, #46MB202011, for motorcycle tires, 4 pieces
| ||
 HOFMANN MEGAPLAN extension "Montiermaschinen" wheel claw set, #46MB202010, for scooter, 4 pieces
|
