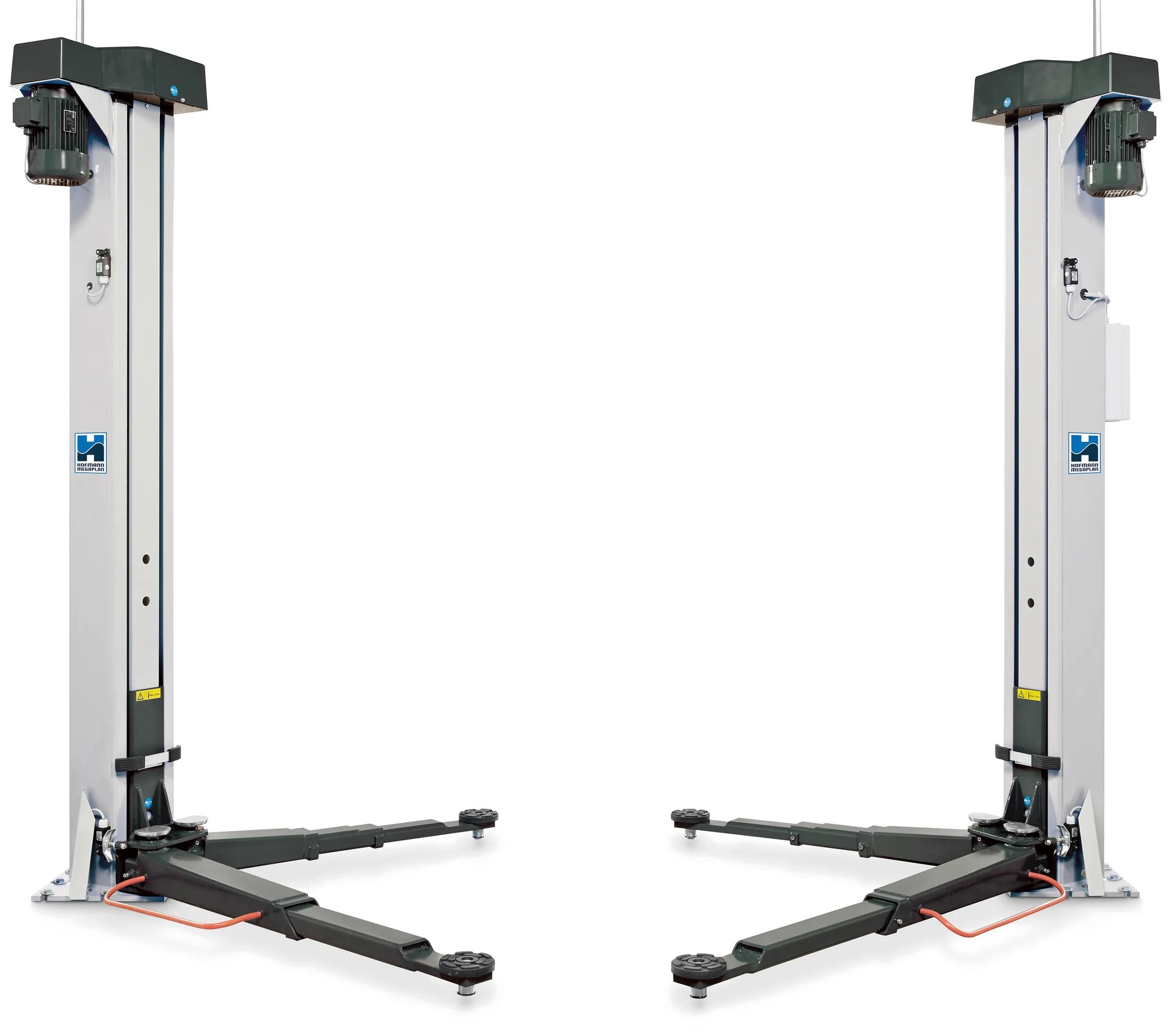

load capacity up to 3200kg, electromechanical, with post rotated 45°
The geometry of the support arms has been designed so that both microcars and large sedans can be lifted. Lifting and lowering is performed via pushbuttons at an ergonomic height. Due to the asymmetrical design of the columns, the loading areas of the arms overlap, providing great flexibility and time savings when picking up the vehicle. The vehicle can also be parked backwards without fear of damage to the vehicle due to the large door clearance. The platform is designed to have the same overall width as a standard lift, but with a larger passageway. The operator has a large pick-up area without having to push and pull the vehicle to reach the correct lifting position.

Technical data:
load capacity: 3,2 t
total height: 4052mm
ceiling height min.: 4150mm
lifting height max.: 2000mm
support plate height (min. - max.): 96 - 130mm
column height: 3223mm
lifting / lowering time: approx. 42s
total width: 3250 - 3350mm
drive-through width: 2372 - 2472mm
support arm length front (min. - max.): 805 - 1200mm
support arm length rear (min. - max.): 805 - 1200mm
drive power: 2x 2,6 kW
control: push buttons

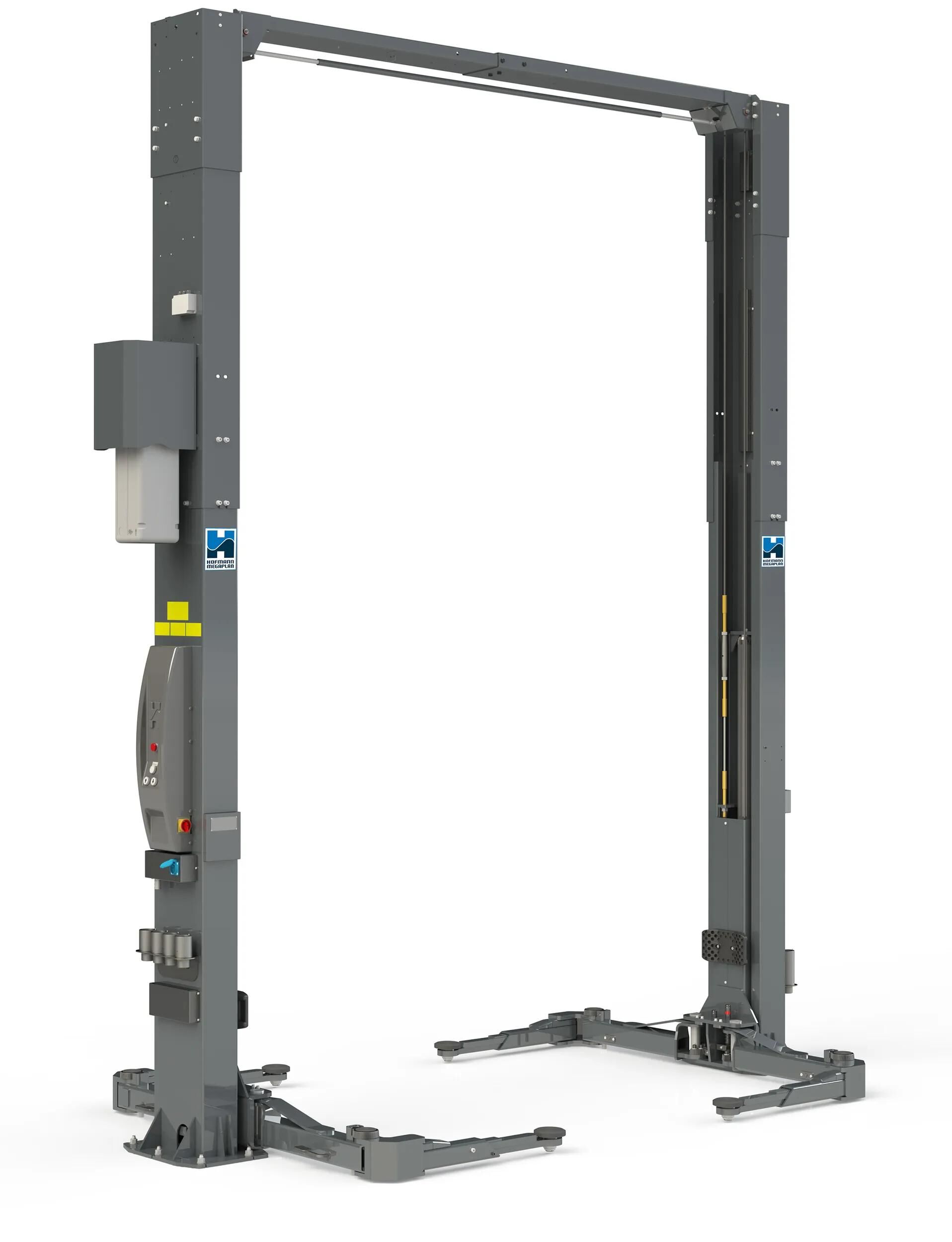

carrying capacity up to 3200kg, electro hydraulic, incl. collision safety device
With 4 double pull-out long arms, mechanic support device with automatic switch and automatic arm locking. Synchronization by means of lines (non load-bearing), maintenancefree cylinder in each column, very low rubber plates (in each height adjustable). Synchronized device levelling system regardless to weight distribution, safety valves against overloading of hydraulic lines, control valve for the speed of lowering, colour: anthracite / RAL 7016
Plus mounting material, assembly and first acceptance

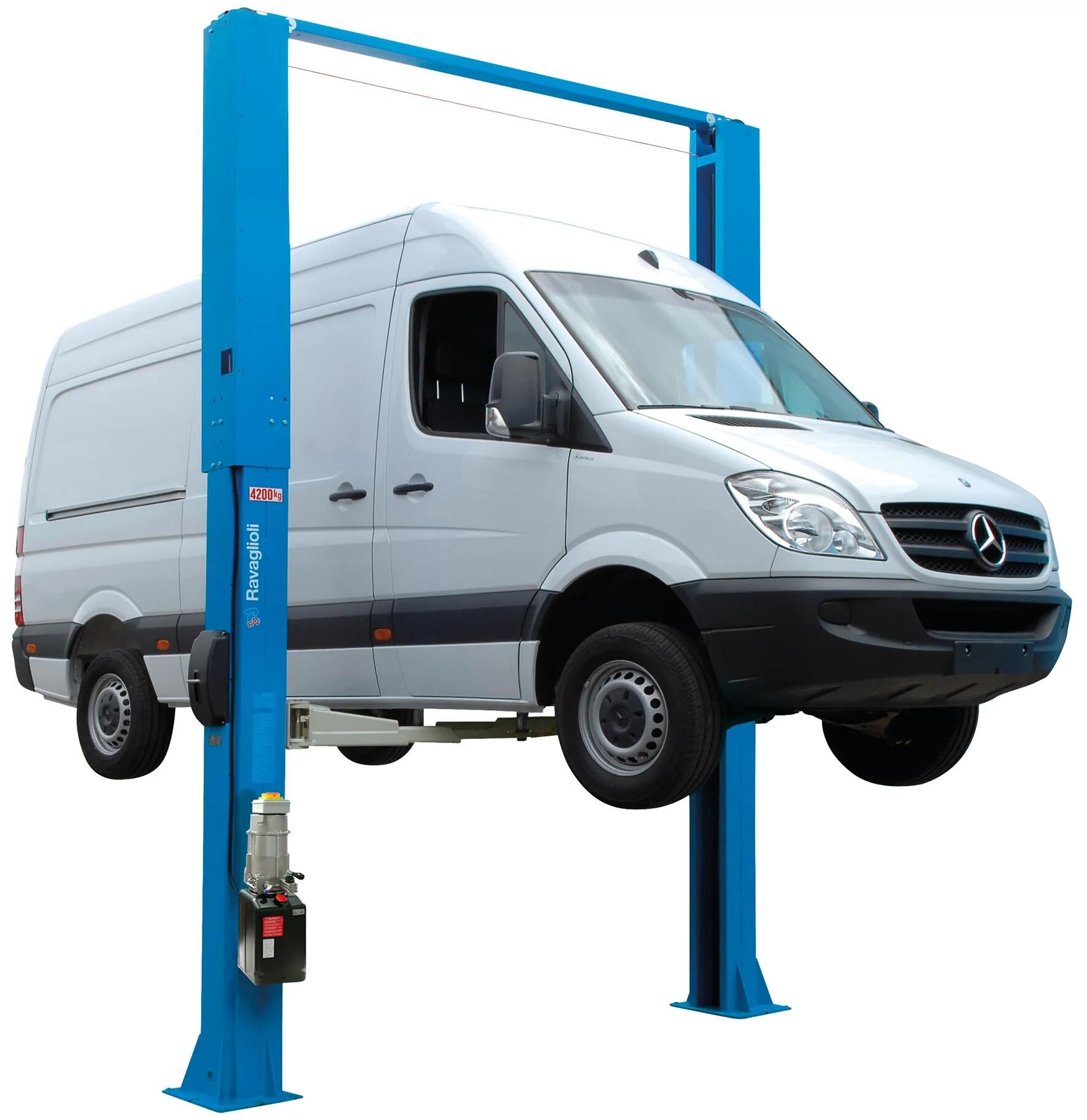

carrying capacity up to 5500kg, hydraulic
With 4 dual extendable long arms, for lifting cars and vans (also with long wheelbase). Synchronisation device of levelling system regardless of weight distribution. Safety valves against overloading of hydraulic lines. Control valve for the speed of lowering. Mechanical safety latch with automatic engagement,synchronization cables grant the levelling of the two carriages, maintenancefree cylinder, single lifting/lowering control, pneumatic release of locking device, control unit on the upper part of the column, colour: anthracite / RAL 7016
Plus mounting material, assembly and first acceptance

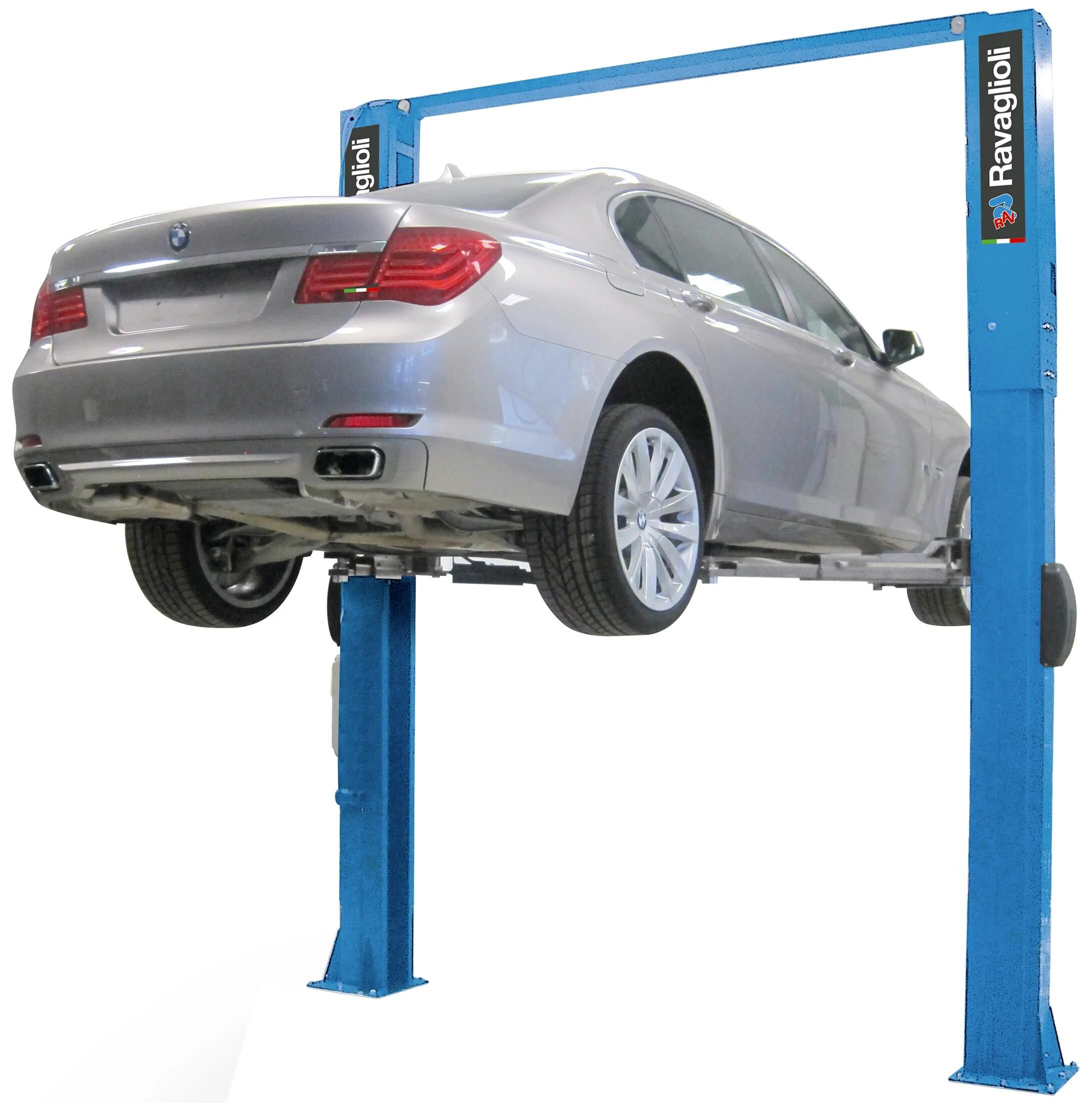

carrying capacity up to 3200kg, electro mechanic, without crossbar
Short arms two time extendable, suitable for lifting off-road vehicles, automatic permanent lubrication of nuts, wear resistant carrying- and safety nuts made from bronze, hardened steel spindle, automatic locking, column from 5 steel profile pipes, low tension control circuit, with mechanic balancing system between lifting trucks (equalizes a difference in level of max. 2,0cm), Aufnahmen mit Schnellstecksystem, base frame free, with cable system and 2 engines 2,2kW, colour: anthracite / RAL 7016 or blue / RAL 5015
Plus mounting material, assembly and first acceptance

Technical data: lifting height max.: 201,0cm, short arm reach: 50,0 - 90,0cm, long arm reach: 81,0 - 120,0cm, support plate Ø: 12,5cm, support plate adjusting range: 9,5 - 13,5cm, column distance: 250,0cm, drive-over width: 244,2cm, W/H/D 320,0 x 264,0 x 36,2cm, space requirement height: 386,8cm

electro hydraulic, symmetric or asymmetric arms, different column heights
design without base frame, push button operation, large area, with pluggable rotary plate, upper safety shutdown and automatic locking of the support arms when lifting.
Plus freight, mounting material, assembly and hydraulic oil

load capacity up to 4500kg, electrohydraulic, incl. start-up safety device, centerless
With four double extendable long arms for lifting cars and vans (also with long wheelbase). Mechanical support device with automatic switch-on and automatic arm locking device. Synchronization by ropes (not load-bearing), maintenance-free cylinders in each column, very low rubber plates (adjustable in height). Synchronization control of the lift trucks regardless of the distribution of the weight, safety valves against overload and rupture of hydraulic lines, control valve for the speed of lowering, colour: anthracite / RAL 7016
plus fastening material, assembly and initial inspection

load capacity up to 5500kg, electrohydraulic
With 4 multi-joint arms (735 - 1800mm) for lifting cars and vans (also with long wheelbase) and ventilated motors for particularly smooth running and long service life.
inside post distance: 3000mm, outside installation dimension: 3680mm, pad height: 120mm (till 170mm adjustable), lift height: 1960mm, total height: 5125mm, shutdown height: 4955mm, own weight: 1400kg
incl. hydrauli c oil and mounting material, plus freight and assembly

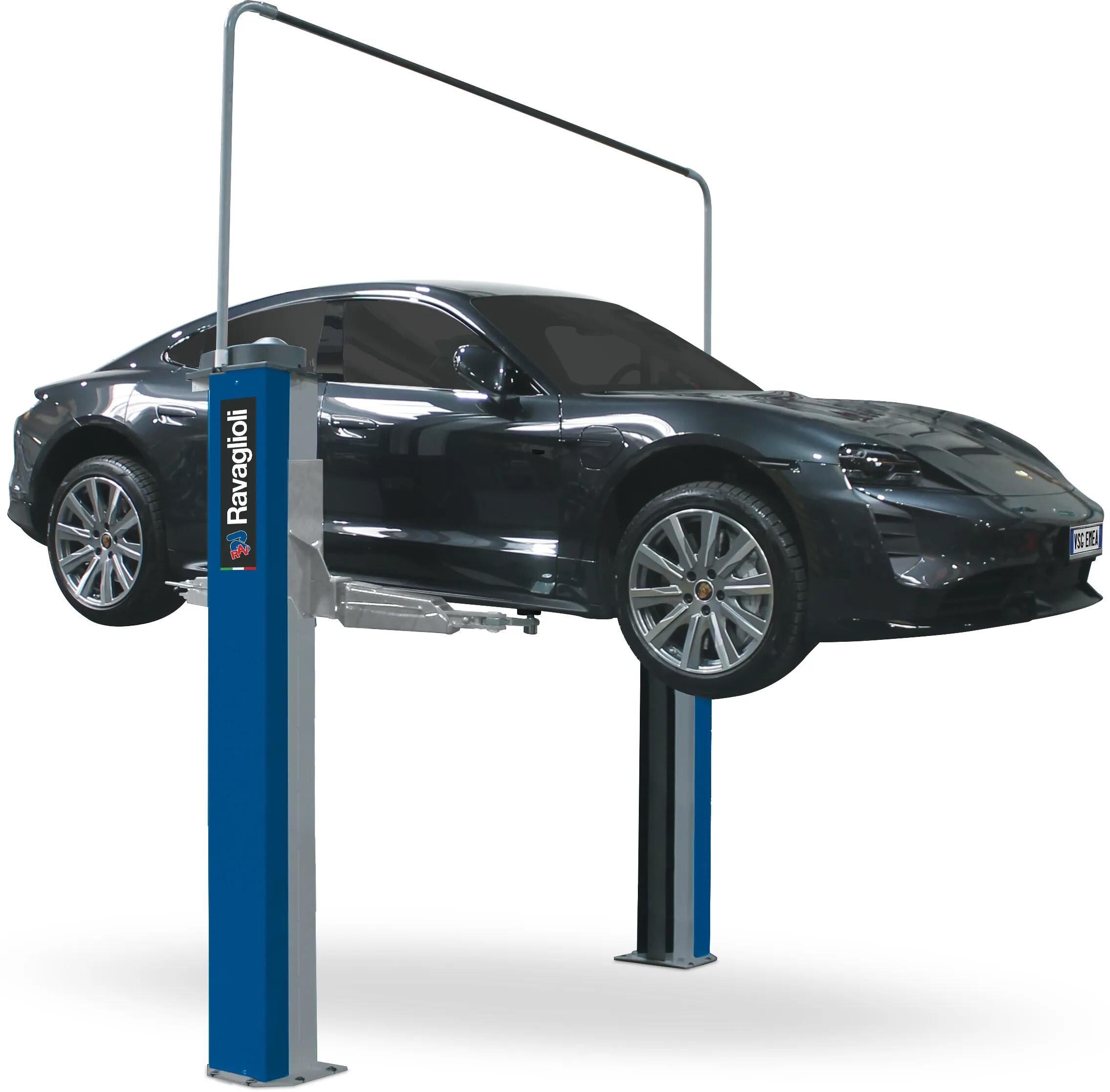

load capacity up to 3500kg, electromechanical, center-web free
Support arms with low profile and rotating end for virtually any type of vehicle. From classic city cars and sports cars (including the latest electric sedans), to the long wheelbase VW T6. The lift is ideal for e-cars, as thanks to the flexible rotation of the arms, direct access to the battery pack is possible and it can be easily removed. The automatic locking system guarantees maximum safety and stability.
plus fastening material, assembly and initial inspection

Technical data
load capacity: 3,5 t
clear width: 2650mm
height (max.): 3876mm
ceiling height (min.): 3900mm
3 telescopic front / rear arms each
length (min.) front / rear arms: 792mm
length (max.) front / rear arms: 1200mm
motor power: 2x 2,6 Kw
power supply: 230/400 V - 50 Hz

load capacity up to 3500kg, electromechanical
Lifting is performed by trapezoidal threaded spindles made of special steel, while the lifting carriages are braked by self-locking spindle threads. The platform is equipped with fully protected internal guides, support nuts made of special material to reduce lubrication to a minimum and self-locking follower nuts. 4 ball-bearing rollers on each lifting carriage in conjunction with 4 adjustable slide bearings ensure a perfect fit and the best gliding performance. The synchronization of the 2 lifting carriages is monitored by an electronic device and automatically regulated if the height difference is more than 15 mm. The construction is extremely stable and the electrical system complies with EEC standards.

Technical data:
motor power: 2x 2.6 kW
mains voltage: 400 V
clear column spacing: 2650 mm
column installation width (outside): 3370 mm
under-swing height: 90 mm
lifting height: 1940 mm
column height: 2560 mm
net weight: 820 kg
"Stand-by safety device", epoxy powder coating, color grey / black
