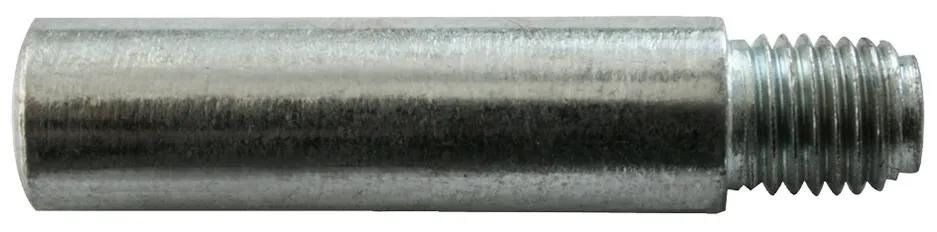

replacement guide bolt repair set (#01477L)
For repair of defective internal threads for brake guide pins in wheel bearing housings / brake caliper carriers. The available thread is extended on M10 x 1,25 and the guide bolts are screwed.

drill and tap, metric core hole drill, 28 pieces
hand drill tap (DIN 352): M3 x 0,5 - M4 x 0,7 - M5 x 0,8 - M6 x 1,0 - M8 x 1,25 - M10 x 1,5 - M12 x 1,75
Kernlochbohrer (DIN 338/ HSS sanded): 2,5 - 3,3 - 4,2 - 5,0 - 6,8 - 8,5 - 10,2mm
core hole drill (DIN 338/ HSS sanded): 2,5 - 3,3 - 4,2 - 5,0 - 6,8 - 8,5 - 10,2mm

for metric fine and coarse threads, stainless steel A2, in case
Repair package with Heli-Coil made of wire with rhombic profile. Attach and screwing lke a screw, for screwing is enough to use built-in spindle, which is similar to a tap of its dimensions. Sind Durchgangsgewinde erforderlich, kann der Mitnehmerzapfen nach dem Einbau an der Kerbe (Sollbruchstelle) abgetrennt werden.
Consisting of: Helicoil plus in three lengths, spiral drill (up to M 12), hand drill tip made of HSS, built-in spindle, break-off tool (up to M12)

HSS, taps, dies and accessories, 32 pcs.
each taper, second and finishing tap: M3, M4, M5, M6, M8, M10, M12
dies: each 1 piece 25 x 9mm, M3, M4, M5, M6, M8, M10, M12
1 tap wrench (No. 1.1/2), 1 die holder (25x 9mm), 1 screwdriver, 1 gauge

for wheel bolts and wheel nuts
Repairing and cleaning of wheel bolts and wheel nuts with inside and outside thread. Can be used directly on the vehicle. TIN-HSS coated surface. Suitable for the thread sizes: M12 x 1,25mm, M12 x 1,5mm, M14 x 1,5mm

repair assortment for spark plug threads, 16 pieces
For spark plug threads that have been torn out or damaged (e.g. in light alloy cylinder heads), no need to remove the cylinder head, remains of the old thread are cleared out and the new thread cut in one process, the threaded inserts are seated very firmly and gas-tight, they cannot unscrew during subsequent changes, special steel threaded inserts, extremely thin walls, with corrosion protection, incl. inserts for tapered sealing seats (without seal ring) e.g. Ford, Peugeot, MB etc.
Content: 1x tap (M16 x 1,25mm), pack of 5 pieces (M14 x 1,25mm): 11,2 x 12,7 - 17,5 x 19,0 - 17,5

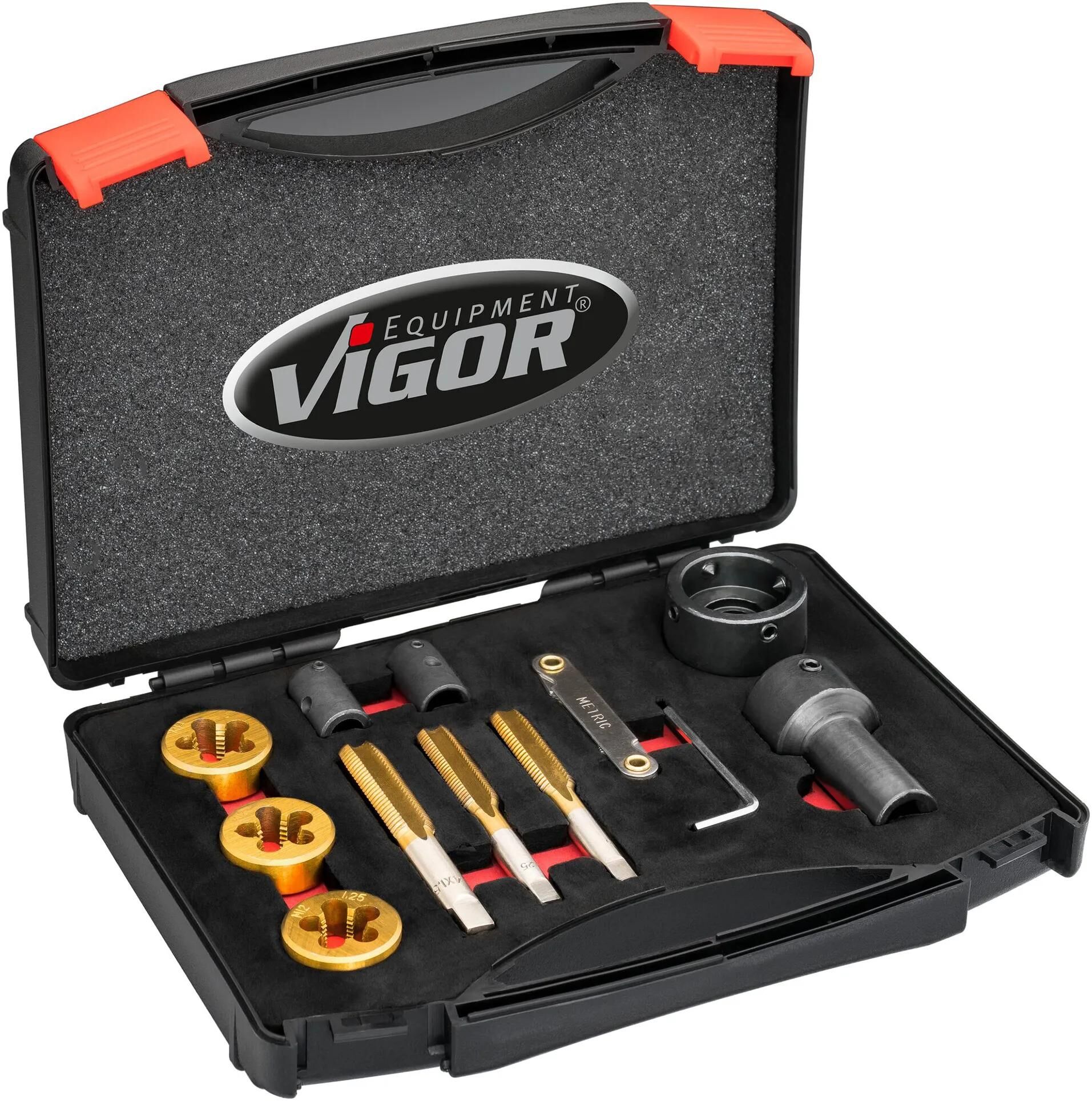

for repair of wheel nuts and bolts, 12 pieces
For cleaning and rethreading threads M12 x 1,25 / M12 x 1,5 / M14 x 1,5. Titanium coated tungsten steel, incl. required holding tools, thread gauge and 3/8" (10mm) square drive
Note: Rust or defective threads can cause incorrect torque values, so there is a risk of loose wheels.

for metric fine and coarse threads, M6, M8, M10, 132 pieces, with case
Repair package with Heli-Coil made from wire with rhombic profile. Attach and screwing like a screw, its enough to use a built-in spindle for screwing, which has similar dimensions as a tap. If through threads are required, the drive pin can be removed at the notch after installation (predetermined breaking point).
Consisting of: Helicoil plus in three lengths, spiral drill (M6 / M8 / M10), hand drill tap made of HSS (M6 / M8 / M10), built-in spindle (M6 / M8 / M10), break-off tool (M6 / M8 / M10)

for metric fine threads, HSS, 33 pieces

consisting of:
each 1 pre and final cutter HSS
M8 x 1,0
M10 x 1,0
M10 x 1,25
M12 x 1,25
M12 x 1,5
M14 x 1,25
M14 x 1,5
M16 x 1,5
M18 x 1,5
each 1 die (25 x 9mm) HSS
M8 x 1,0
M10 x 1,0
M10 x 1,25
M12 x 1,25
M12 x 1,5
each 1 die (38 x 14mm) HSS
M14 x 1,25
M14 x 1,5
M16 x 1,5
M18 x 1,5
1 tap wrench (Nr. 1.1/2) M1 to M12
1 tap wrench (Nr. 3) M5 to M20
1 die holder (25 x 9mm)
1 die holder (38 x 14mm)
1 screwdriver, 1 gauge

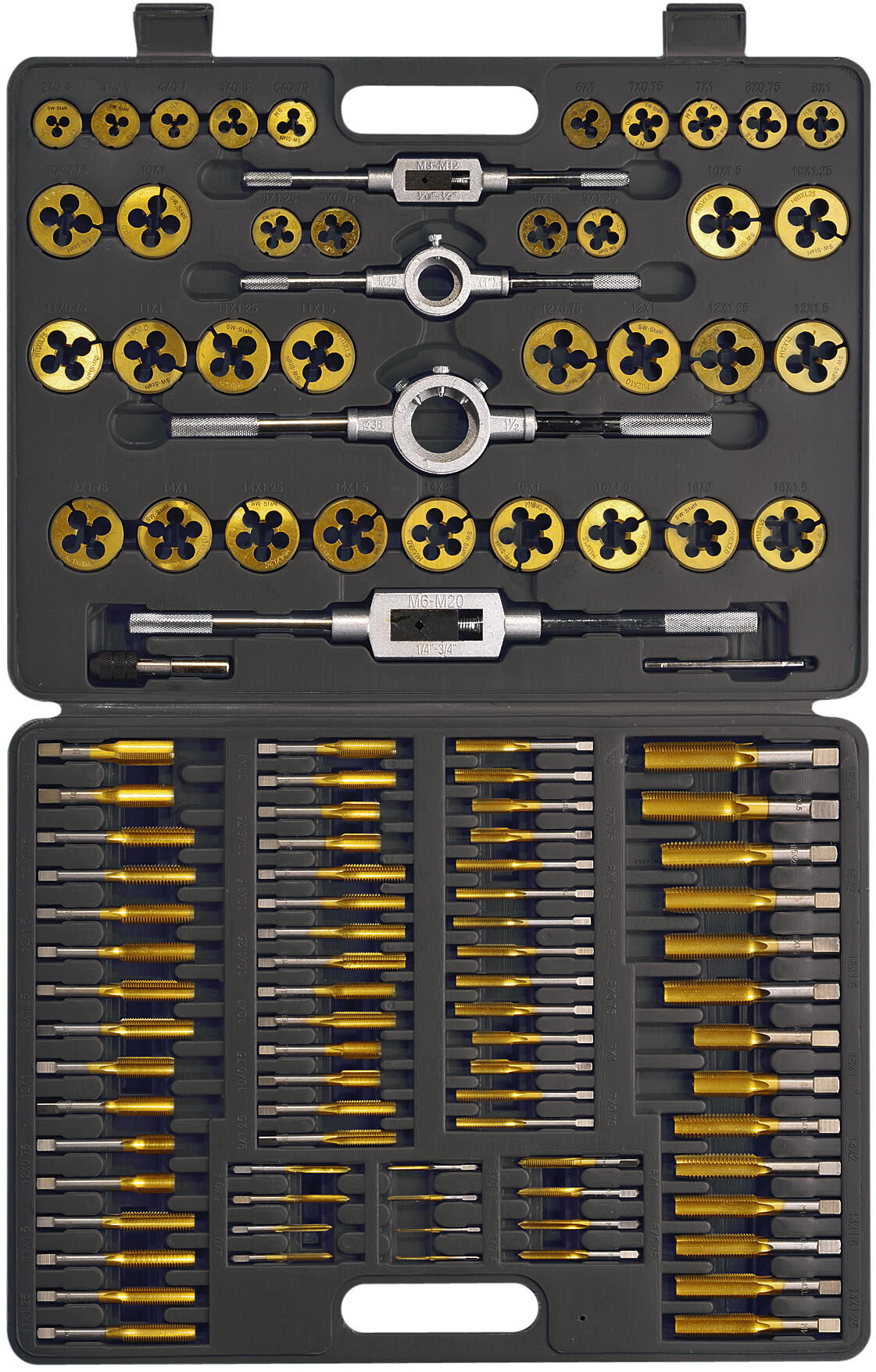

dies for standard and fine thread, 110 pieces
Metric from M2-M18, tungsten steel, various sizes and pitches, with drive tool

consisting of:
die holder M25 + M38, tapwrench M3-M12 + M6-M20, T-holder for taps
each 1 die and each 2 tap in following sizes:
M2 x 0.4
M3 x 0.5
M4 x 0.7
M5 x 0.8
M6 x 0.75, M6 x 1.0
M7 x 0.7, M7 x 1.0
M8 x 0.75, M8 x 1.0, M8 x 1.25
M9 x 0.75, M9 x 1.0, M9 x 1.25
M10 x 0.75, M10 x 1.0, M10 x 1.25, M10 x 1.5
M11 x 0.75, M11 x 1.0, M11 x 1.25, M11 x 1.5
M12 x 0.75, M12 x 1.0, M12 x 1.25, M12 x 1.5, M12 x 1.75
M14 x 1.0, M14 x 1.25, M14 x 1.5, M14 x 2.0
M16 x 1.0, M16 x 1.5, M16 x 2.0
M18 x 1.5
