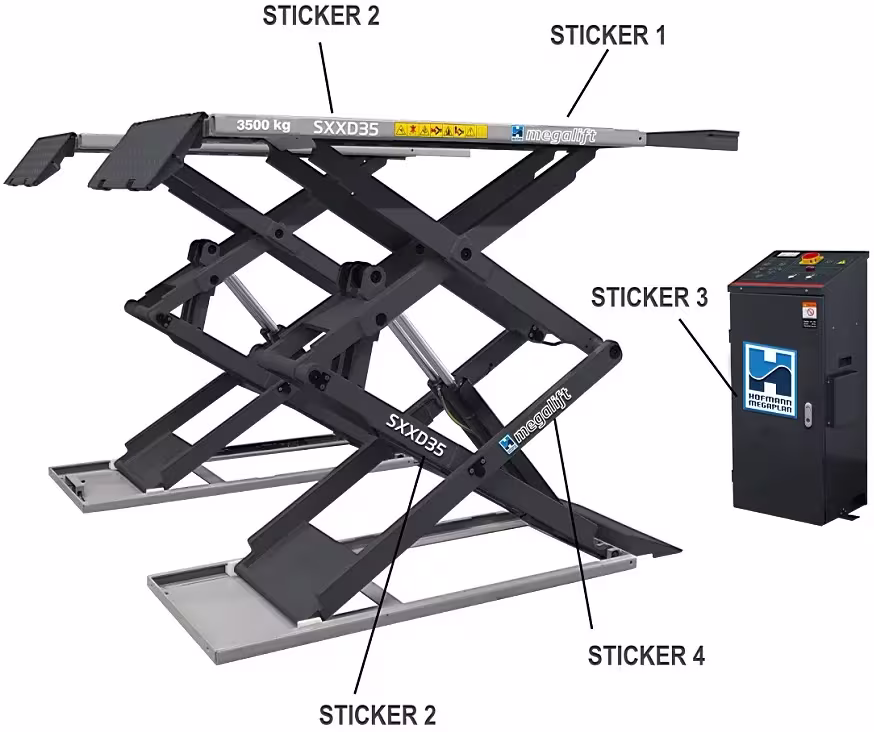

HOFMANN MEGAPLAN Scissor lift "Megalift SXXD35"

Lifting capacity up to 3,500 kg, double-scissor lift,electrohydraulic
Suitable for mounting vehicles ranging from small cars to vans. Features volumetric synchronization and a dual-redundant master/slave circuit, which guarantees load stability even in the event of a malfunction (loss of pressure in the hydraulic circuit). The lifting platform can be installed either above-floor or flush with the floor. A proximity sensor detects any obstacles located beneath the lifting platform during lowering. The hydraulic synchronization control monitors the lifting and lowering speeds.

Technical Specifications:
Load capacity: 3500 kg
Clearance height: 105 mm
Lifting height: 1,900 mm
Track width: 614 mm
Track length: 1,547–2,270 mm
Internal dimensions: 800–1,000 mm
Lifting/lowering speed: 50 / 50 sec
Mains voltage: 400 V / 50 Hz
Power: 3.3 kW
Control cabinet with 2-meter tubes
Weight: 950 kg
