KEYSTER

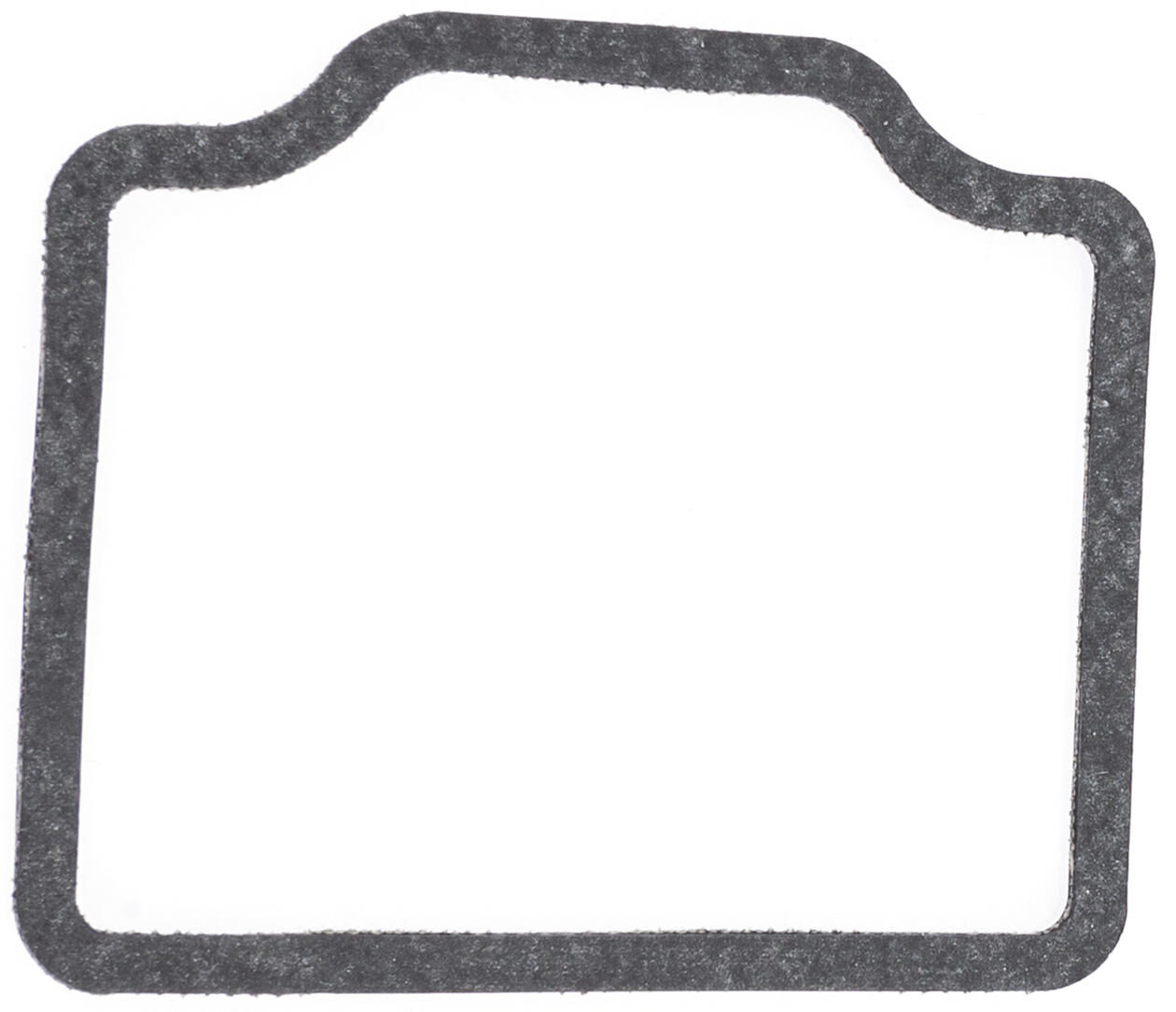

K-1002KKThe set contains following articles:float chamber sealing- Keyster = NTMOR-008G- OEM = 92055-1426float chamber valve set

K-1000KKThe set contains following articles:float chamber valve set- Keyster = KYV-77015- OEM = 16030-1024float chamber sealing- Keyster = NTMOR-009- OEM = 92055-1128

K-1003SKThe set contains following articles:float chamber sealing- Keyster = K-41- OEM = 13258-44B00float chamber valve set

K-1004SKMThe set contains following articles:float chamber gasket- Keyster = K-41- OEM = 13258-44B00float chamber valve with filter

K-1008YKThe set contains following articles:float chamber sealing- Keyster = NTMOR-020MG- OEM = 3GM-14997-00-00float chamber valve- Keyster = KVN-16R30div. O-rings (see ill.)

K-1010YKMThe set contains following articles:float chamber gasket- Keyster = NTMOR-019MG- OEM = 1HX-14147-00-00float chamber valve set with filter- Keyster = KYV-33L10- OEM = 3CF-14107-10div. O-rings (see ill.)

K-1011KKThe set contains following rtaicles:float chamber gasket- Keyster = NTMOR-008G- OEM = 92055-1426float chamber valve set

K-1020KKThe set contains following articles:float chamber gasket- Keyster = NTMOR-008G- OEM = 92055-1426float chamber valve set- OEM = 16030-1077

K-1020KKMThe set contains following articles:float chamber gasket- Keyster = NTMOR-008G- OEM = 92055-1426float chamber valve set with filter- OEM = 16030-1077

K-1043SKMThe set contains following articles:float chamber gasket- Keyster = NTMOR-021MG- OEM = 13258-33E80float chamber valve set with filter- Keyster = KYV-50015- OEM = 13370-33E80

KK-0043The set contains following article:float chamber gasket- Keyster = YFCG-16C- OEM = 16019-029float chamber valve set- Keyster = KYV-20020jet needle #Y22=5DP2throttle stop jet #45- Keyster = KYS-020045adjuster screw setair idle jet- Keyster = MABM2125

KH-1377The set contains following articles:2 x float chamber gasket- Keyster = NTMOR-007G- OEM = 16010-MR5-5052 x float chamber valve set- Keyster = KHV-17020- OEM = 16011-MV1-7001 x main jet #118- Keyster = KHM-110118- OEM = 99101GHB11801 x main jet #122- Keyster = KHM-110122- OEM = 99101-GHB-12202 x throttle stop jet #42- Keyster = KHS-22B042- OEM = 99103-MV9-0420A2 x adjuter screw set- Keyster = KHSS-138- OEM = 16016-MV1-6302 x drain plug- Keyster = F-130- OEM = 16015-MV1-700before KH-1361

KH-1389The set contains following articlesl:2x float chamber sealing- Keyster = K145- OEM = 16163-MAY-0002x funnel sealing- Keyster = K147- OEM = 16010-MAY-0002x float chamber valve - Keyster = KVN-16N00- OEM = 16155-413-7512x adjuster screw set- Keyster = KHSS-553- OEM = 16016-MV1-6301x main jet #118- Keyster = KHM-110118- OEM = 99101-GHB11801x main jet #120- Keyster = KHM-110120- OEM = 99101-GHB12202x throttle stop jet #40- Keyster = KHS-22B040- OEM = 99103-MT204002x drain plug- Keyster = F-130- OEM = 16015-MV1-70010x O-ring- OEM = 16010-MAY-000

KK-0021The set contains following articles:float chamber gasket- Keyster = YFCG-1- OEM = F214106119- OEM = 16019-008float chamber valve- Keyster = KYV-03025- OEM = 16030-005jet needle #Y32 = 5GL3- Keyster = KYJ-0032main jet #100- Keyster = KYM-020100throttle stop jet #47.5- Keyster = KYS-00B047,5piston- Keyster = K-856PKtop cover gasket- Keyster = M-29

KK-0028The set contains following articles:float chamber gasket- Keyster = YFCG-1- OEM = F214106119- OEM = 16019-008top cover gasket- Keyster = M-15float chamber valve setadjuster screw setjet needle #Y41=5EJ15- Keyster = KYJ-0041main jet #98- Keyster = KYM-020098throttle stop jet #35- Keyster = KYS-00B035piston- Keyster = K-856PK

KK-0029The set contains following articles:float chamber gasket- Keyster = YFCG-21float chamber valve- Keyster = KYV-03025- OEM = 16030-005piston- Keyster = K-856PKadjuster screw setjet needle #Y44=4EJ3main jet #85- Keyster = KYM-020085throttle stop jet #22,5- Keyster = KYS-00B022,5

KK-0038The set contains following articles:float chamber gasket- Keyster = K-5float chamber valve setadjuster screw setjet needle #D46=013001-3main jet #105- Keyster = KHM-110105throttle stop jet #38- Keyster = KHS-05C038sealing surfacediv. O-rings (see ill.)

KK-0042The set contains following articles:float chamber gasket- Keyster = YFCG-1- OEM = F214106119- OEM = 16019-008float chamber valve- Keyster = KYV-03025- OEM = 16030-005jet needle #Y42=5DJ19- Keyster = KYJ-0042main jet #75- Keyster = KYM-020075throttle stop jet #25- Keyster = KYS-00B025adjuster screw settop cover gasket- Keyster = M-29

KK-0046The set contains following articles:float chamber gasketfloat chamber valve setadjuster screw setjet needle #Y51=4EJ3main jet #85- Keyster = KYM-020085throttle stop jet #30- Keyster = KYS-00B030top cover gasket

KK-0049The set contains following articles:float chamber gasketfloat chamber gasketfloat chamber valve- Keyster = KYV-21016jet needle #Y77=4D93main jet #92- Keyster = KYM-01B092throttle stop jet #32div. O-rings (see ill.)

K-1138KKRThe set contains following articles:float chamber gasket- Keyster = NTMOR-015Gfloat chamber gasket- Keyster = NTMOR-016Gfloat chamber valve- Keyster = KVN-19A30- OEM = 16030-1057jet needle #D636= N53B- OEM = 16009-1328- Canada accordanceadjuster screw set- Keyster = KHSS-493- OEM = 16014-1054main jet #132- Keyster = KHM-110132- Canada accordancechoke pistonsthrottle stop jet #38

K-1138KKFThe set contains following articles:float chamber gasket- Keyster = NTMOR-015Gfloat chamber gasket- Keyster = NTMOR-016Gfloat chamber valve- Keyster = KVN-19A30- OEM = 16030-1057jet needle #D635= N53A- OEM 16009-1327- Canada accordanceadjuster screw set- Keyster = KHSS-493- OEM = 16014-1054main jet #132- Keyster = KHM-110132- Canada accordancechoke pistonsthrottle stop jet #38

K-1084SKMThe set contains following articles:float chamber sealing- Keyster = K67- OEM = 13258-04F00float chamber valve set- Keyster = KYV-50023- OEM = 13370-07F00- OEM = 13370-19E00div. O-rings (see ill.)

K-1084SKThe set contains following articles:float chamber gasket- Keyster = K67- OEM = 13258-04F00float chamber valve set- Keyster = KYV-50023- OEM = 13370-07F00- OEM = 13370-19E00div. O-rings (see ill.)

K-1066HKThe set contains following articles:float chamber gasket- Keyster = NTMOR-004G- OEM = 16163-MZ5-920float chamber valve set- Keyster = KVN-16N00- OEM = 16155-413-751adjuster screw set- Keyster = KHSS-484- OEM = 16016-MAS-670jet needle #D567 = J6CC- Keyster = KHD-0567Z- OEM = 16012-MAL-600needle jet - OEM = 16165-MAL-980main jet #135- Keyster = KHM-110135- OEM = 99101-KPE-1350main jet #138- Keyster = KHM-110138- OEM = 99101-KPE-1380main jet #140- Keyster = KHM-110140- OEM = 99101-KPE-1400throttle stop jet #40- Keyster = KHS-22B040- OEM = 99103-MT2-0400choke pistons- OEM = 16046-MAL-600drain plug- Keyster = F-130- OEM = 16015-MZ5-920 (set no.)div. O-rings (see ill.)

K-1053HKThe set contains following articles:float chamber gasket- Keyster = NTMOR-004G- OEM = 16010-MZ5-920float chamber valve- Keyster = KVN-19N00- OEM = 16155-MN9-004jet needle J3WA=#D571- Keyster = KHD-0571Z- OEM = 16012-MAY-620pilot jet- OEM = 16165-MN4-013adjuster screw set- Keyster = KHSS-484- OEM = 16016-MZ2-E00throttle stop jet #38- Keyster = KHS-22B038- OEM = 99103-MV9-0380main jet #135- Keyster = KHM-110135- OEM = 99101-KPE-1350choke pistons- OEM = 16046-MY5-850drain plug- Keyster = F-130- OEM = 16023-MV9-670div. O-rings (see ill.)

K-1045YKMThe set contains following articles:float chamber gasket- Keyster = NTMOR-021MG- OEM = 4XV-14562-00-00float chamber valve set with filter- Keyster = KYV-50015- OEM = 4KM-14107-15-00adjuster screw set

K-1044YKMThe set contains of following articles:float chamber sealing- Keyster = NTMOR-021MG- OEM = 4XV-14562-00-00float chamber valve set- Keyster = KYV-50015- OEM = 4KM-14107-15-00adjuster screw set- Keyster = KYSS-260

K-1042SKMThe set contains following articles:float chamber gasket- Keyster = NTMOR-021MG- OEM = 13258-33E00float chamber valve set with filter- Keyster = KYV-50015- OEM = 13370-20F00

K-1014KKMThe set contains of following articles:float chamber sealingfloat chamber valve set- Keyster = KYV-50015- OEM = 16030-1088adjuster screw setdiv. O-rings (see ill.)

K-766DS

F130

CPP3

CPP2F

KH-0125The set contains following articles:float chamber gasket- Keyster = K-12float chamber valve setadjuster screwjet needle #D32=16332main jet #65throttle stop jet #35

KK-0145FThe set contains following articles:float chamber gasket- Keyster = K-35- OEM = 92055-1222float chamber valve- Keyster = KVN-16R30- OEM = 16030-1007- OEM = 16030-028adjuster screw set- Keyster = KHSS-493jet needle #D477=N67Ineedle jetpilot jetmain jet #100- Keyster = KHM-110100throttle stop jet #35- Keyster = KHS-05C035drain plug

KH-0020The set contains folloing articles: float chamber gasket - Keyster = K-9 - OEM = 16010-346-305 (old) - OEM = 16010-283-004 float chamber valve set - Keyster = KHV-03020 - OEM = 16011-375-004 (old) - OEM = 16011-302-004 adjuster screw set - OEM = 16016-283-004 jet needle #D8 - OEM = 16012-283-004 main jet #125 - OEM = 99106-12504 throttle stop jet #40 - OEM = 99124-292-0400 div. O-rings (see ill.)

KH-0025NThe set contains following articles:float chamber gasket- Keyster = K-5float chamber valve setadjuster screwjet needle #D19 = 27202needle jetmain jet #110- Keyster = KHM-110110throttle stop jet #38

KH-0062The set contains folloing articles:float chamber gasketfloat chamber valve setadjuster screwjet needle #D35 = 13206main jet #50- Keyster = KHM-01H050throttle stop jet #38

KH-0098NThe set contains folloing articles:float chamber gsket- Keyster = K-11- OEM = 16172-030-004cover gasket- OEM = 16171-304-004float chamber valve set- OEM = 16011-355-004adjuster scre set- OEM = 16162-202-004throttle cable stop screw set- OEM = 16163-056-004jet needle 16302=#D1- Keyster = KHD-0001A- OEM = 16151-304-004needle jet- OEM = 16133-246-004main jet #95- Keyster = KHM-110095- OEM = 99114-304-0950throttle stop jet #38- OEM = 99124-089-0381div. O-rings (see ill.)

KH-0115The set contains following articles:main jet #130- Keyster = KHM-080130throttle stop jet #38jet needle #D14=53000adjuster screw- OEM = 16016-292-004float chamber gasketKeyster = K-9- OEM = 16010-346-305- OEM old = 16010-283-004float chamber valve set- OEM = 16011-375-004- OEM old = 16011-302-004

KH-0116The set contains following articles:main jet #145- Keyster = KHM-080145throttle stop jet #38jet needle #D31=052301adjuster screw- OEM = 116016-344-690- OEM alt =16016-346-004float chamber gasket- Keyster = K9- OEM = 16010-346-305- OEM alt = 16010-283-004float chamber valve set- OEM = 16011-375-009- OEM alt =16011-302-004

KH-0117The set contains following articles:float chamber gasket- Keyster = K-5- contains float chamber gasket from the following OEM gasket sets:- OEM = 16010-300-305- OEM = 16010-300-014float chamber valve set- Keyster = KHV-03020- OEM = 16011-302-004- OEM = 16011-375-004jet needle 273001=#D90main jet #120- Keyster = KHM-110120throttle stop jet #40

KH-0120FThe set contains following articles:float chamber gasket- Keyster = K-10Ffloat chamber valve set- Keyster = KHV-08022- OEM = 16011-287-D04adjuster screwjet needle #D30main jet #105- Keyster = KHM-100105throttle stop jet #35-OEM = 99124-286-0351-KHS-070035

K5

K-771DK, safety valveOEM = 2J2-14940-00OEM = 2H0-14940-00
