OPTIMUM drill bit grinder "Quantum GQ-D13"

handy grinder, for easy grinding of twist drills from Ø 3 to Ø 13mm
Easy operation for cost-effective grinding of double-edged twist drills. Drill grinding without previous knowledge. Easy to transport. Easy exchange of the grinding wheel. Sharpening forced action and therefore easy to use. Automatic grinding of the tip geometry thanks to the cam. Robust plastic housing with non-slip feet. Diamond grinding stone with long life for a perfect finish.

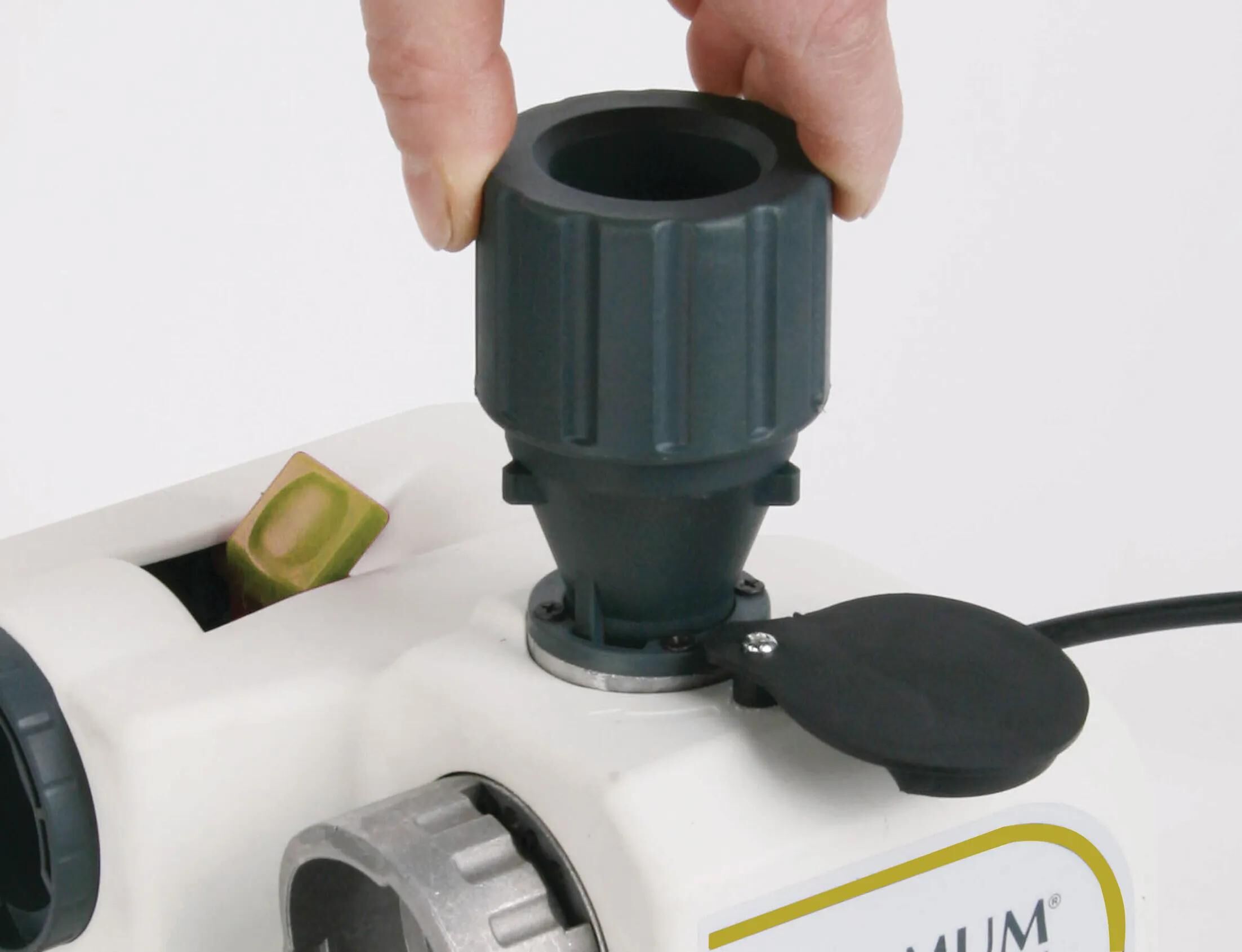

Scope of delivery: diamond grinding disc, collet chuck mount
Technical data: voltage: 230V, main frequency: 50 Hz, engine power: 80W, continuously speed: 4200 min-1, grinding disc diameter: 78mm, drill grinding capacity: 3 - 13 mm, dimensions (LxWxH): 220 x 200 x 160mm

Three steps to the ground drill:

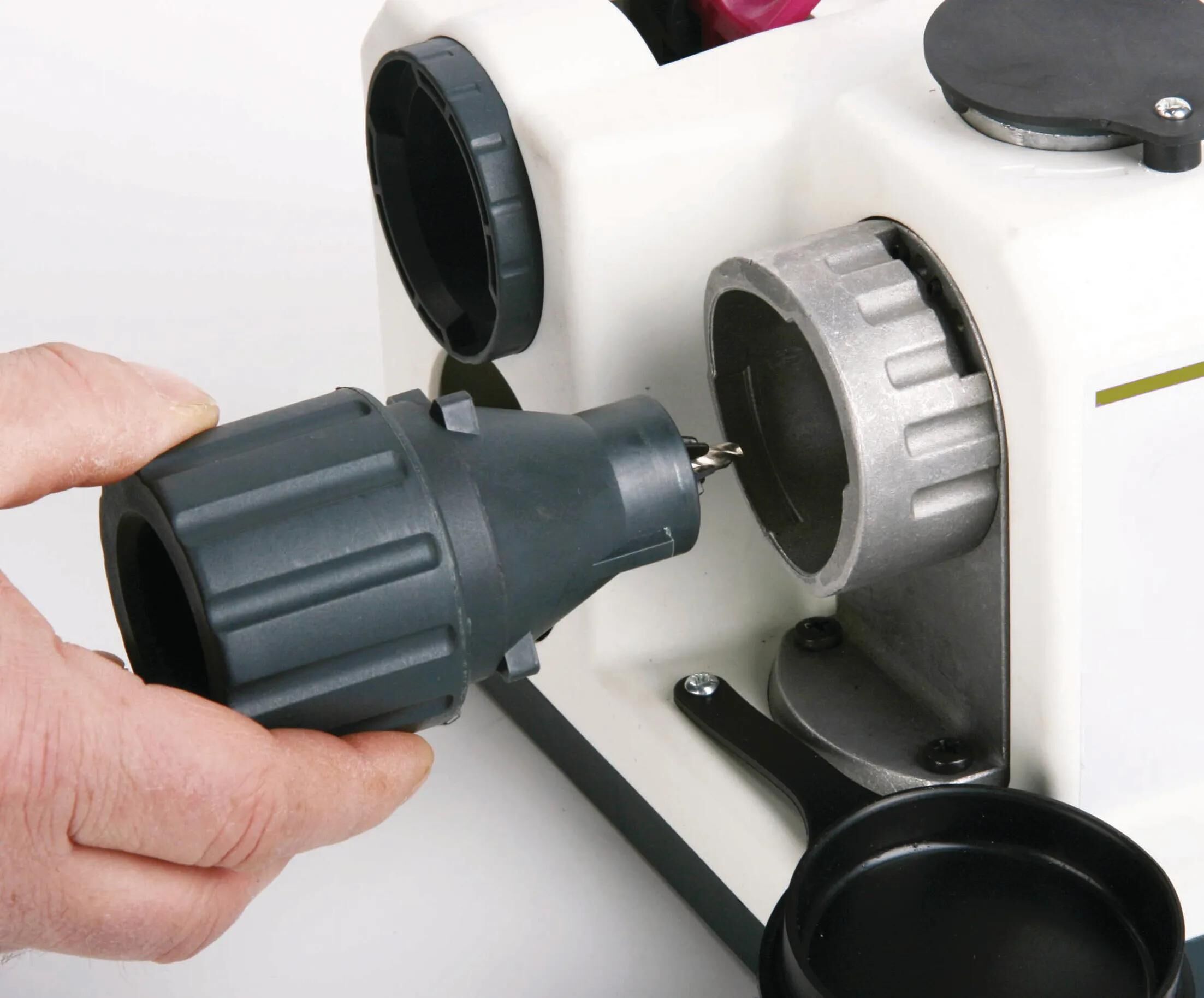

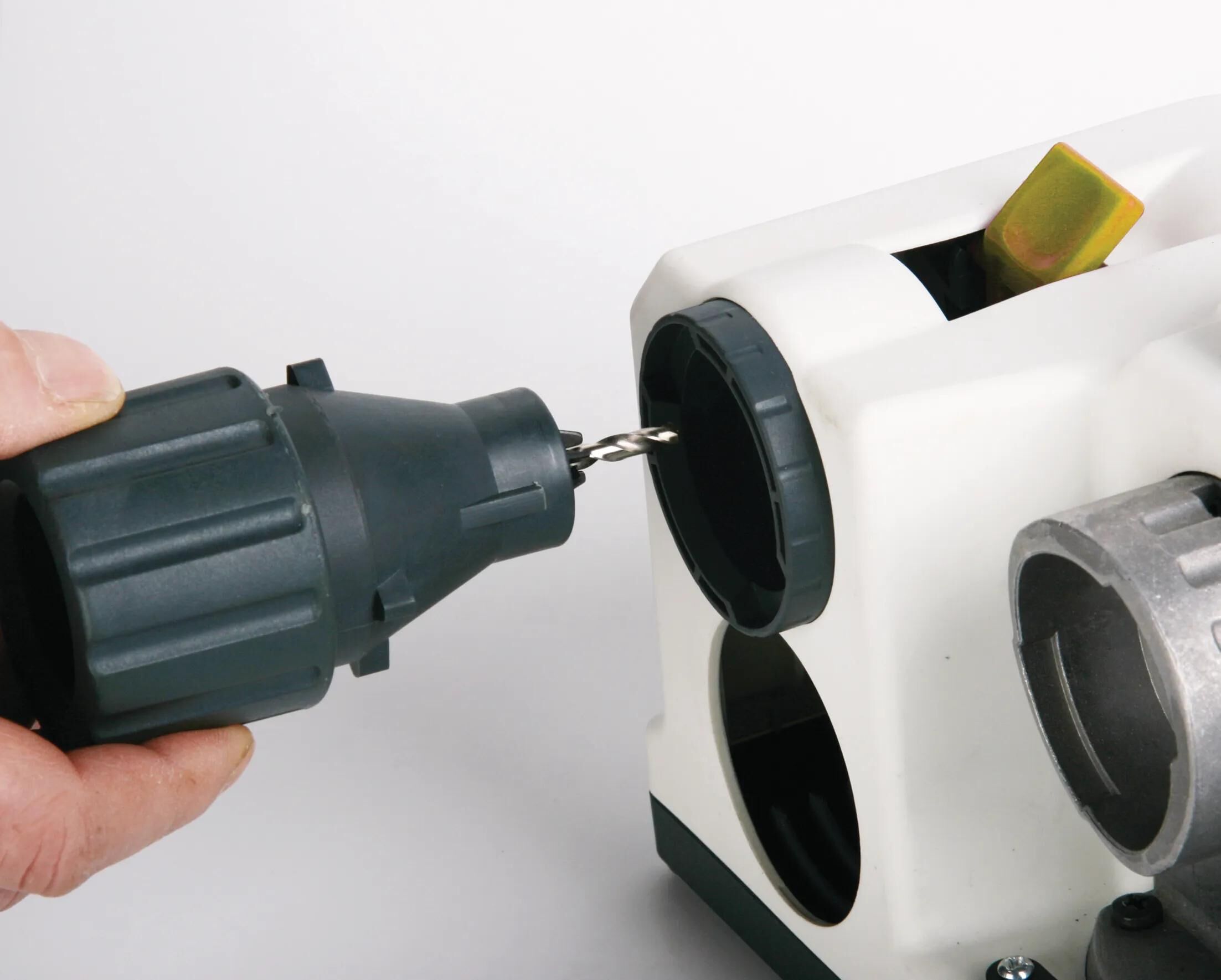

Put the drill - twist drill is aligned in the overhang length and at right angles
Gring the drill - with slight rotation from stop to stop
Tip the drill - also with slight rotation from stop to stop
