RAVAGLIOLI wheel aligner "RAV3D2.0WALL.3S"

• Art.-Nr.: 65326209
• Org.-Nr.: RAV3D2.0Wall.3S

measuring head technology with HD cameras and Real 3D targets, wireless transmission via Bluetooth

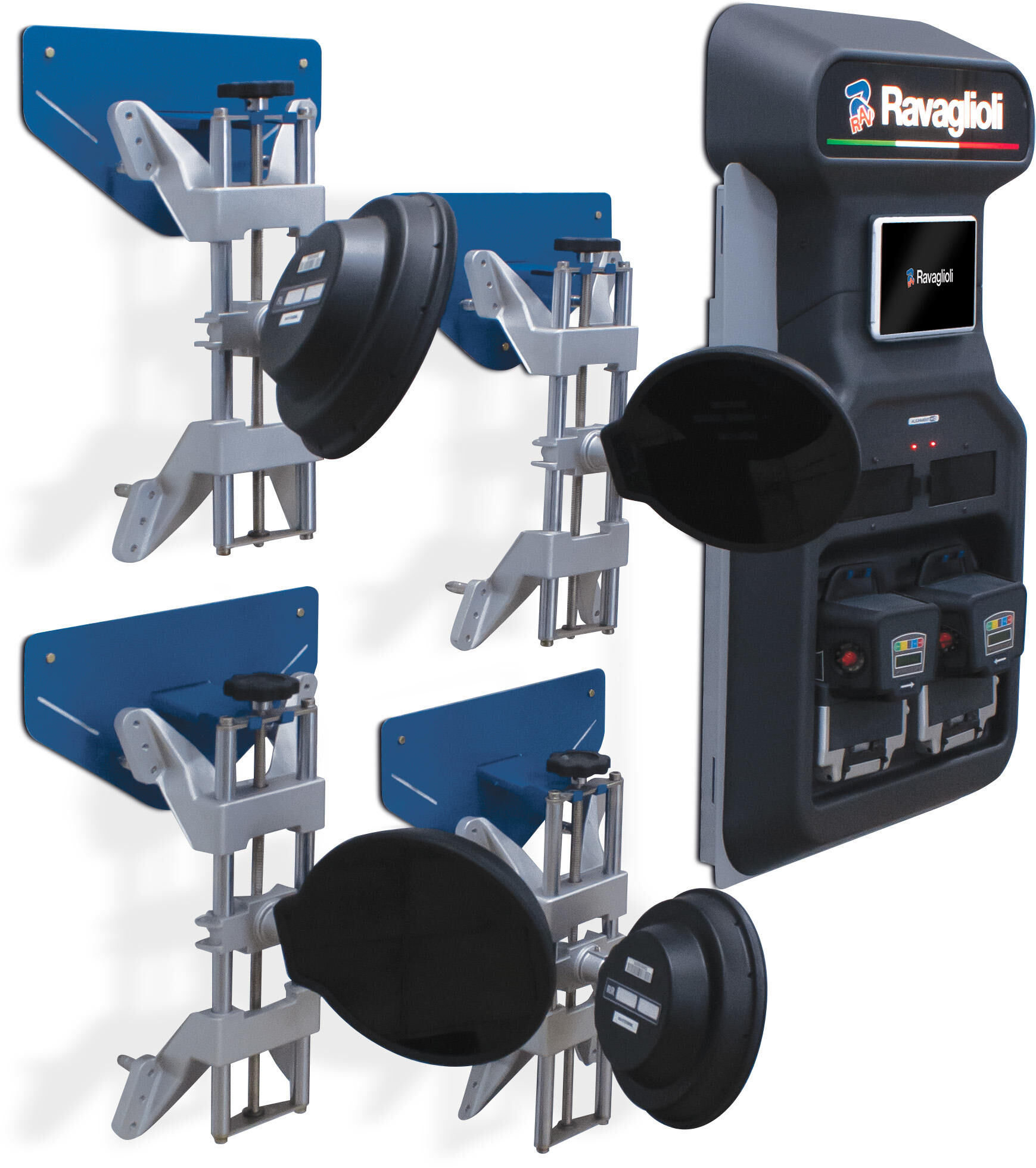

The AllOnWall Series offers everything needed for wheel alignment. With a convenient wall panel, gaining useful space in the workshop. All adjustment work can be controlled via a 10" tablet, which the operator can carry with him or position on the lift during adjustment, using the integrated magnets. The 3D measuring heads detect all the angles of the vehicle within seconds. The targets installed on the wheel clamps in Real 3D structure are extremely light, maintenance-free and without electronic components.

Scope of delivery:
1x tablet with 10" multitouch display (800 x 1280 pixels) and holding magnets (rechargeable on the panel).
1x charging station (with magnets) for positioning two batteries
1x housing with shock protection rubber mat for safe placement of the 3D measuring heads
4x self-centering 3-point quick release wheel clamps
2x standard turntables (Ø 300 mm)
1x steering wheel lock
1x brake pedal clamp
STDAPREMIUM (token for additional functions), STDA110 (vehicle database), STDA162 (set of brackets for mounting on the lift - 2 pieces)
