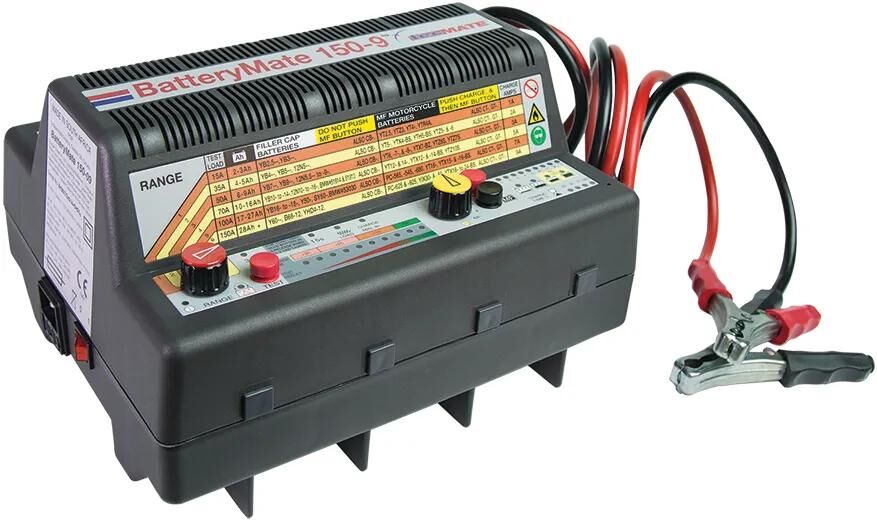

TECMATE Battery Charger "BatteryMATE 150-9"

• Art.-Nr.: 05415708
• Org.-Nr.: TS01VDE

The automatic, multi-stage 12 volt charger for the workshop incl. wall bracket. Ideal for 12V standard, AGM and gel batteries from 2Ah - 40Ah rated capacity. The charging circuit automatically detects sulfated batteries and initiates their rescue. It also includes a unique, automatically adjusting program for the vital initial "pick charge" of new encapsulated MF/AGM motorcycle batteries. 6 constant current charge settings from 1Ah - 9Ah and a 4-stage charge program.

Quick activation of new batteries: 30 minutes activation charge only for new batteries filled with acid immediately before charging, such as standard wet batteries with removable caps and dry-charged AGM MF batteries supplied with a separate acid pack.

Charge tester selectable from 15A to 150A: Automatically tests the starting current of the battery up to 330 CCA. A 3 seconds test simulates the normal starting of the engine, a 15 seconds test determines the health status of the battery.

Motorsport specific charging algorithm: 4-stage charge saves any 12V battery. MF mode allows up to 16,9V for dry charged AGM batteries.

Temperature regulated charge: The charging voltage is adapted to the ambient temperature. (-4mV /°C / cell above / below 68°F / 20°C).

Accurate voltage measurement: The charging cables are equipped with integrated voltage sensor wires for accurate voltage measurement at the battery.

User-friendly: The 6-position combination field switch allows selection of the correct test and charge current for the connected battery. TEST and then select the maximum charging time according to the result, press the CHARGE key. The program automatically completes the charge and then checks the battery.

Charging current: 9A maximum, 1, 2, 3, 5, 7, 9 Amp. selection
Test current: 150A max., 15, 35, 50, 70, 100, 150 Amp. selection
Use: rooms / workshop environment (lowest temperature: -4°F / -20°C)
Rescue: start with low voltage of 1V + desulfation rescue with high power
Input: selectable 110 - 120 VAC / 220 - 240 VAC, 50 - 60Hz, with main switch and replaceable fuse
Design: Ventilated industrial desktop enclosure with optional wall mount (TS-218), 6ft / 180cm power cord, and 1 pair of 6ft / 180cm high current draw charging cables with heavy duty battery terminals

Safety: No risk of overcharging, spark suppression, safe for long term battery maintenance, automatic shutdown in case of short circuit or disconnected battery, 2 years warranty.
