tecMATE Ignition tester "IgnitionMate"

peak voltage ignition tester with dual display for troubleshooting spark ignition systems
Specially designed for the measurement and dynamic display of primary and secondary ignition signals using bright LED bar graphs. To compare two different signals on one cylinder. Reliably indicates the status of any ignition system such as high voltage, capacitor, transistor or simple contact ignition, whether digital or analog design.

Different ignition system types (AC-CDI, DC-CDI, transistor, magneto ignition, ignition coil and ignition points) have the same basic components, the measured signals are usually similar in terms of nature and magnitude.
Disassembly of ignition components is not necessary. (This avoids the accidental introduction or correction of defective contacts into the system, which could further complicate and delay the resolution of the unidentified issues) Two signals of the same cylinder can be compared simultaneously.
Secondary high voltage / peak voltage 10, 20, 40 kV scales use the tapping pliers to measure the high voltage between the ignition coil and spark plug.
Spark current: MMeasure the consistency of the high voltage spark current signal and detect/indicate misfire 10, 40 or 400 Vpk scales with the RED and BLACK silicon test leads, primary signals are measured between the ICU and power supply (battery or charging coil), control pickup (pulse coil or Hall sensor), ignition coil and switches (key, emergency stop, stand, throttle).

Cylinder: 1 (two signals)
Method: comparison and display of two different signals on the same cylinder

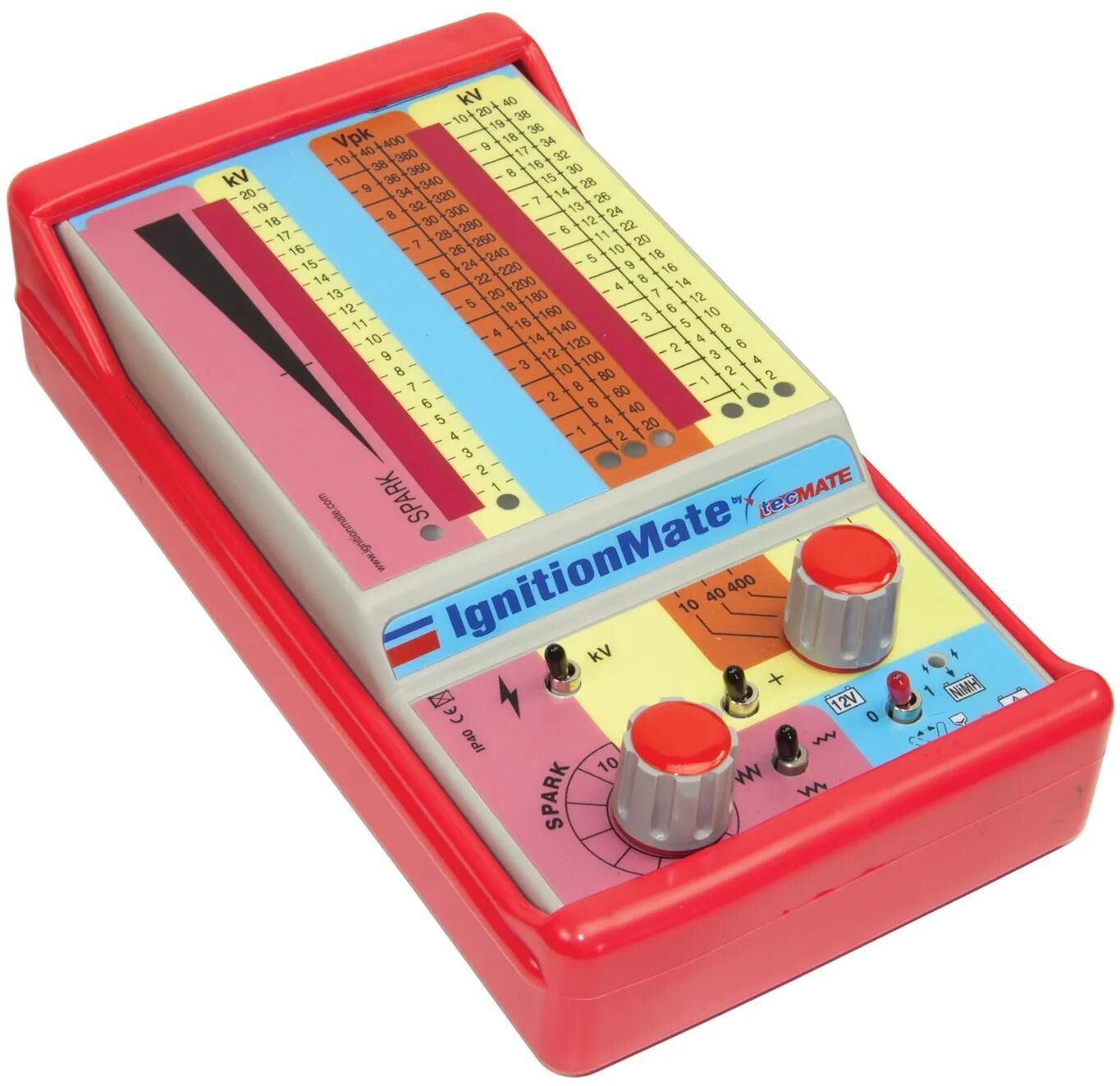

Display/ resolution: 2 displays with 40 very brigh LEDs
Selection/ setting:
Left display: Selection between 20 kV and spark. Spark sensitivity setting
Right display: selection of primary voltage 10, 40 or 400 VPK, selection of secondary voltage 10, 20 or 40 kV.
Polarity of kV voltage: single output coils have negative signals, dual output coils have negative and positive signals
Main switch, including automatic shutdown when no signal is measured
Current: Rechargeable 7,2V NiMH battery provides 6 hours autonomy, external supply of 12V DC (11 15V DC)

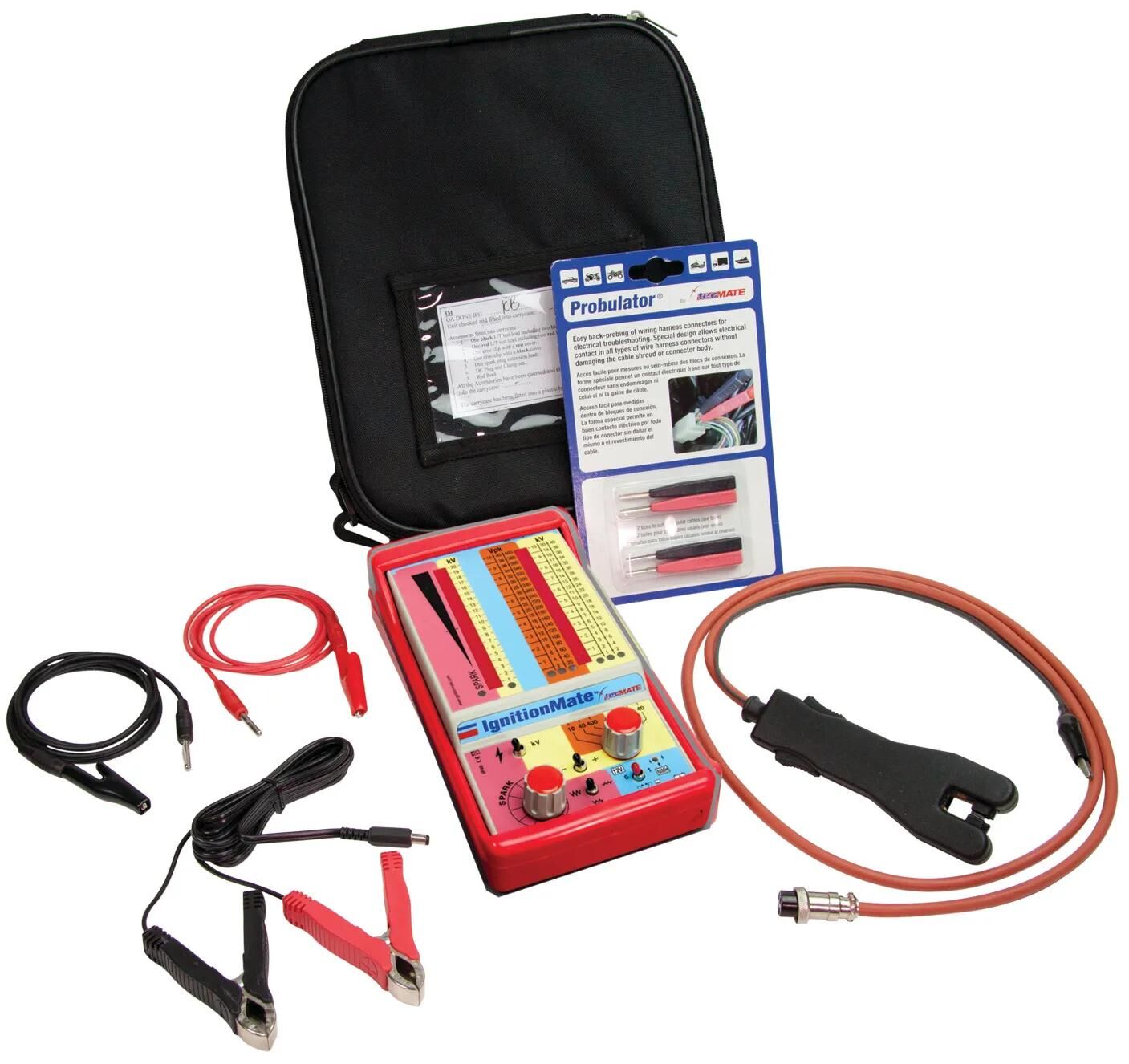

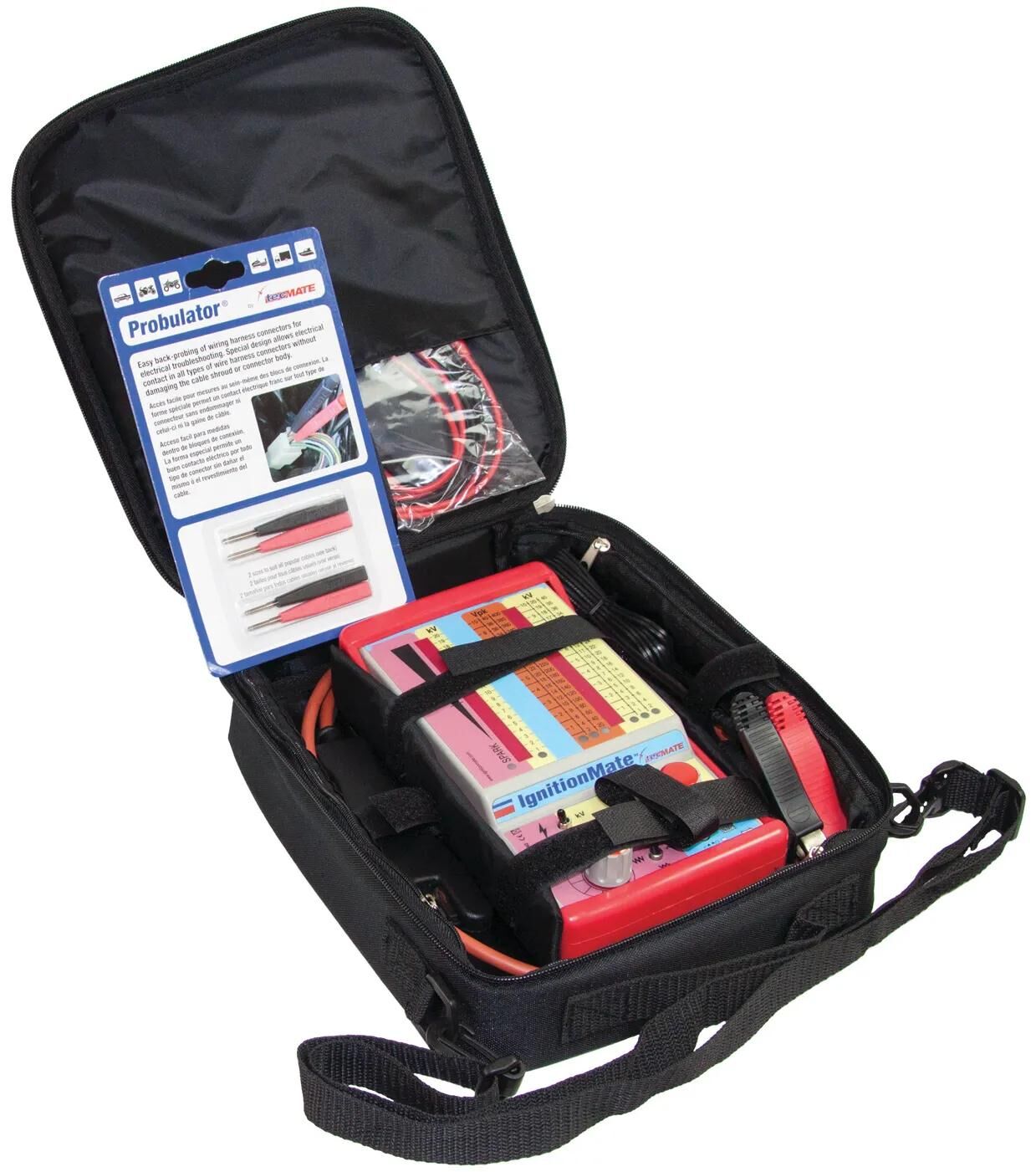

Design/ scope of delivery: standard set includes instrument with rugged rubber protective case, combination high voltage signal pickup with silicon lead, ignition coil adapter, silicon test lead set with insulated crocodile clips and probulator test probes, a 6 ½ ft / 200cm long 12V cable and a manual with quick start guide.
