CONTEC Aluminium Rim "Xeta"

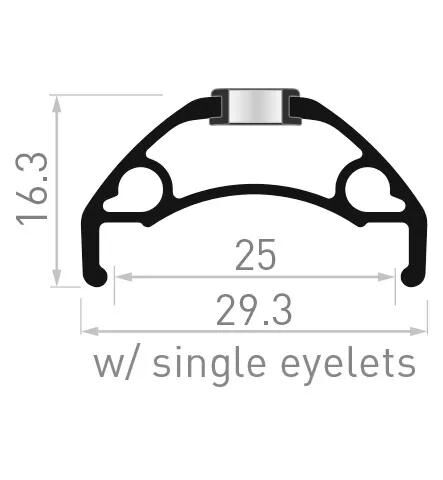

25-584, 570 mm ERD (incl. spoke holes measured), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 534 g
- Nº de artículo 03498160
- Org.-Nr.: 3114Q32AB0
27.5", 32 hole, tubeless ready, black
aluminum, hollow chamber
single eyelet, SV, max. load up to 150 kg system weight, max. spoke tension 1200 Nm, suitable for E-bikes, for Disc Brakes
VE 25
Información sobre el producto
- Agujero 32 holes
- Agujero del radio easy eyelets
- Alojamiento de freno disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Altura 16.0 cm
- Anchura 29.3 cm
- Artículo Article
- Cerchio del freno no
- Color principal Negro
- Compatibilidad frenos disc
- ETRTO 25-584
- Felgenhöhe 16.3 mm
- Medida de Ruedas 27,5 "
- Para rueda yes
- Peso máximo admisible del sistema 150 kg
- Sistema tubeless tubeless ready
- Texto configurador de ruedas suitable for E-bike
- Tipo de válvula Sclaverand (SV)
- Versión doublewall
- Número de artículo del proveedor: 3114Q32AB0
- EAN: 4251971141087
- UVP: 39,95 €
- Bidex-Code: 204010
- Fedas-Code: 160464
- DST-Code: 2P02
- SB-Artículo: No
- Marca/Proveedor CONTEC
- Unidad de medida: PIECE
- Gewicht: 0.515 kg
The ideal basis for building a tubeless-ready Wheel for 27.5" (650B) wheels with 32 spokes. Thanks to the hollow chamber design, the Xeta rims made of 6063 aluminum are particularly light and stable. In the finished Wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 25 mm, tires ranging in size from 42 to 62 mm fit on the rim. The single eyeletted nipple holes ensure additional durability of the rim by reducing the friction between the Spoke Nipple and the rim and also prevent the Nipples from working their way into the rim. The Xeta rim is only suitable for wheels with disc brakes. You can find suitable tubeless rim tapes in our CONTEC range.
Ejecuciones
Con la ayuda del campo de búsqueda, puede refinar la selección de variantes de producto.
| Artículo | Precio | |
|---|---|---|
 25-584, 570 mm ERD (incl. spoke holes measured), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 534 g Leer más... Weniger lesen
| VE 25 | |
 27-584, 567 mm ERD (incl. spoke holes measured), 18 mm high, 27 mm inner width, 31 mm outer width, approx. 543 g Leer más... Weniger lesen
| VE 25 | |
 30-584, 566 mm ERD (incl. spoke holes measured), 18.15 mm high, 30 mm inner width, 34 mm outer width, approx. 579 g Leer más... Weniger lesen
| VE 25 | |
 35-584, 566 mm ERD (incl. spoke holes measured), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 633 g Leer más... Weniger lesen
| VE 25 |
