CONTEC Aluminium Rim "Xeta"

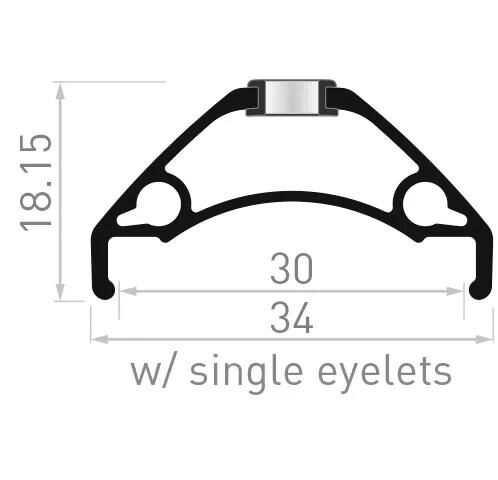

30-584, 566 mm ERD (measured including spoke holes), 18.15 mm high, 30 mm inner width, 34 mm outer width, approx. 579 g
- Nº de artículo 03498161
- Número original: 30002487
27.5", 32-hole, tubeless-ready, black
Aluminum, hollow-wall
single-eyelet, SV, max. load up to 150 kg system weight, maximum spoke tension 1200 N, suitable for e-bikes, for Disc Brakes
PU 25
Información sobre el producto
- Agujero del radio easy eyelets
- Alojamiento de freno disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Altura 18.0 cm
- Altura de la llanta 18.2 mm
- Anchura 34.0 cm
- Artículo Article
- Cerchio del freno no
- Color principal Negro
- Compatibilidad frenos disc
- ETRTO 30-584
- Medida de Ruedas 27,5 "
- Modelo de llanta Xeta
- Número de orificios para radios 32 holes
- Para rueda yes
- Peso máximo admisible del sistema 150 kg
- Sistema tubeless tubeless ready
- Texto configurador de ruedas suitable for E-bike
- Tipo de bicicleta eléctrica ready
- Tipo de válvula Sclaverand (SV)
- Versión doublewall
- Número de artículo del proveedor: 30002487
- EAN 5604315354732
- UVP 39,95 €
- Bidex-Code 204010
- Fedas-Code 160464
- DST-Code 2P02
- SB-Artículo No
- Marca/Proveedor CONTEC
- Unidad de medida: PIECE
- Weight 0.555 kg
The ideal foundation for building a tubeless-ready wheel for 27.5" (650B) bikes with 32 spokes. Thanks to its hollow-chamber construction, the Xeta Aluminium Rim, made of 6063 aluminum, is particularly lightweight and sturdy. When assembled into a complete wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 30 mm, tires ranging from 60 to 75 mm in width fit on the rim. The single-eyelet spoke holes ensure additional durability of the aluminium rim by reducing friction between the Spoke Nipples and the rim and also preventing the Nipples from grinding into the rim. The Xeta rim is only suitable for wheels with disc brakes. You can find compatible tubeless rim tape in our CONTEC product range.
Ejecuciones
Con la ayuda del campo de búsqueda, puede refinar la selección de variantes de producto.
| Artículo | Precio | |
|---|---|---|
 25-584, 570 mm ERD (measured including spoke holes), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 534 g Leer más... Read less
| PU 25 | |
 27-584, 567 mm ERD (measured including spoke holes), 18 mm high, 27 mm inner width, 31 mm outer width, approx. 543 g Leer más... Read less
| PU 25 | |
 30-584, 566 mm ERD (measured including spoke holes), 18.15 mm high, 30 mm inner width, 34 mm outer width, approx. 579 g Leer más... Read less
| PU 25 | |
 35-584, 566 mm ERD (measured including spoke holes), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 633 g Leer más... Read less
| PU 25 |
