Headlight Adjustment Point "SEP 4800 PKW"

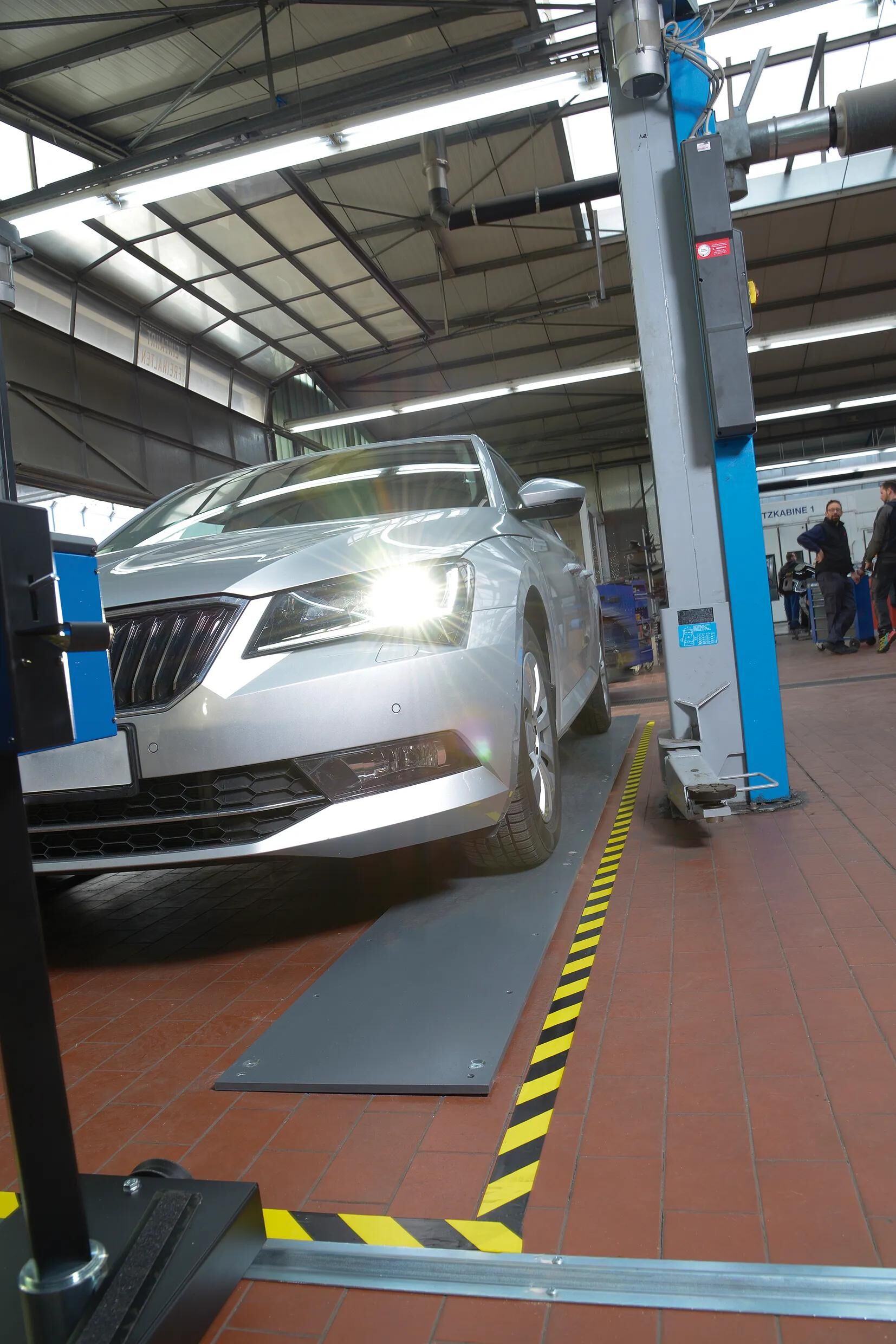

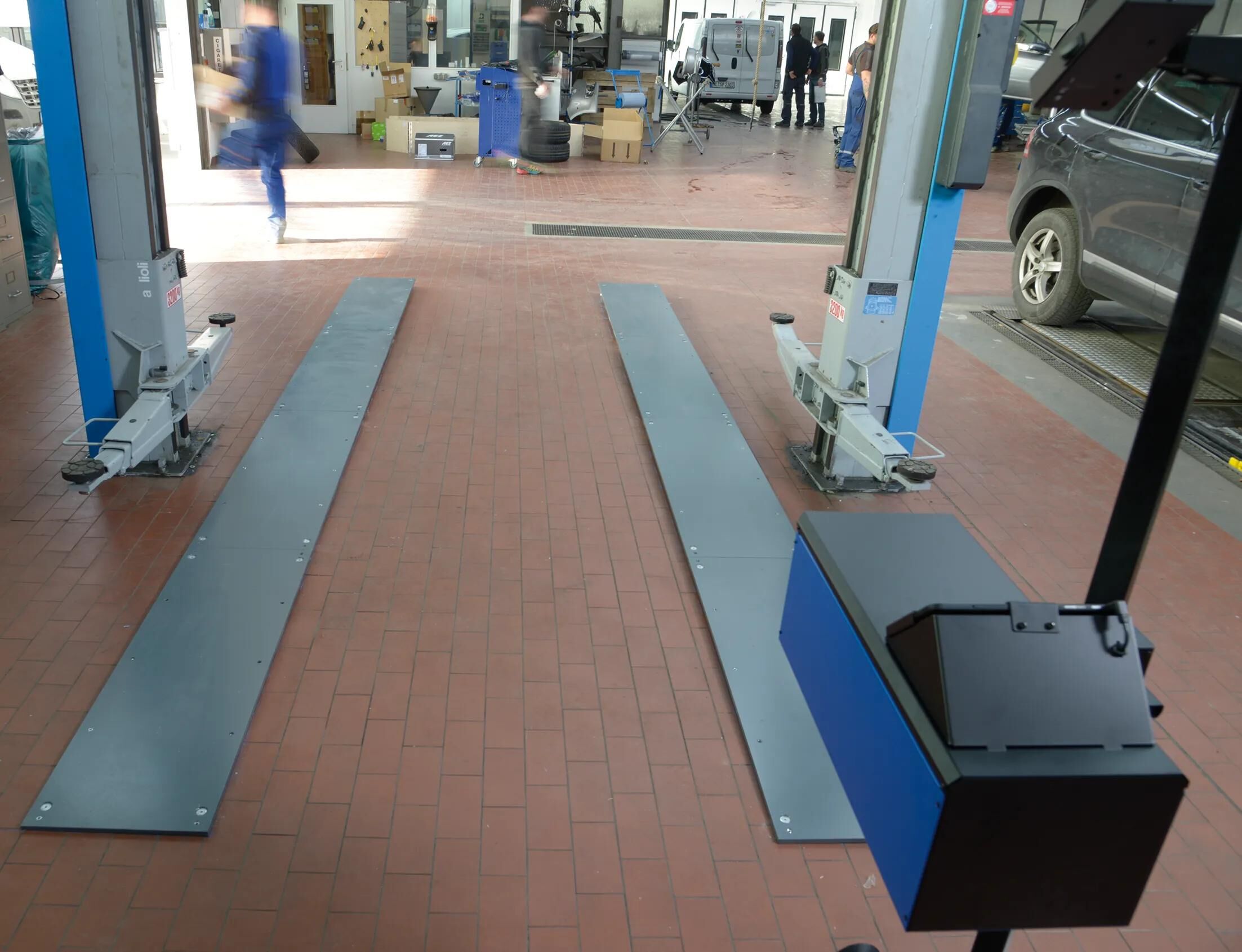

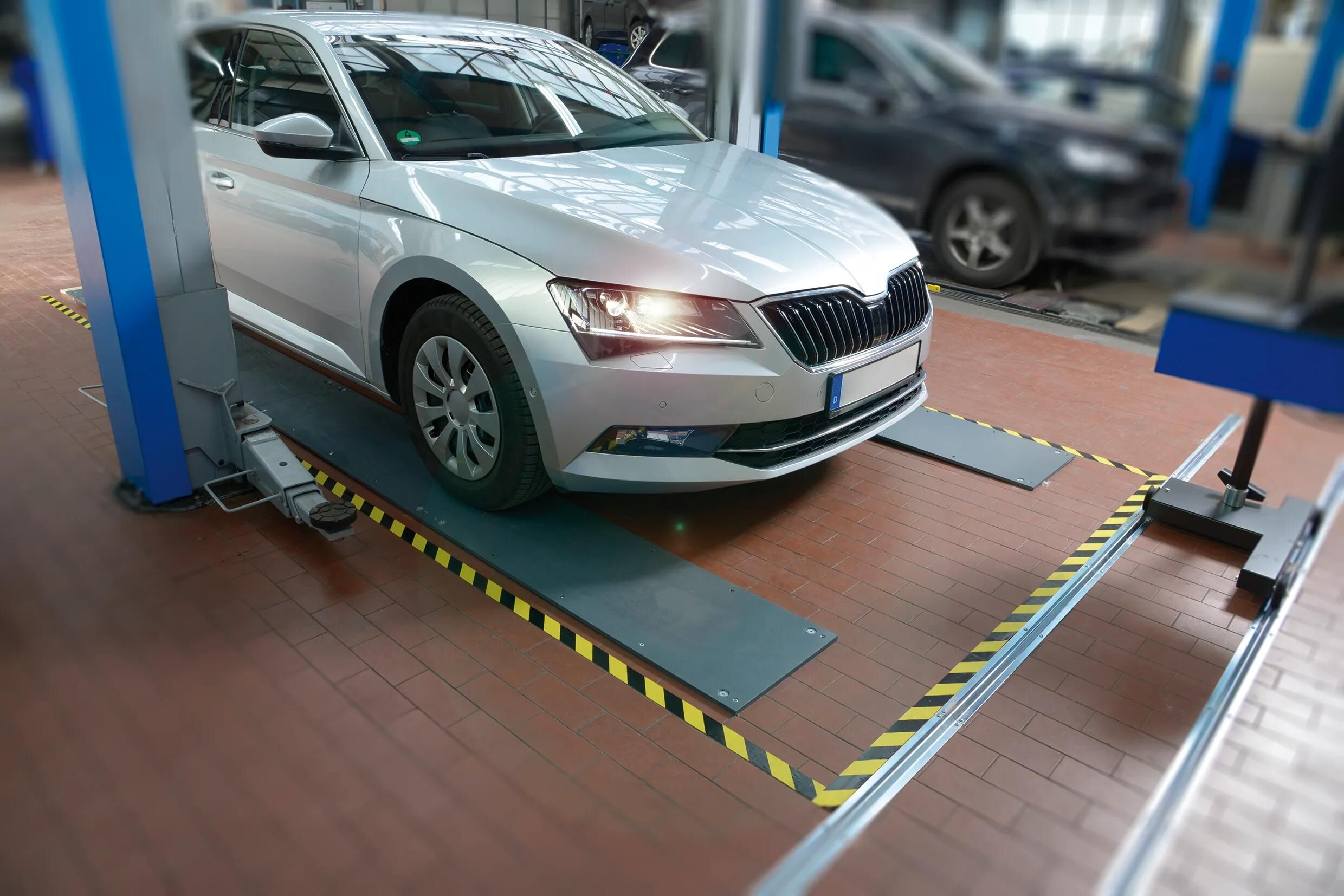

headlight leveling adjustment point for cars and transporters, 4888mm inspection surface

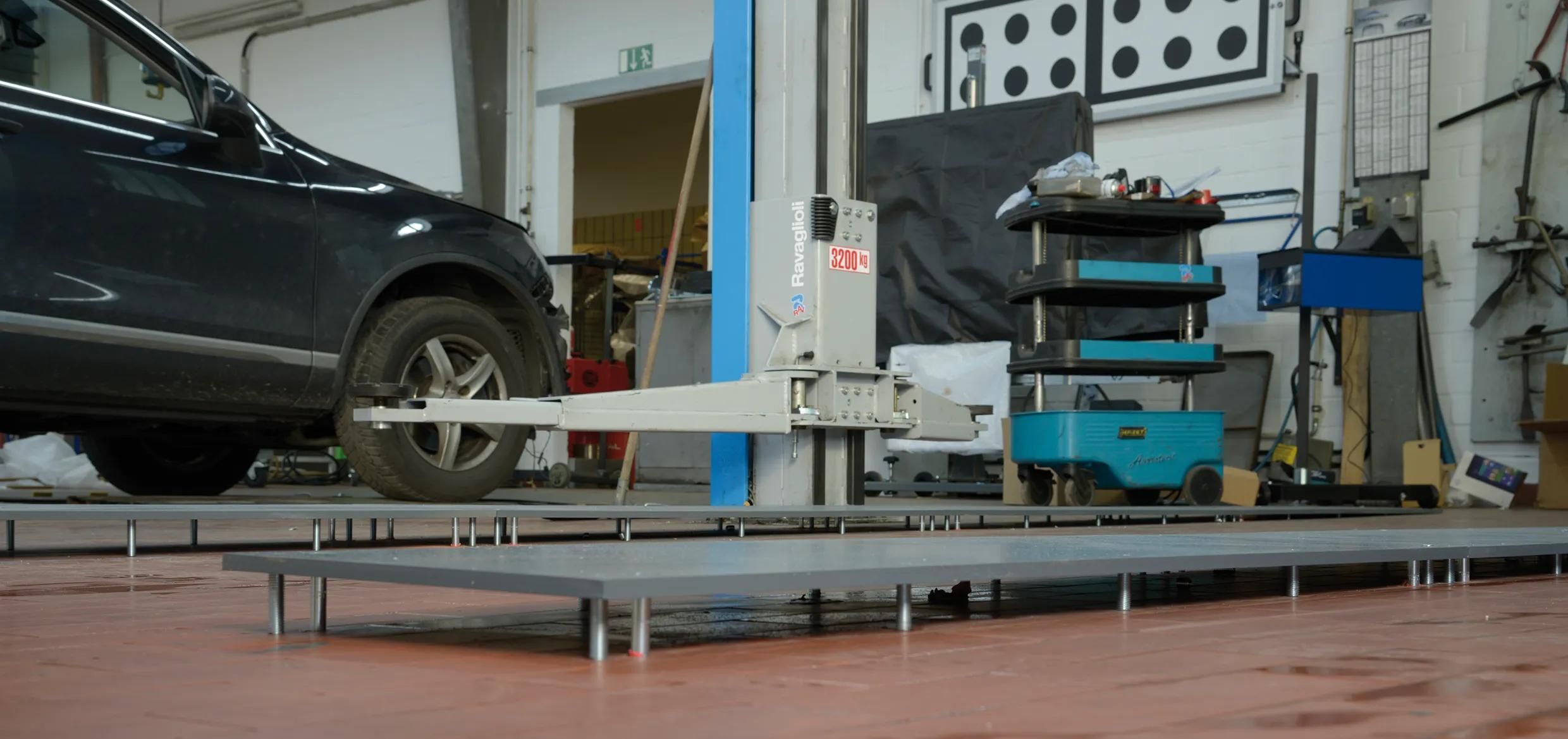

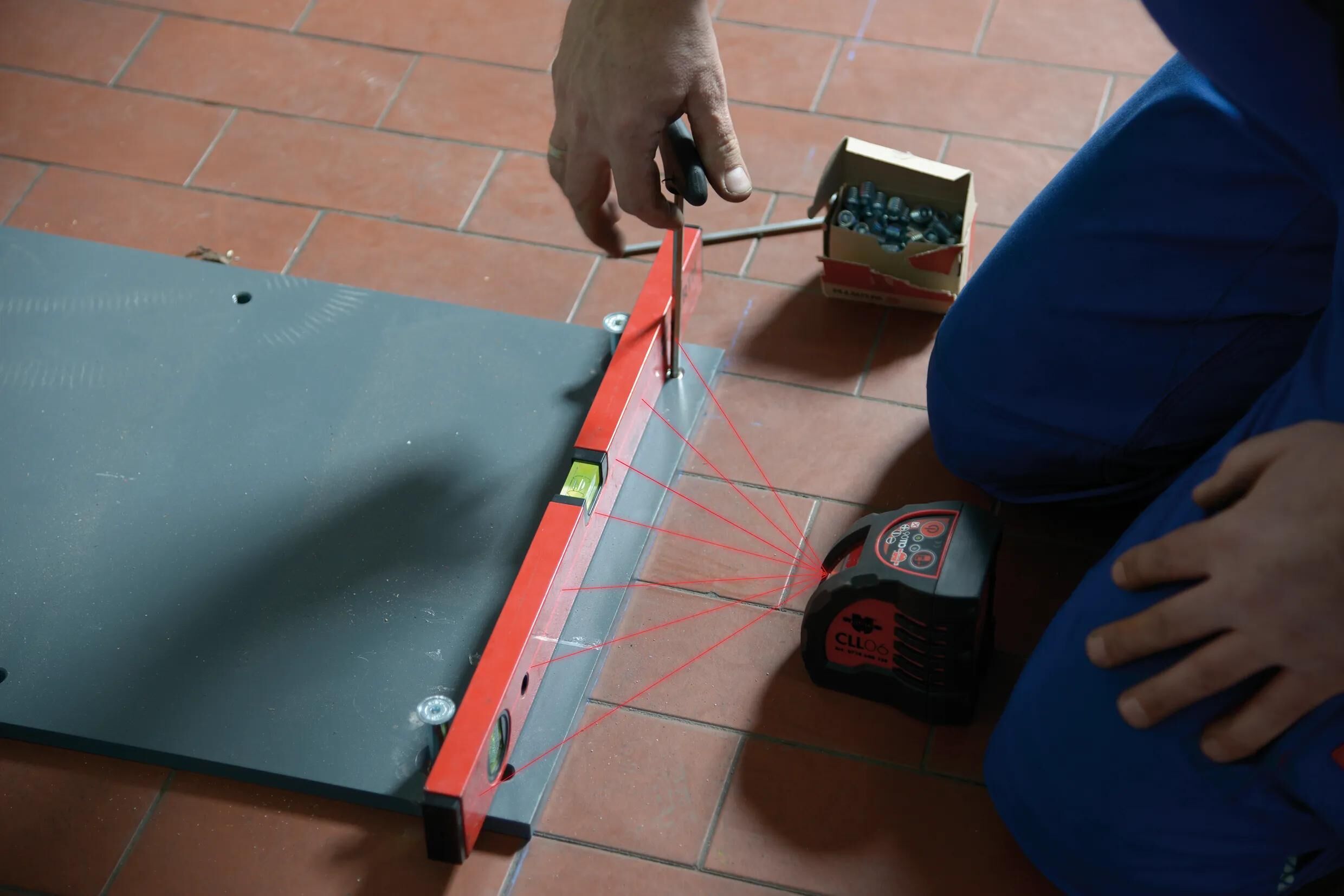

Possibility of compensation for garage floors slope and uneven surfaces or to comply with defined conditions on the headlight adjustment point.
Technical data: Material: S355MC 2x rolled (high-strength steel for cold forming, thermomechanical rolled), 2x 4 plates with 1220mm finished by DIN ISO 2768-mT, each plate is adjustable through threads by DIN 18202 14 x levelling possibilities, allowed axle load: 3,5t, height compensation: standard type till 50 mm, extension till 100mm possible (alignment and under lining on site), single weight: 45,79kg per plate, total weight: 366,32kg (set), drive area: according GUV-R 181 with non-slipping surface R11, coated in RAL 7011 (metal grey)
Note: Meets all requirements of the guideline according to Appendix 4, § 29 StVZO HU headlight test guideline!

plus freight and assembly costs
